Description

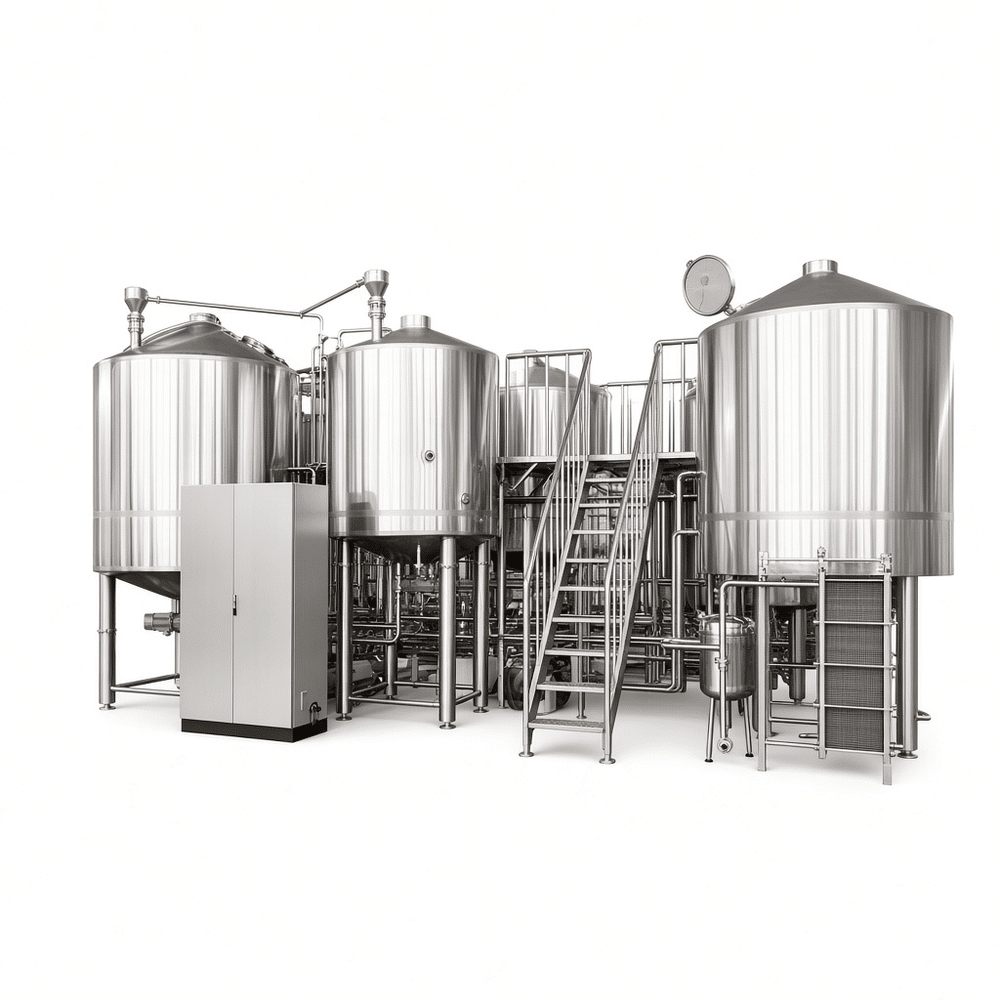

What a four-vessel 10BBL brewhouse solves
Ten barrels is about 1,170 liters of wort per turn. The reason most buyers step up to separate mash tun, lauter tun, kettle and whirlpool vessels is throughput: the lauter bed stays undisturbed while the kettle heats, and the whirlpool cone settles while the kettle is being cleaned for the next turn. Breweries running two or three turns a day need that separation. A single-turn brewpub usually does not, and we say so before quoting.
Fabrication details
Product-contact surfaces are SUS304 as standard, 3mm shell plate, TIG welded with full penetration and pickled after welding. We switch to 316L when the water report shows elevated chloride or when the brewing schedule includes heavy kettle souring. Interior finish is 2B, exterior #4 brushed; mirror polish is available but adds cost and reflects scratches. Gaskets are EPDM for wort lines, silicone where temperatures run above 100°C. Kettle jackets are rated 0.3MPa and shipped with a relief valve sized to the jacket, not to the vessel.
Typical applications
Production breweries, contract brewing, and brewpubs with a taproom volume above roughly 500 hectoliters a year. Skid-mounted or platform-mounted layouts both work; we size the pipe runs to your ceiling height, which is the detail most often missing from an inquiry.
Specifications
| Batch size | 10BBL / approx. 1,170L per turn |
|---|---|
| Vessels | Mash tun, lauter tun, kettle, whirlpool |
| Material | SUS304 standard, SUS316L optional |
| Shell thickness | 3mm inner / 2mm outer |
| Heating | Steam jacket, electric, or direct fire |
| Insulation | 50–80mm rock wool or PU |
| Surface | 2B interior, #4 exterior |
| Control | Manual, semi-auto, or PLC with recipe logging |
Before you request a quote
Send batch size, expected turns per week, ceiling height, steam availability, and the beer styles you plan to run. Those five answers determine vessel count, heating method and whether a grant or wort receiver is needed. Tell us your batch size, beer type, number of vessels and available floor space. We can recommend the tank volume, jacket area and configuration for your brewery.
