Description
Purpose and footprint

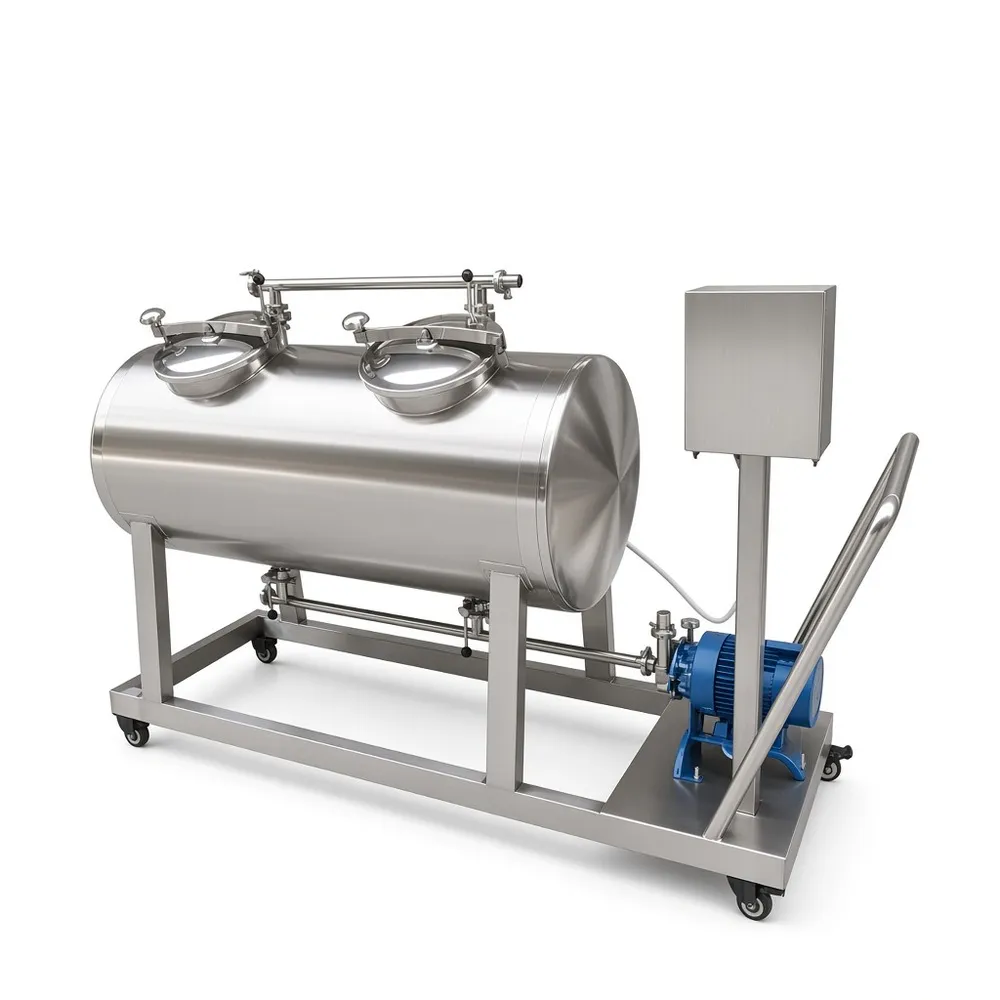

We build this 200L mobile CIP unit for plants that need a dedicated cleaning skid but don\’t want a fixed central system. Pilot brewhouses, dairy receiving bays, tanker fleets, and sauce lines with frequent changeovers use it to recirculate wash solutions through tanks, transfer pipes, and fillers. Casters let one unit serve several loops when the piping layout allows.
Cycle basics
Standard sequence: pre-rinse, alkaline wash, intermediate rinse, acid wash, final rinse, optional sanitize. The return pump pulls solution from the low point to prevent air locks. We size the supply pump against your longest pipe run—not just tank height. Mention spray balls or plate heat exchangers before we finalize the pump curve.
Tank configuration and capacity

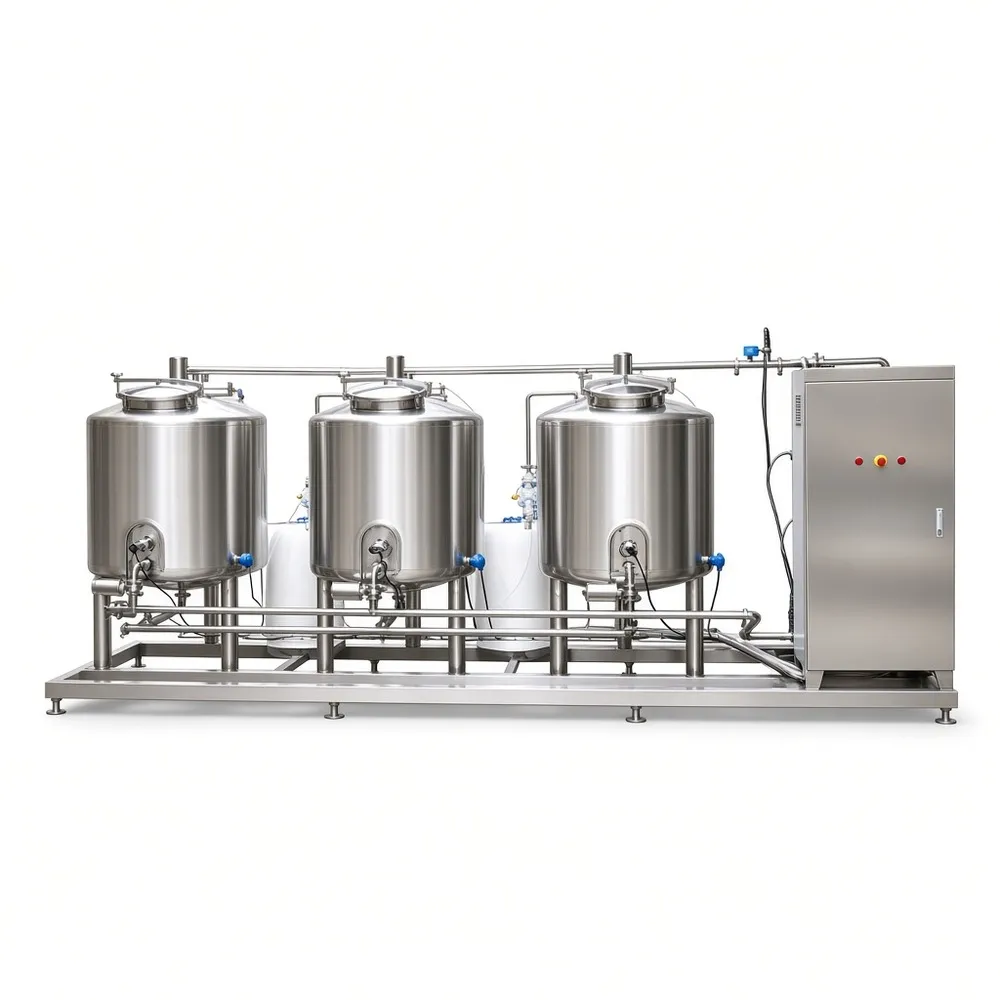

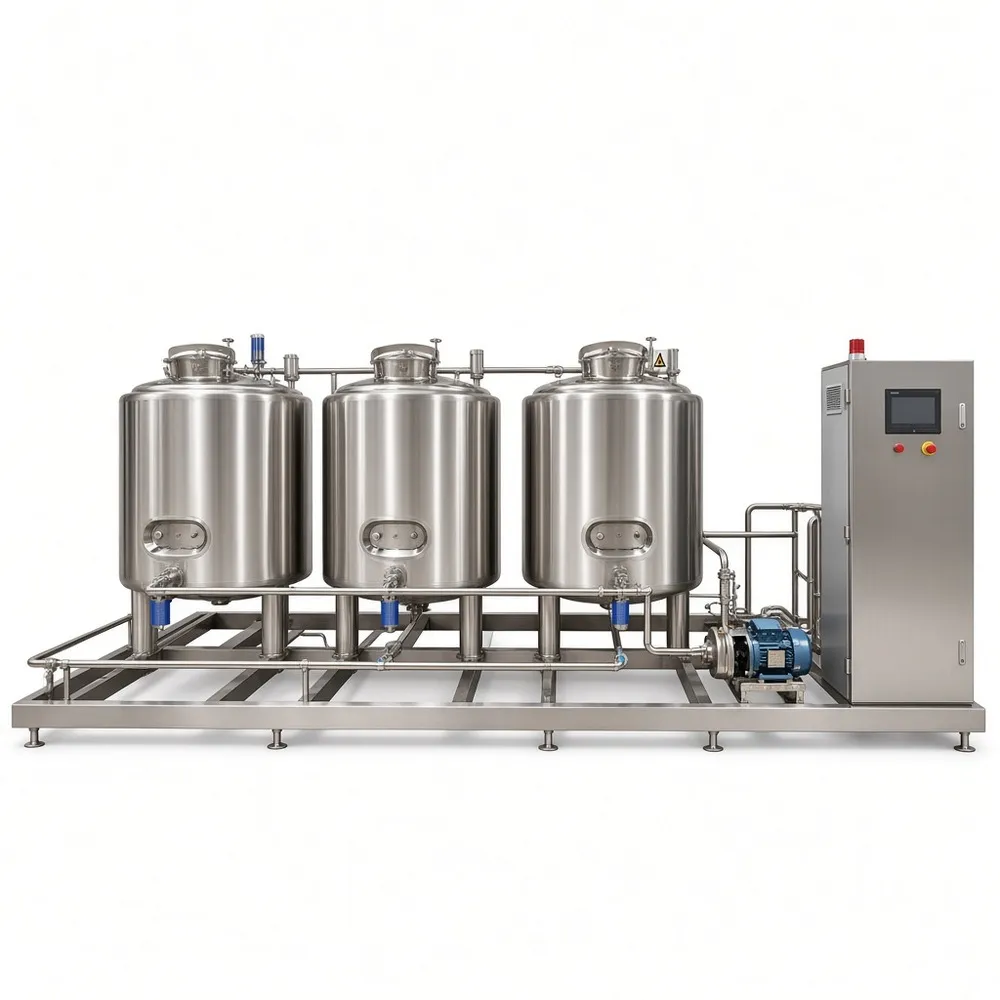

Single-tank units handle one chemistry. Double and triple configurations hold caustic, acid, and rinse water separately. The 200L is a working buffer, not total water use. Match tank size to roughly 2–3 times the internal volume of your largest circuit. Undersizing drops temperature and contact time.
Heating and control options
Electric immersion heaters suit sites without steam. Steam coils or plate heaters handle higher duty cycles. Temperature, flow, pressure, and level monitoring are available. Manual, semi-automatic, and PLC control are quoted per project. Most units are built to order, so we don\’t publish a fixed standard build.
Typical specifications
| Parameter | Range / Option |
|---|---|
| Cleaning tank capacity | 200 L (custom 100–1,000 L) |
| Number of tanks | 1, 2, 3, or 4 |
| Stainless grade | 304 or 316L |
| Heating | Electric immersion or steam |
| Pump flow / pressure | 10–20 m³/h at 3–5 bar (application-specific) |
| Operating temperature | Ambient to 80 °C (higher on request) |
| Control | Manual, semi-auto, or PLC |
| Cleaning circuits | Single or multiple, with return pump |
| Power supply | 3-phase, 208–480 V (confirmed per build) |
| Dimensions | Approx. 1,200 × 800 × 1,400 mm (varies) |
| Customization | Tank size, loops, automation, skid layout |
Applications
Dairy, beverage, brewery, distillery, sauce, liquid food, cosmetics, and pharmaceutical production use CIP. Protein soils need warm caustic; mineral scale needs acid. We select 304 or 316L based on chloride exposure and cleaning agents.
Common questions
Can one mobile unit clean several tanks? Yes, with isolation valves and a return path. We include a piping diagram with each quote.
Is 200L enough for a 5,000L tank? Volume alone doesn\’t decide. Loop volume, rinse steps, and contact time matter more. Send tank and pipe dimensions.
What power is required? Depends on heater and pump size. 3-phase 208–480V is common; we confirm before building.
Request a configuration
To recommend the right unit, send your industry and product, tank and pipe details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We\’ll reply with a practical build, not a generic spec sheet.
