Description
Specified around the cleaning circuit

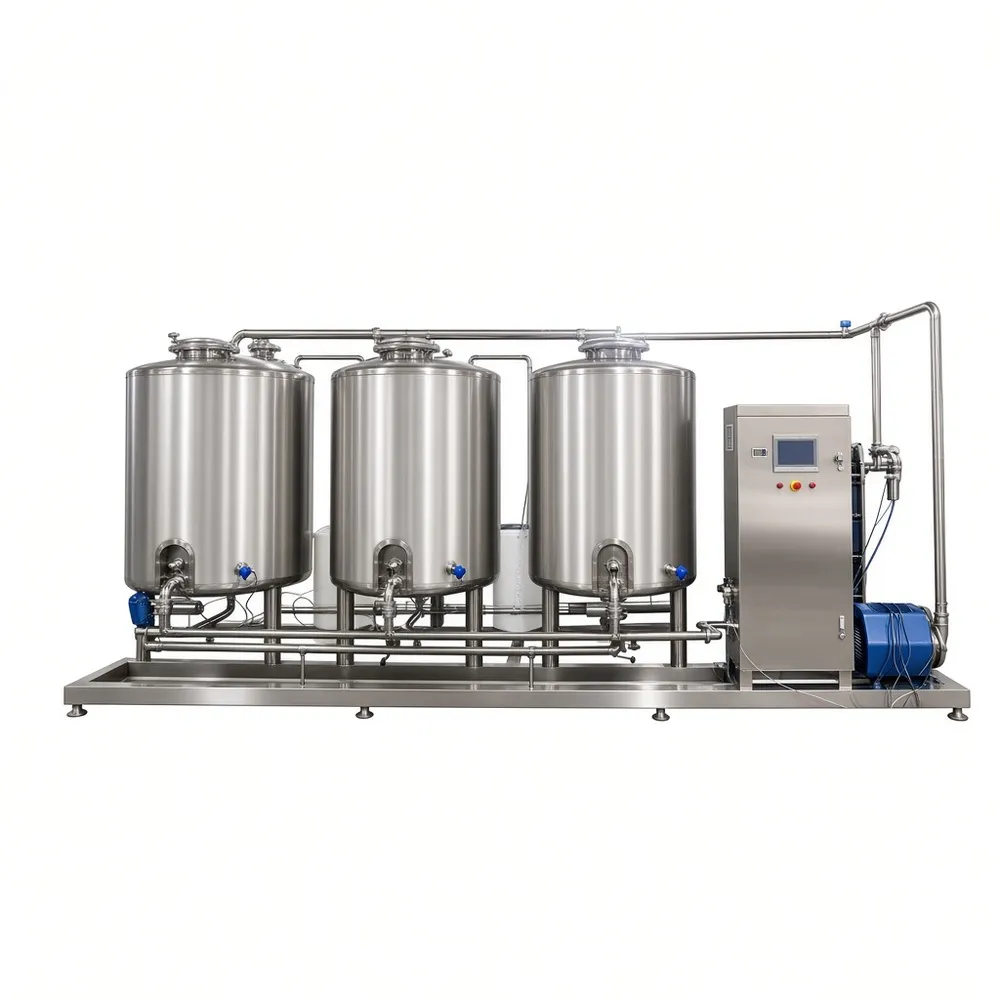

A 2000L CIP skid suits dairy and beverage lines that need repeatable cleaning between runs. Tank volume matters, but circuit volume, soil load, pipe diameter, and available heat decide performance. We review those details before recommending tank split, pump duty, and controls. This SUS304 unit can be arranged for single- or multi-circuit cleaning with PLC recipes, temperature and conductivity monitoring, and return-pump interlocks when confirmed.
How the cycle runs
Typical steps are pre-rinse, alkaline wash, intermediate rinse, acid wash where needed, and final rinse. Hot-water sanitization is optional. Flow, pressure, temperature, and level instruments keep the cycle repeatable, and the PLC records steps and alarms. Return pump and valve manifold must match the piping layout; dead legs and undersized returns cause weak cleaning.
Configuration options
- Single, double, or multi-tank CIP with caustic, acid, and hot-water compartments
- Electric or steam heating
- Supply and return pumps, stainless piping, valves, and fittings
- Temperature, flow, pressure, and level monitoring
- Manual, semi-automatic, or PLC/HMI control
- Custom tank capacity, circuits, and automation
Available options only; we confirm each item against the approved configuration.
Technical specifications
| Cleaning tank capacity | 2000 L nominal; project-specific |
|---|---|
| Number of tanks | 1 to 4+ depending on wash stages |
| Stainless steel grade | SUS304; other grades on request |
| Heating | Electric or steam, project-specific |
| Pump flow and pressure | Sized to circuit volume and spray/return duty |
| Operating temperature | Set by detergent and process; confirmed per recipe |
| Control | PLC/HMI automatic; manual or semi-automatic optional |
| Cleaning circuits | Single or multiple, with valve manifold as specified |
| Power supply | 380V/50Hz or site requirement |
| Dimensions | Skid layout varies with tank count and options |
| Custom options | Tank size, circuits, heating, instrumentation, controls |
Where CIP systems fit
Used in dairy, beverage, brewery, winery, sauce and liquid-food, cosmetics, and pharmaceutical plants. Cleaning requirements vary by residue, surface finish, pipe layout, and detergent. Validation and cleaning procedures remain project-specific.
Common questions
Is 2000L enough? It depends on circuit volume, rinse dilution, and tank recovery; a larger tank will not fix poor return flow.
Can one skid clean several circuits? Yes, with a specified valve manifold and PLC recipes; confirm isolation and drain slope.
Electric or steam heat? Electric is simpler at low recovery demand; steam suits higher duty where a boiler is available.
Send the process details
For a recommendation, send industry and product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. Include circuit volume, pipe diameter, highest point, and drain arrangement. We will confirm the configuration and provide a factory-direct quote with engineering support.
