Description

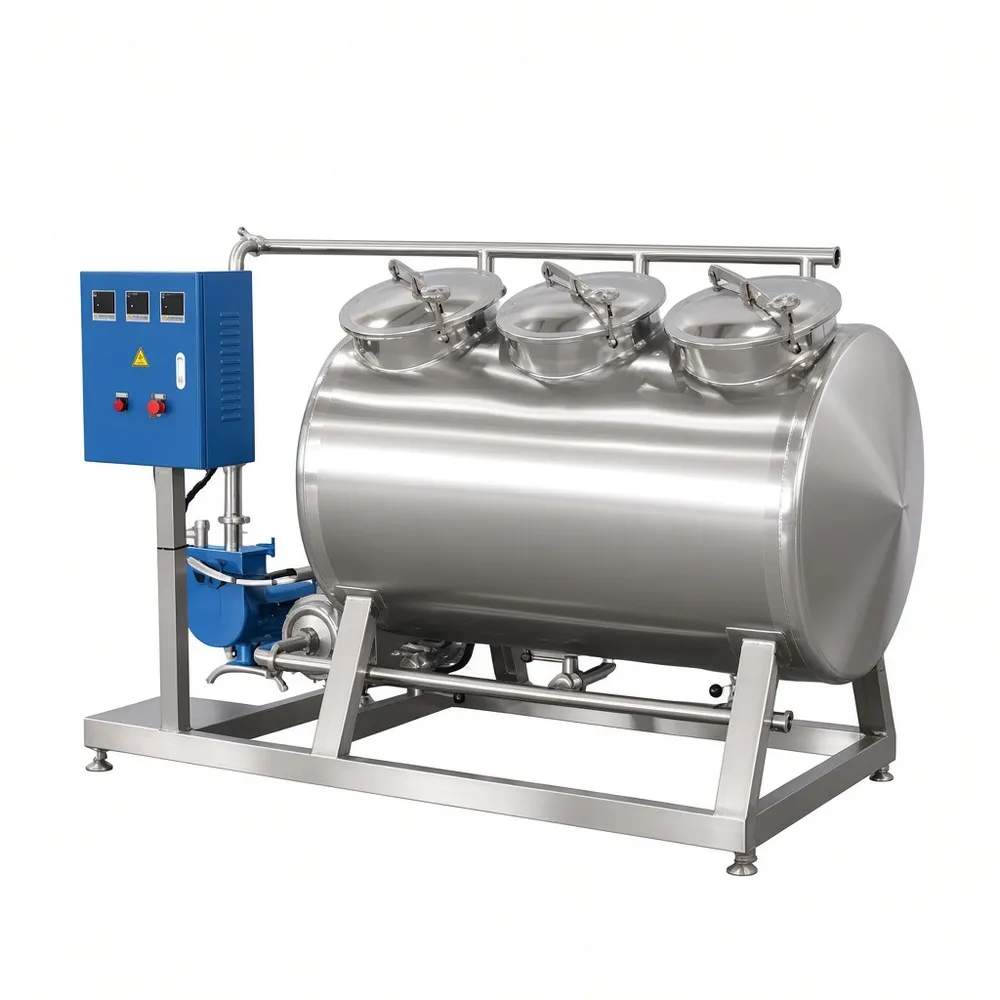

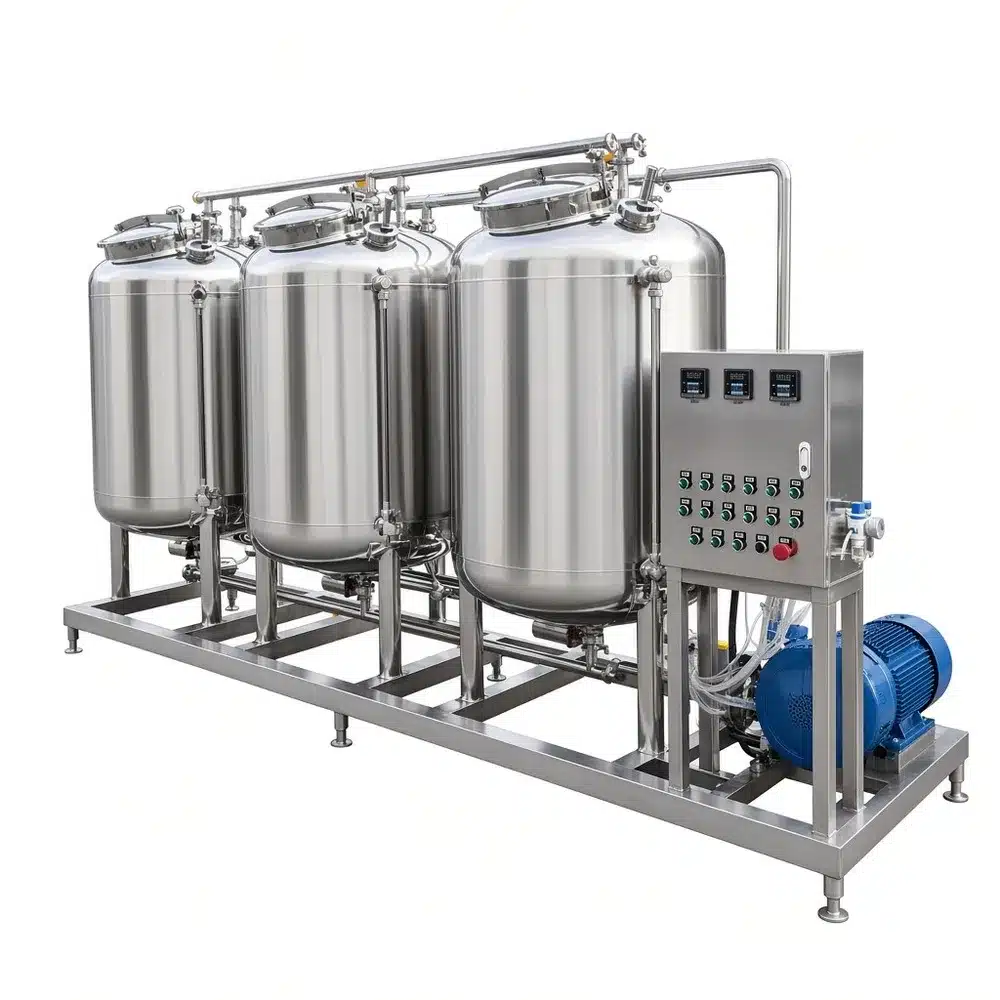

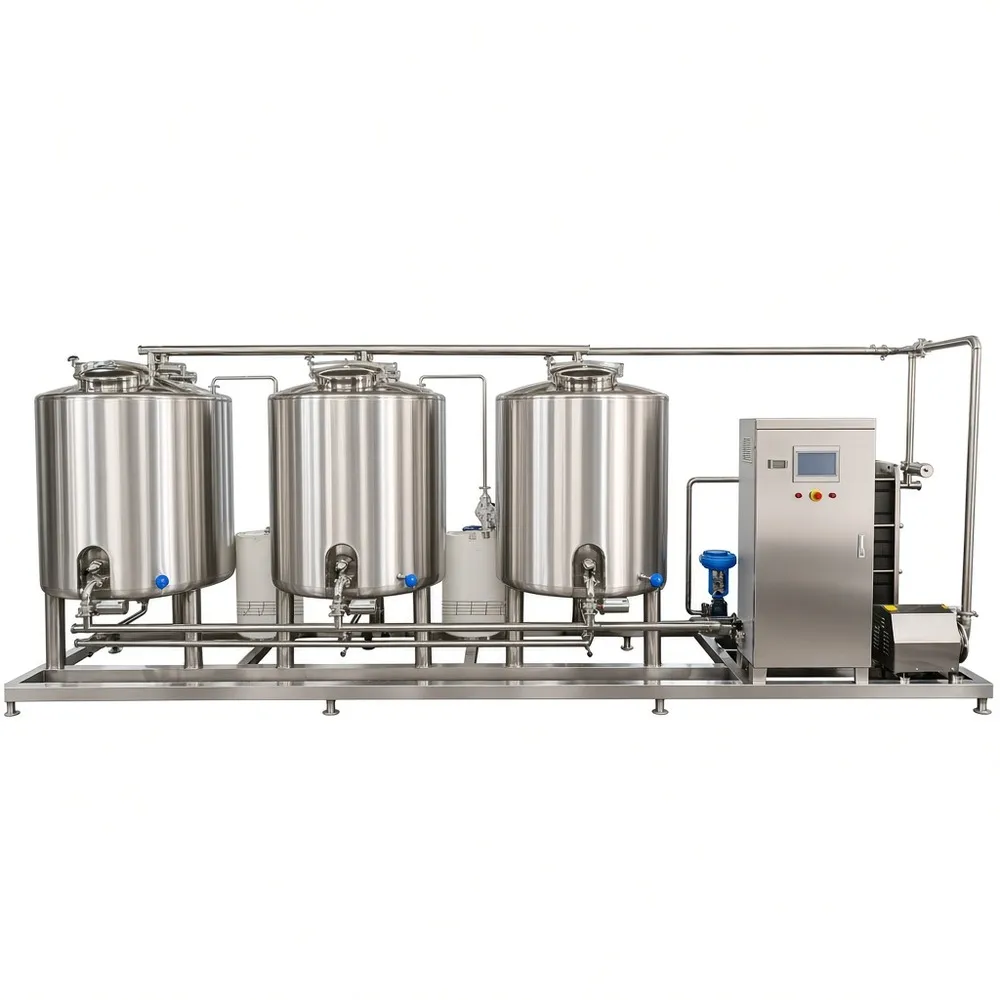

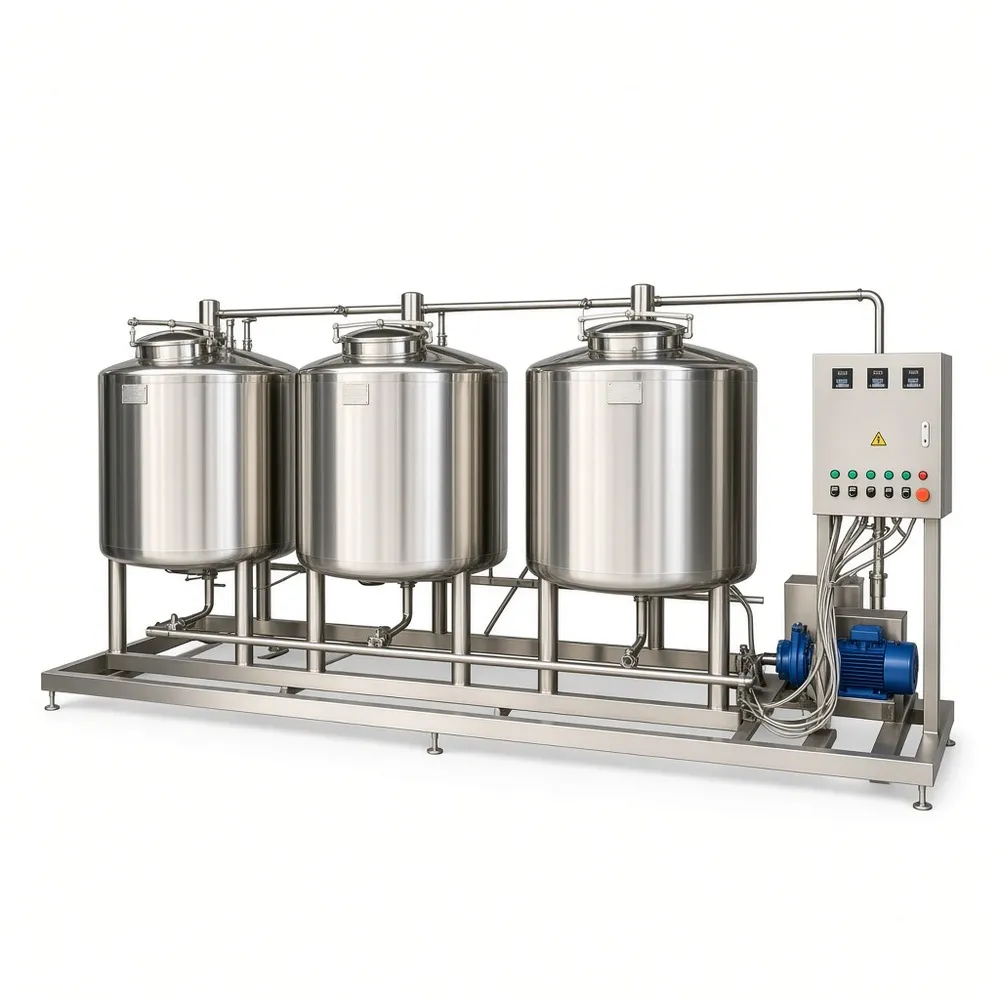

A 2000 L three-tank CIP skid keeps caustic, acid, and hot-water or rinse duty separate without swapping drums or cross-connecting lines. We build skid-mounted packages with 304 or 316L wetted parts, matched to the circuit and soil load.
The cycle runs pre-rinse, caustic wash, intermediate rinse, acid wash where needed, final rinse, and sanitizing if required. Supply and return pumps move solution through tank, piping, valves, and spray devices. Temperature, flow, pressure, and level are monitored so operators confirm each step.
Tank count matters more than total volume. Three tanks suit plants needing alkaline and acid chemistry plus hot water or rinse. Frequent changeovers may justify extra capacity or a fourth tank; a small circuit may run on two tanks with less floor space. Electric or steam heating both work, chosen on utility cost and plant steam. Pump flow and pressure follow the longest circuit, spray ball count, and pipe diameter, not tank volume alone.
Possible configurations, confirmed per project before quotation: single-, two-, three-, or multi-tank arrangements; caustic and acid wash tanks; hot-water tank; electric or steam heating; CIP circulation and return pumps; stainless piping, valves, and fittings; temperature, flow, pressure, and level monitoring; manual, semi-automatic, or PLC/HMI control; custom tank volume, cleaning circuits, and automation. These are options, not guaranteed standard features.
Technical Specifications
| Item | Specification |
|---|---|
| Cleaning tank capacity | 2000 L per tank, nominal; confirmed to project |
| Number of tanks | 3: caustic, acid, hot water or rinse |
| Stainless steel grade | 304 or 316L wetted parts |
| Heating | Electric or steam; final duty based on utility study |
| Pump flow and pressure | Sized to circuit; set at quotation |
| Operating temperature | Set by cleaning procedure; confirm chemical and seal limits |
| Control system | Manual, semi-automatic, or PLC/HMI |
| Cleaning circuits | Single or multiple supply and return loops |
| Power supply | 3-phase, 380–480 V, 50/60 Hz, per site |
| Dimensions | Skid layout depends on tank size and options |
| Custom options | Tank volume, circuits, instrumentation, automation |
Final ratings depend on circuit pressure drop, soil load, and the cleaning procedure used at your plant.
Where These Systems Fit
Dairy, beverage, brewery, distillery, sauce, liquid food, cosmetic, and pharmaceutical plants use CIP to clean tanks, lines, fillers, heat exchangers, and process valves. Dairy and brewery circuits often need frequent caustic and rinse steps; sauce and cosmetic lines may need heavier pre-rinse and longer wash; pharmaceutical and cosmetic users usually ask for tighter documentation and instrumentation. We match materials, surface finish, and instrumentation to the process, without claiming compliance that has not been reviewed for your site.
Common Questions
What size system do we need? Start with circuit volume, spray device flow, soil load, and required contact time. Tank volume follows those figures, not production capacity alone.
Can we keep existing tanks and piping? Often yes. Send the piping layout, pump curves, and cleaning points so we can check pressure drop and return flow.
Steam or electric heat? Steam heats faster and usually costs less to run where plant steam is available. Electric is simpler where steam is not.
Request a Quote
Send your industry and processed product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend a configuration, answer technical questions, and quote factory-direct with engineering support.
