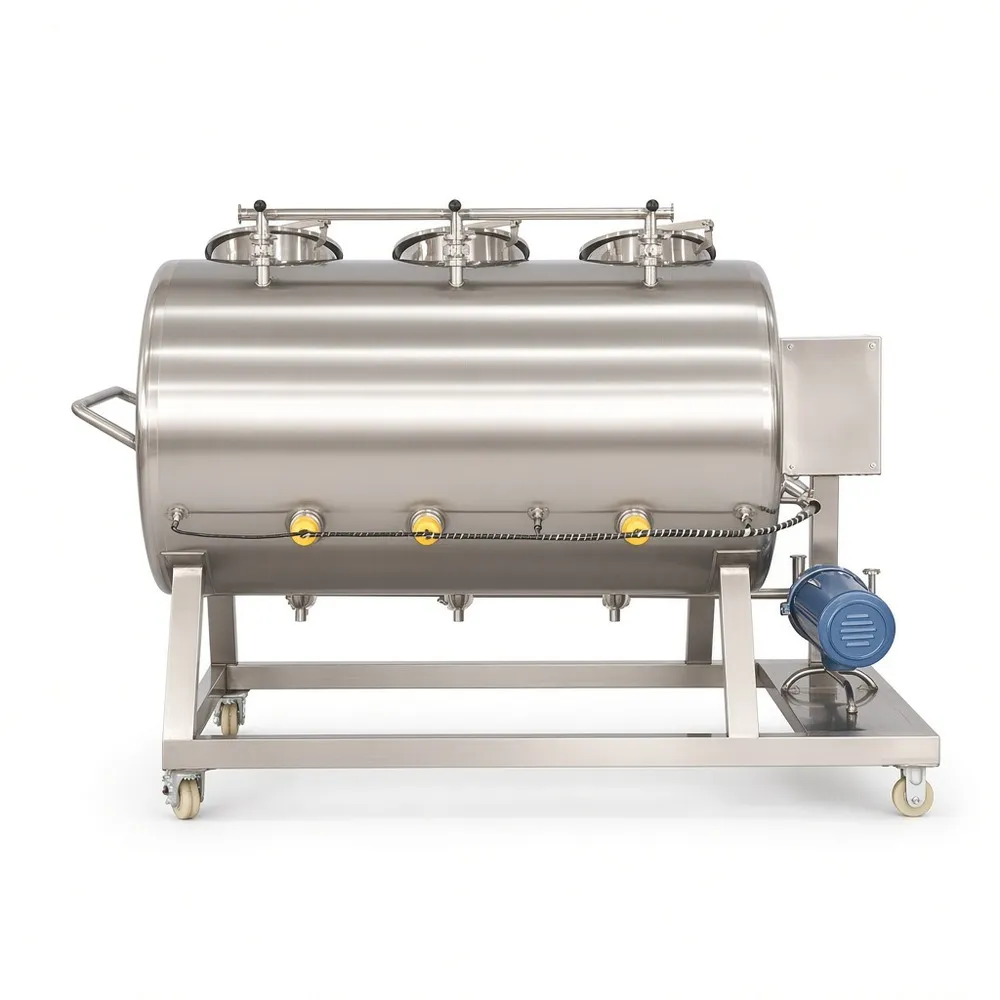

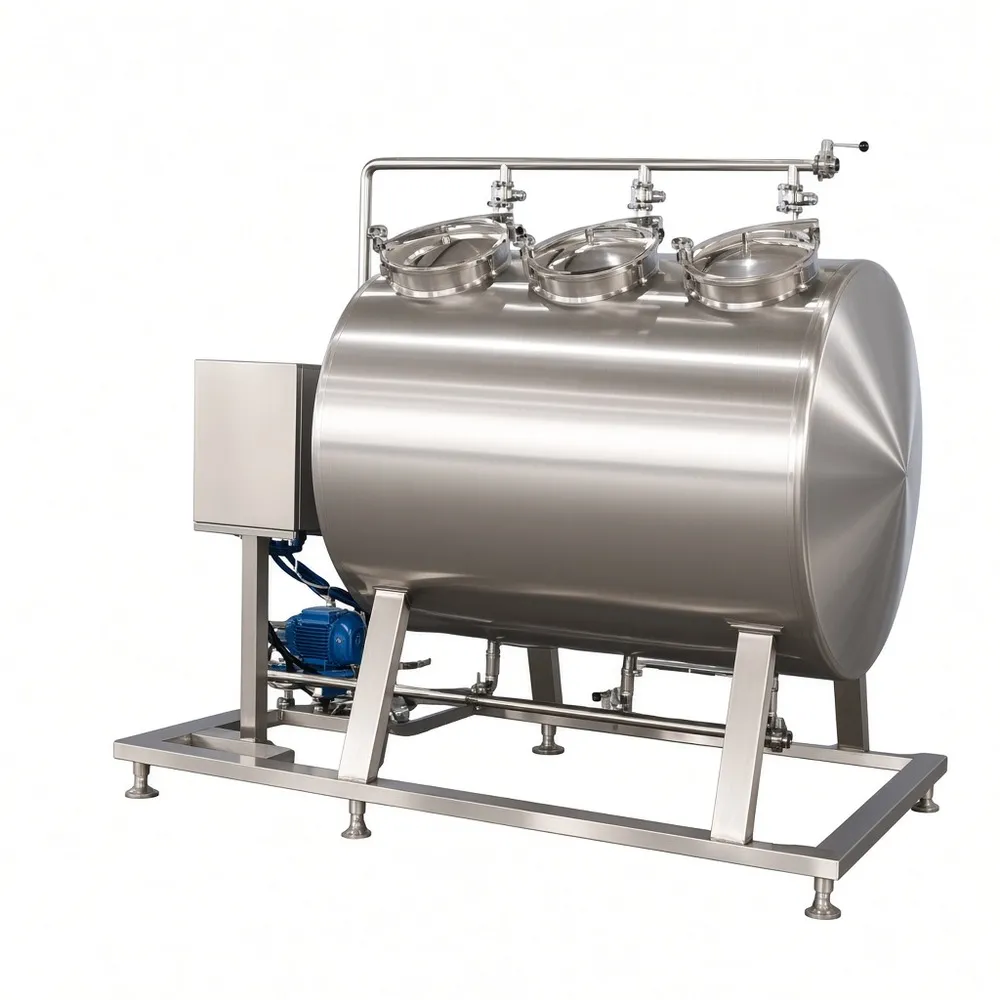

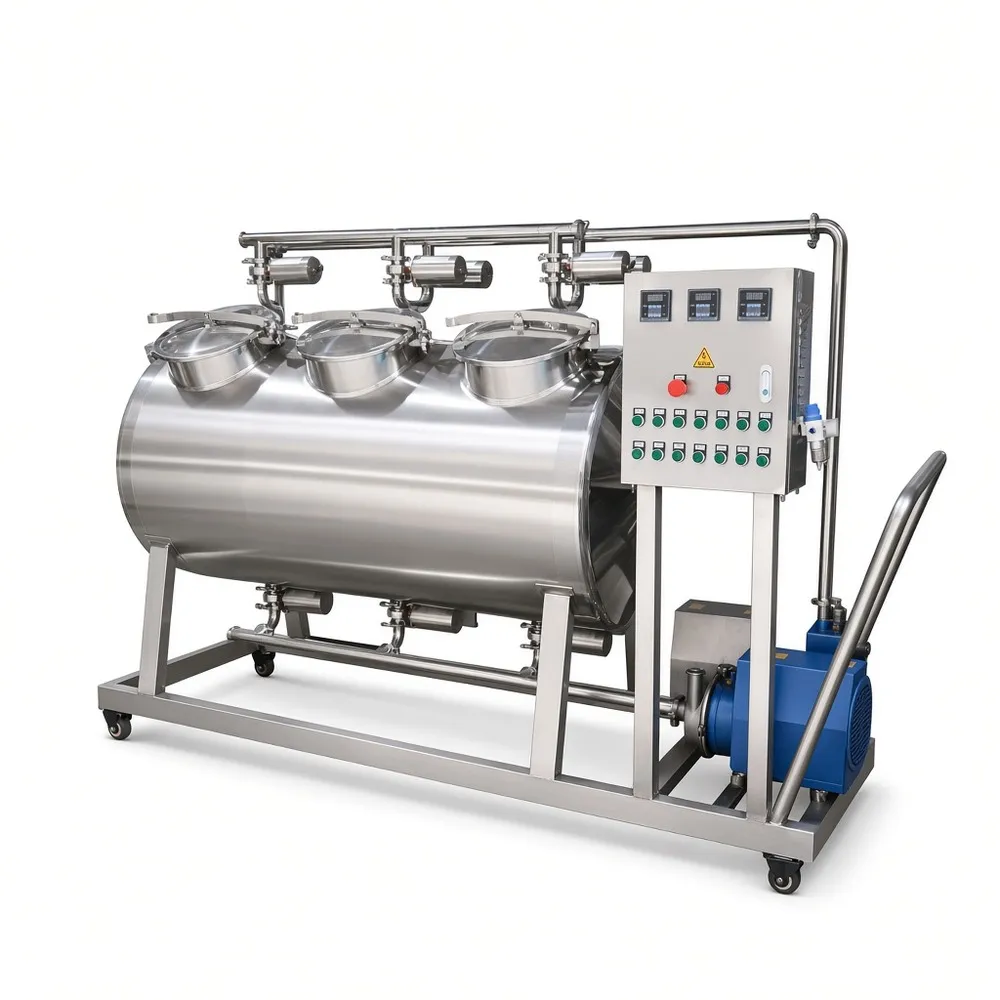

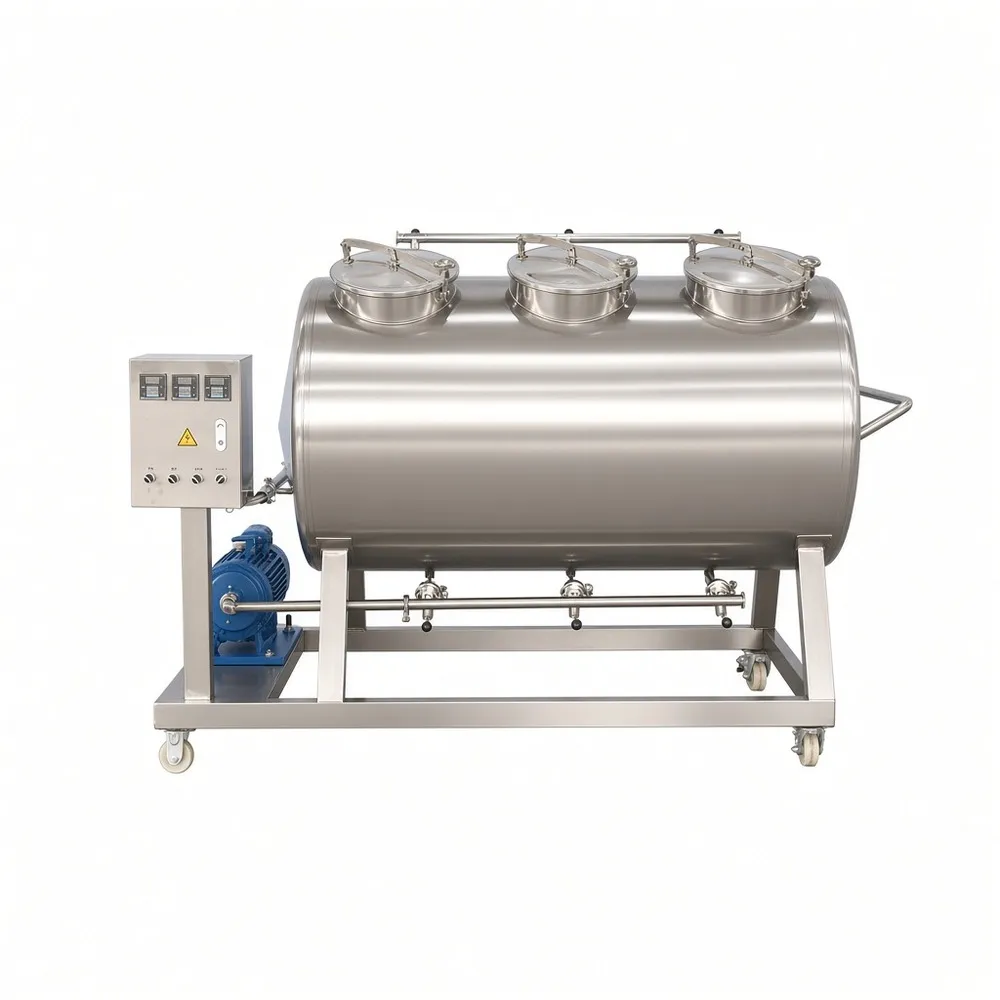

Mobile Three-Tank CIP System for Acid, Alkaline, and Rinse Cycles
We build this mobile CIP unit for plants that need flexible cleaning without a fixed skid. Three tanks usually separate acid, alkaline, and hot water or rinse stages. It suits dairies, beverage lines, breweries, sauce plants, and cosmetic or pharmaceutical piping where product changeovers must be controlled and repeatable.
CIP is not just a tank with a pump. The cleaning loop depends on flow, pressure, temperature, and return path. We size the supply and return pumps against your pipe diameter, loop length, spray devices, and soil load. Tanks can be electric or steam heated. Temperature, flow, pressure, and level instruments are matched to manual, semi-automatic, or PLC operation. Stainless grade, tank volume, and cleaning circuits are confirmed per project.
Typical configuration options
- Single, double, three, or multi-tank CIP arrangements
- Acid and alkaline wash tanks with hot water or rinse tank
- Electric or steam heating
- CIP supply and return pumps, stainless piping, valves, and fittings
- Manual, semi-automatic, or PLC control with monitoring
These are possible options, not a fixed standard list. Final scope is confirmed after review of your process.
Technical specifications
| Item | Typical range or option |
|---|---|
| Cleaning tank capacity | Custom, typically 200 to 5,000 L per tank |
| Tank quantity | 3 standard; 1 to 4+ optional |
| Stainless grade | 304 or 316L |
| Heating | Electric or steam |
| Pump flow and pressure | Sized to cleaning loop; project-specific |
| Working temperature | Up to 80°C typical; confirm for application |
| Control system | Manual, semi-automatic, or PLC |
| Cleaning circuits | Single or multiple loops |
| Power | 380V/50Hz or site-specific |
| Dimensions | Based on tank volume and skid layout |
| Custom options | Tank size, loops, automation, and layout |
Where it fits
Common applications include dairy processing, beverage production, breweries, wineries, sauce manufacturing, liquid food processing, cosmetics, and pharmaceutical process piping and tanks. Cleaning validation remains with the processor.
FAQ
How do I choose tank quantity? Match it to your cleaning stages. Acid, alkaline, and rinse are often separate. Some plants add a recovery or sanitizing tank.
What details are needed for a quote? Send pipe diameter and length, tank sizes, soil type, required flow and pressure, heat source, automation level, stainless grade, and installation location.
Request a configuration review
Send your industry, processed product, tank and pipe details, required cleaning capacity, heat source, automation level, stainless grade, and installation requirements. We will recommend a practical mobile CIP configuration and prepare a factory-direct quotation.
