Description

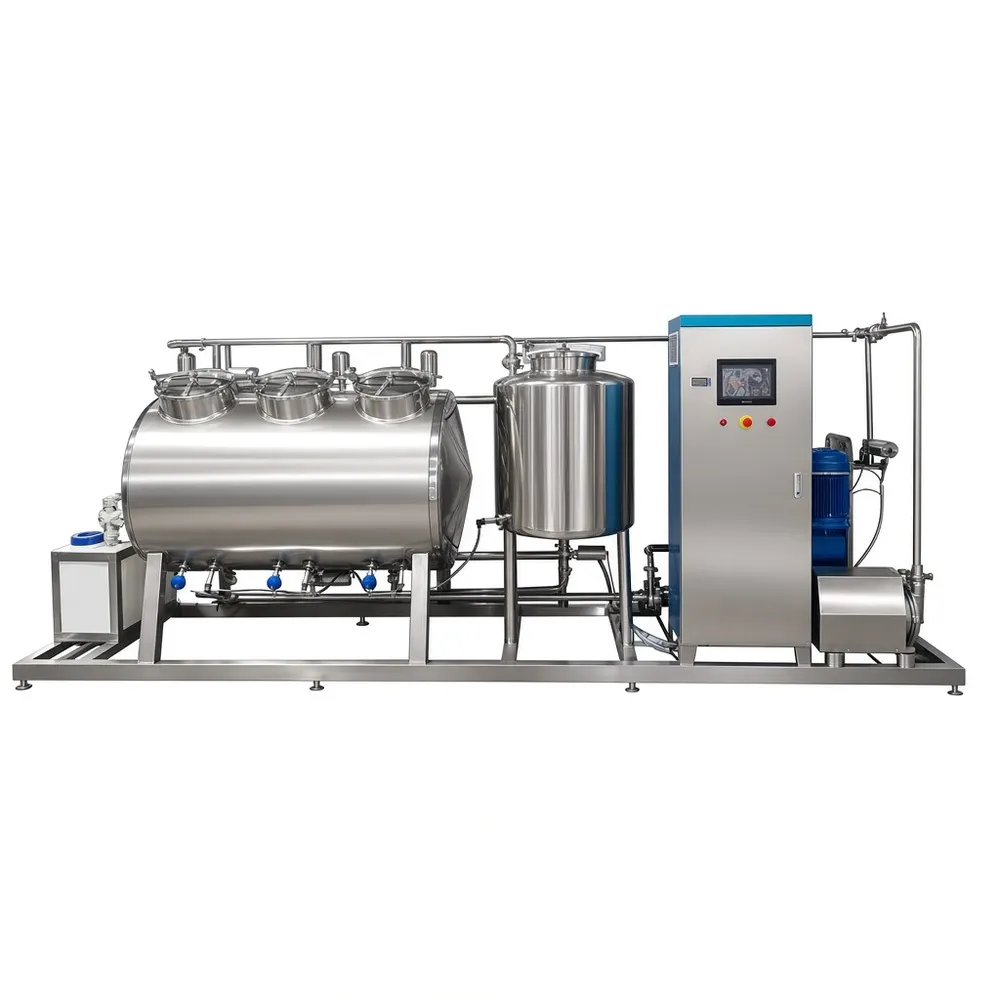

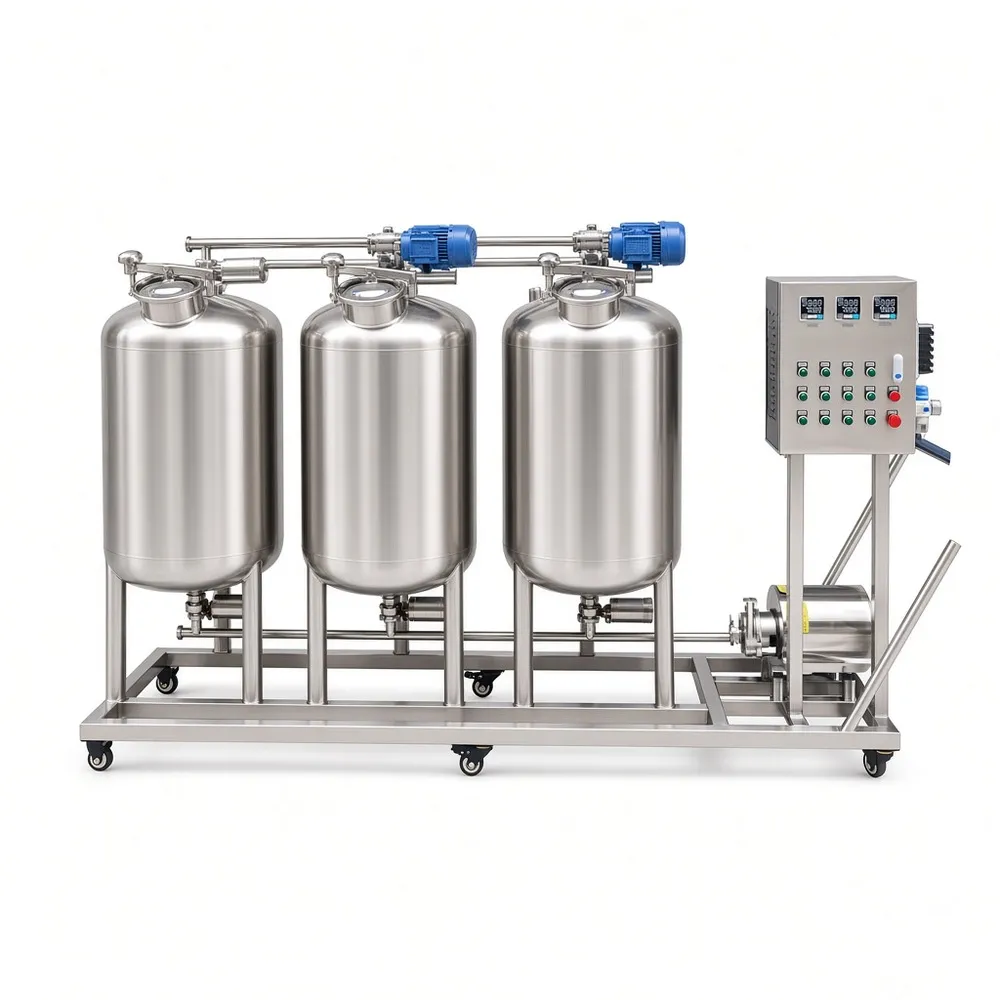

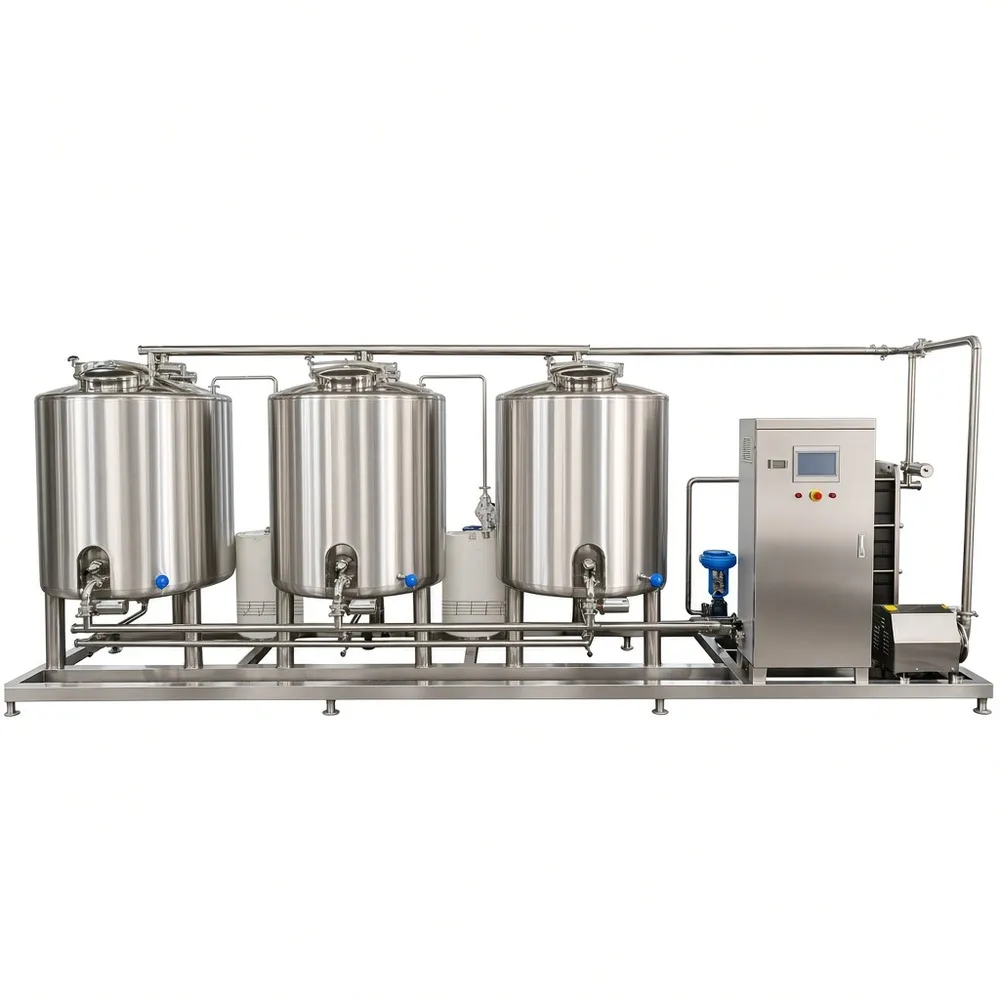

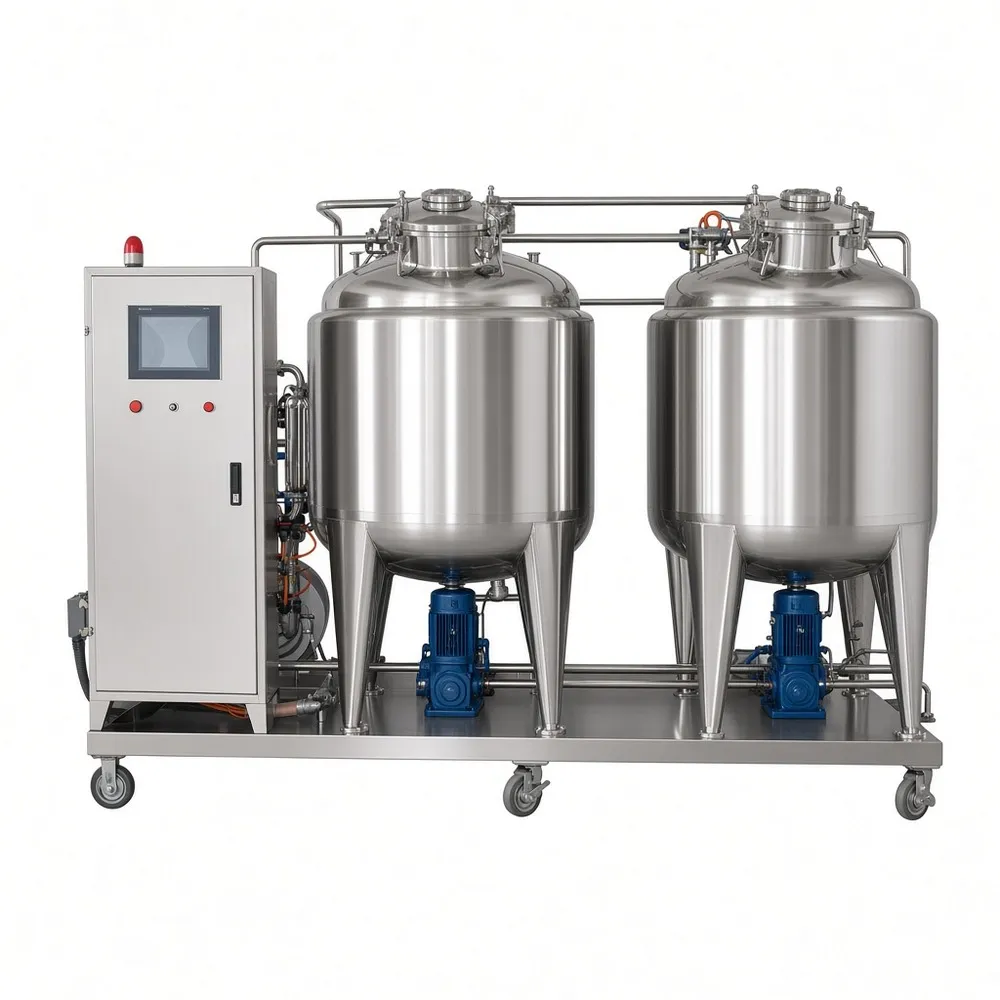

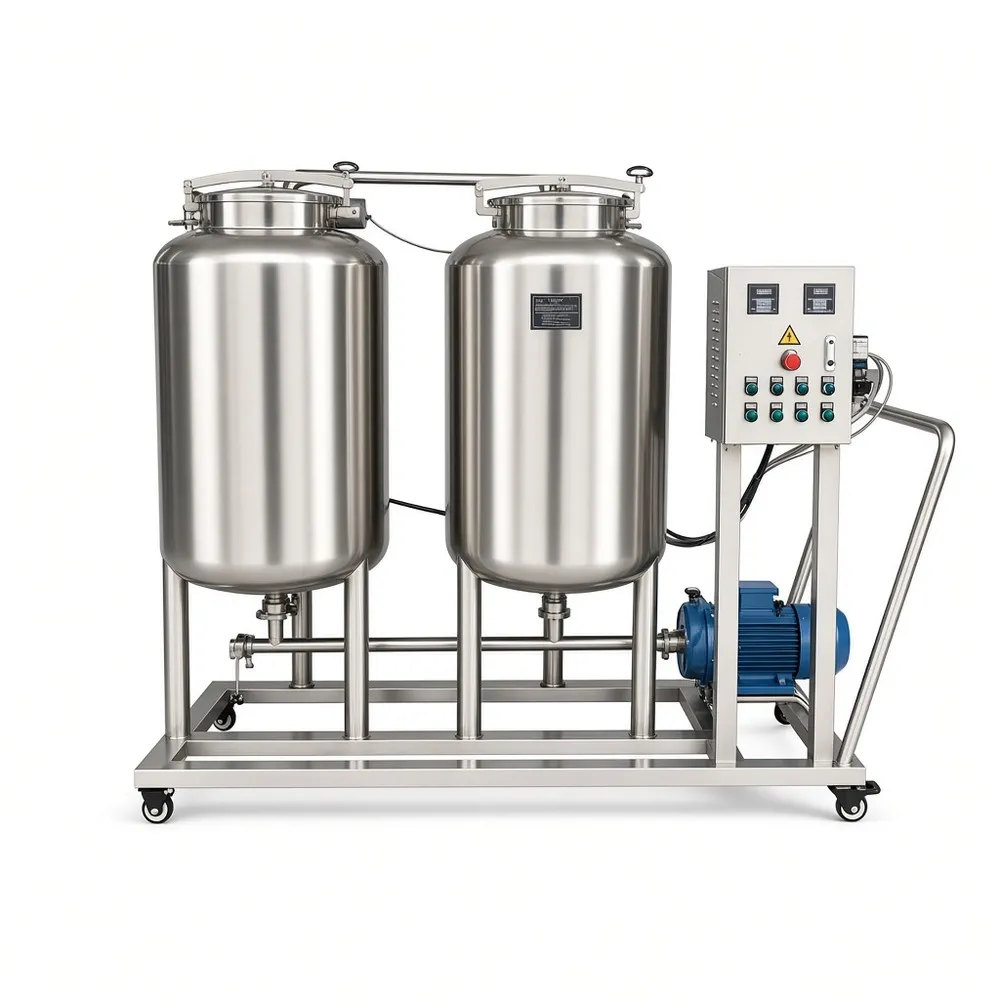

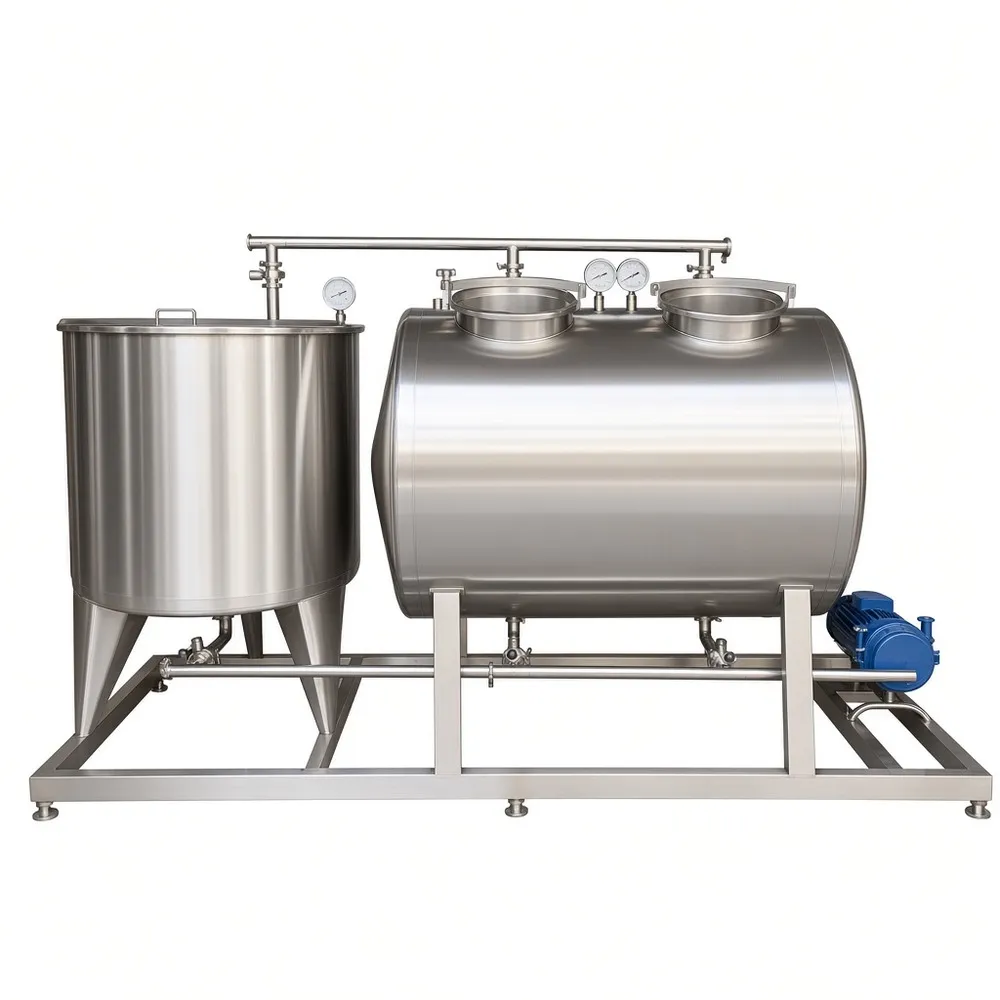

Mobile CIP for Dairy and Beverage Lines
A CIP system is a controlled cleaning circuit, not just a tank with a pump. We build mobile and skid-mounted units that circulate detergent, rinse water, and hot water through tanks, fillers, pasteurizers, and transfer piping on a repeatable schedule. The target is wetted-surface contact at the right temperature, flow, and time, with a clean return and no dead legs.
Typical sequence: pre-rinse, alkaline wash, intermediate rinse, acid wash where needed, final rinse, and sanitizing. Some plants recover rinse water or reuse detergent. Layout follows circuits, drain points, and peak demand.
Sizing and Options
Single, double, and multi-tank configurations are available. Options include acid and alkaline tanks, hot water, electric or steam heating, supply and return pumps, stainless piping, valves, and temperature, flow, pressure, and level monitoring. Manual, semi-automatic, or PLC control is possible. These are options, not standard on every model; we confirm them against the duty.
- Number of tanks and simultaneous circuits
- Pipe diameter, length, and highest point
- Detergent concentration and rinse water
- Available steam, power, drain, and space
Common mistakes are undersizing the return pump, ignoring peak demand, and forgetting drain capacity. A mobile vehicle helps when one unit serves several rooms, but hose runs and floor slopes still matter.
Technical Specifications
| Item | Typical Range / Options |
|---|---|
| Cleaning tank capacity | Project-specific; single or multiple tanks |
| Tank quantity | 1 to 4+ tanks, acid/alkali/hot water |
| Stainless grade | 304 or 316L, confirmed by duty |
| Heating | Electric or steam |
| Pump flow and pressure | Sized to circuit volume and pressure drop |
| Operating temperature | Ambient rinse to hot wash; project-specific |
| Control | Manual, semi-automatic, or PLC |
| Cleaning circuits | Single or multiple, with return routing |
| Power | Customer supply; confirmed at quote |
| Dimensions | Skid or mobile vehicle layout |
| Custom options | Tank size, loops, automation, monitoring |
Applications
These units suit dairy, beverage, brewery, distillery, sauce, liquid food, cosmetic, and pharmaceutical production. Cleaning duties differ by soil type, so we match tank volume, heat, and pump curves to the line.
FAQ
Can one mobile unit serve multiple lines? Yes, if circuit volume, hose length, and pump pressure are checked.
Electric or steam heat? Electric is simpler to install; steam needs a plant supply and condensate handling.
Can controls be upgraded? PLC with data logging is available; confirm before order.
Request a Configuration
Send your industry and product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. Our engineers will review the duty, recommend a practical configuration, and prepare a custom quote. Factory-direct stainless construction and engineering support are included where confirmed.
