Description
What the CIP System Does
A 600 liter stainless steel CIP system automates cleaning of beer brewing tanks and associated process lines. Instead of manual scrubbing, the skid circulates detergent, rinse water, and sanitizer through spray balls, tank circuits, and piping at controlled flow, temperature, and contact time. For breweries, this makes tank turnarounds more repeatable and reduces operator exposure to caustic and acid solutions.
We build these systems as factory-direct stainless steel skids. The cleaning program is matched to your tank geometry, soil load, and utilities. A 600 L tank is a practical starting point for small to mid-size cellars, but capacity, pump size, and heating load should be checked against the largest circuit and the number of tanks cleaned per shift.
Options and Configuration

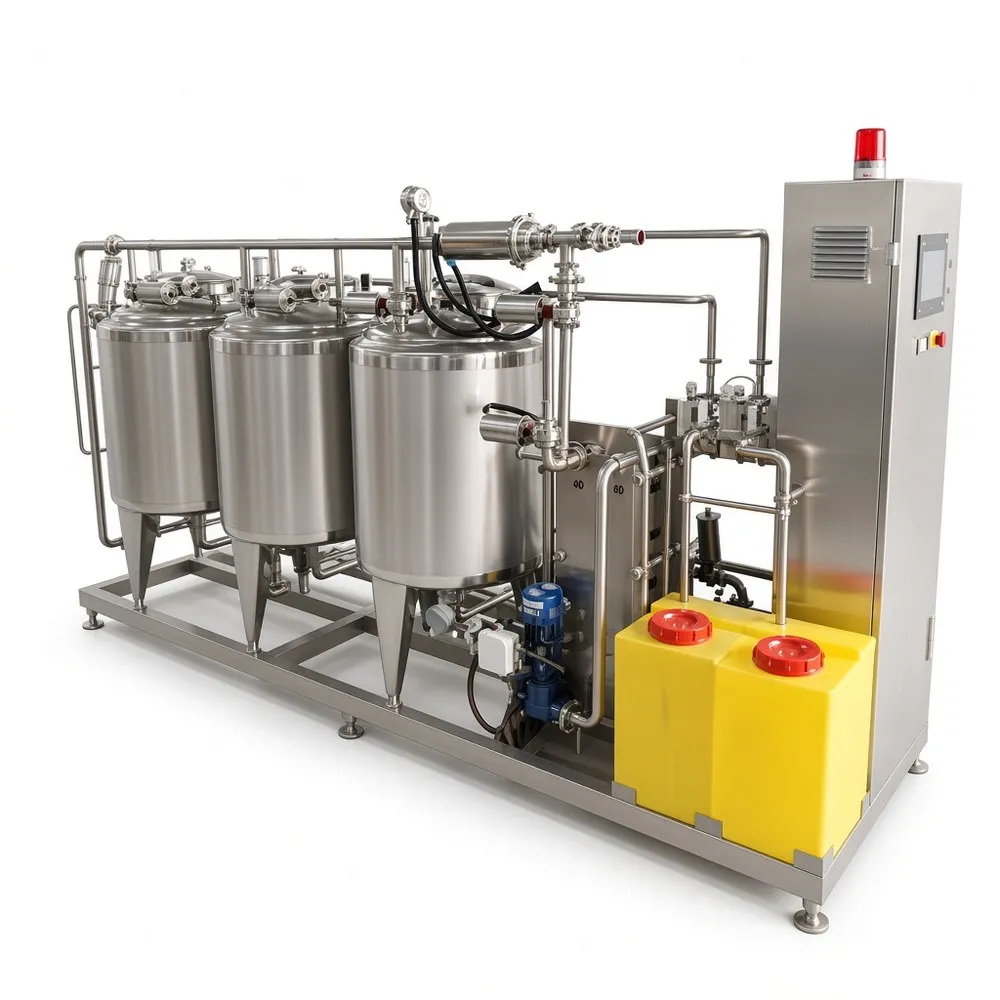

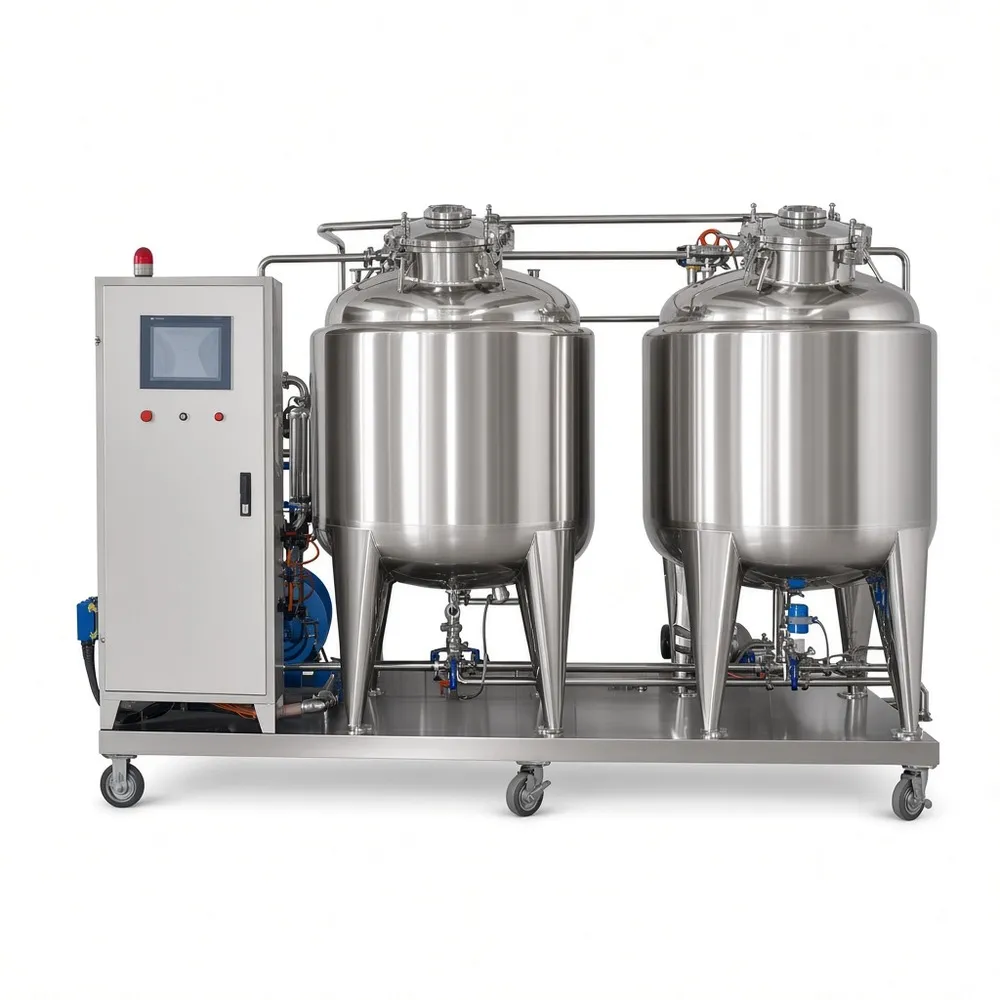

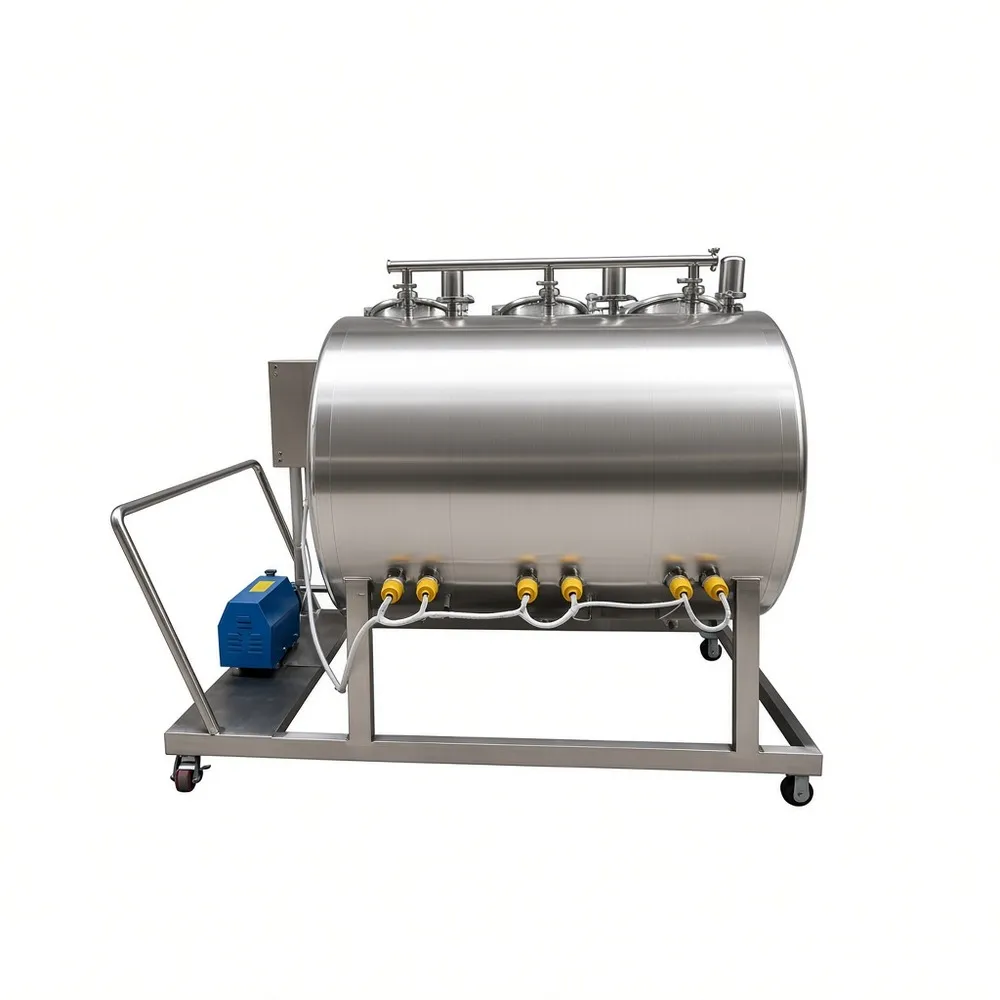

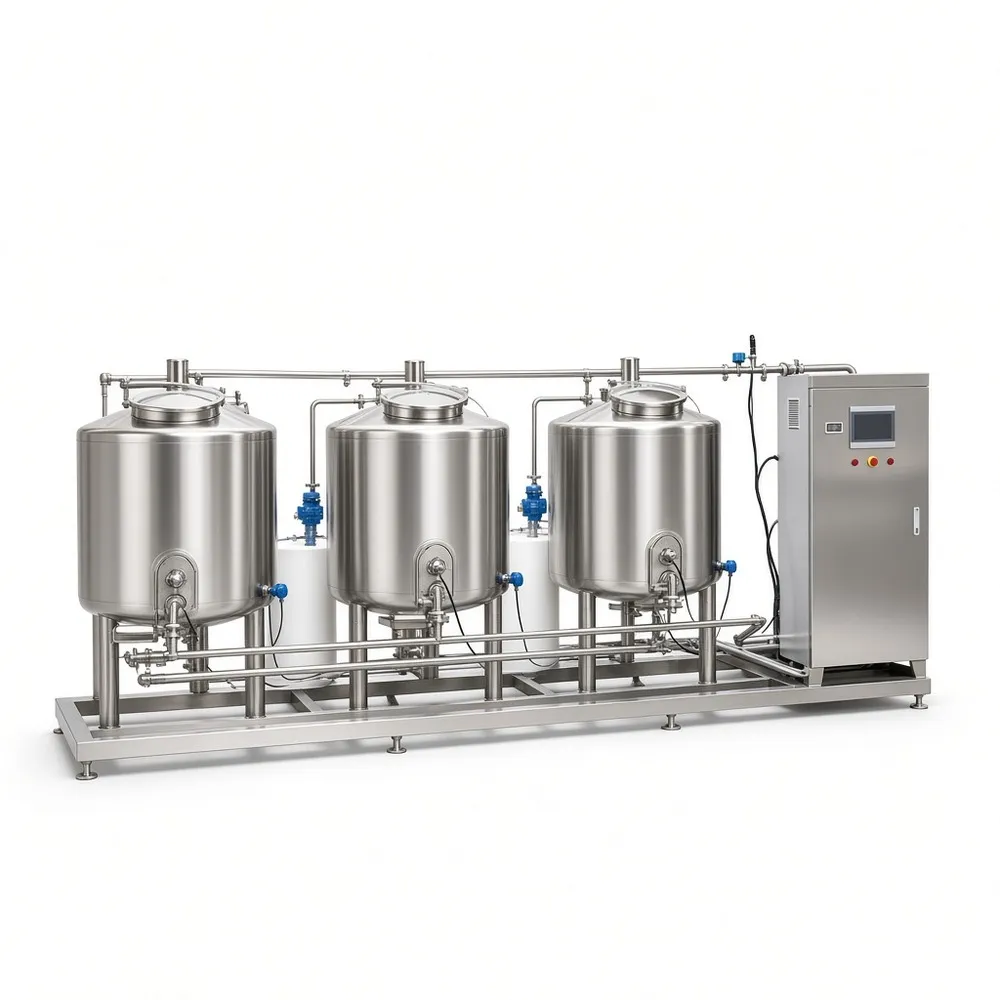

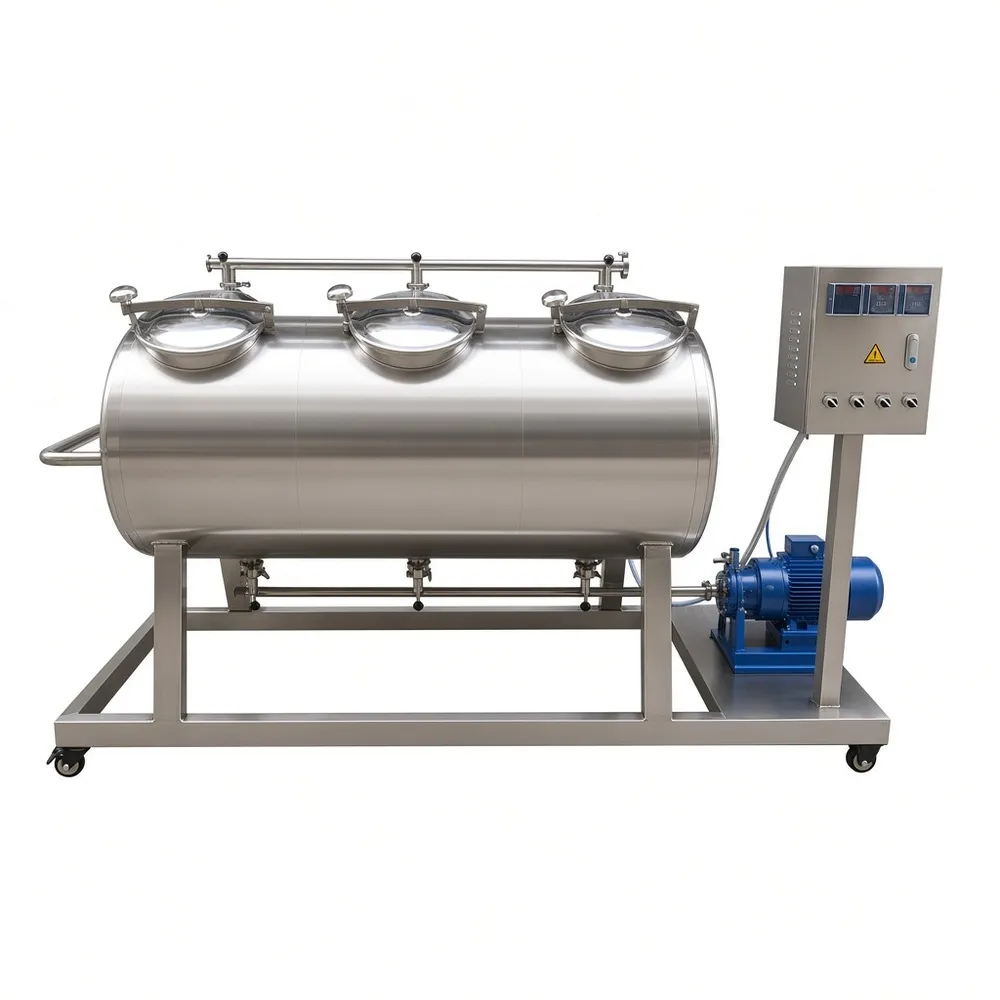

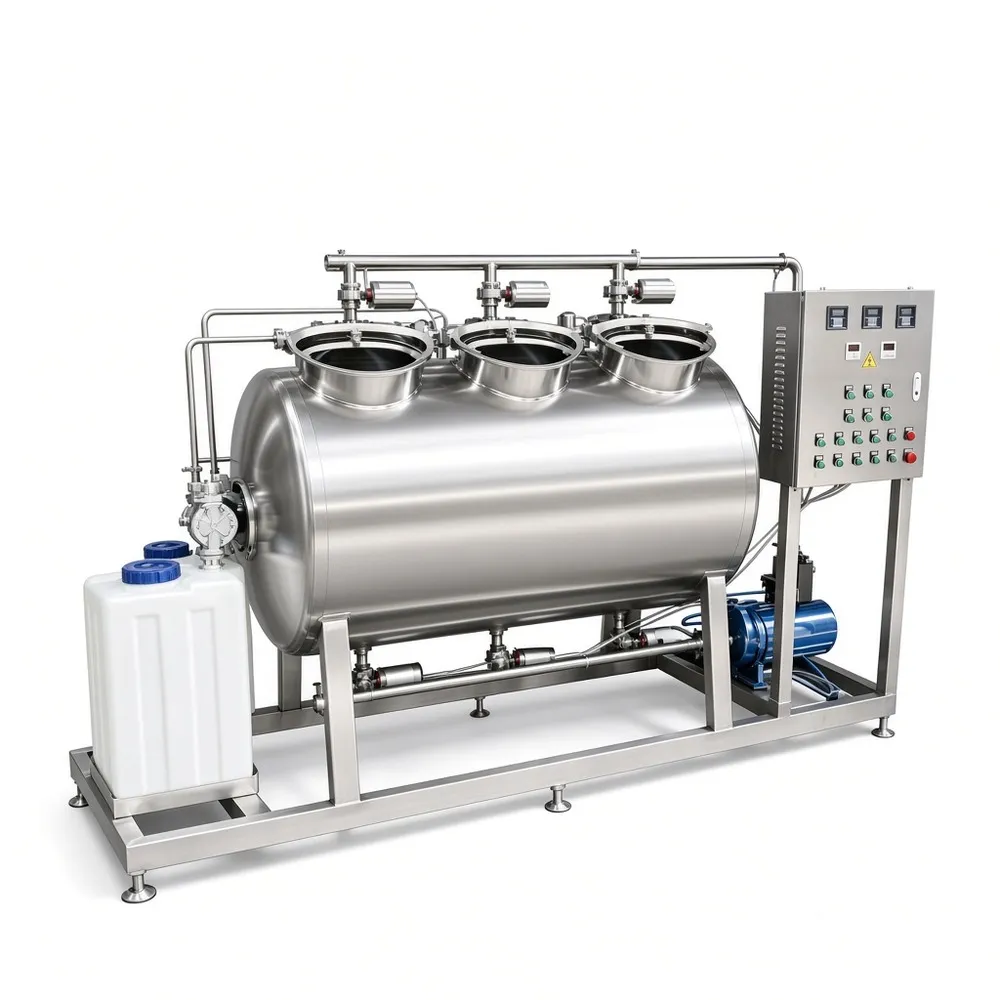

Available options include single-, two-, three-, or multi-tank CIP systems; acid and caustic tanks; a hot-water tank; electric or steam heating; CIP supply and return pumps; stainless piping, valves, and fittings; temperature, flow, pressure, and level monitoring; manual, semi-automatic, or PLC control; and custom tank capacity, cleaning circuits, and automation. These are configuration choices, not guaranteed standard features. We confirm each item for the specific model or project.
Technical Specifications
| Item | Specification |
|---|---|
| Cleaning tank capacity | 600 L per tank, customizable |
| Number of cleaning tanks | 1 to 4 tanks, project-dependent |
| Stainless steel grade | 304 or 316L stainless steel |
| Heating method | Electric or steam, as specified |
| Pump flow and pressure | Sized to circuit pressure and flow demand |
| Operating temperature | Typical wash range up to 80 C; confirm with cleaning chemistry |
| Control system | Manual, semi-automatic, or PLC |
| Cleaning circuits | Single or multiple loops, project-dependent |
| Power supply | Customer voltage and local requirements |
| Dimensions | Layout-dependent |
| Custom options | Tank size, circuits, automation, heat source |
Where CIP Systems Are Used
Dairy, beverage, brewery, distillery, sauce, liquid food, cosmetics, and pharmaceutical processors use CIP to clean tanks, lines, fillers, heat exchangers, and process piping. Cleaning chemistry, temperature, flow, and contact time depend on product soil and equipment design. Pharmaceutical and cosmetic projects often need tighter documentation and surface requirements, which are reviewed during engineering.
FAQ
How do I choose tank capacity? Start with cleaning circuit volume, soil load, rinse stages, and required batches per shift. A 600 L system may suit one cellar; larger plants may need multiple tanks or a bigger buffer.
Can one skid serve several tanks? Yes, with valve manifolds and cleaning circuits. The layout, pump pressure, and return routing determine how many loops are practical.
What should I prepare before a quote? Send tank and piping drawings, product details, cleaning chemicals, heat source, voltage, automation level, and installation location. We then recommend the tank configuration, pump duty, and controls.
Request a Custom CIP Quote
Tell us your industry and processed product, tank and piping details, required cleaning capacity, heat source, desired automation level, stainless steel grade, and installation location. Our engineering team will review the duty and return a factory-direct recommendation with a custom quote.
