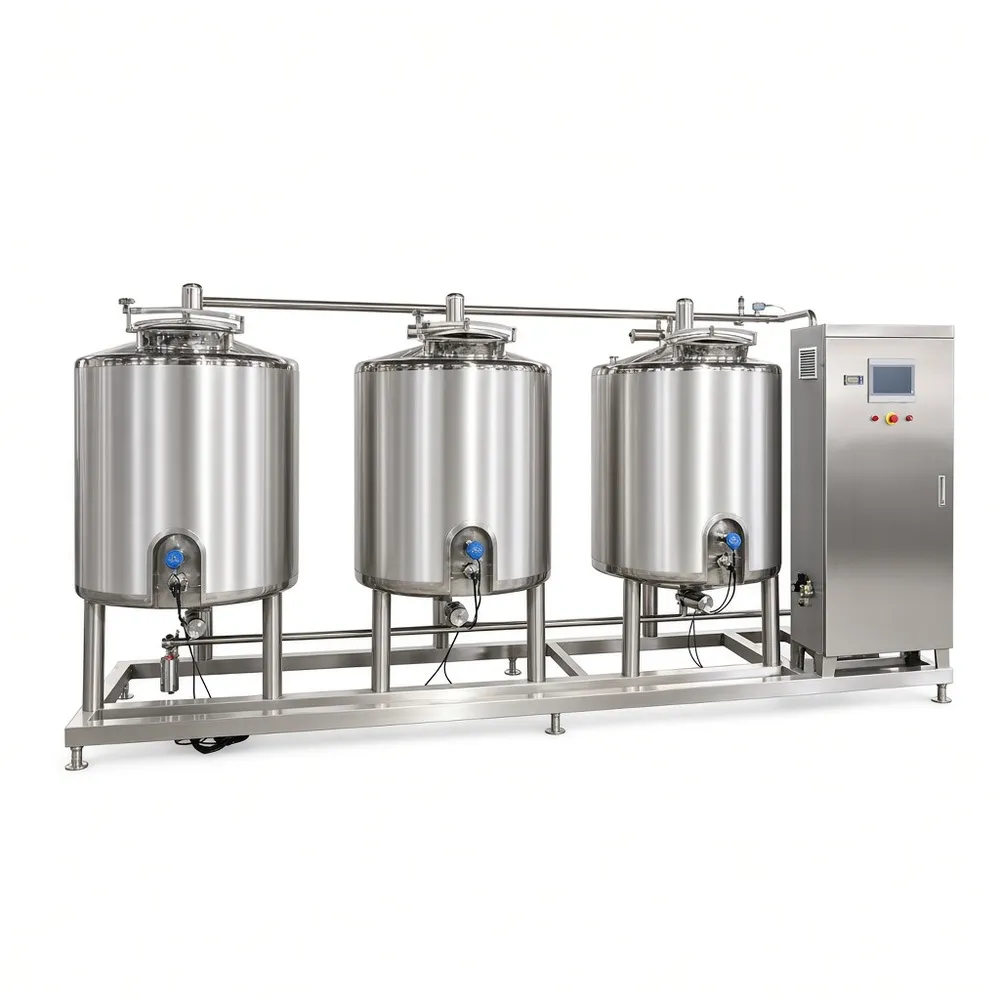

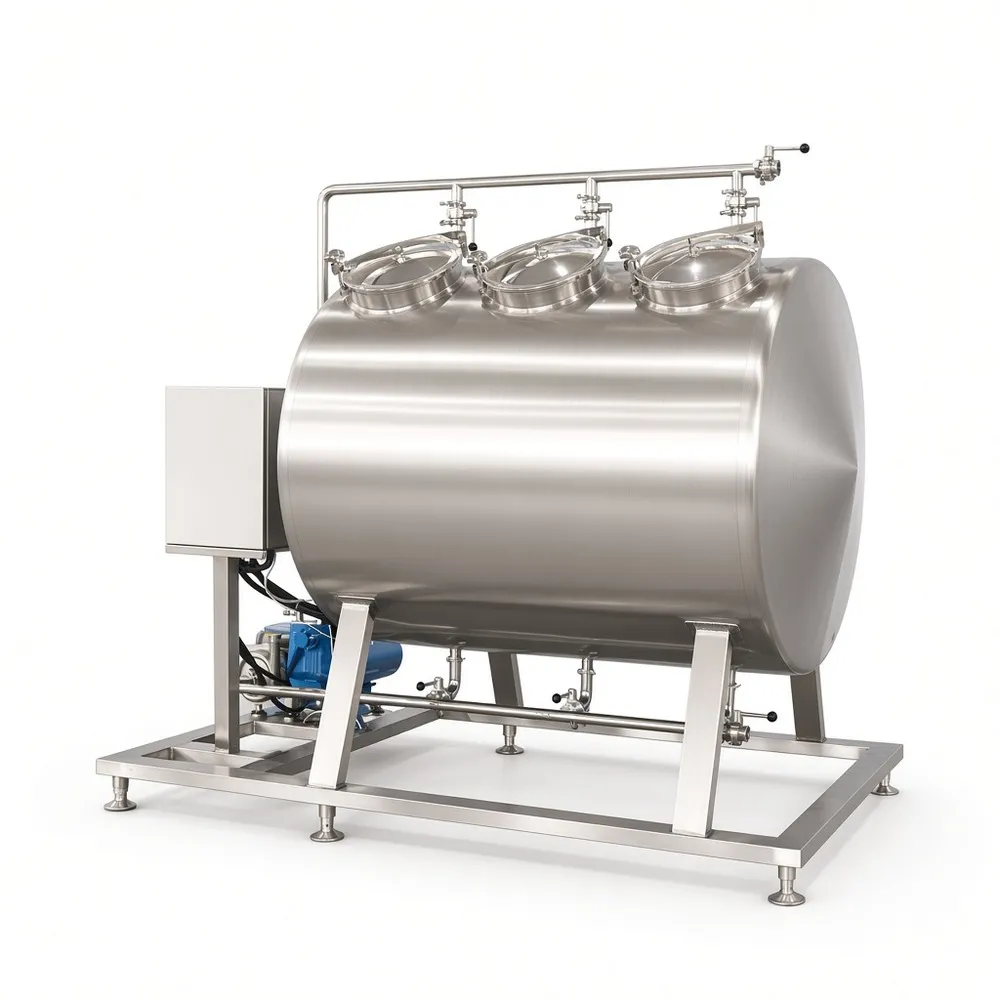

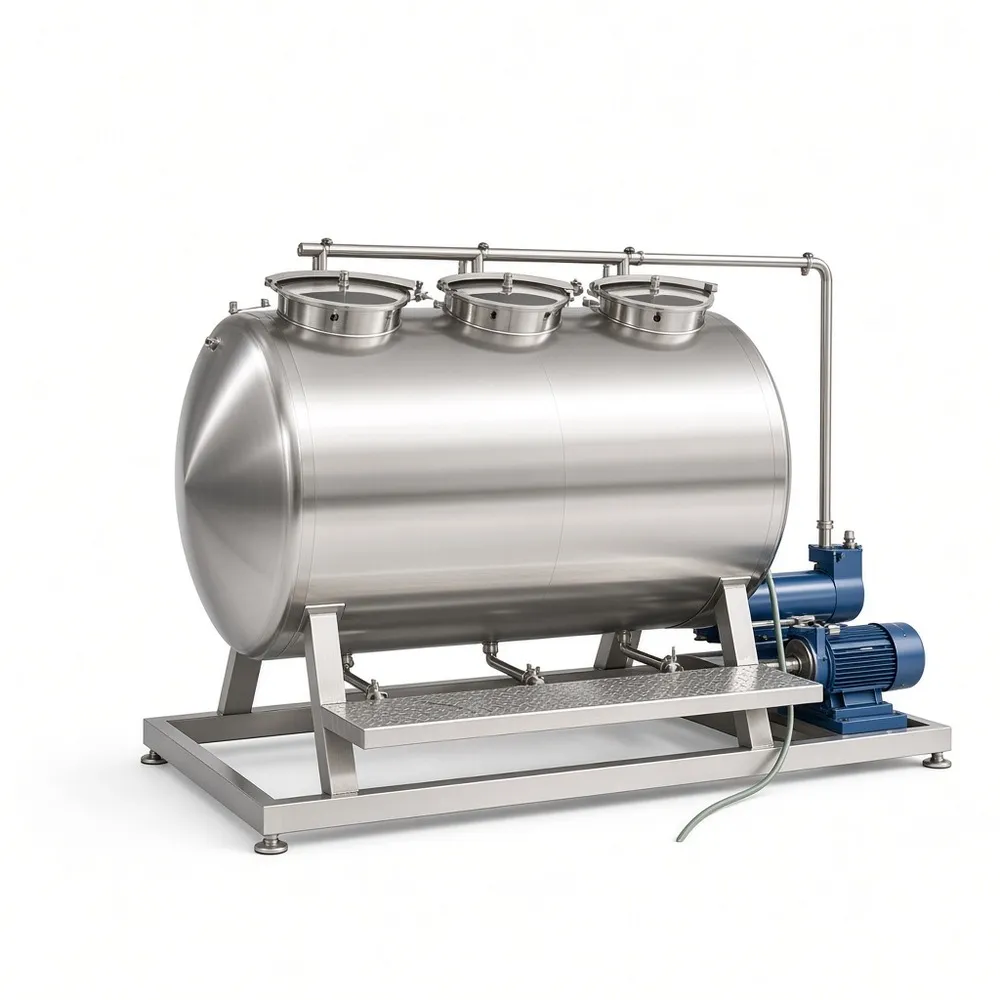

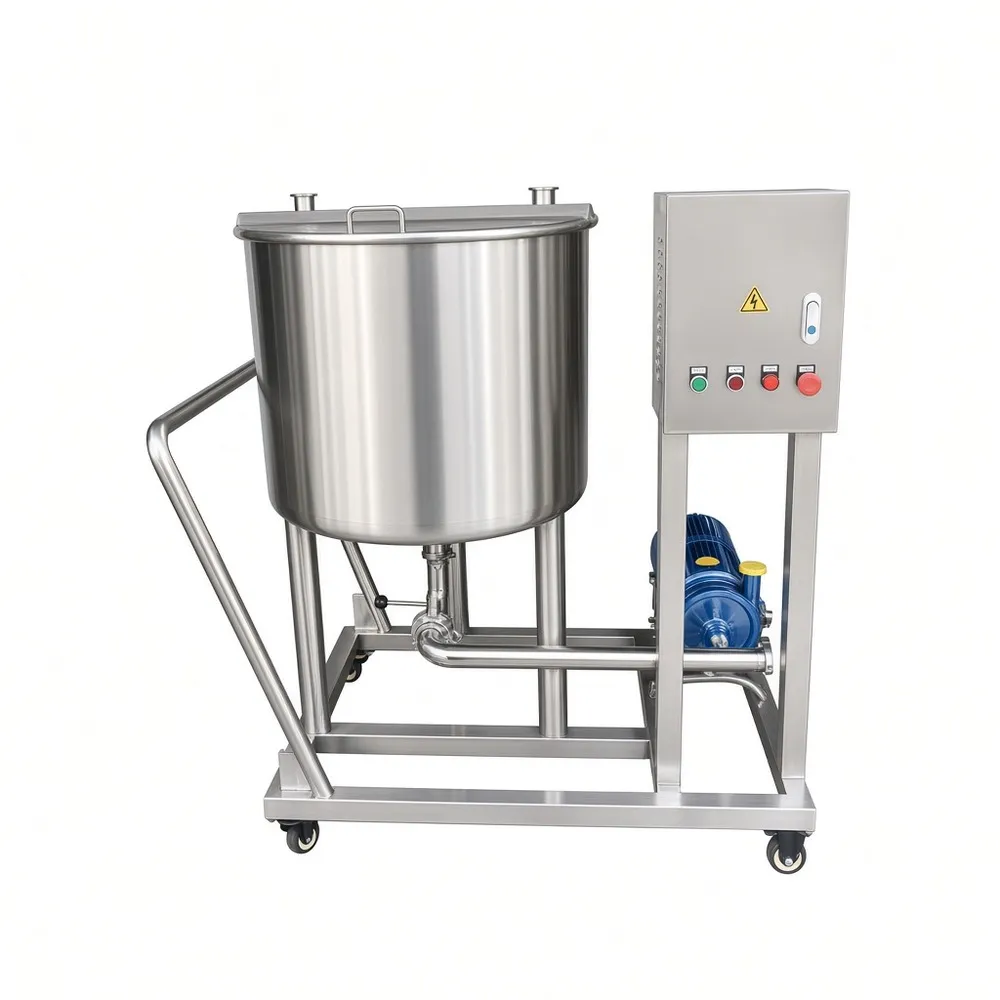

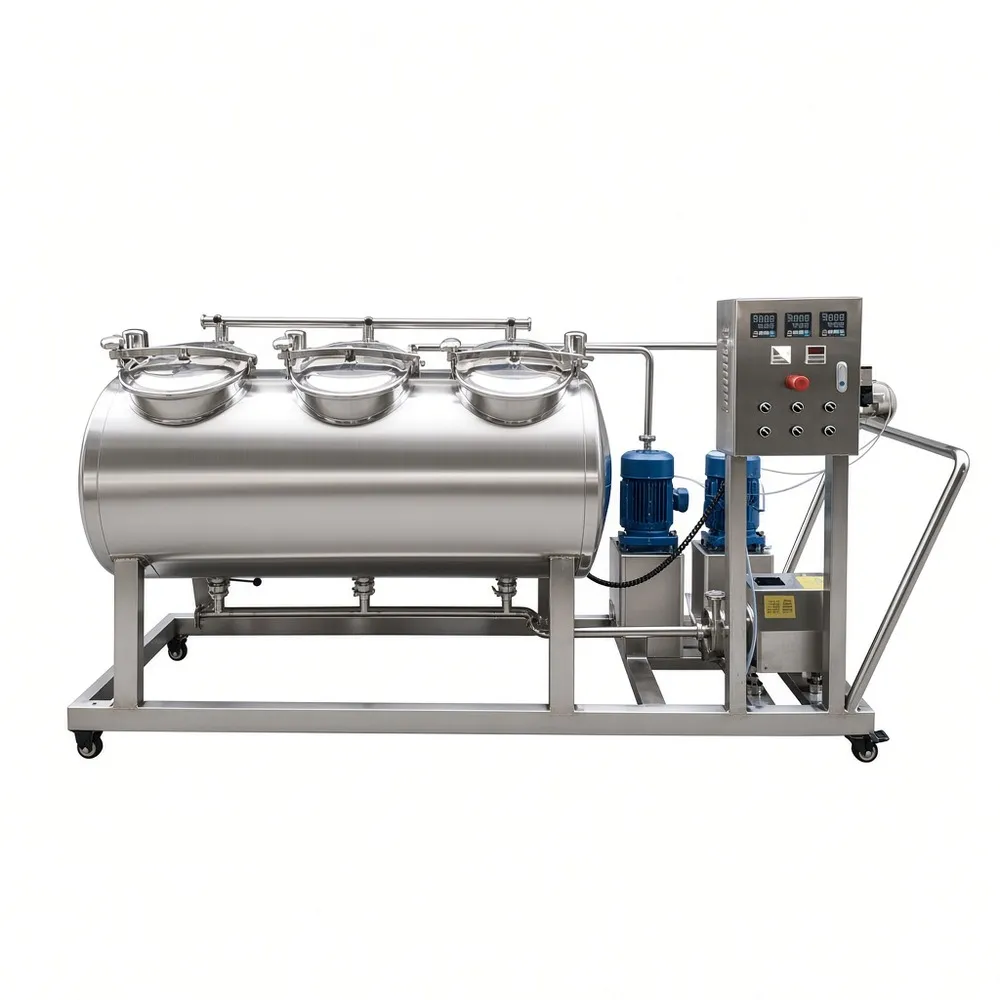

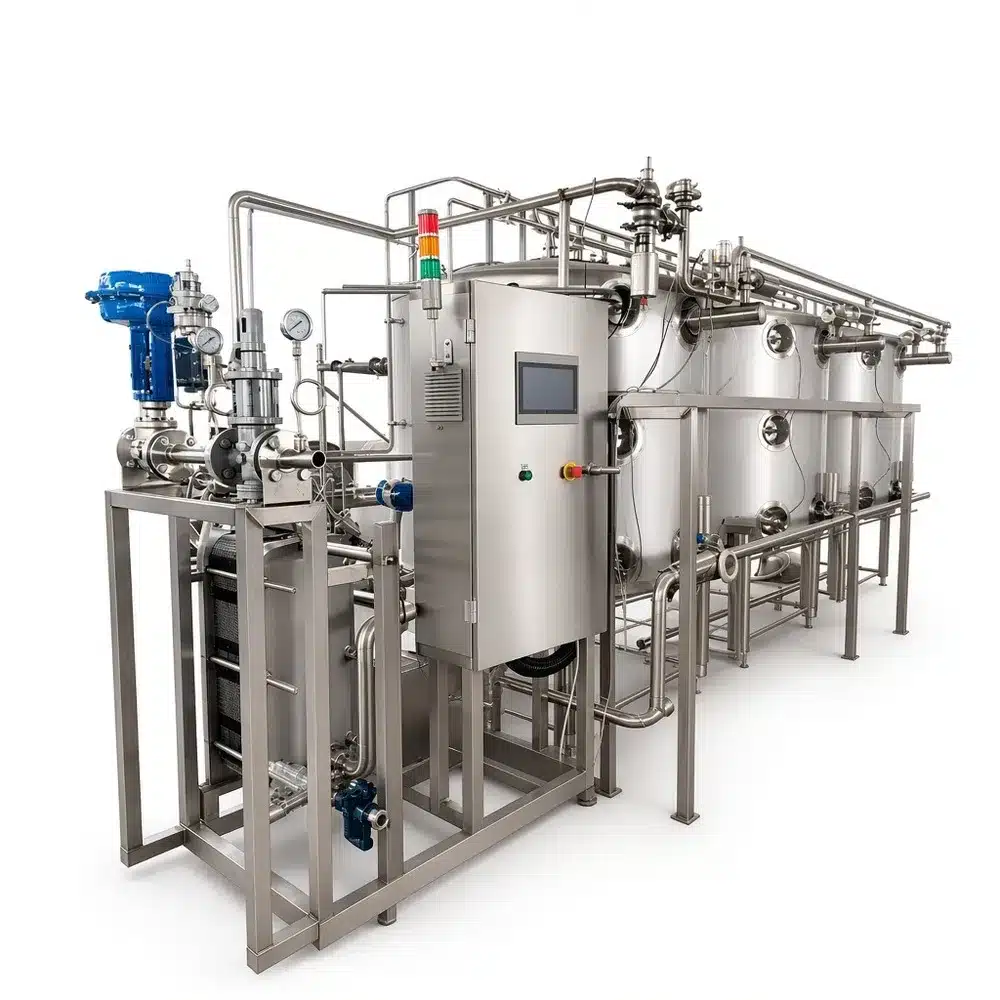

Our automatic CIP system is built for plants that need repeatable cleaning of tanks, lines, fillers, and process equipment without dismantling. We configure each skid around your soil load, circuit layout, and shift pattern, not a fixed catalog package. The unit typically includes solution tanks, supply and return pumps, a heater or heat exchanger, valves, instrumentation, and a control panel. Food-grade stainless construction suits juice, milk, beverages, sauces, and similar liquids. Higher-alloy grades are available where chlorides or aggressive chemistry require them.

A cleaning cycle usually runs pre-rinse, caustic wash, intermediate rinse, acid wash where needed, final rinse, and sanitizing. Temperature, flow, pressure, and conductivity determine whether the loop reaches the required cleaning effect. Low flow at the end of long headers is a common issue, so we size pumps against the actual circuit and verify return-line performance. Single-, double-, and multi-tank layouts are available. Two tanks suit many daily wash cycles; three or more help where acid and caustic separation or high throughput matters. Tank volume should cover circuit volume plus dilution and retention, not just the largest vessel.

Available options include single-, double-, triple-, or multi-tank layouts; separate caustic, acid, and hot-water tanks; electric or steam heating; supply and return pumps; stainless piping, valves, and fittings; temperature, flow, pressure, and level monitoring; manual, semi-automatic, or PLC control; and custom tank capacity, cleaning circuits, and automation. Confirm which features are included for your model.

Applications include dairy, beverage, brewery, distillery, sauce, liquid food, cosmetic, and pharmaceutical process lines. Cleaning requirements differ by product residue, surface finish, and circuit geometry, so review local standards with your quality team.

FAQ

How do I choose between two and three tanks? Two tanks handle many daily wash cycles. Add a third when acid and caustic separation, hot-water storage, or tight changeover schedules matter.

What affects cleaning capacity? Circuit volume, soil type, chemical concentration, temperature, pump flow, and rinse water quality all matter. We size the system against the full loop.

What should I prepare before asking for a quote? Send your industry and processed product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend a configuration, review technical questions, and provide a custom quotation.
