Description

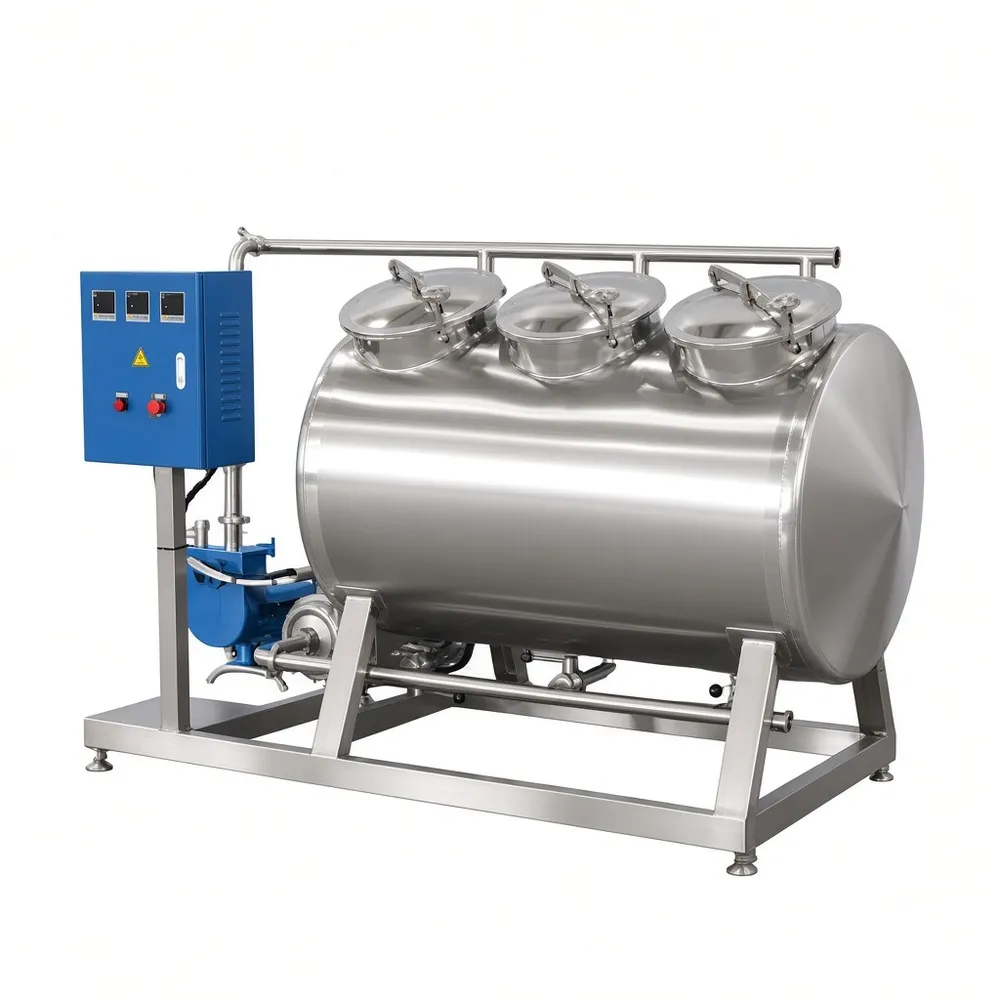

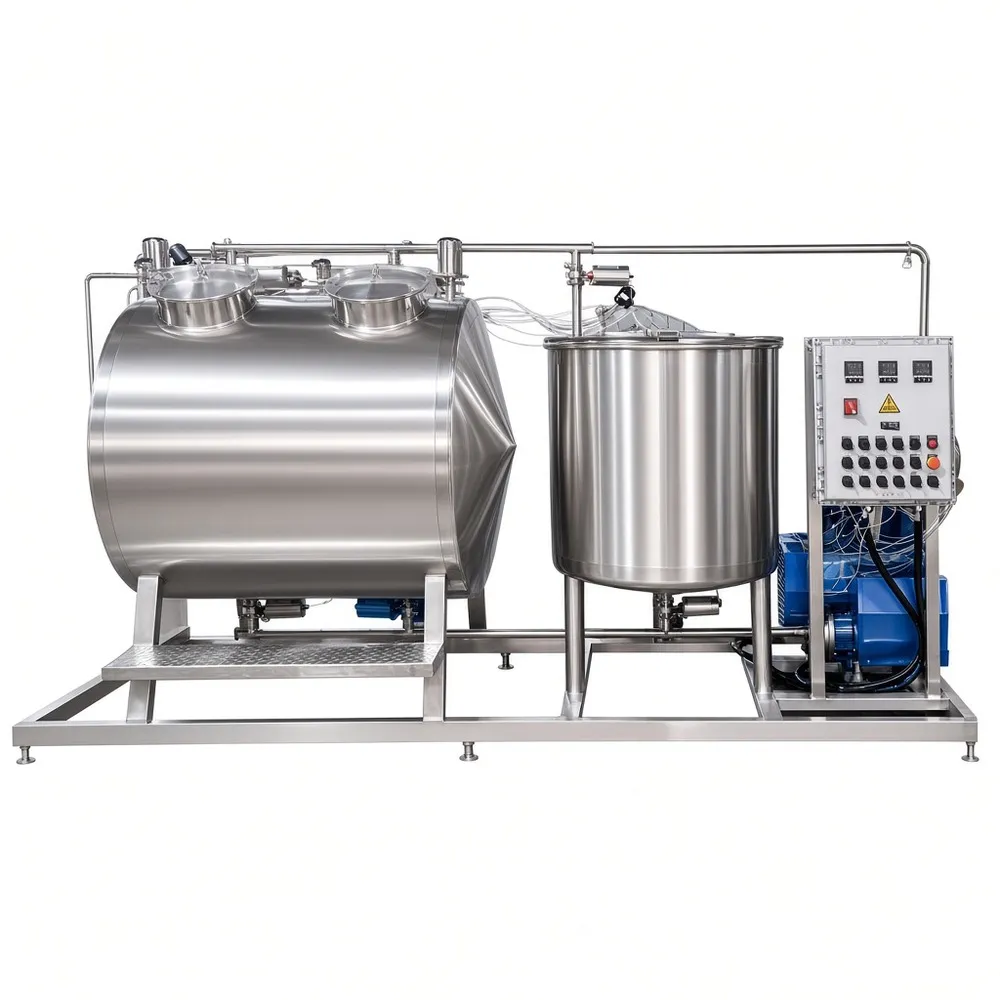

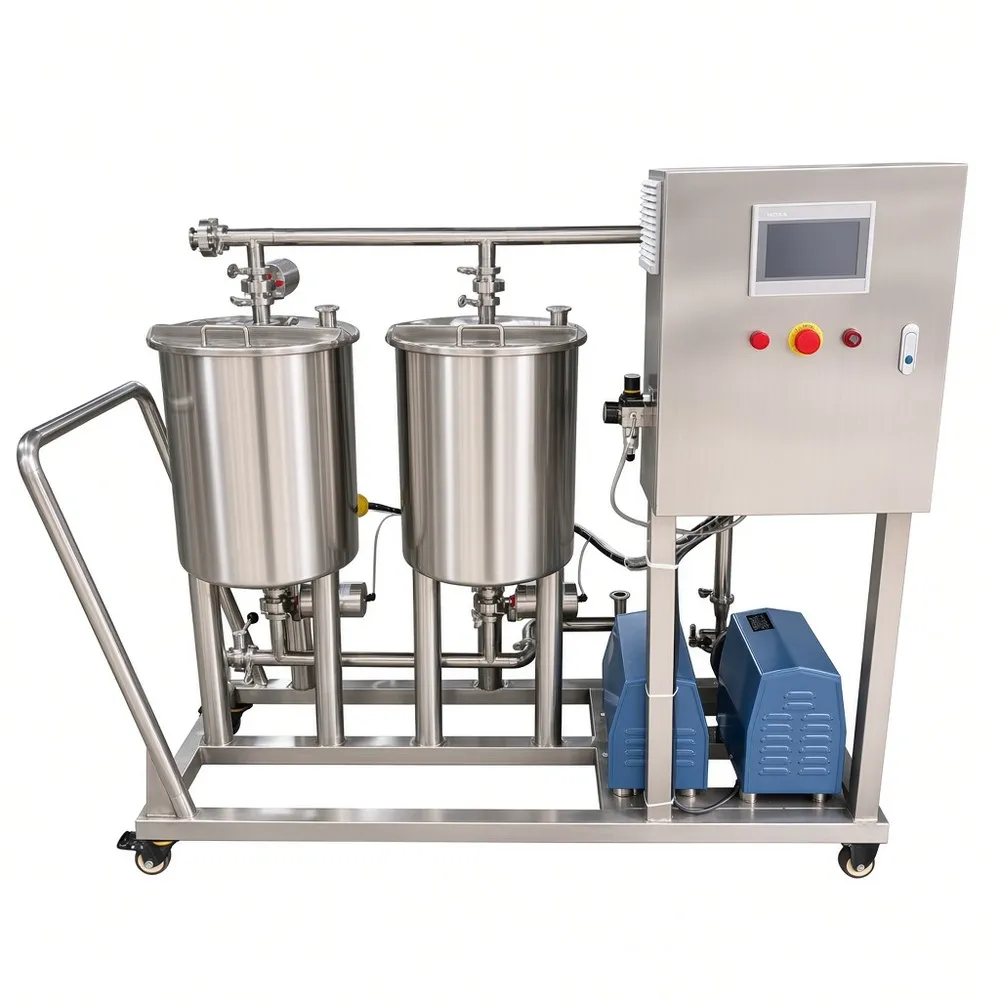

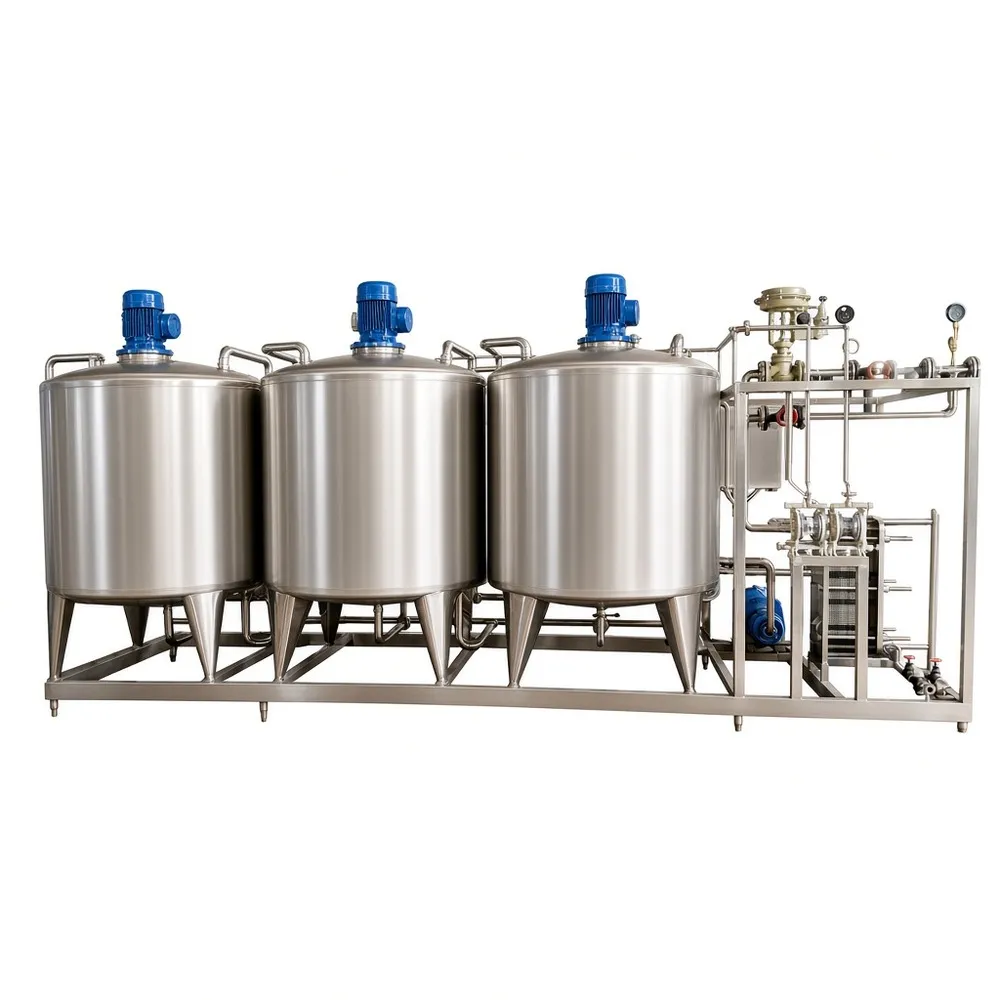

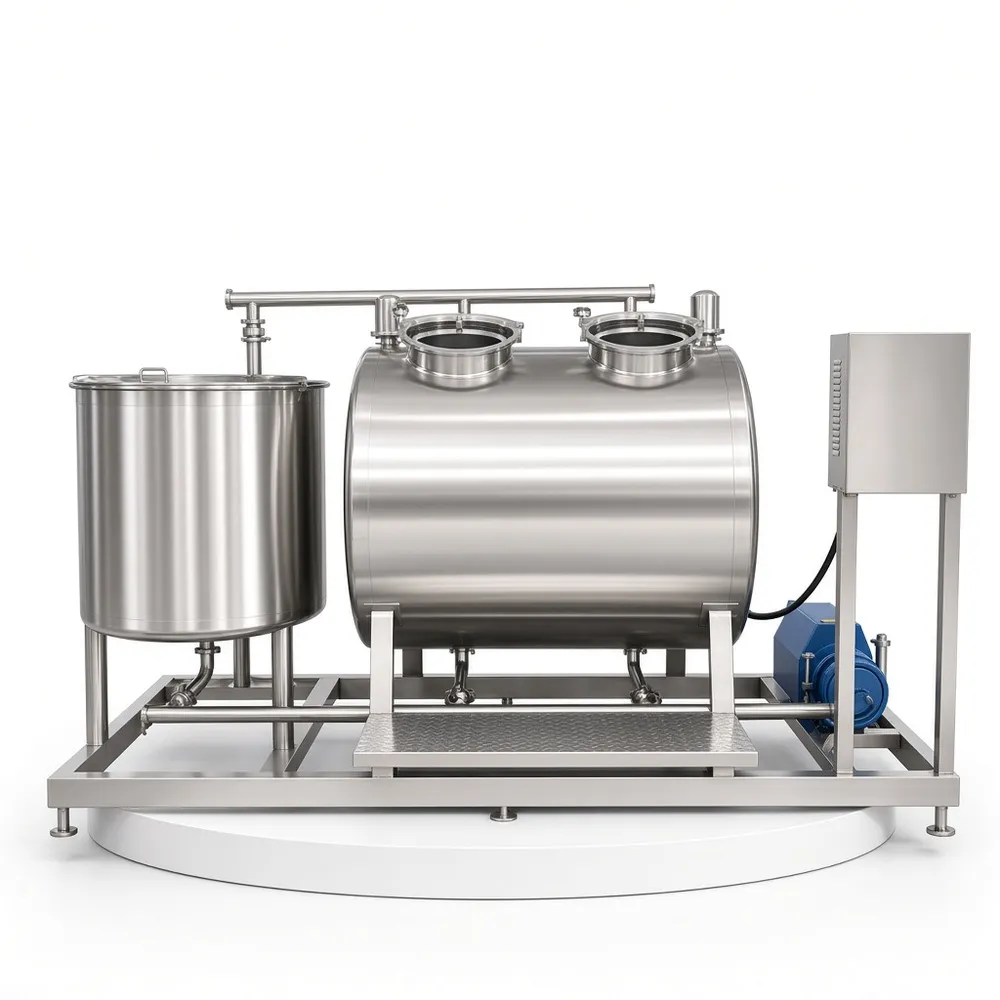

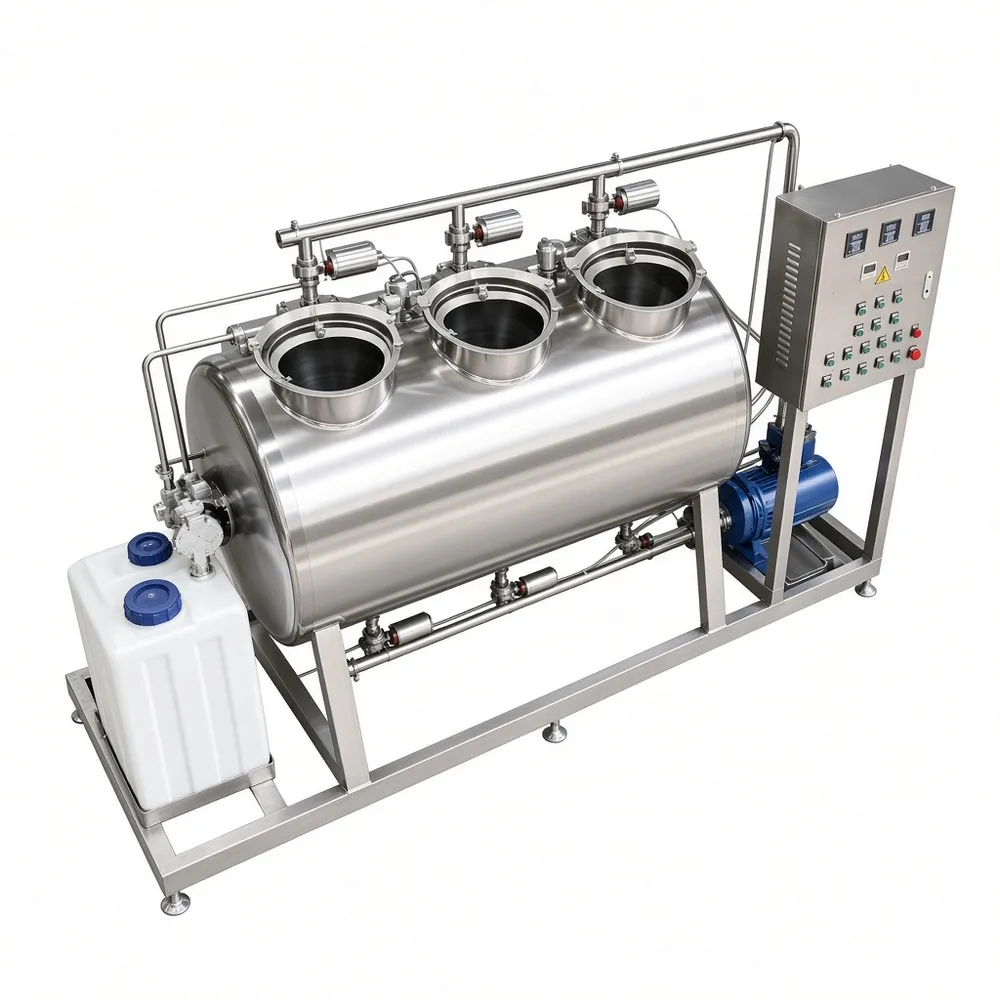

A CIP system is a recirculating cleaning loop tied to tanks, lines, fillers, and process equipment. We build skid-mounted and modular clean-in-place systems for tea drinks, beverage, milk, sauce, brewery, cosmetic, and liquid processing plants. Cleaning solution must reach wetted surfaces at controlled temperature, flow, and concentration, then return without cross-contamination.
A typical cycle runs pre-rinse, alkaline wash, intermediate rinse, acid wash when needed, final rinse, and sanitizing if specified. We size pumps, piping, valves, and return paths around circuit volume and pressure drop. Tank capacity, loop count, and heat source follow the process, not a catalog default.
Options include single-, double-, triple-, or multi-tank systems; caustic and acid tanks; hot water tanks; electric or steam heating; CIP supply and return pumps; stainless piping, valves, and fittings; temperature, flow, pressure, and level monitoring; and manual, semi-automatic, or PLC control. These are available options, not guaranteed standard features. Only approved drawing items are supplied.
Technical Specifications
| Item | Project-specific range |
|---|---|
| Cleaning tank capacity | 100 to 5,000 L per tank, custom |
| Number of cleaning tanks | 1 to 4 or more |
| Stainless steel grade | 304 or 316L wetted parts |
| Heating method | Electric, steam, or hot water |
| Pump flow and pressure | Sized to circuit, typically 10 to 100 m3/h and 2 to 6 bar; confirm by engineering |
| Operating temperature | Up to 80 C / 176 F typical; project-specific |
| Control system | Manual, semi-automatic, or PLC/HMI |
| Cleaning circuits | 1 to 10+ loops, project-specific |
| Power supply | 380V/50Hz, 440V/60Hz, or other; confirm locally |
| Dimensions | Skid or modular layout; based on tank size and room |
| Custom options | Tank volume, loops, automation, heat source, spare parts |
Where CIP Fits
Dairy processors use it on raw and pasteurized milk circuits, silos, and fillers. Beverage and tea plants clean mixing, blending, filling, and transfer lines. Breweries and wineries use it on fermenters, bright tanks, and packaging runs. Sauce, liquid food, cosmetic, and pharmaceutical operations use similar loops where wetted surfaces must be cleaned between products. Materials, surface finish, documentation, and validation needs vary by plant and product; we review those before quoting.
FAQ
How many tanks do I need? One tank can suit simple rinse-and-wash duty. Separate caustic and acid tanks help recovery and changeover. Multi-tank skids support longer production windows.
Can it clean existing lines? Usually, after a piping survey. We need pipe size, length, elevation, fittings, and circuit volume to check flow and return.
What should I send for a quote? Your industry, product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. Spare parts requests need model and serial data.
How do we avoid oversizing? Measure circuit volume and pressure drop first. Match pump flow to return conditions and cleaning chemical, not nameplate alone.
We manufacture stainless CIP equipment and provide engineering support from layout to commissioning. Send your process details, and we will recommend a configuration and prepare a custom quote.
