Description
Where a 500L Single Wall Tank Fits
Most customers ordering this tank are working in 1,000–5,000 bottle lots, or pulling a single varietal aside for trials. A single wall vessel holds wine at whatever temperature the cellar gives it. In a room held at 12–16°C, that is workable for red maceration, blending trials and short-term storage before bottling. If you need to drop a white must to 8°C, this is the wrong vessel — order a dimple-jacketed tank instead. We would rather say that now than ship you something that cannot crash-cool.
Fabrication Details That Show Up Later
Shell and bottom are rolled from SUS304; 316L is available when the tank sees high chloride cleaning or heavy SO₂ additions. Standard plate runs 2 mm on the shell, 2.5 mm on the dished bottom, TIG welded inside, ground flush, then pickled and passivated. Interior finish is 2B mill, or polished to Ra 0.4–0.6 µm when the tank will sit on lees and rely on a CIP spray ball rather than hand scrubbing.
Top end: hinged clamp lid or a 400 mm manway with gasketed cover and airlock port. Side fittings are tri-clamp — racking arm, sample valve, 1.5 in. butterfly on the bottom outlet, 1 in. CIP port. Leg sockets are welded, not bolted, and the bottom is sloped 2–3° so racking leaves less behind.
Standard Build
| Parameter | Specification |
|---|---|
| Nominal capacity | 500 L (working 450–480 L) |
| Shell diameter | 800 mm |
| Cylinder height | 1,000 mm |
| Overall height | ~1,700 mm with legs |
| Material | SUS304; 316L optional |
| Plate thickness | 2 mm shell / 2.5 mm bottom |
| Interior finish | 2B mill or polished Ra 0.4 µm |
| Bottom outlet | 1.5 in. tri-clamp butterfly |
| Working pressure | Atmospheric — vent or airlock required |
Questions We Get Before Ordering
Can it be sealed and pushed with gas? No. Single wall, unrated. Fit an airlock or vent; use a pump for transfers.
Can you change the dimensions? Yes. Diameter, leg height and fitting positions are the usual requests, especially when a cellar door is 750 mm wide.
How do we clean it? A 1 in. CIP port and spray ball cover the shell in about 10 minutes at 2–3 bar. Pull the racking arm and sample valve for periodic inspection.
Tell us your lot size, wine style, number of tanks and cellar ceiling height. We can confirm volume, lid type, outlet size and fitting layout before you commit.
Related products

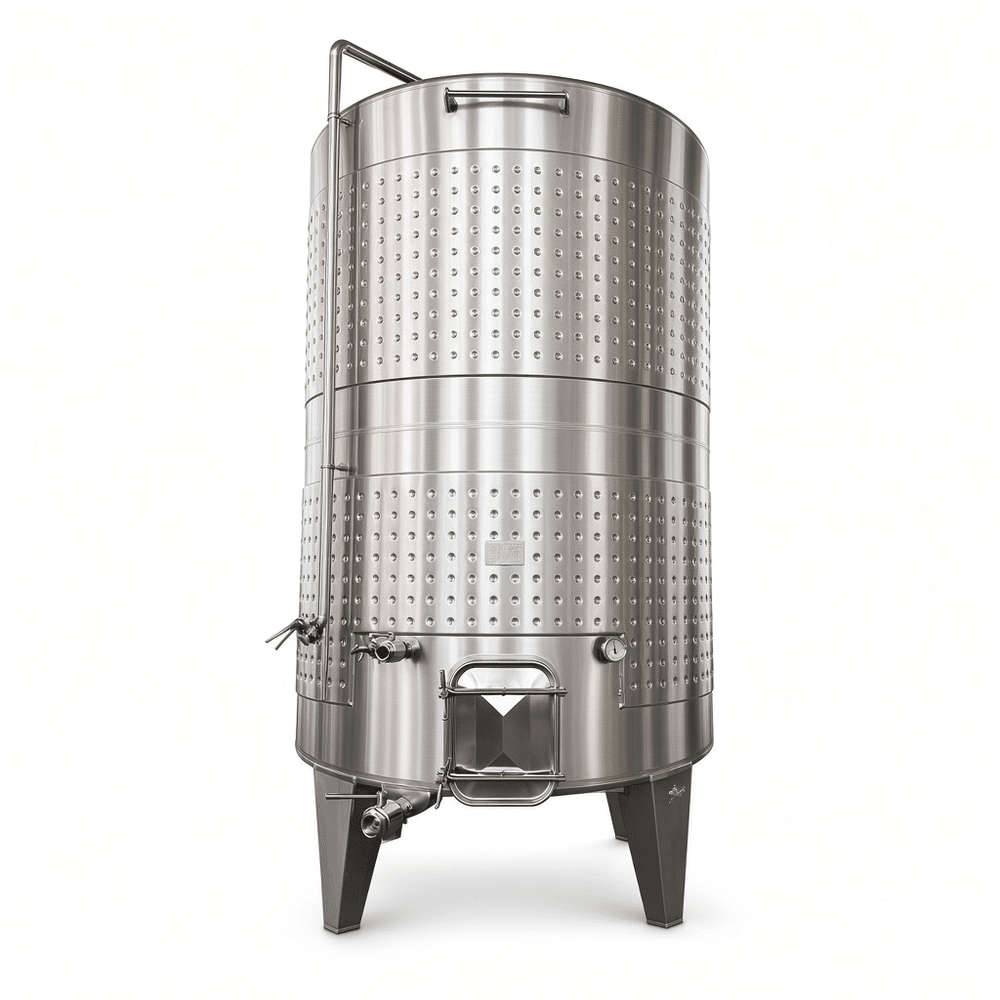

Wine Fermentation & Storage Tanks 1000L–10000L Stainless Steel for Wineries
Stainless steel wine fermentation and storage tanks from 1,000 L to 10,000 L, built in SUS304 or 316L with dimple-plate cooling jackets, CIP spray balls and conical or flat bottoms. Sized for small cellars through commercial wineries, with pressure rating, jacket area and fittings matched to your batch size, wine style and glycol supply.
2000L-10000L Wine Fermentation & Juice Storage Tank | SUS304/316L
Wine fermentation and fruit juice storage tanks from 2,000 L to 10,000 L, built in SUS304 or 316L with dimple-plate cooling jackets, 60° conical bottoms and CIP spray balls. Includes dimensions, pressure ratings, fitting options and guidance on matching tank volume, cooling area and cone design to your batch and process.

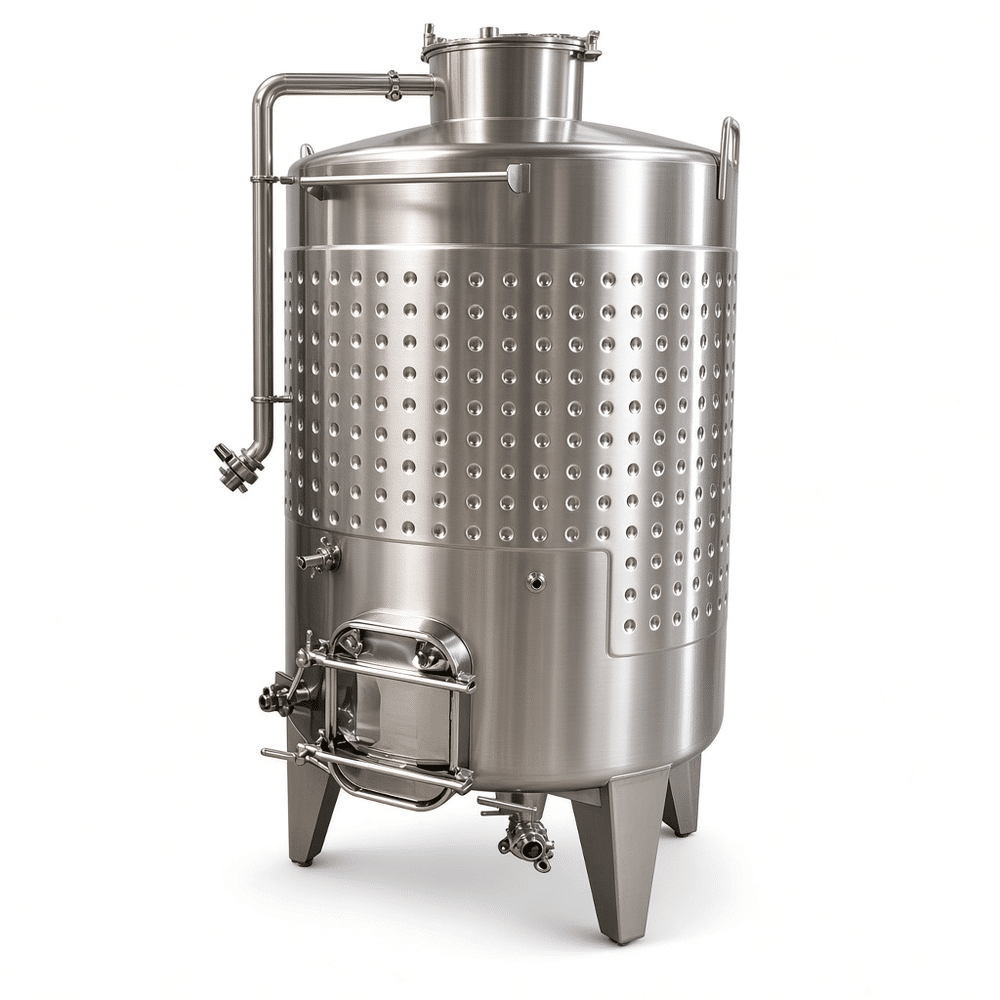

2000L Open Top Fermentation Tank PLC Dimple Cooling Jacket Wine Kombucha
This 2000L open top fermentation tank features a PLC-controlled dimple plate cooling jacket for precise temperature management. Built from SUS304 stainless steel with a polished interior, it is suited for wine, kombucha, and food fermentations. Includes CIP spray ball, bottom outlet, and 3-year warranty. Available for small or medium craft producers.

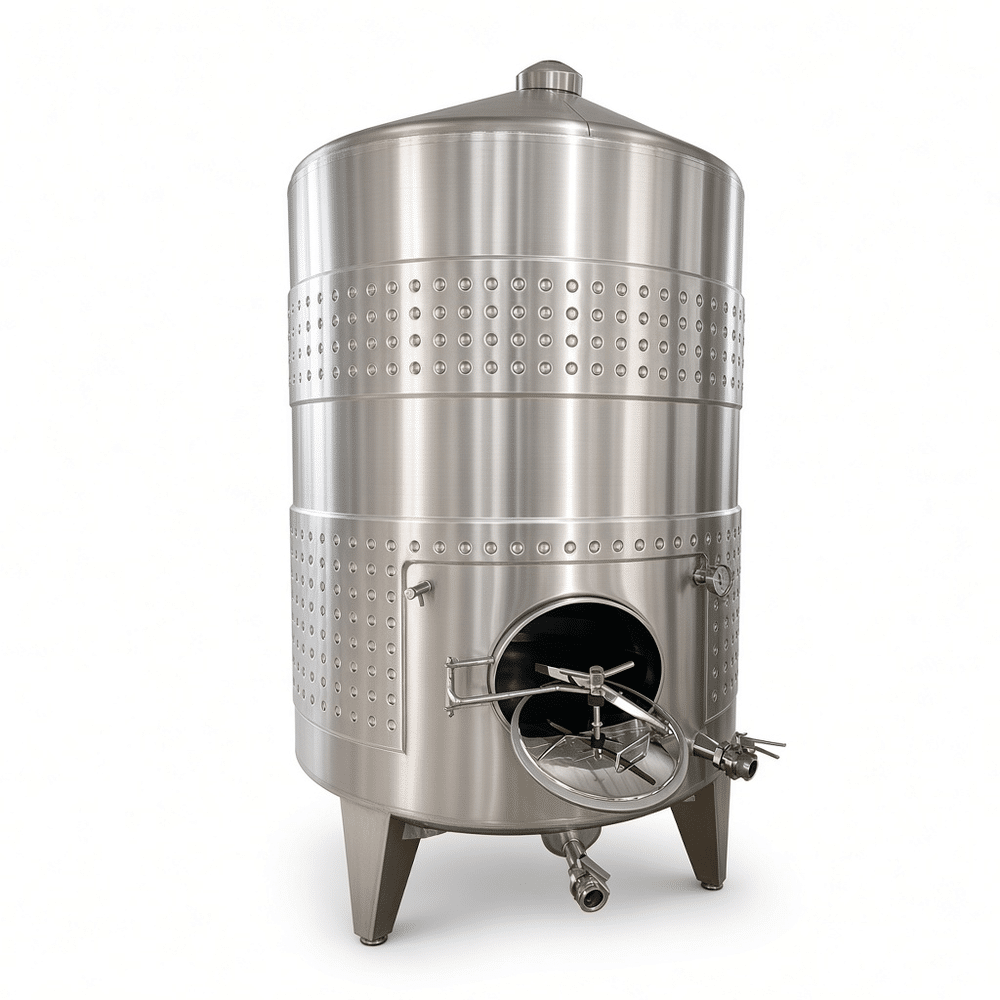

100HL Red White Wine Fermentation Tank Dimple Cooling Jacket Commercial Winery
This 100HL red and white wine tank is built for commercial wineries that need reliable fermentation and storage. The dimple cooling jacket controls temperature during active fermentation, while SUS304 or 316L contact surfaces, CIP connections, and insulated cladding support daily cellar work. We size jacket coverage, fittings, and cone details around your batch size, wine type, and glycol supply.

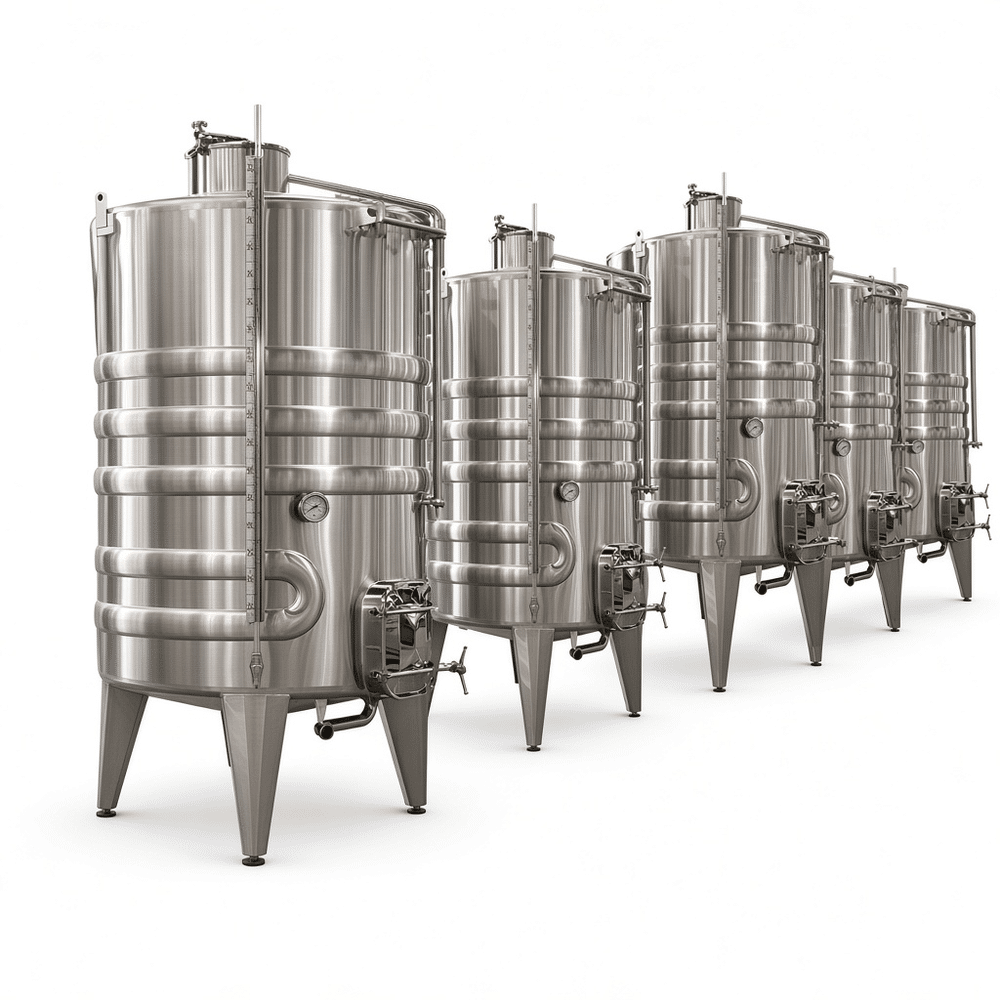

1000L Single Wall Wine Fermentation Tank with Cooling Jacket Coil Belt
Our 1000L single wall wine fermentation tank uses an external cooling jacket coil belt for precise temperature control during red and white fermentation. Built in SUS304 or 316L, it offers CIP spray ball, racking arm, sample valve and glycol connections. We size cooling area and ports around your batch, yeast and chiller setup. Tell us your wine type, tank count and available space for a practical configuration.

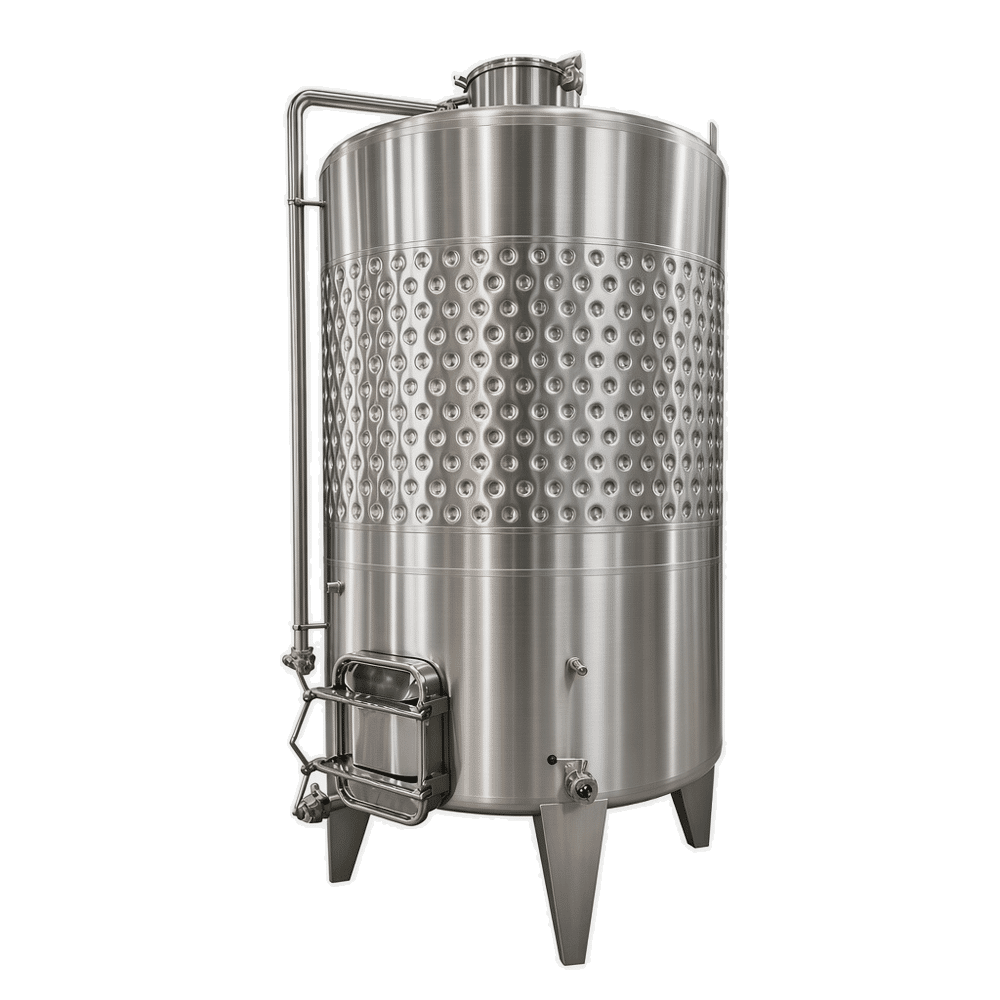

1000L-3500L White Wine Fermentation Tank with Cooling Jacket for Fruit Wine
