Description
What these tanks actually do in a cellar
Most wineries we work with have already settled how they ferment. What they still need is somewhere for the wine to rest — six months, eighteen months, sometimes three years — without oxygen pickup or temperature swings. That is a storage job, and it is not the same job a fermenter does.
We build these vessels at 500 L, 1,000 L, 1,500 L, and 15,000 L, plus everything in between. Those sizes are not interchangeable. A 1,000 L lot sitting in a 15,000 L tank leaves too much headspace and the wine oxidizes. A 15,000 L lot needs enough jacket area to actually move temperature.
Fabrication details that decide how long the tank lasts
Bodies are 304 stainless as standard. We move to 316L when the must is high-acid, the cellar sits near salt water, or the customer holds wine for distillation. Sheet thickness follows diameter — 2 mm on the small tanks, 3 to 4 mm on the large ones — with rolled shells, full-penetration seam welds, and interior welds ground flush and pickled. Wine-contact surfaces are finished to Ra ≤ 0.8 µm. Exterior is #4 brushed, or mirror polish if the tank stands in a tasting room.

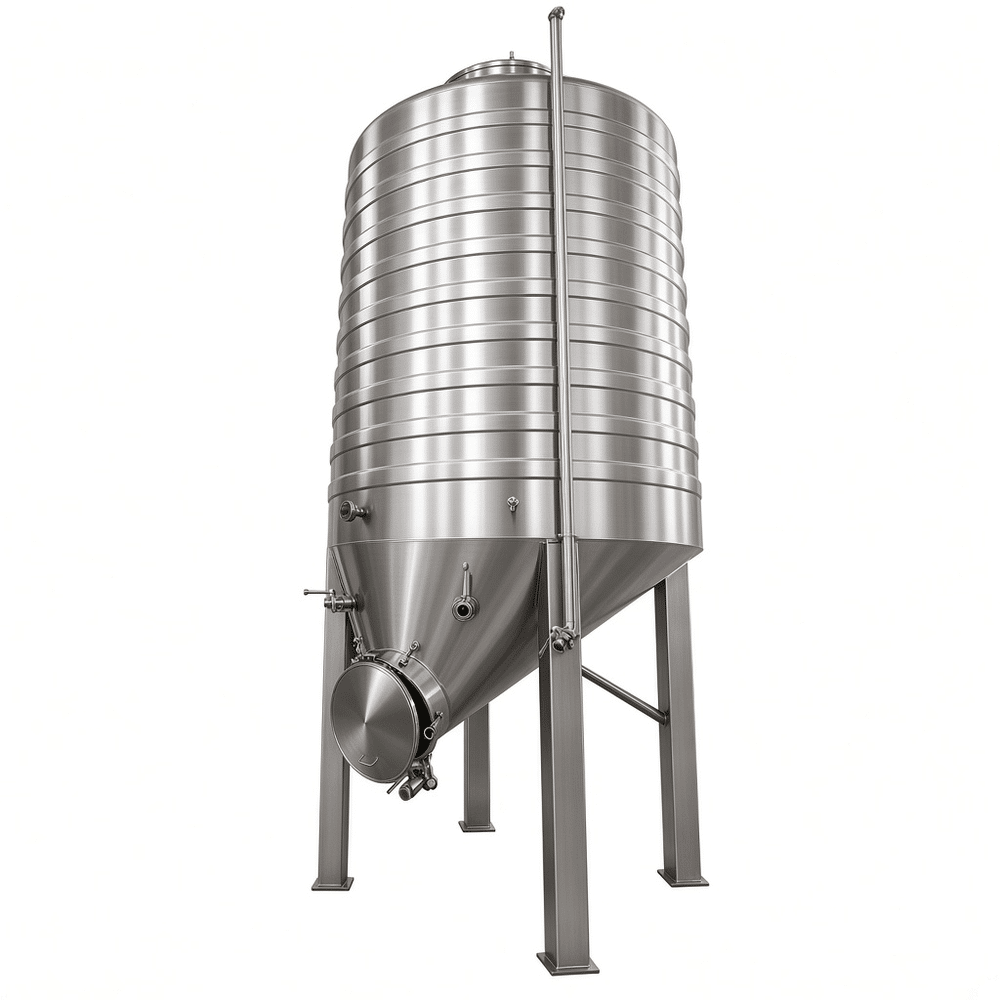

Dimple cooling jackets cover the cone and lower shell. Insulation runs 50–80 mm polyurethane, clad in stainless. A 60° cone handles lees removal on the smaller units; larger tanks usually get a dished bottom with a racking arm instead.
Where they get used
Boutique wineries, custom crush facilities, cideries, and distilleries holding wine before the still. Also fruit-wine producers who want a clean, inert vessel rather than oak.
Specifications
| Item | Range |
|---|---|
| Volume | 500 L – 15,000 L, custom sizes available |
| Material | 304 or 316L stainless steel |
| Surface finish | Ra ≤ 0.8 µm interior, #4 or mirror exterior |
| Bottom | 60° conical, or dished with racking arm |
| Cooling | Dimple jacket on cone and lower shell |
| Insulation | 50–80 mm polyurethane, stainless clad |
| Working pressure | Atmospheric to 0.2 MPa, pressure relief fitted |
| Connections | Sample valve, racking port, CIP spray ball, breather or airlock |
Questions we get before an order
Can one tank do fermentation and storage? Yes, if it has a jacket and a pressure-rated top. If you only ever store, skip that cost.
Do I need a conical bottom? Only if you drop lees or ferment in the same vessel. For straight storage, a dished bottom with a racking arm is easier to clean and cheaper.
How is it cleaned? A fixed CIP spray ball, a pump, and a caustic cycle. Rotating balls work too, but they need more line pressure.
Getting the sizing right
Send us your lot sizes, how long the wine stays in tank, the ambient temperature in your cellar, and your door and ceiling dimensions. Door width and ceiling height decide more tank geometry than most buyers expect. We will come back with volume, jacket area, and fitting layout.
