1500L/2000L Brewhouse for Growing Production

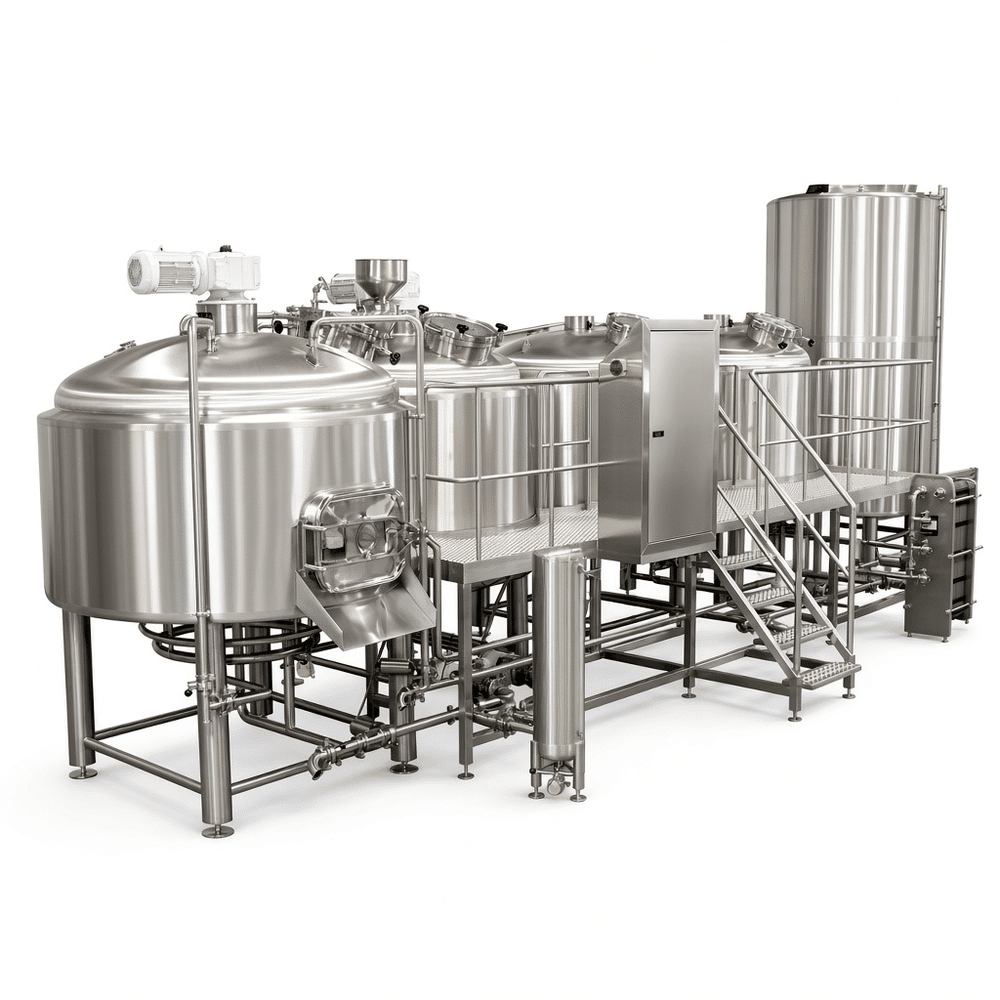

We build this system for breweries that have outgrown pilot batches but still need flexibility across styles. A 1,500 L batch suits a busy brewpub or small regional brewery; 2,000 L gives more headroom for packaged beer and seasonal releases. The brewhouse can be supplied as a 4-vessel set—mash, lauter, kettle, whirlpool—or a 5-vessel layout with separate mash and lauter vessels and a dedicated hot liquor tank.
Wort quality depends on vessel geometry, heating ramp, transfer times and cleaning access. We size the kettle and whirlpool around your knockout gravity and evaporation rate, not just nominal volume.
Materials, welds and finishes
Product-contact surfaces are SUS304 as standard; 316L is available for high-chloride water, aggressive CIP or dairy-style hygiene programs. We TIG-weld with shielding gas, grind and polish critical seams, then pickle and passivate. Interior finish is typically Ra ≤0.8 µm on product-contact areas. Gaskets are EPDM or silicone, selected for CIP temperature and chemical compatibility.
Cooling, pressure and cleaning
Dimple jackets or coil jackets handle wort cooling and fermenter temperature control. Each pressure vessel is fitted with a relief valve sized to working pressure—do not treat the relief valve as a substitute for a controlled glycol loop. CIP relies on spray balls, a dedicated pump and correct pipe slopes; dead legs are the usual cause of repeat contamination.
Technical specifications
| Batch capacity | 1,500 L or 2,000 L |
|---|---|
| Brewhouse | 4-vessel or 5-vessel |
| Material | SUS304; 316L optional |
| Heating | Steam, electric or direct fire |
| Control | Manual, semi-auto or PLC |
| Connections | Tri-clamp, DIN, SMS |
| Surface finish | Ra ≤0.8 µm product contact |
FAQ
Do I need a 5-vessel brewhouse? Choose 5-vessel if you brew frequent high-adjunct or multi-step mashes and need faster turnarounds. Many ales and lagers run well on a 4-vessel set.
Can we add fermenters later? Yes. We match brewhouse piping and glycol headers to your planned tank count, but leave isolation valves for future drops.
What should we prepare for a quote? Batch size, beer styles, brews per day, available steam or power, floor space, ceiling height and tank count.
Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the tank volume, cooling area and configuration for your brewery.
