Description

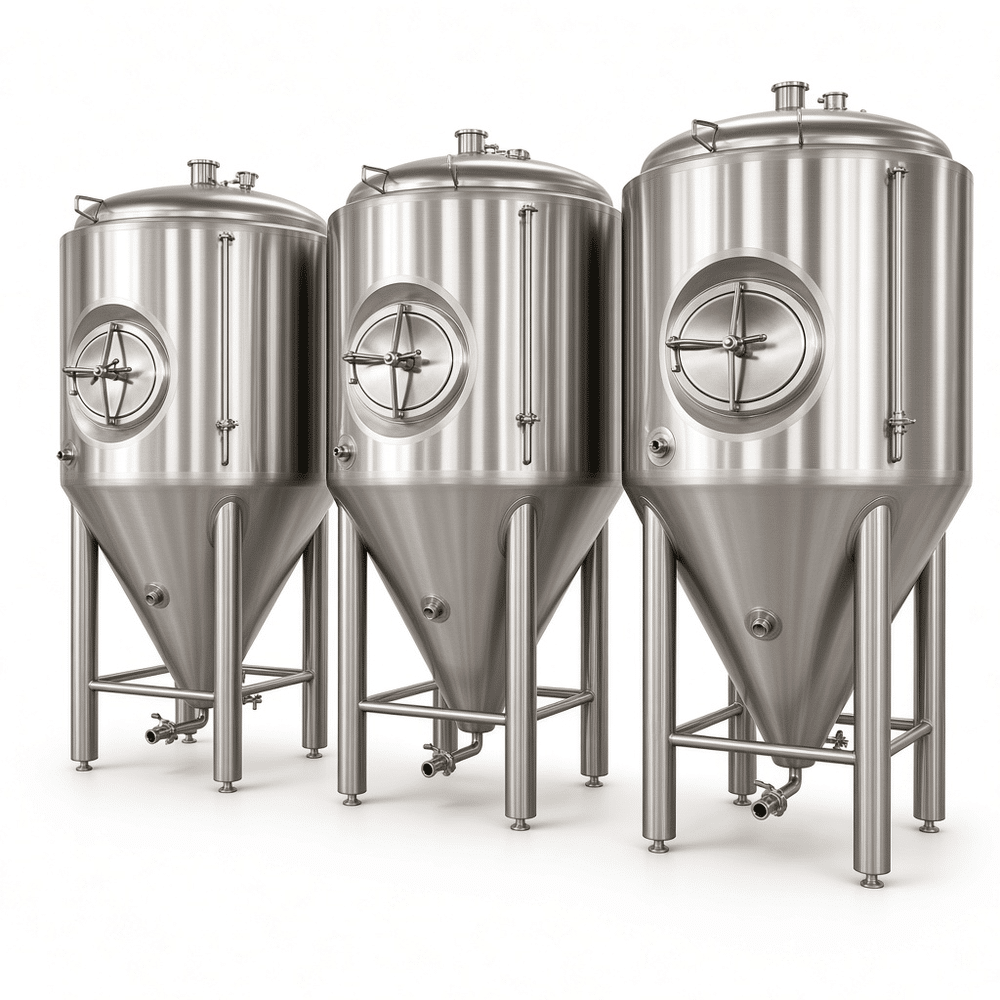

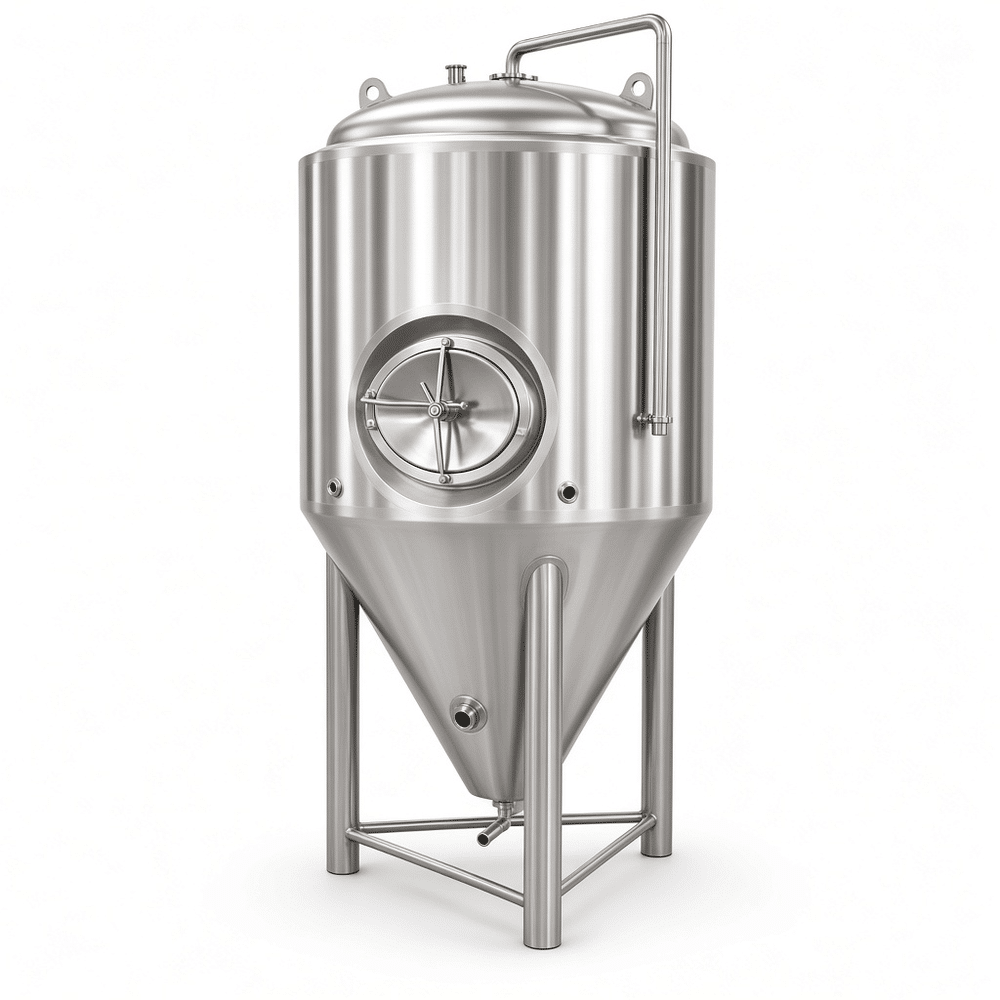

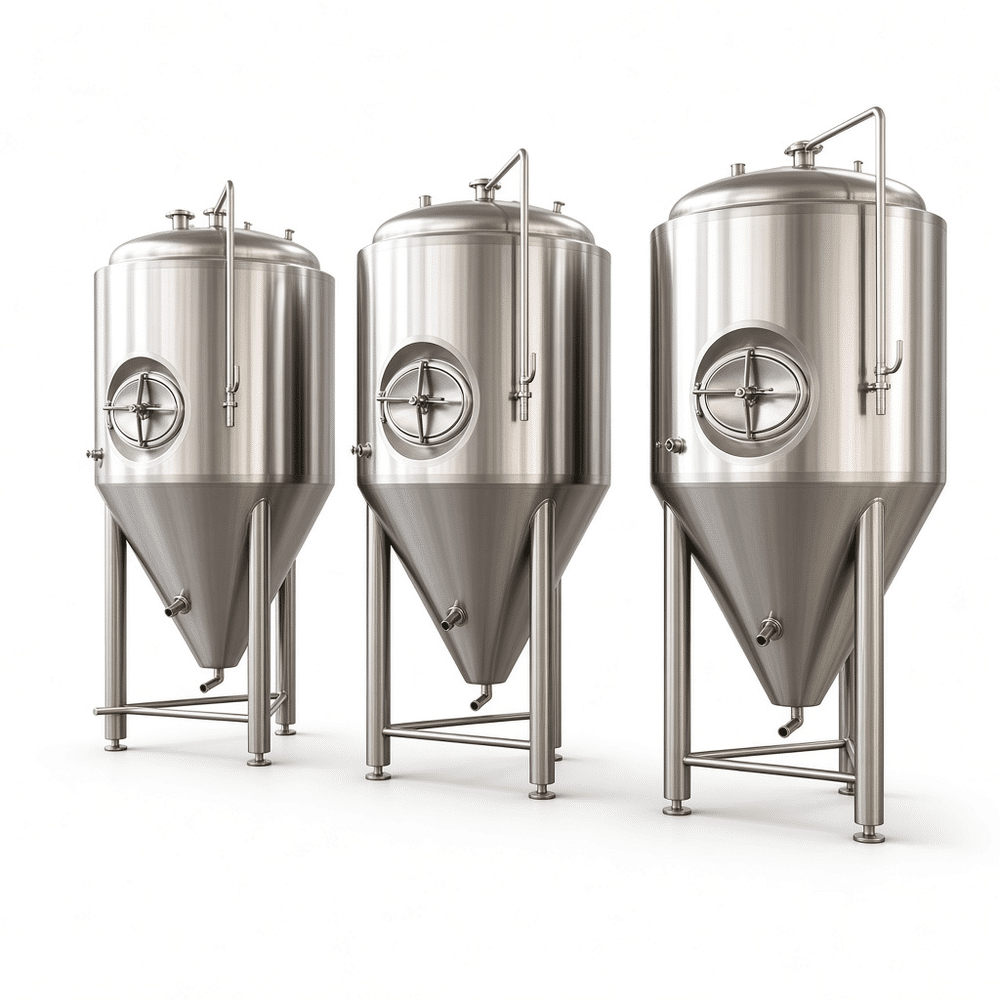

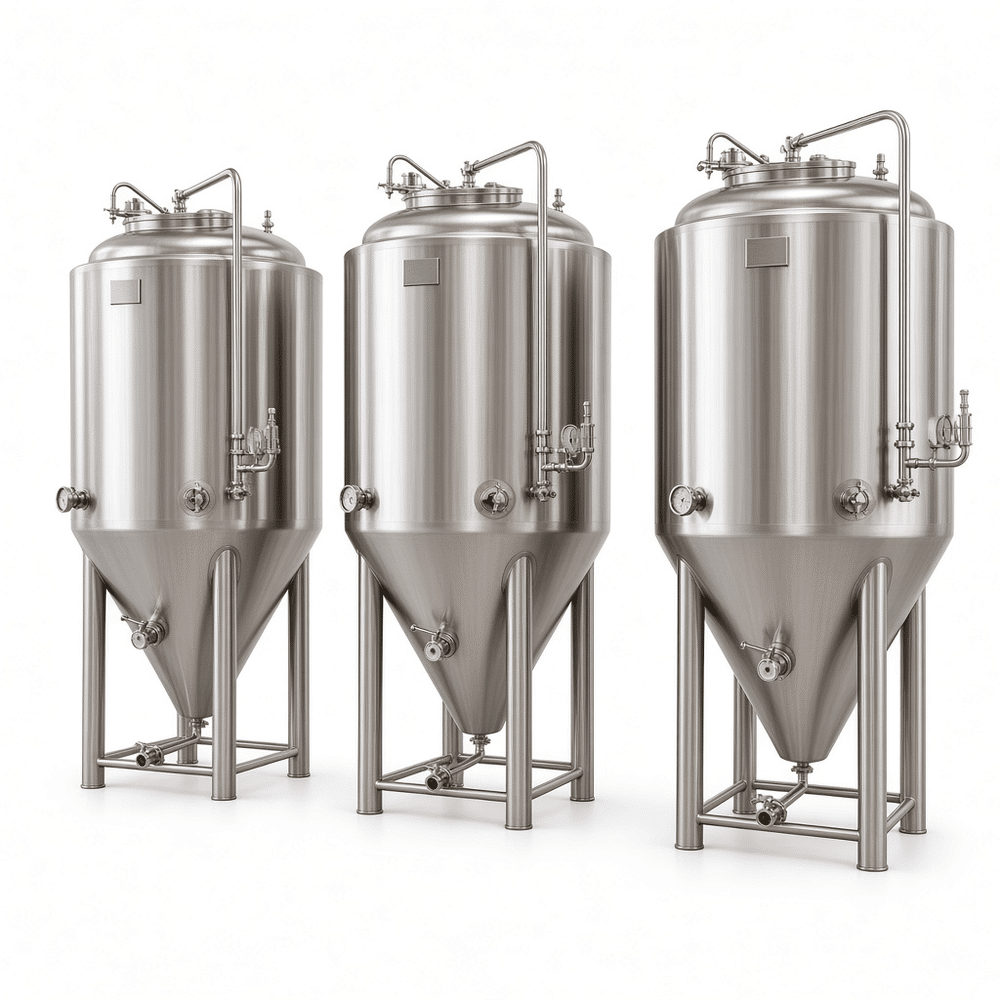

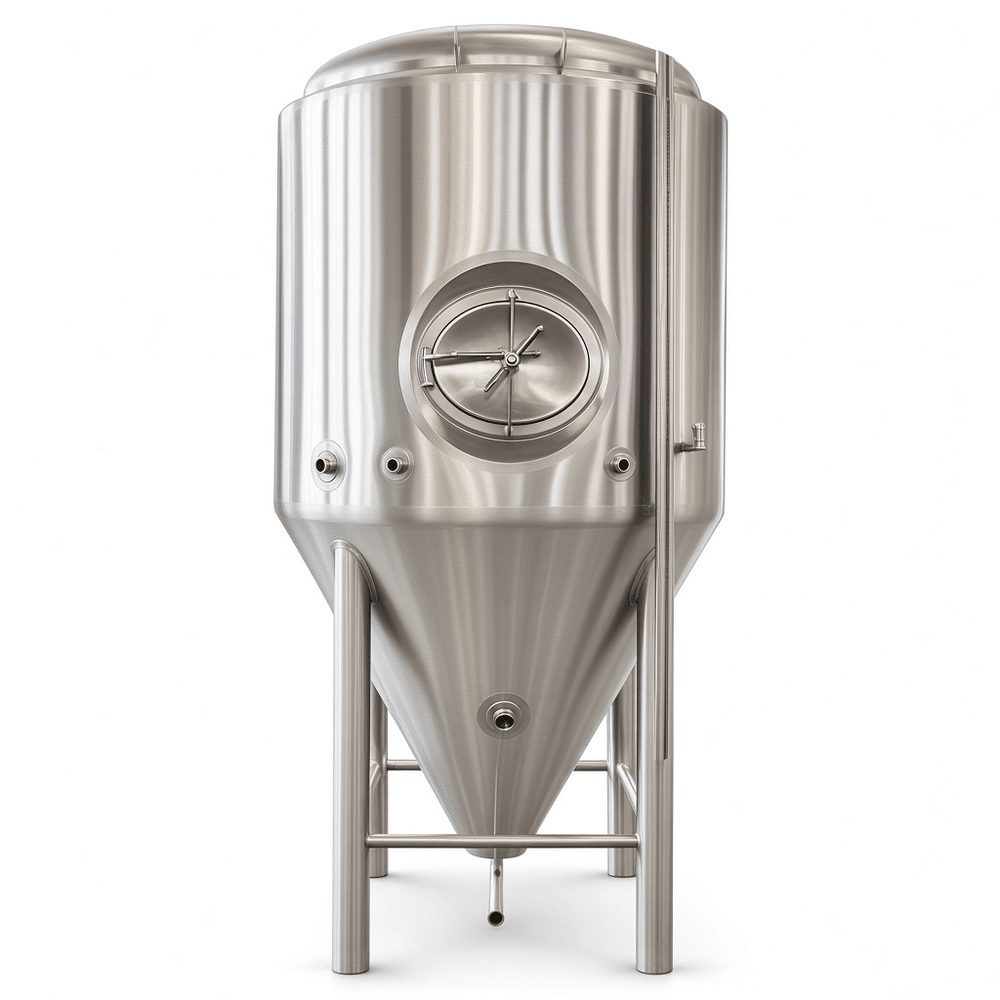

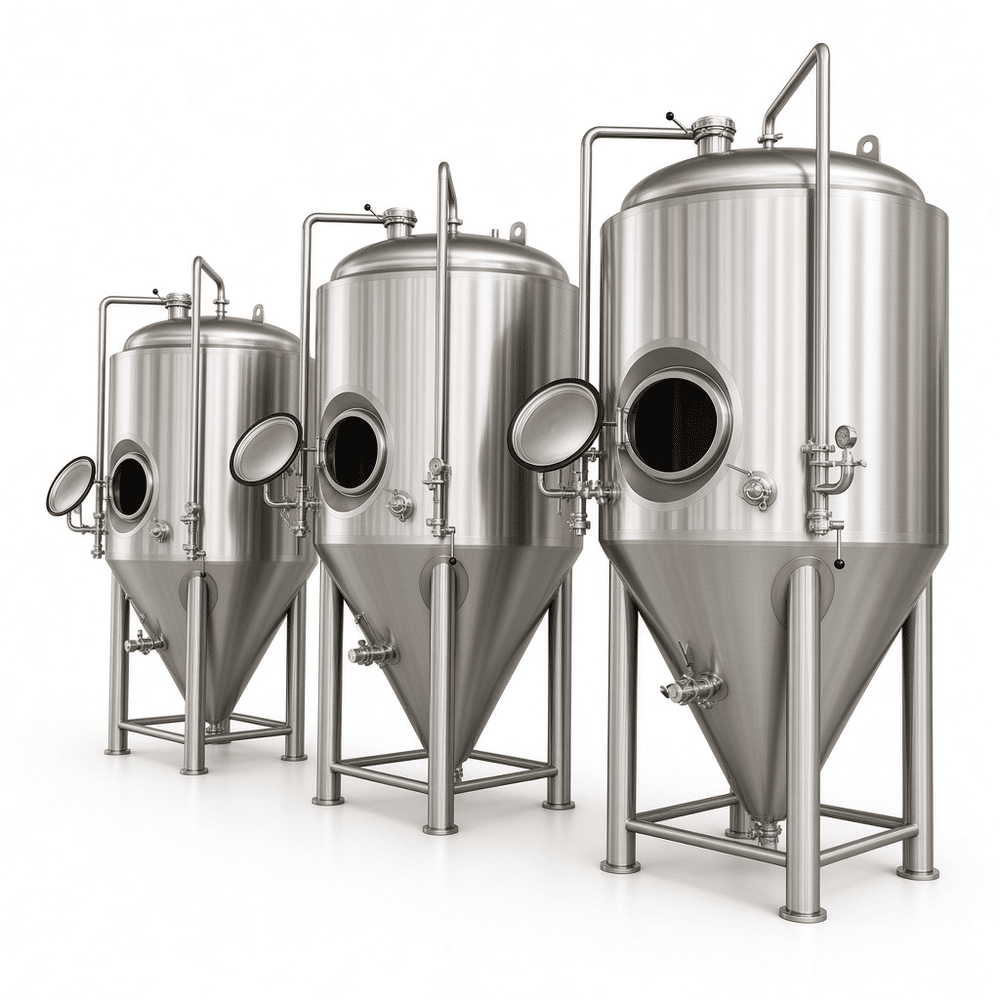

This unitank is a jacketed, cone-bottom fermentation vessel designed for breweries running batches between 100 and 400 liters. It allows one tank to handle fermentation, maturation, and carbonation without transferring beer between vessels. That reduces oxygen pickup and cleaning labor, which matters most in nano setups where every transfer risks quality.
We build the tank in SUS304 as standard. For breweries producing sour or highly acidic beers, SUS316L is available for wetted parts. The inner shell is pickled and passivated, then mirror-polished to Ra ≤ 0.8 µm on the product contact side. Cone angle is 60° for these small volumes, which gives reliable yeast discharge without a tall, awkward footprint. The outer shell is insulated with PU foam and wrapped in a stainless jacket.
Glycol flows through dimple or channel jackets on the cone and side wall. We size the cooling area against your fermentation profile, not just the tank volume. A 100L tank with aggressive ale fermentation needs more jacket coverage per liter than a 400L tank running lager at lower temperature. Without that calculation, brewers often end up with slow crash cooling or condensation issues.
Working pressure is typically rated at 1.5–2 bar for these sizes, with a mechanical pressure relief valve and a separate vacuum relief. The manway, dry hopping port, sample valve, and CIP spray ball are positioned around a 3-inch or 4-inch top port. If you plan to carbonate in the tank, tell us — that changes the relief setting and the jacket sizing.
Typical configurations
| Volume | Use case | Cooling |
|---|---|---|
| 100L / 200L | Pilot batches, taproom releases | Single-zone side jacket |
| 300L / 400L | Small commercial production | Side + cone jacket |
Nano breweries usually need different fittings than commercial brewhouses. If your chiller loop runs on 1/2-inch lines, we match the jacket ports accordingly instead of forcing an adapter stack. CIP piping should be planned before delivery, not after the tank is set in place, because the racking arm and spray ball orientation affect how the loop drains.
Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the tank volume, cooling area and configuration for your brewery.
Structure of a Beer Fermentation Tank
