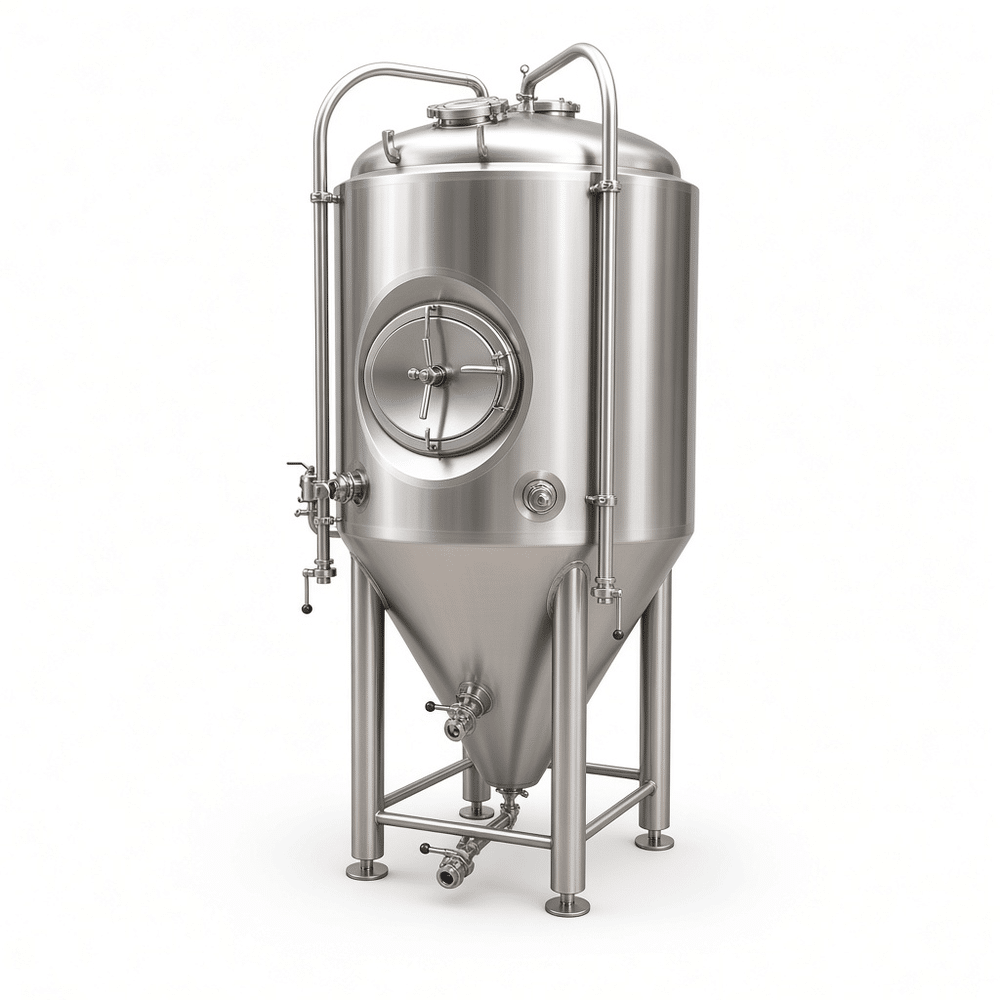

2000L / 20HL Conical Beer Fermenter with Dimple Cooling Jacket
When a brewery moves from 10HL to 20HL batches, the fermenter stops being a tank and starts being a process constraint. We build this 2000L unit for brewers who need stable temperature control across a full fermentation cycle, not just a vessel that holds wort. The cone, jacket and fittings are sized around real batch volumes, not catalog numbers.
Materials and fabrication
The body and cone are SUS304 stainless steel. Where the product is aggressive or chloride exposure is unavoidable, we can quote 316L instead. Internal surfaces are pickled and passivated, with welds ground and polished to a sanitary finish. Dimple cooling jackets are welded directly to the shell in zones, which gives better heat transfer than a simple wrap and keeps the jacket tight to the vessel wall.
Cooling, pressure and cleaning
Fermentation generates heat, and yeast does not care about your schedule. Dimple jackets on the cone and lower cylinder let you hold lager or ale temperatures through active fermentation. The tank is rated for working pressure with a correctly sized safety valve, and we can supply pressure and vacuum relief matched to your process. CIP is handled through a rotating spray ball in the top manway, with drain and racking arms positioned so cleaning solution reaches the cone and outlet.
Connections and integration
Standard connections include racking arm, sample valve, dry hop port, CO2 blow-off and glycol in/out. We match tri-clamp, DIN or other standards to your existing brewhouse and cellar piping. Glycol circuits are sized so one chiller can serve multiple tanks without starving the coldest fermenter.
Specifications
| Parameter | Specification |
|---|---|
| Nominal volume | 2000L / 20HL |
| Material | SUS304 (316L optional) |
| Shape | Conical bottom |
| Cooling | Dimple jacket, zoned |
| Finish | Sanitary, pickled and passivated |
| Cleaning | CIP spray ball, top manway |
FAQ
What beer types suit this tank? Ales, lagers, stouts and most craft styles. For high-gravity or heavily dry-hopped beers, confirm cone angle and outlet size.
Why dimple cooling instead of a coil? Dimple jackets are easier to clean and give even wall cooling without internal obstructions.
Can it be customized? Yes. We adjust height, cone angle, jacket area, port layout and polish according to your cellar.
Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the tank volume, cooling area and configuration for your brewery.
