Description

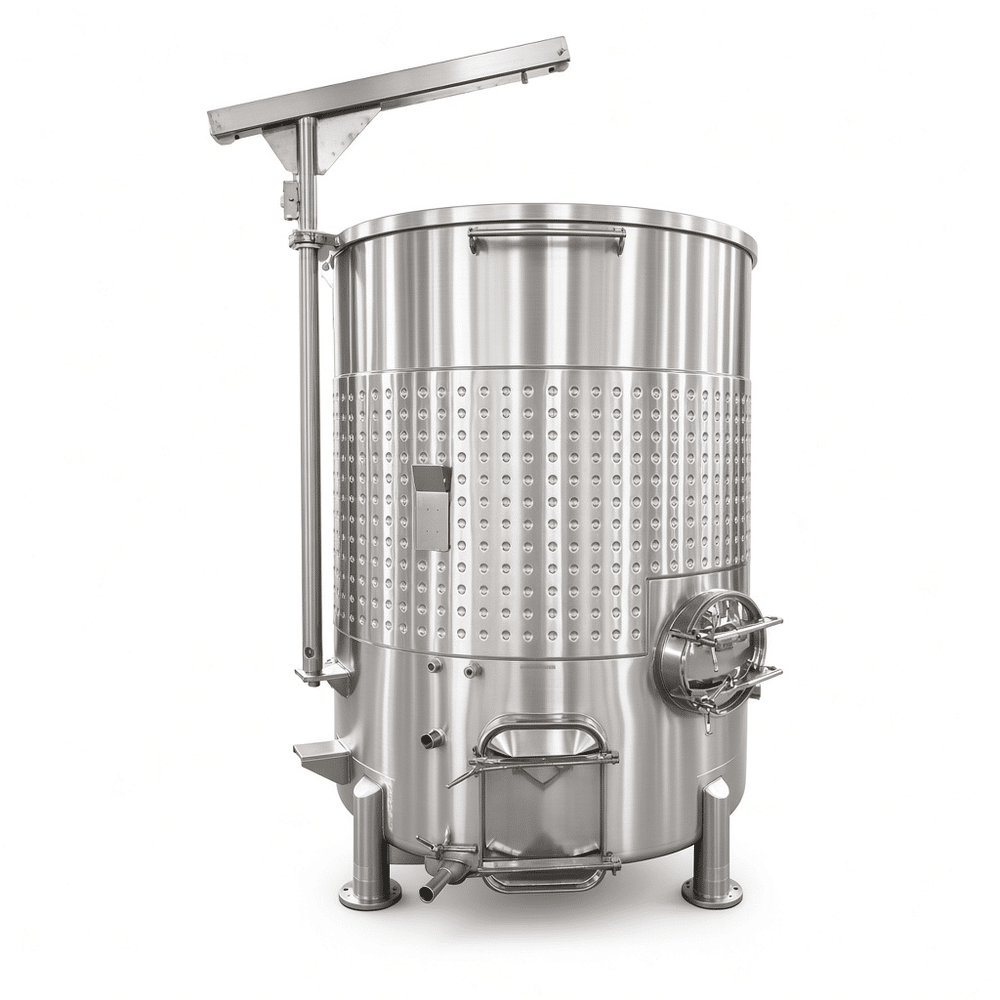

Where a 2500L open top tank earns its place
At working level this tank holds roughly 2,000–2,200 L of must, which leaves enough headspace for a hard cap and room to punch down by hand or with a pneumatic punch-down tool. That volume fits a single parcel pick, a trial blend, or a small-lot program where the winemaker wants direct access to the cap instead of pumping over a closed vessel.

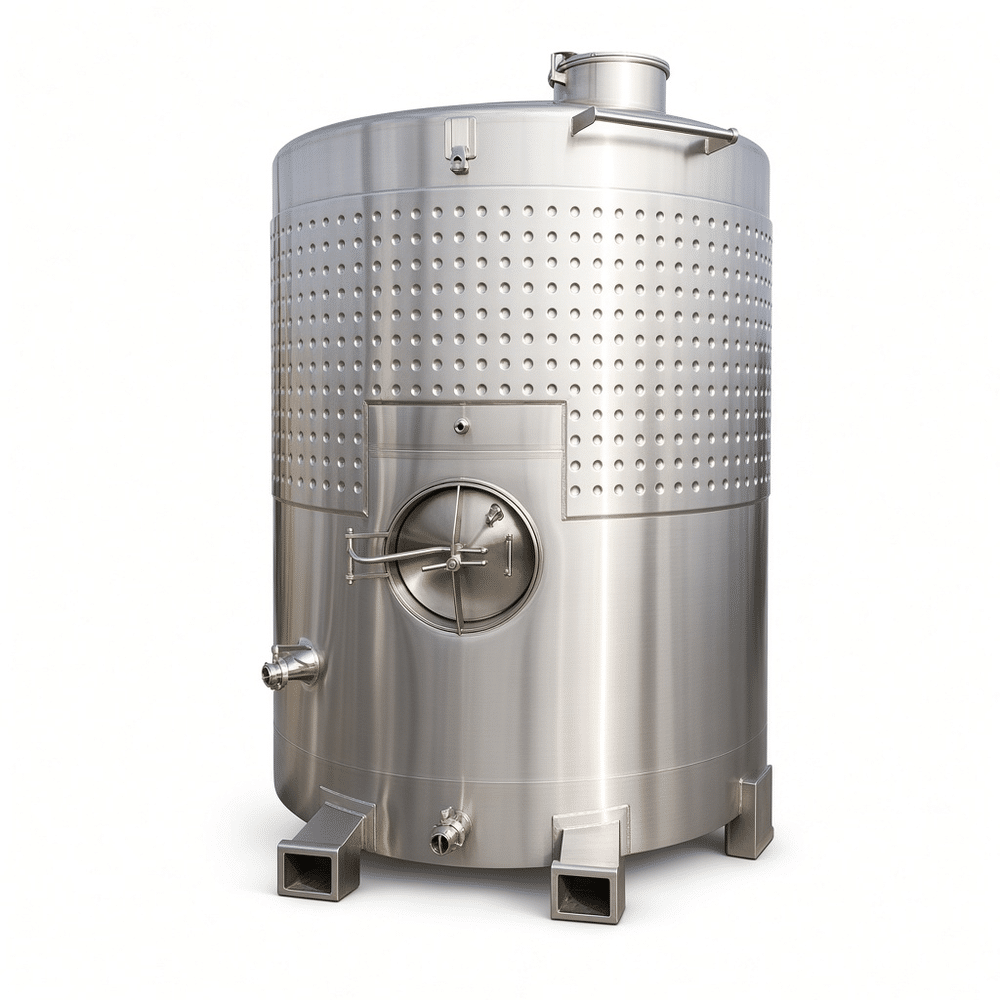

The forklift slots are the second thing most buyers ask about. They let one operator move an empty tank across a crush pad or onto a truck without a crane. Loaded tanks should never be lifted this way — the slots are sized for the empty shell and its fittings, and we mark the rated lifting points on the frame so cellar staff do not guess.
Material and fabrication choices
Shell and bottom are normally 304 stainless at 2.5–3 mm. We move to 316L when the tank will see aggressive chloride cleaning or coastal cellar air. Interior welds are ground flush and passivated. Standard interior finish is 2B, with an optional mirror polish on the lower third where lees settle and cleaning is hardest. Outlet height, racking arm angle, sample valve, and thermowell position follow your drainage layout rather than a fixed catalog pattern.
| Capacity | 2500 L (660 US gal), working volume 2,000–2,200 L |
|---|---|
| Material | 304 or 316L stainless steel, 2.5–3 mm shell |
| Interior finish | 2B standard, mirror polish optional |
| Top | Open, hinged lid optional |
| Bottom | Flat with slope to outlet, or shallow cone |
| Outlet | 2 in tri-clamp with butterfly valve, racking arm optional |
| Handling | Forklift slots, empty lifting only |
| Options | Cooling plate, spray ball, thermowell, sampling valve, must screen |
Questions we get before quoting
Can it hold pressure?
No. An open top tank is atmospheric. If you need sparging or pressure transfer, you want a closed tank with a conical bottom and a rated relief valve.
How do I control temperature?
Most cellars hang a stainless cooling plate from the rim and run glycol through it, or order a dimple jacket on the lower shell. Plate cooling is cheaper to retrofit; jacket cooling gives more even extraction and faster crash cooling.
Is CIP possible?
Partly. An open top lets you clean manually with caustic and a soft brush, and an optional spray ball handles the walls. The cap ring and rim always need hand work.
Send us your batch size, must temperature target, available floor space, and how you plan to move the tank. We will confirm volume, wall thickness, cooling surface, and fitting layout before anything goes to the shop.
Related products

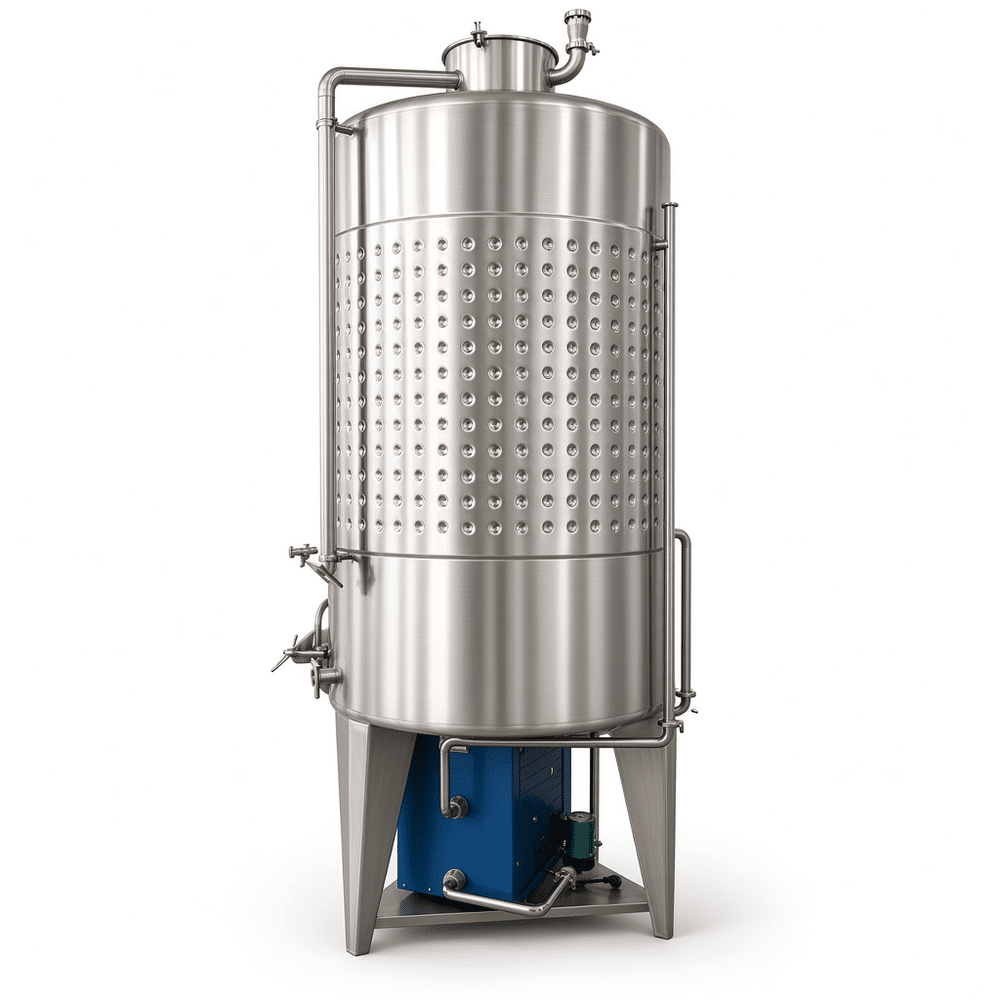

Wine Storage & Fermentation Tank 1000L–10000L Dimple Plate Cooling
Dimple plate cooled wine storage and fermentation tanks from 1000 L to 10000 L, built in SUS304 or SUS316L with full-penetration welds, pickled and passivated interiors, and 3 bar glycol jackets. Available with conical or sloped bottoms, CIP, racking arms and pressure relief for wineries of any scale.

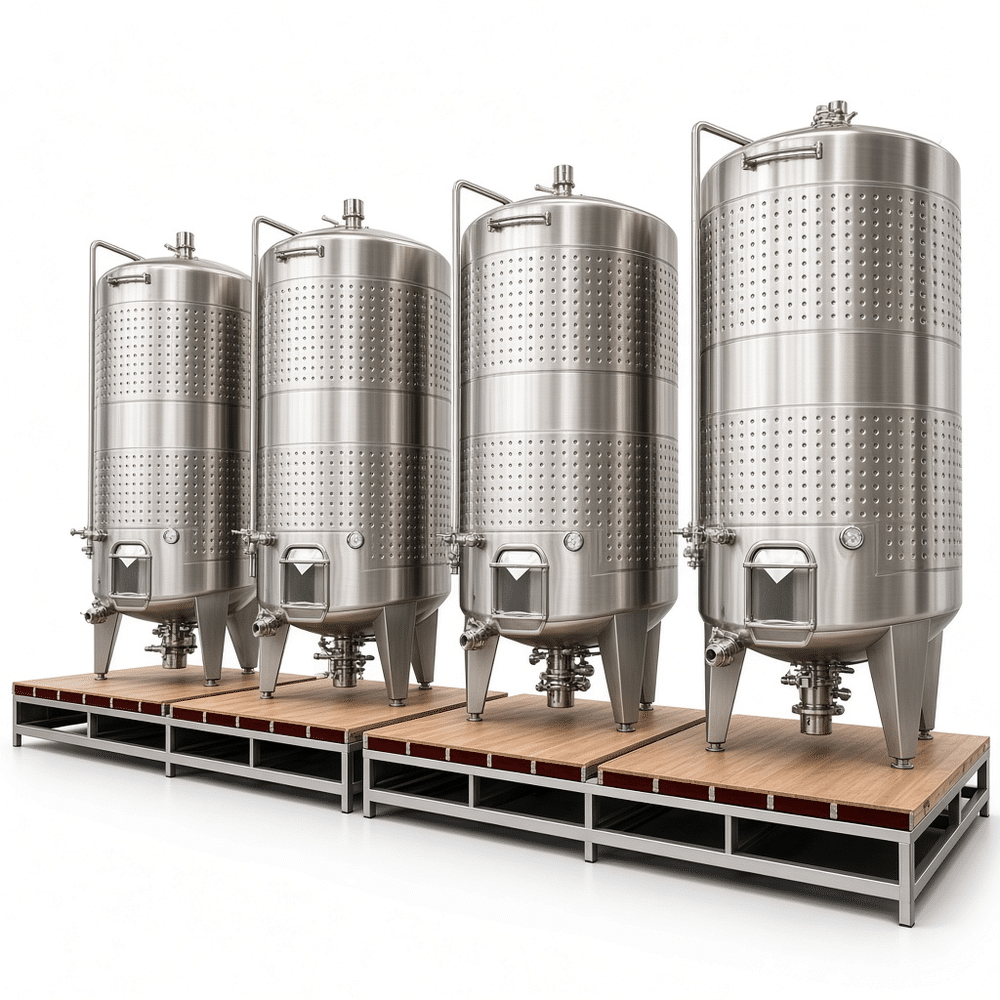

Wine Fermentation & Storage Tanks 1000L–10000L Stainless Steel for Wineries
Stainless steel wine fermentation and storage tanks from 1,000 L to 10,000 L, built in SUS304 or 316L with dimple-plate cooling jackets, CIP spray balls and conical or flat bottoms. Sized for small cellars through commercial wineries, with pressure rating, jacket area and fittings matched to your batch size, wine style and glycol supply.
2000L-10000L Wine Fermentation & Juice Storage Tank | SUS304/316L
Wine fermentation and fruit juice storage tanks from 2,000 L to 10,000 L, built in SUS304 or 316L with dimple-plate cooling jackets, 60° conical bottoms and CIP spray balls. Includes dimensions, pressure ratings, fitting options and guidance on matching tank volume, cooling area and cone design to your batch and process.

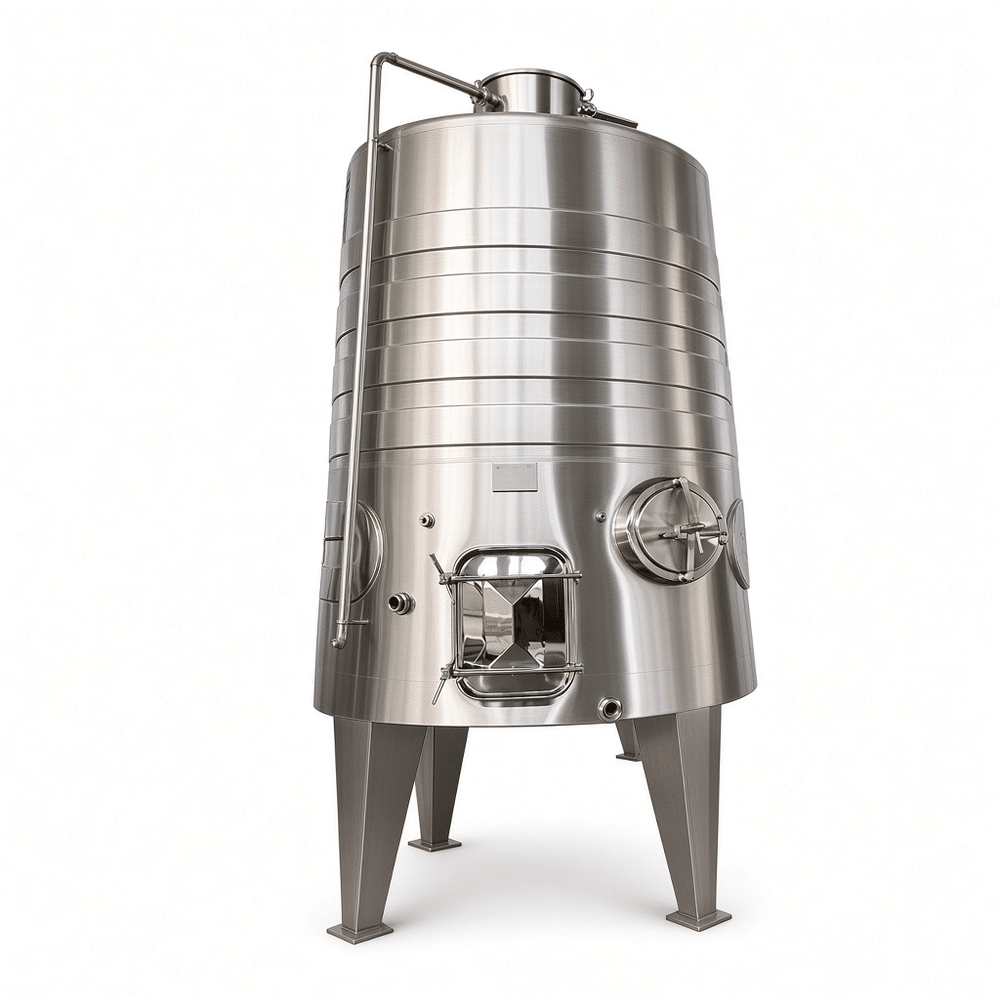

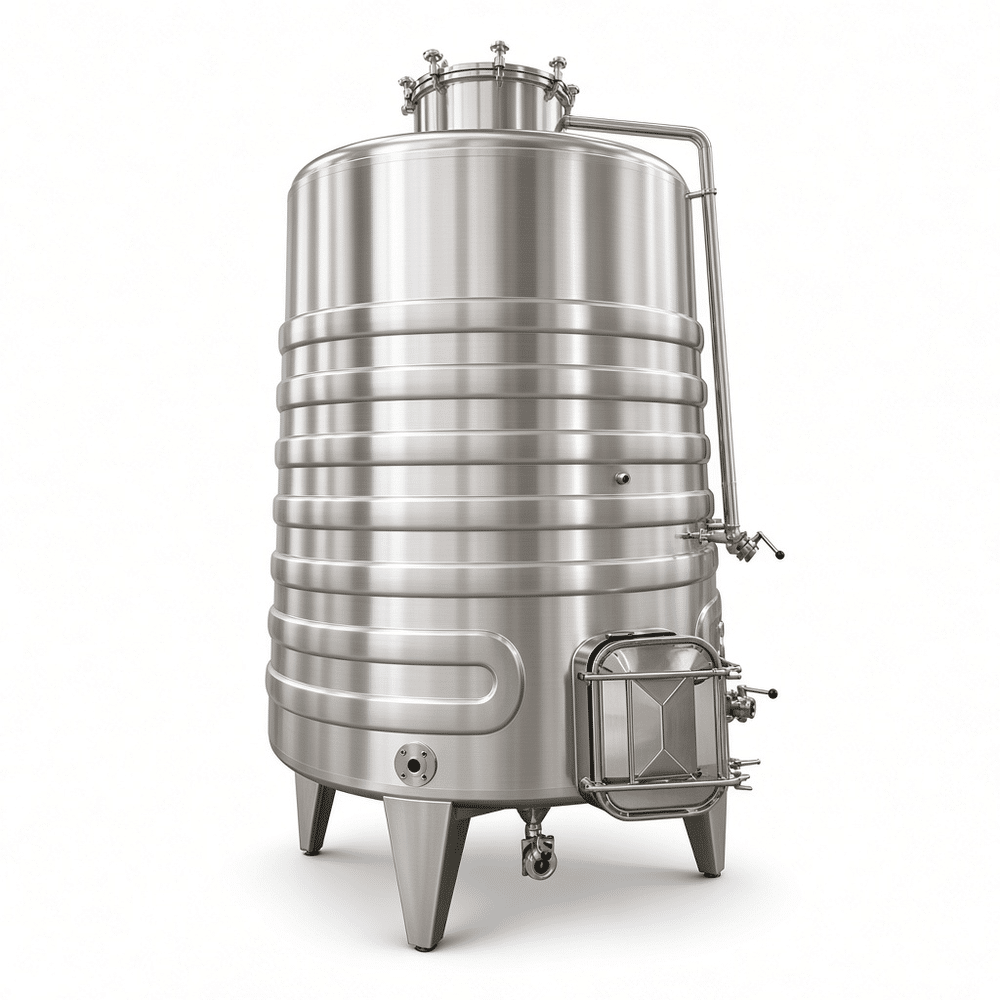

10HL-10KL Commercial Red Wine Fermentation Tank with Half-Pipe Cooling Jacket
