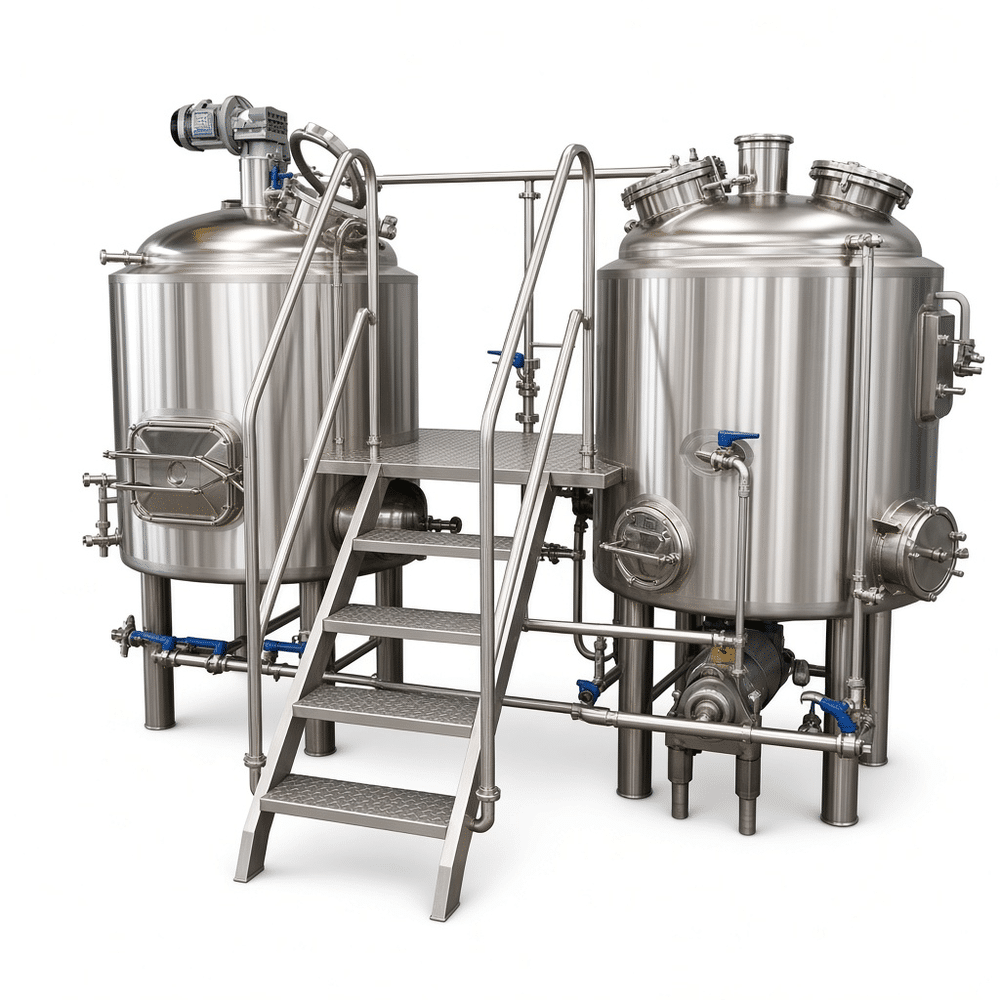

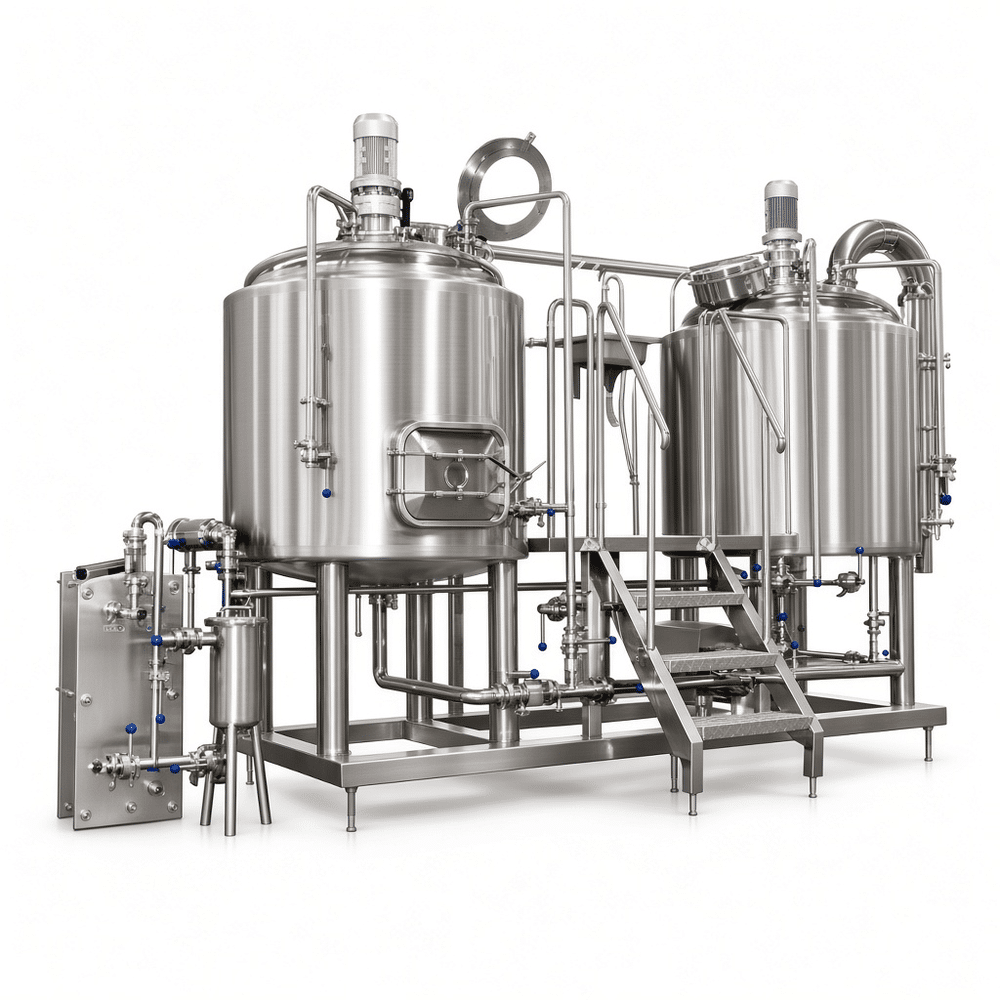

7BBL Brewhouse for Craft Production
This 7BBL automatic brewhouse is a two-vessel stainless system built around a mash kettle and filter. It suits breweries moving from pilot batches to repeatable 7-barrel production, especially where floor space is tight and operators need consistent mash temperature and lautering. We build the package to match steam, electric or direct-fire heating, and we confirm utility capacity before release.
Wetted parts are normally SUS304; SUS316L is available where chloride exposure or cleaning chemistry demands it. We control weld quality on tank shells, jackets and pipe runs, then pickle and passivate wetted seams. Interior surfaces are polished to a sanitary finish; exterior can be brushed or mirror-polished. Gaskets, seals and valve seats are selected for brewery CIP and steam service. Skid layout, pipe routing and control cabinet position are agreed from your site drawing, not from a catalog page.
Typical Specifications
| Item | Specification |
|---|---|
| Batch size | 7 BBL / about 8.2 hL |
| Vessels | Mash kettle and filter |
| Material | SUS304 standard; SUS316L optional |
| Heating | Steam, electric or direct fire |
| Control | Automatic PLC with recipe steps |
| Surface | Sanitary interior polish; brushed exterior |
| Connections | Tri-clamp; CIP and utility ports |
Use this size for taproom breweries, contract pilot work and seasonal releases. A 7BBL batch gives useful volume without tying up capital in a larger brewhouse. If you plan high-gravity beers, confirm original gravity and kettle duty; the nominal batch volume changes with recipe. For wheat beers or heavy adjunct loads, we adjust false bottom area, rake design and grant arrangement.
Purchase Notes
Send a plan view showing ceiling height, door width, drain location and boiler or power capacity. Also state beer styles, batches per week, and whether you need manual or automatic hop addition. These details decide vessel height, platform design, pipe slope and control enclosure rating.
FAQ
Can the system run 7BBL every day? Yes, if heating, cooling water and CIP cycles are sized for that schedule. We check recovery time between batches.
What should be ready before quotation? Batch size, beer styles, batches per week, utility data, floor plan and local electrical standard. Those details let us confirm the skid layout and automation level.
Tell us your batch size, beer style, brewhouse footprint and available utilities. We can recommend kettle volume, heating method and filter configuration for your brewery.
