Description

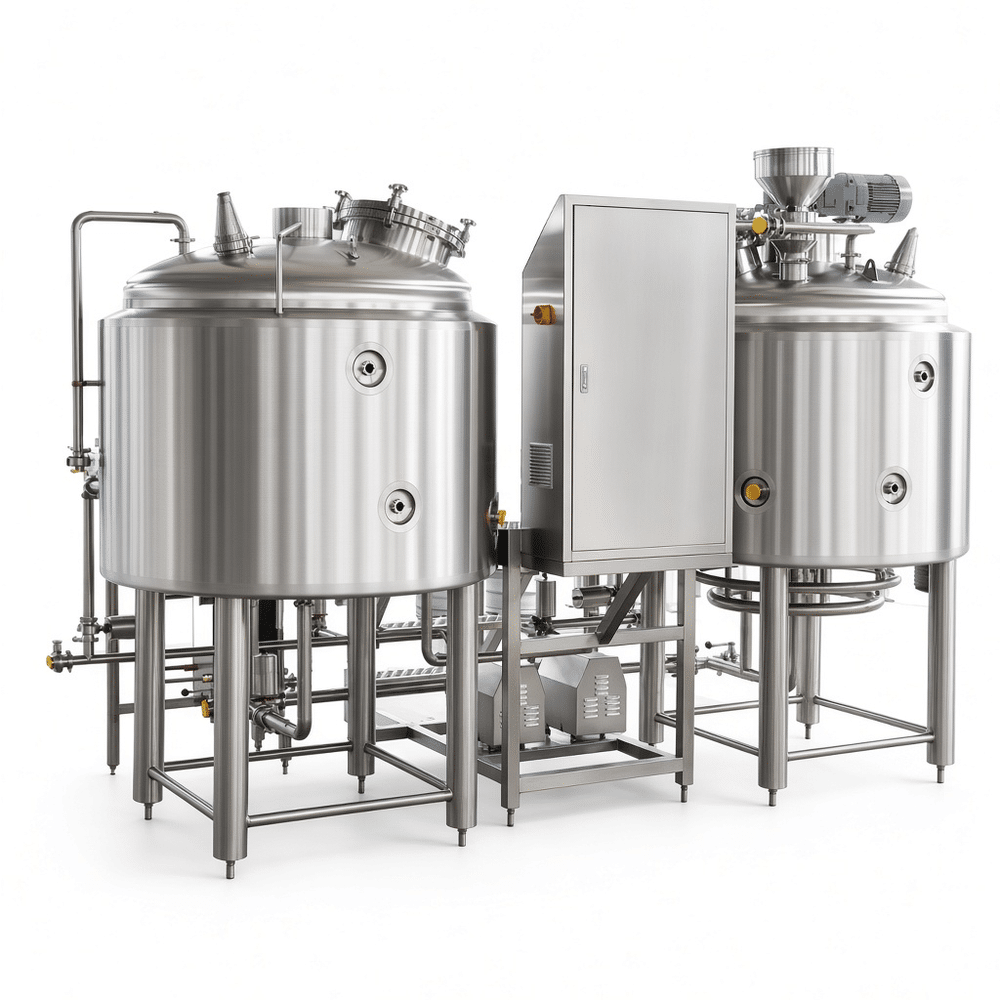

7BBL Two-Vessel Electric Brewhouse: What the Kit Covers
This brewhouse is built for breweries moving from pilot batches to a repeatable 7BBL cast-out volume, roughly 8.2 hl. The two-vessel arrangement pairs a combination mash/lauter tun with a whirlpool kettle on a shared platform. Electric heating removes the burner room, flue and gas train from the layout, which matters when the brewhouse sits inside a leased building or a compact production hall.
Build details that affect daily operation
Both vessels are SS304. The kettle shell runs 3 mm; the mash tun uses 2–3 mm depending on diameter. Product-contact joints are TIG welded with argon purge, then pickled and passivated. Interior welds are ground flush. The mash tun receives a 2B finish, while the kettle can be lightly polished to reduce protein adhesion. The lauter false bottom uses laser-cut 0.7–1.0 mm slots on a removable support frame. Manway gaskets are food-grade EPDM; silicone is available when caustic CIP runs above 80°C.
Kettle elements mount through the lower shell with individual terminal covers. A 36–48 kW bank gives a practical 1.0–1.5°C per minute rise on a 7BBL batch, though the building supply usually sets the real limit. Confirm available amperage before fixing element count.
Specifications
| Batch size | 7 BBL / approximately 8.2 hl |
|---|---|
| Vessels | Mash/lauter tun, whirlpool kettle |
| Material | SS304 standard; 316L optional |
| Heating | Electric, 36–48 kW staged banks |
| Platform | Stainless frame, access stairs and railings |
| Connections | Tri-clamp and DIN options |
| Control | Local panel; PLC and recipe logging optional |
Buying questions we hear
Can the kettle double as a whirlpool?
Yes. A tangential inlet and a 20–30 minute rest are normally enough for a stable trub cone.
Is 316L necessary?
For most municipal water profiles, SS304 is adequate. High-chloride water or aggressive acid cleaning changes the recommendation.
How is CIP handled?
Spray balls, a CIP pump and dedicated return lines are specified with the kit. Dead legs and line slopes are reviewed during layout.
Is the platform included?
Yes, with either a stainless top on a coated frame or full stainless construction.
Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the vessel volume, heating configuration and platform layout for your brewery.
