Description
Built for single-batch wort production at 500L

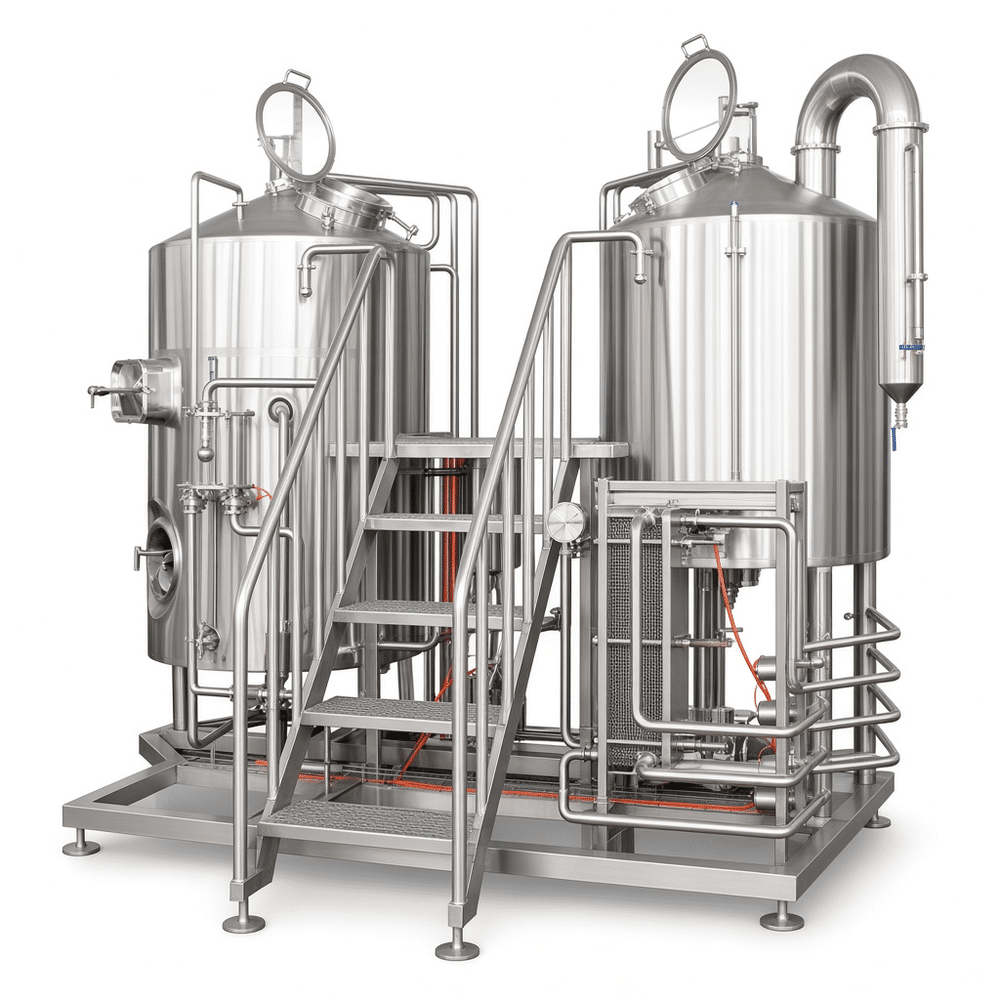

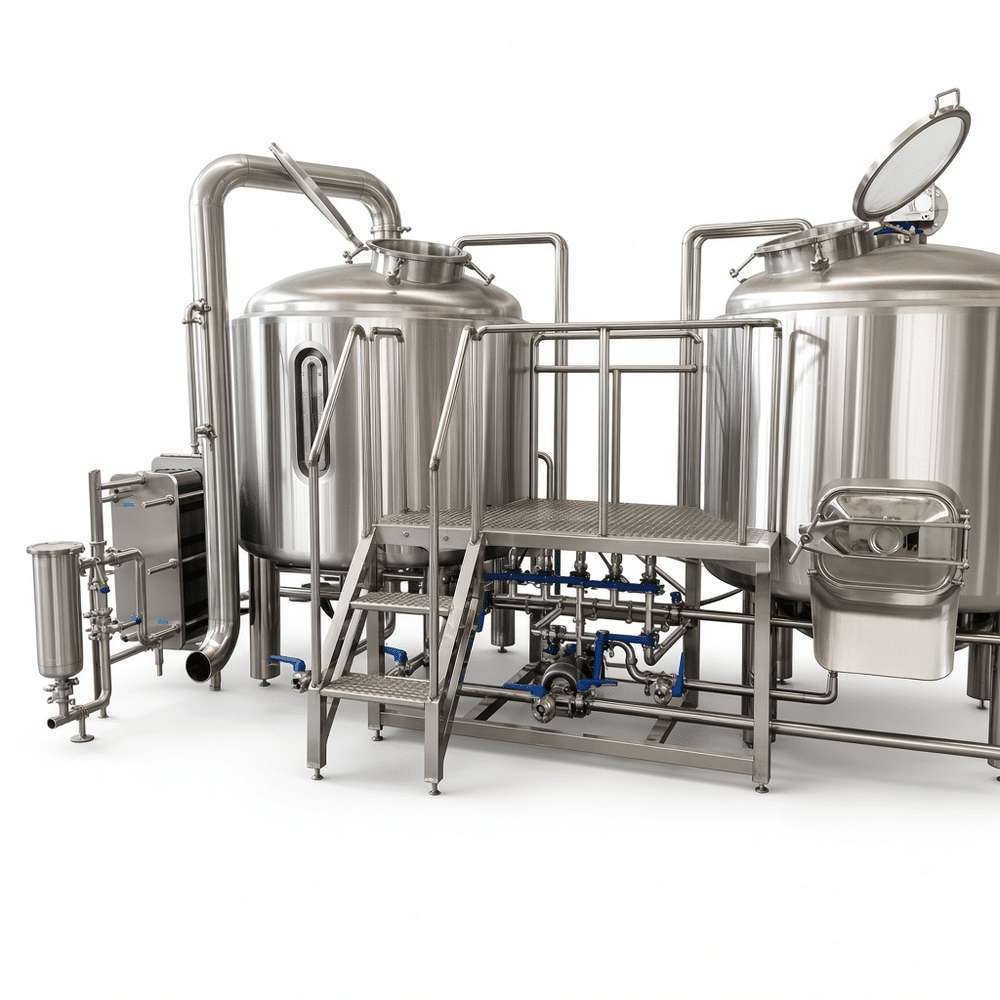

This brewhouse pairs a mash/lauter tun with a kettle/whirlpool, both in 304 stainless, giving one hot liquor path, one CIP loop and one operator position per brew. At 500L of cast wort per turn, it fits brewpubs running two to four brews a day and small production breweries locking down recipes before scaling. Three-vessel lines buy you parallel mashing; most buyers at this size don\’t need it, and the extra vessel costs floor space and cleaning time they can\’t recover.
Vessel fabrication and finish
Shells are rolled from 3mm SUS304 plate, TIG welded with full penetration on longitudinal and circumferential seams. Product-contact welds are ground flush and the interior is mechanically polished to Ra ≤ 0.8 µm — not a cosmetic polish, but one you can swab and passivate after. False bottom slots are laser cut in a separate plate so the mash bed stays removable and inspectable. Electric heating elements sit in a jacket welded to the kettle bottom and lower sidewall, with thermal medium between element and product wall. That keeps heat flux off the wort directly; scorching on a 500L batch is a real risk if you oversize the element density. The jacket is baffled, and the element flanges are accessible from the frame without pulling the vessel.
Technical specifications
| Batch size | 500L cast wort |
| Vessels | Mash/lauter tun, kettle/whirlpool |
| Material | SUS304 (316L on request) |
| Shell thickness | 3mm, interior Ra ≤ 0.8 µm |
| Heating | Electric, jacketed, PID step control |
| Cleaning | Rotary spray ball, dedicated CIP return |
| Controls | PLC with recipe and temperature logging |
Before you request a quote
Is 500L per batch or per day? Per batch. Gravity, brew length and expected turns per week decide whether we upsize the kettle or keep the pair matched. Can we add a whirlpool later? Not on the kettle vessel — it is fabricated with the tangential inlet. Decide at order. What about steam? The electric jacket is standalone; if you have a boiler we can supply steam-jacketed vessels with the same footprint. Lead time and spares? Elements, gaskets and spray balls are standard stock items, which matters when a heating failure stops a brew day.
Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the brewhouse configuration, heating capacity and CIP layout for your brewery.
