Description
What a 20 BBL turnkey brewery includes

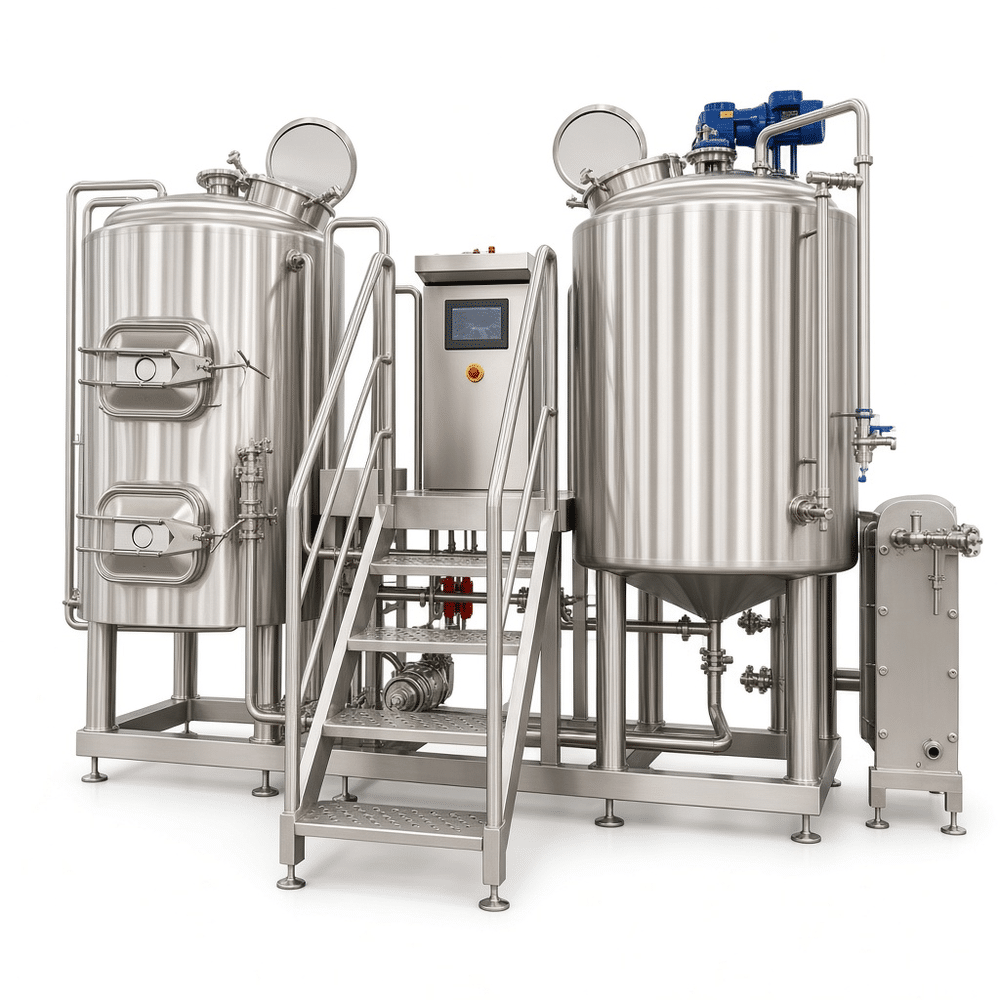

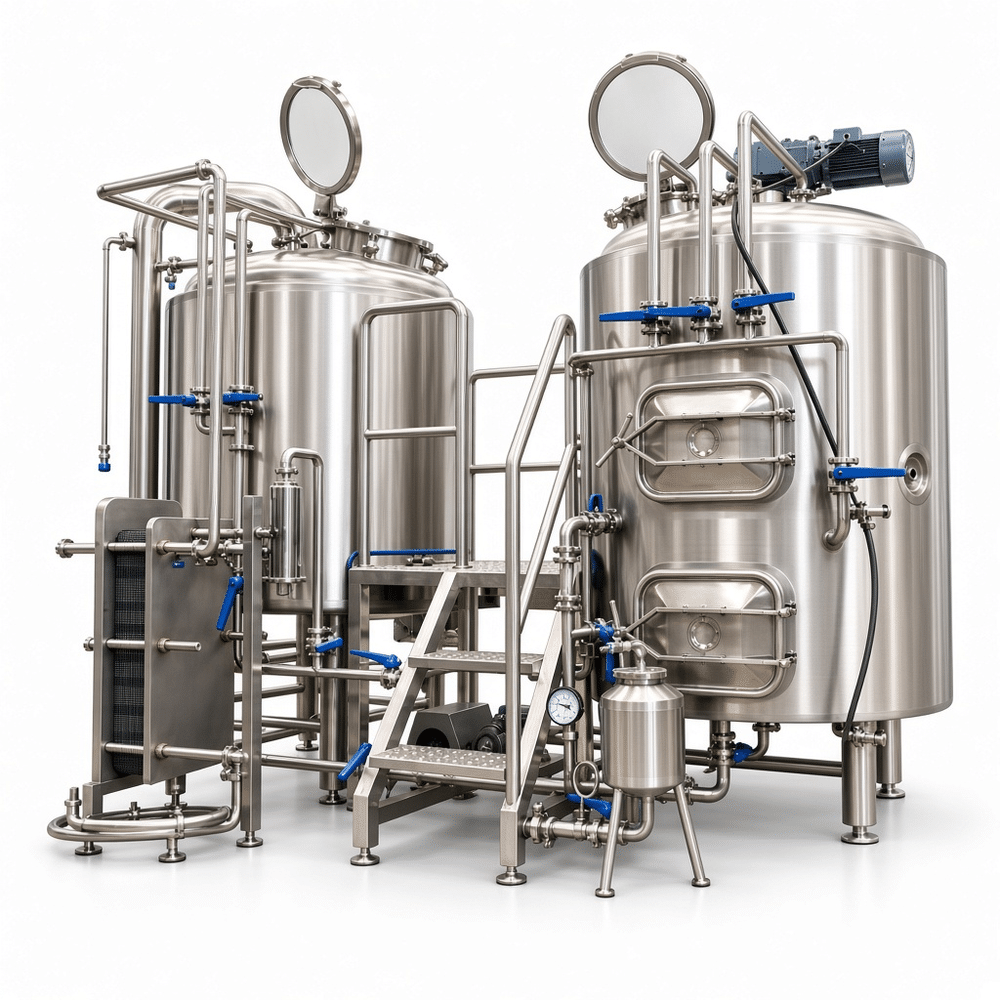

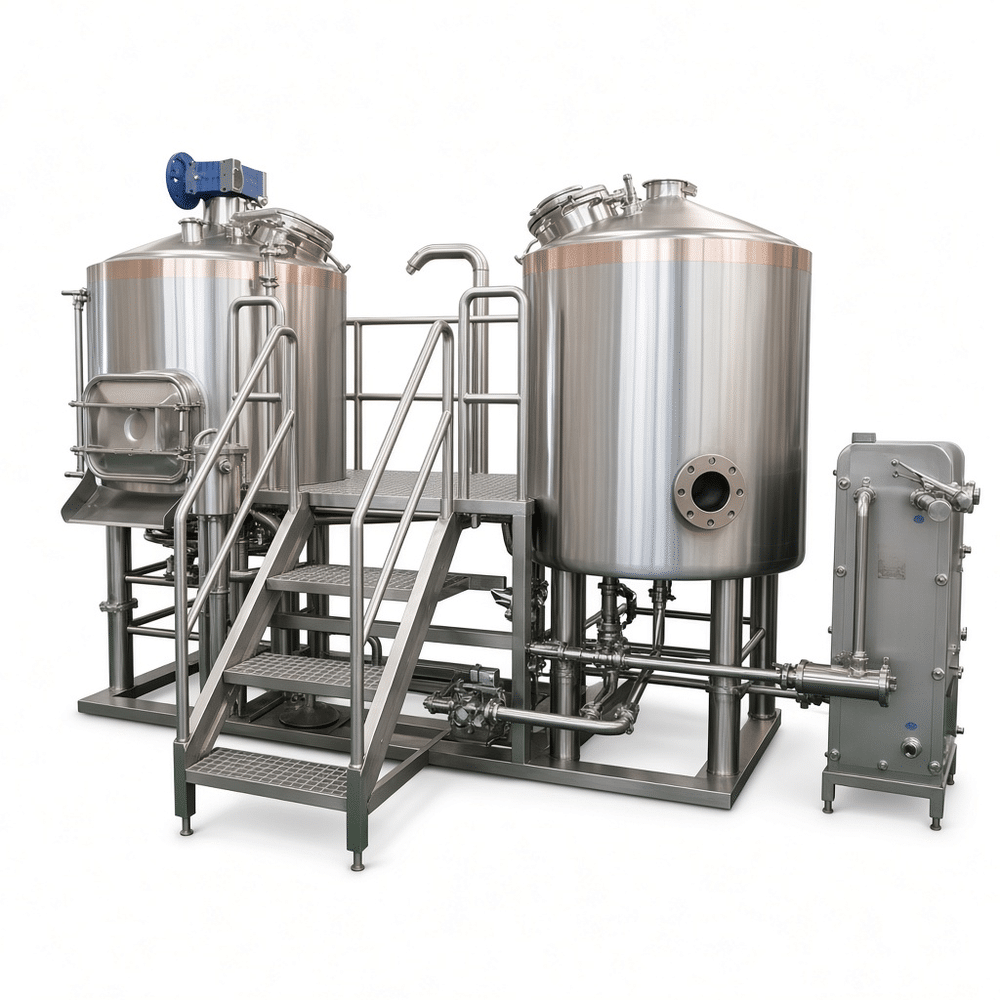

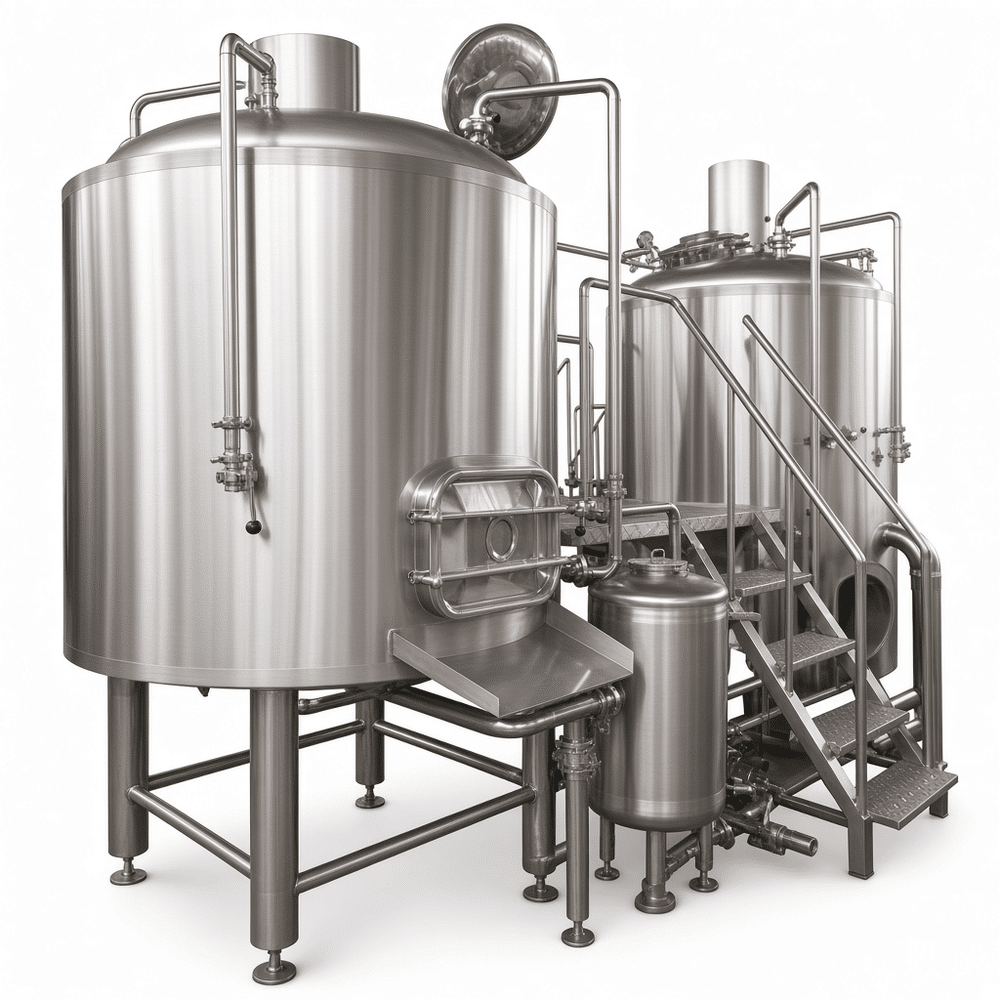

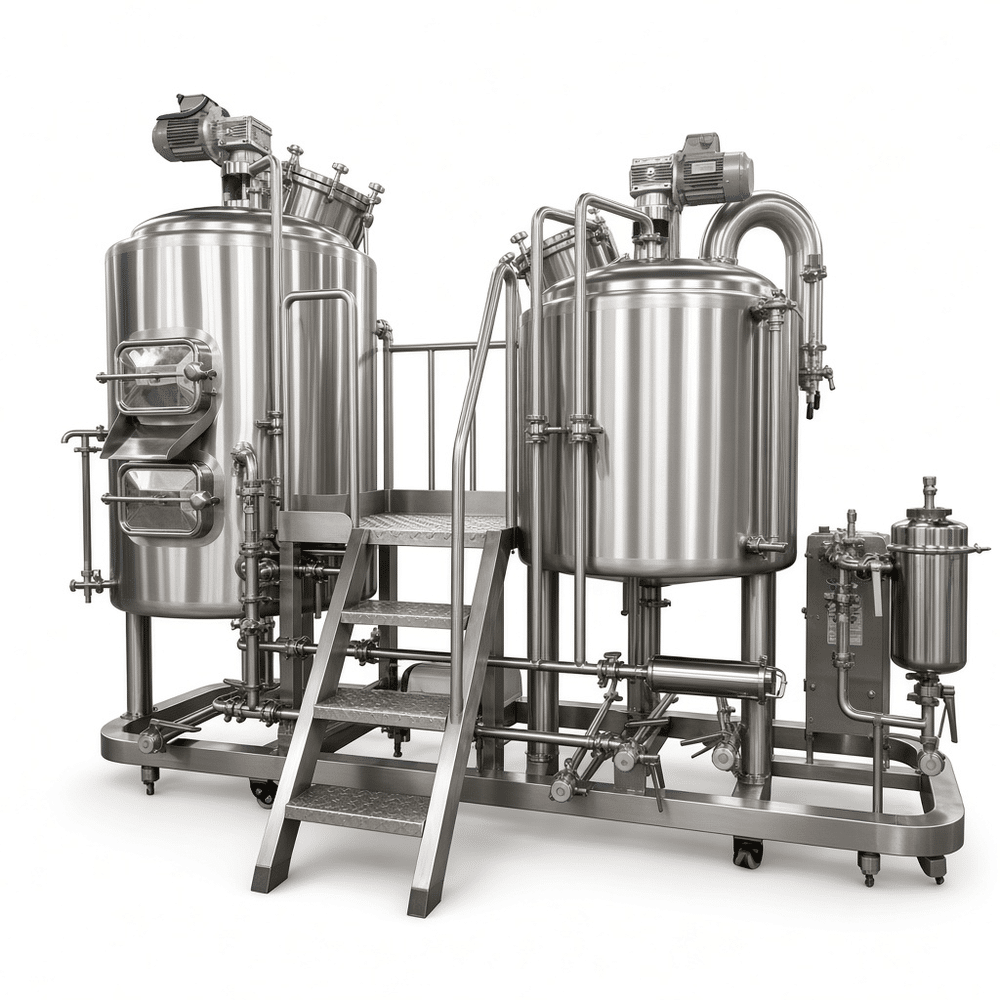

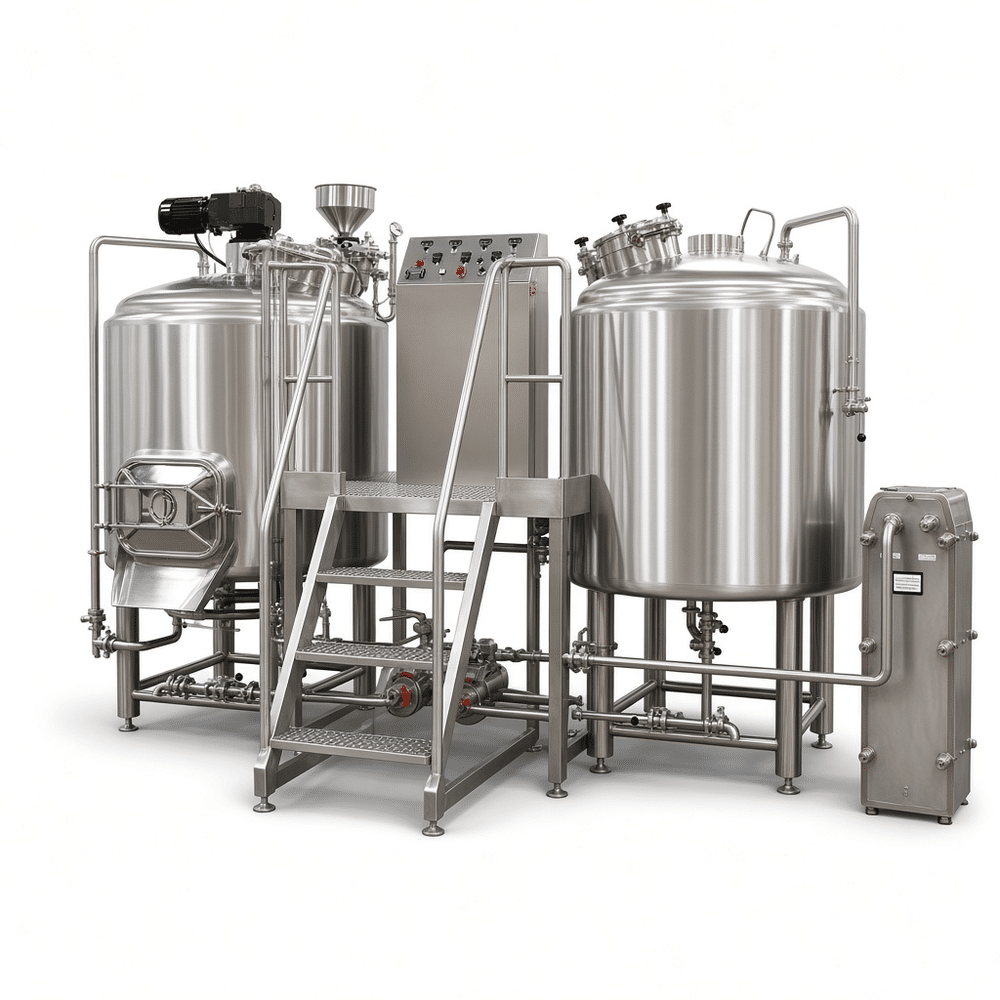

A 2000 L / 20 BBL / 20 HL turnkey brewery is built around a 2-vessel brewhouse, fermentation and conditioning tanks, and the utility skids that connect them. Tank count follows your brew frequency and package mix. We size the stainless beer production system to the cellar layout and expansion plan instead of a fixed catalog package.
At 20 BBL, four to six 2000 L unitanks fit a brewery packaging once or twice per week. Taproom-focused brewpubs often run fewer fermenters and more serving tanks. Wholesale production needs more conditioning capacity and tighter temperature control.
Materials, welds, and utility details
SUS304 covers brewhouse vessels, hot liquor tanks, and most fermenters. We use 316L when chloride exposure, cleaning chemistry, or product contact conditions justify it. Wetted welds are ground and polished, typically to Ra ≤0.8 µm, then pickled and passivated to restore the passive layer. Gaskets, clamps, and valves are chosen for steam, caustic CIP, and glycol service.
Dimple jackets on the cone and lower cylinder provide separate temperature zones. Pressure-rated tanks get a relief valve set to design pressure; vacuum relief is added where cleaning or crash cooling can create negative pressure. CIP runs through a spray ball, so confirm pump flow and pressure before final pipe sizing. Route glycol, CIP, and beer lines with isolation valves to keep cleaning chemicals out of product lines.
Applications
The system suits craft breweries, brewpubs, contract brewing, and beverage producers running ale, lager, and mixed-fermentation programs. Brewpubs usually value simple operation and floor space. Commercial breweries care more about vessel count, cooling area, and utility redundancy.
| Parameter | Typical range |
|---|---|
| Batch size | 2000 L / 20 BBL / 20 HL |
| Brewhouse | 2-vessel, steam or direct fire |
| Fermenter material | SUS304 standard; 316L optional |
| Interior finish | Ra ≤0.8 µm on wetted surfaces |
| Cooling | Dimple jackets, glycol service |
| Cleaning | CIP spray ball and isolation valves |
FAQ
How many tanks do I need? Count batches per week, fermentation days, and conditioning time. A simple ale program may need four unitanks; lagers or barrel programs need more.
Do I need 316L? Not always. Use 316L for aggressive chloride or cleaning exposure, or where your sanitation plan calls for it.
Can the system grow later? Yes. We leave utility and header capacity for added tanks, but confirm glycol chiller and CIP pump head before expansion.
Tell us your batch size, beer type, number of fermentation tanks, and available space. We can recommend tank volume, cooling area, and configuration for your brewery.
