Description
What this 7BBL two-vessel brewhouse is built to do

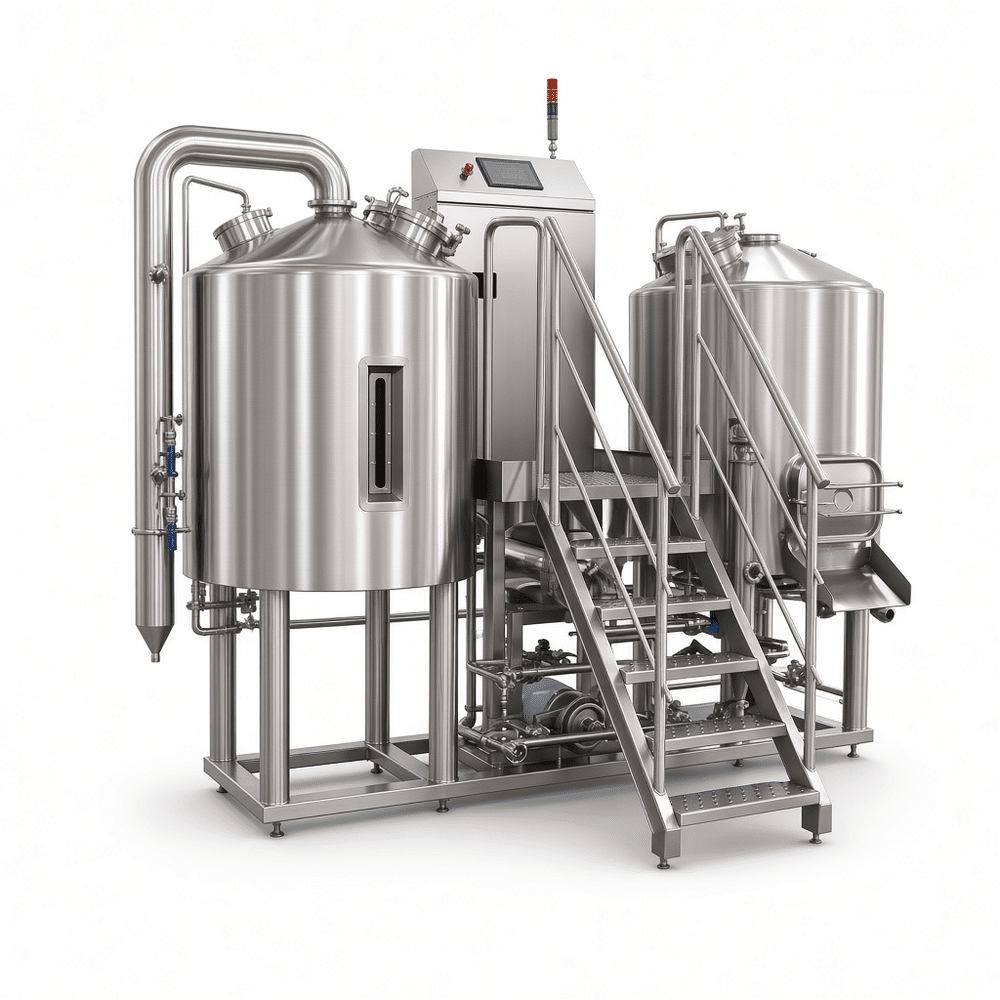

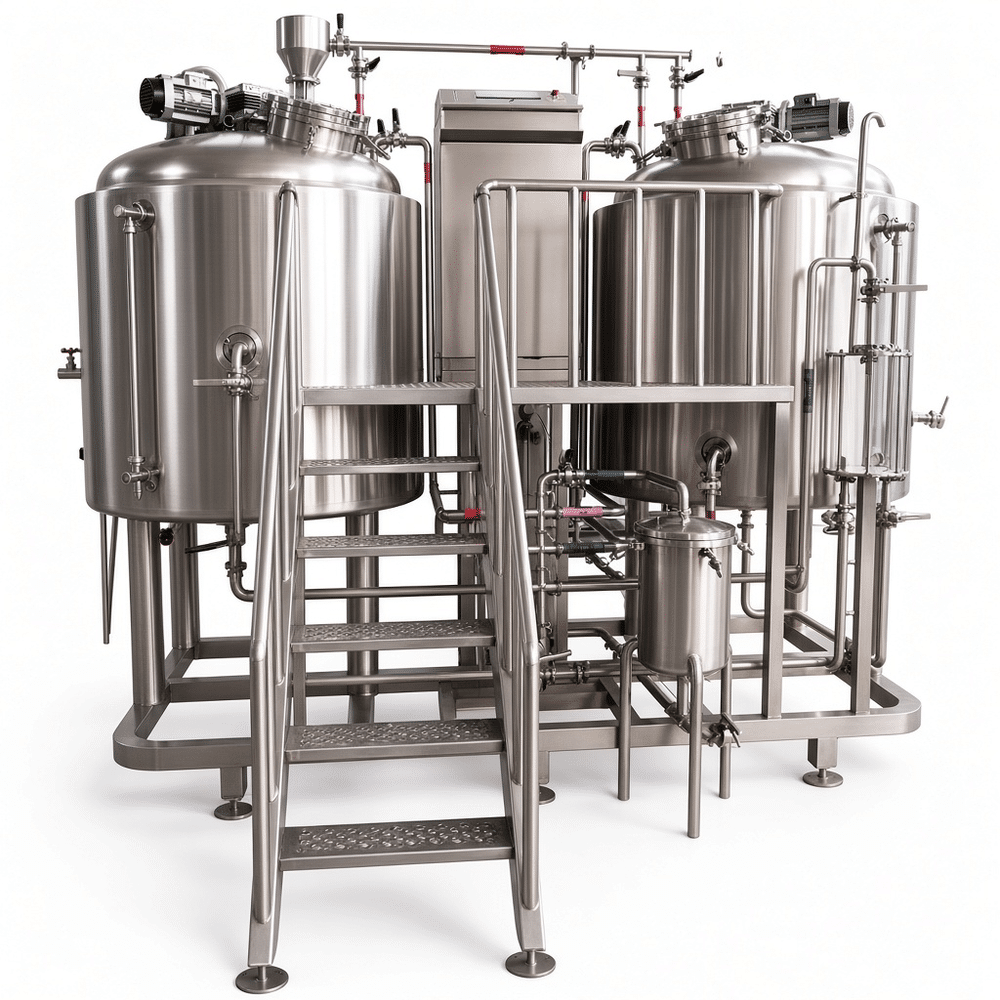

This is a 7BBL (about 8.2 hl) two-vessel brewhouse for brewpubs and small production breweries that need a compact hot-side system. One vessel handles mash conversion and lautering; the other serves as boil kettle and whirlpool. We size it around single-batch brewing, with room for high-gravity batches or double-brew days when heating capacity and tank volume allow.
Fabrication details that affect daily operation
Vessels are formed from SUS304 stainless steel. We use controlled weld prep, TIG welding on product-contact seams and passivation after fabrication. Internal surfaces are mechanically polished; external surfaces can be brushed or mirror-polished to suit the room. Food-grade gaskets and clamp fittings are specified, with sanitary tri-clamp connections for wort, CIP and optional whirlpool return. Steam jackets, electric elements or direct-fire tubes are selected around your utility budget and local code. Insulation and cladding are added where heat loss or operator safety matters.
Applications and layout
Brewpubs use this size for house ales, lagers, stouts and seasonal releases. Microbreweries often run it as a pilot or full production brewhouse. Floor space, ceiling height, drain location and boiler or power capacity decide the final skid layout. We can arrange vessels side by side or in a compact two-vessel frame, with platform or sight-glass options.
Technical specifications
| Item | Specification |
|---|---|
| Batch size | 7BBL / approx. 8.2 hl |
| Vessels | Mash/lauter tun and boil kettle/whirlpool |
| Material | SUS304 stainless steel |
| Heating | Steam, electric or direct fire |
| Connections | Sanitary tri-clamp |
| Surface finish | Mechanical polish, brushed or mirror exterior |
| Options | Platform, sight glass, CIP, whirlpool return |
Procurement FAQ
Can one 7BBL brewhouse handle both ales and lagers? Yes. The mash/lauter tun and boil kettle set the wort side; fermentation and temperature control sit downstream. We match vessel volume and heating power to your brew length and expected gravity.
What heating method should we choose? Steam suits stable production and high demand. Electric is simpler where no boiler exists. Direct fire needs careful flue and floor planning. We review utility capacity before recommending a configuration.
How is cleaning handled? CIP spray balls, sanitary connections and drain slopes are included where specified. Polished contact surfaces and clamp gaskets reduce manual cleaning time.
Tell us your batch size, beer style, brew length and available floor space. We can recommend vessel volume, heating method and brewhouse configuration for your brewery.
