Description

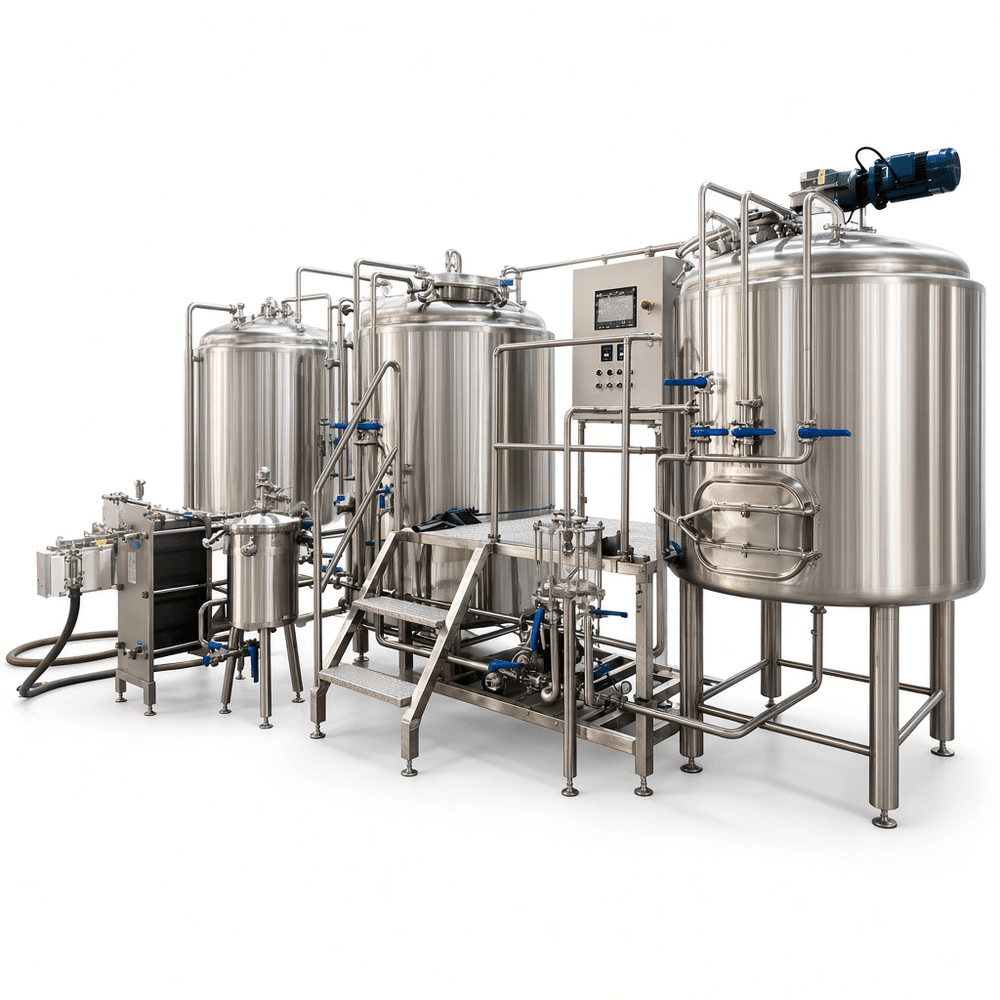

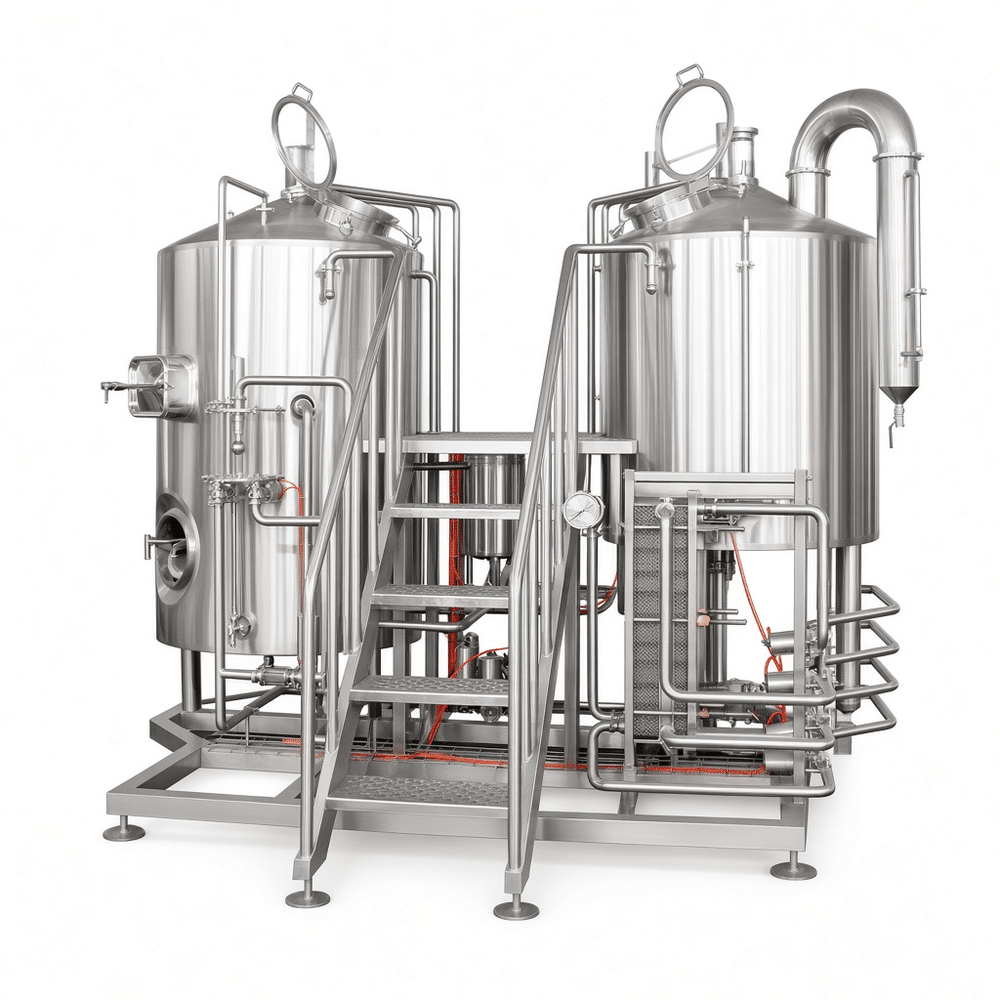

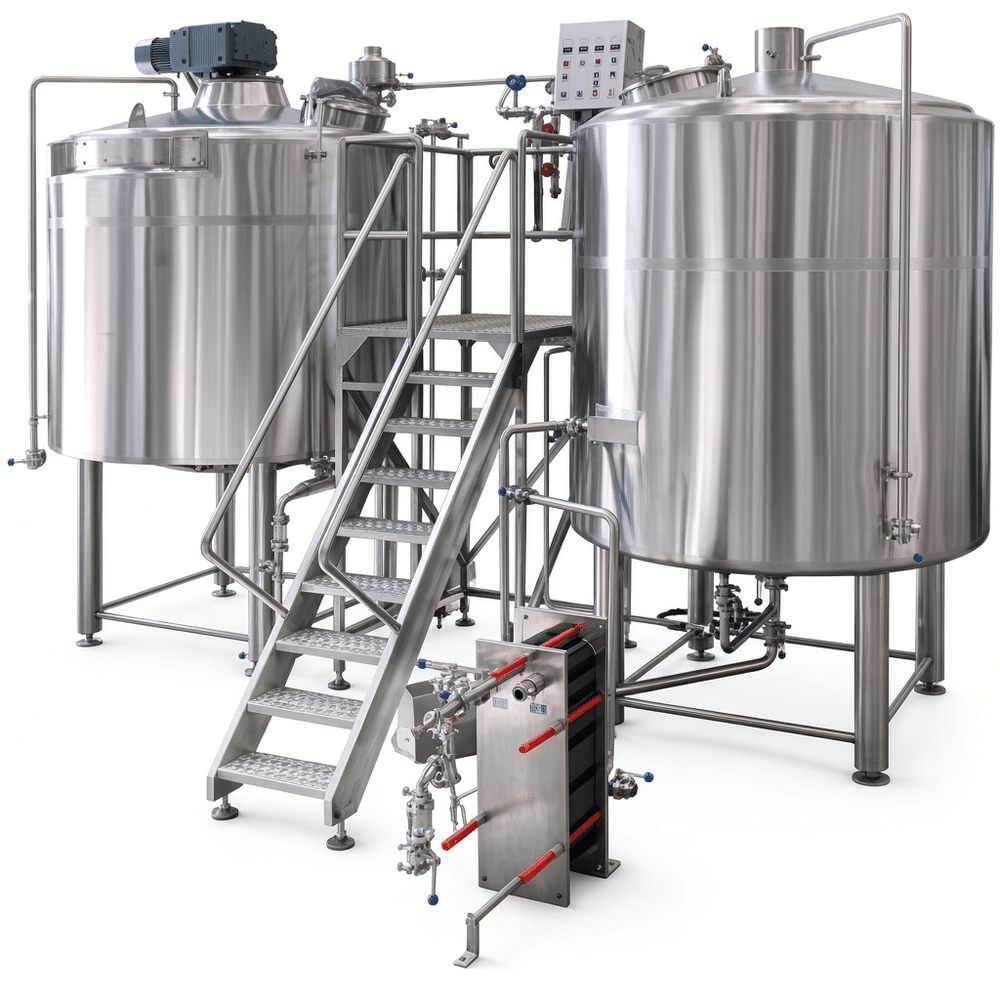

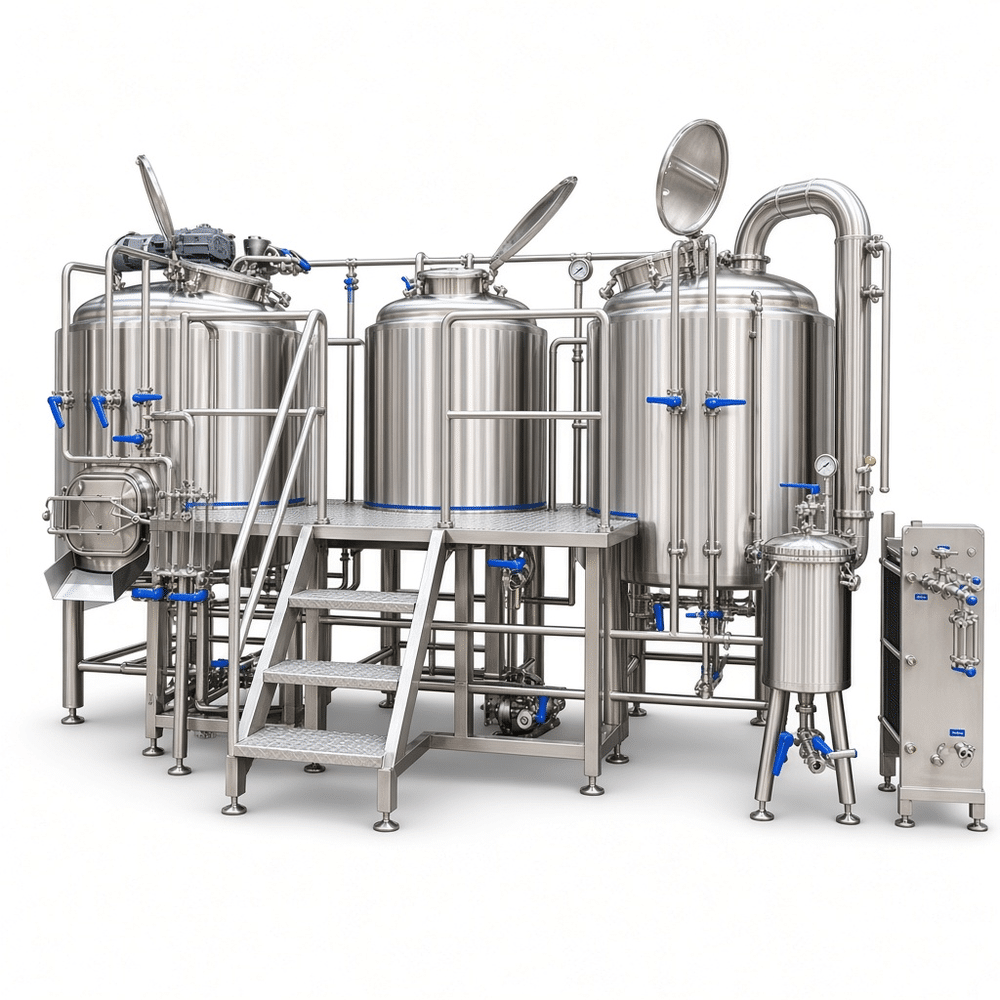

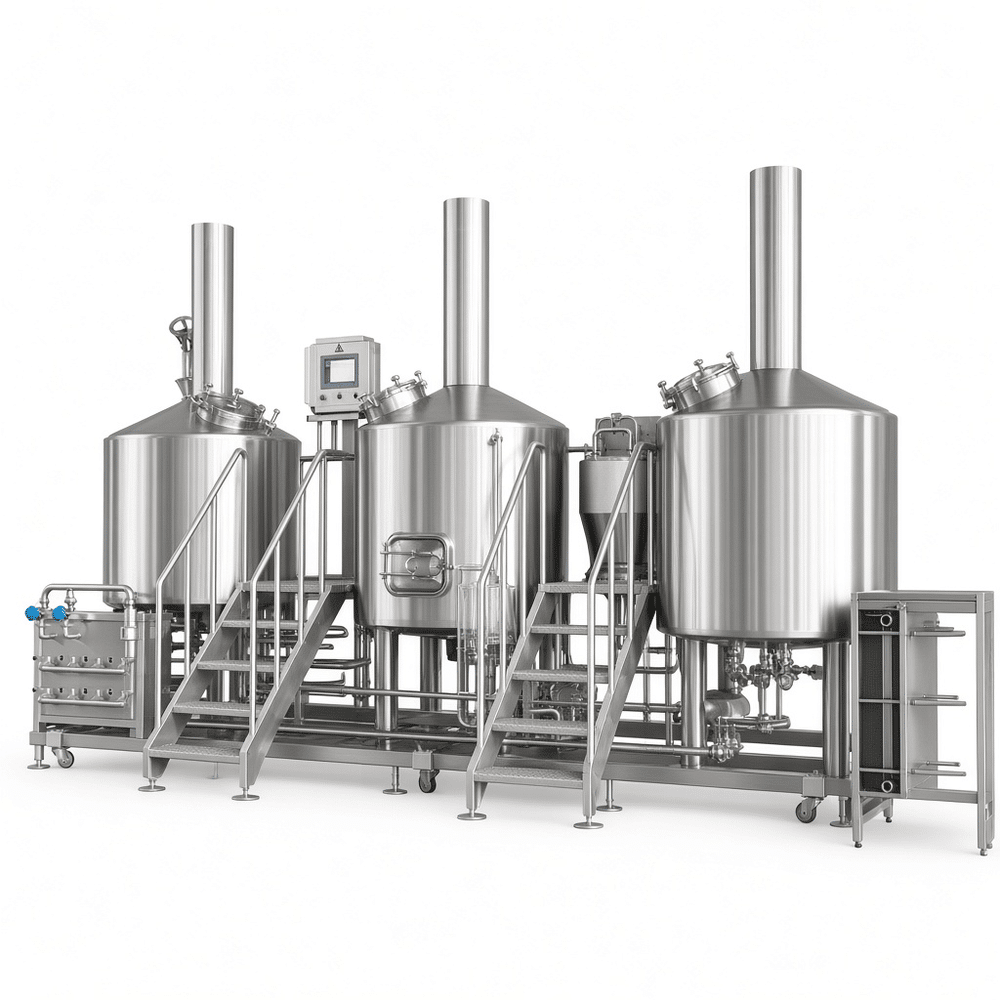

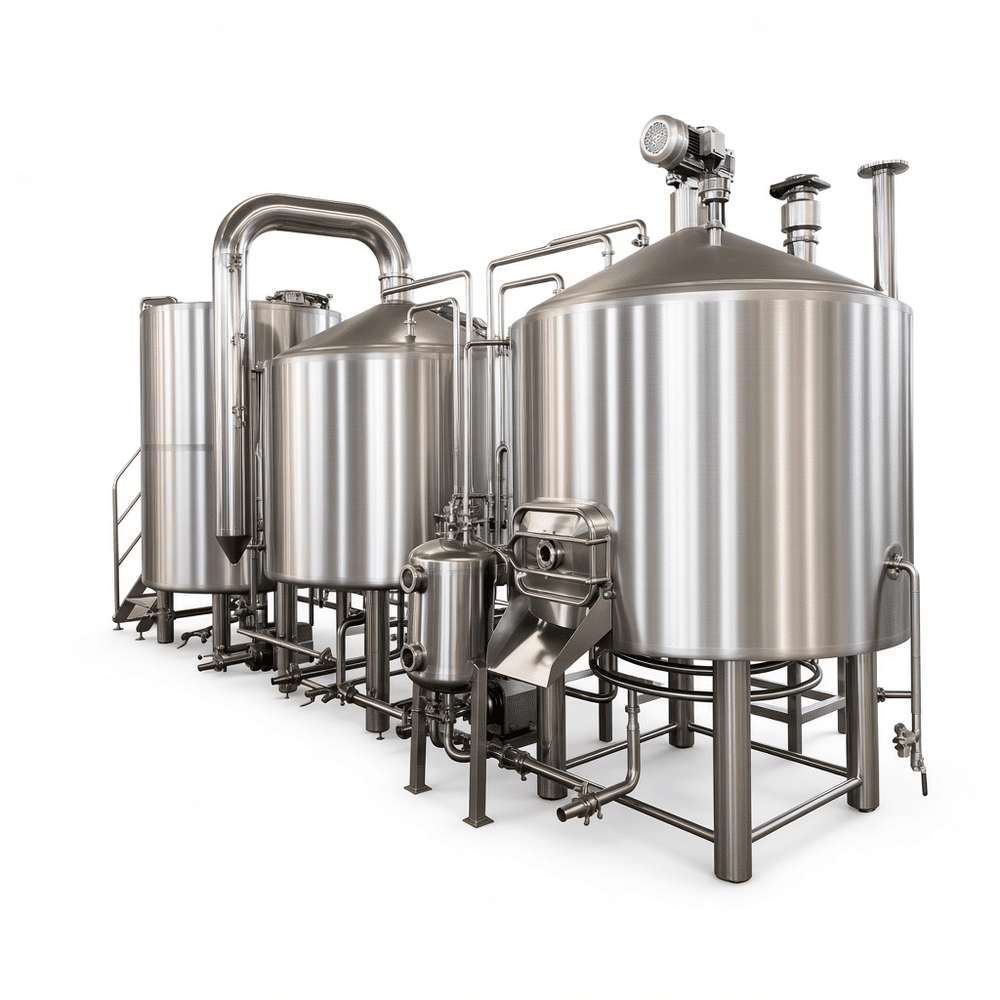

The 2,500 L, 3,500 L and 5,000 L packages are complete production lines — mill, mash, lauter, boil, whirlpool, fermentation and transfer interfaces — not a single vessel. Most buyers here are either breweries stepping up from a 500 L pilot kit or regional plants adding a second shift. Capacity follows batch count and cold-room footprint, not floor space in the brochure. A 2,500 L line running one turn per day and a 3,500 L line running three turns a week put very different loads on your boiler and glycol chiller.
Materials and fabrication
Product-contact surfaces are SUS304 by default. We switch to 316L when the line handles high-acid fruit fermentations or sees aggressive daily CIP. Vessels are welded with automatic orbital TIG, internal seams ground, then pickled and passivated. Interior finish is Ra ≤ 0.6 µm; exteriors are brushed or mirror-polished per client preference. Dimple jackets are laser-welded to the shell — stitch-welded jackets crack under repeated thermal cycling, and that is a common failure we get called to repair. Fermenters come with a dished top, 60-degree cone, sanitary clamp manway with silicone gasket, and 1.5 inch DIN butterfly valves.
Where these lines run
Craft breweries, brewpubs with bottling or kegging lines, contract canning operations, and beverage plants producing kombucha or non-alcoholic malt drinks. Anywhere attenuation needs to be repeatable, temperature control is what decides whether the product leaves the tank on spec.
Specifications
| Model | 2500L | 3500L | 5000L |
|---|---|---|---|
| Wort per batch | 2,500 L | 3,500 L | 5,000 L |
| Brewhouse | 2 or 3 vessel, SUS304 or 316L | ||
| Heating | Steam jacket or electric immersion, client specified | ||
| Fermenter working pressure | 0.2 MPa standard, 0.3 MPa optional | ||
| Cooling | Glycol jacket, 2 to 3 zones per tank | ||
| Control | PLC with HMI, PT100 probes, CIP program | ||
| Voltage | 380 V / 50 Hz or 440 V / 60 Hz | ||
Questions we get before quoting
Do the tanks need pressure rating? If you carbonate in the fermenter or push beer with CO2, yes. Working pressure sets the shell thickness, and the safety valve must be set above working pressure but below test pressure. Tell us the local code authority; paperwork differs by country.
What chiller size? Size to the number of tanks crashing at once, not the total tank count. Crashing four tanks on the same afternoon is the load case that matters.
Can we add tanks later? Yes, but the header and CIP main have to be sized for the final count on day one. Adding a 5,000 L vessel to a header built for two 2,500 L tanks is a rework job.
Send us your batch size, beer styles, number of fermenters and the ceiling height of the room. We will come back with tank volumes, jacket area and a layout that fits the building you actually have.
