Description

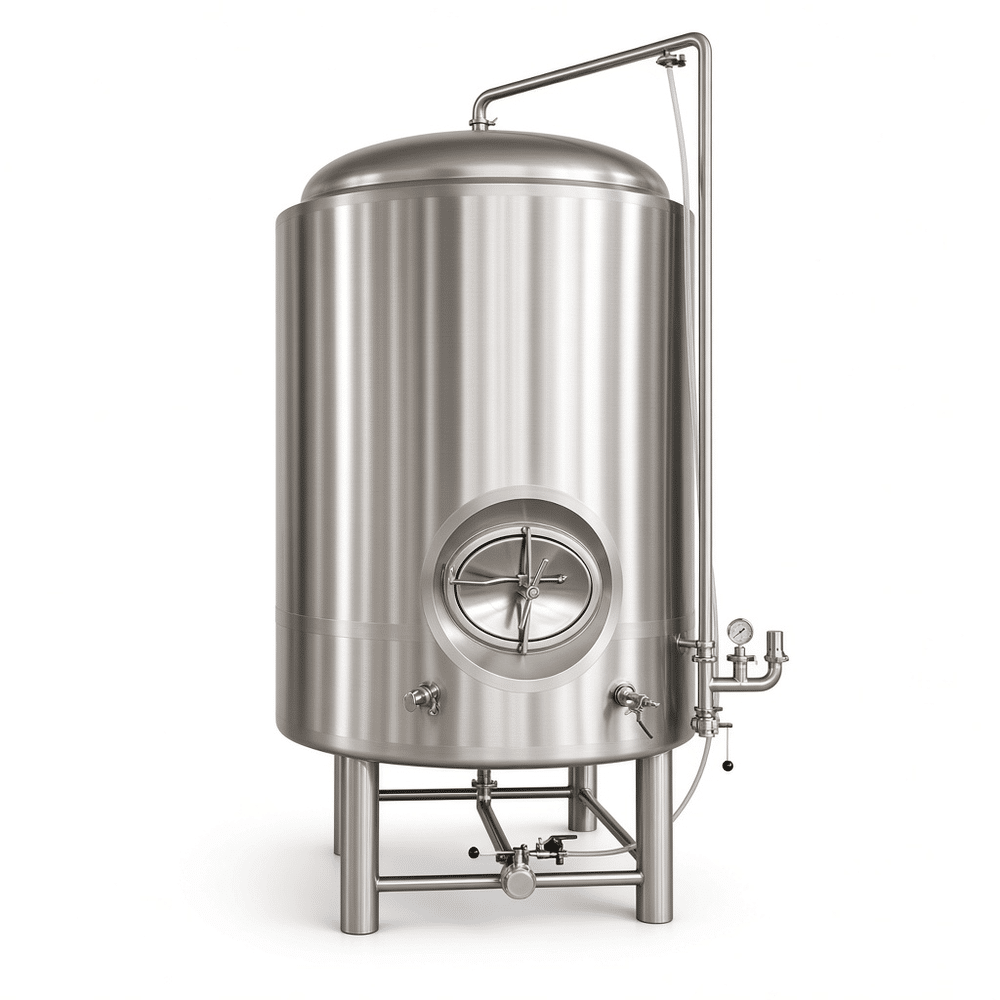

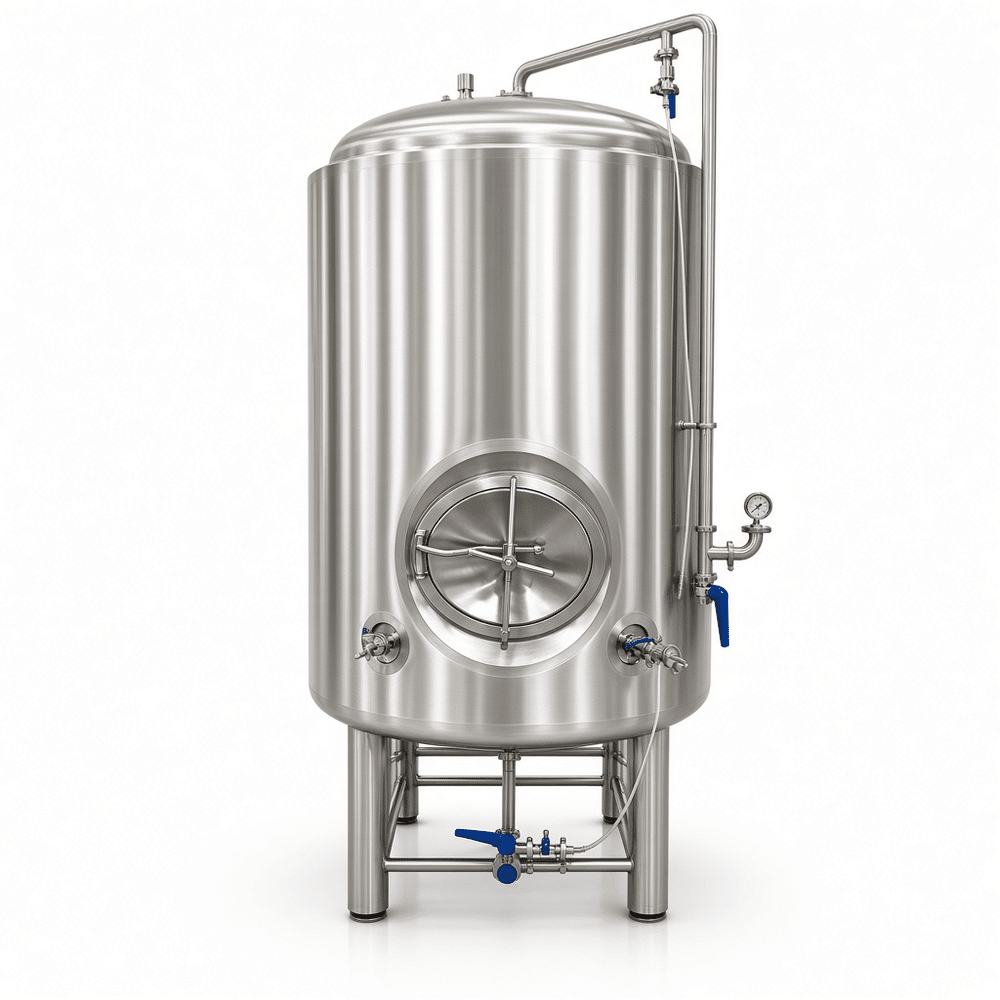

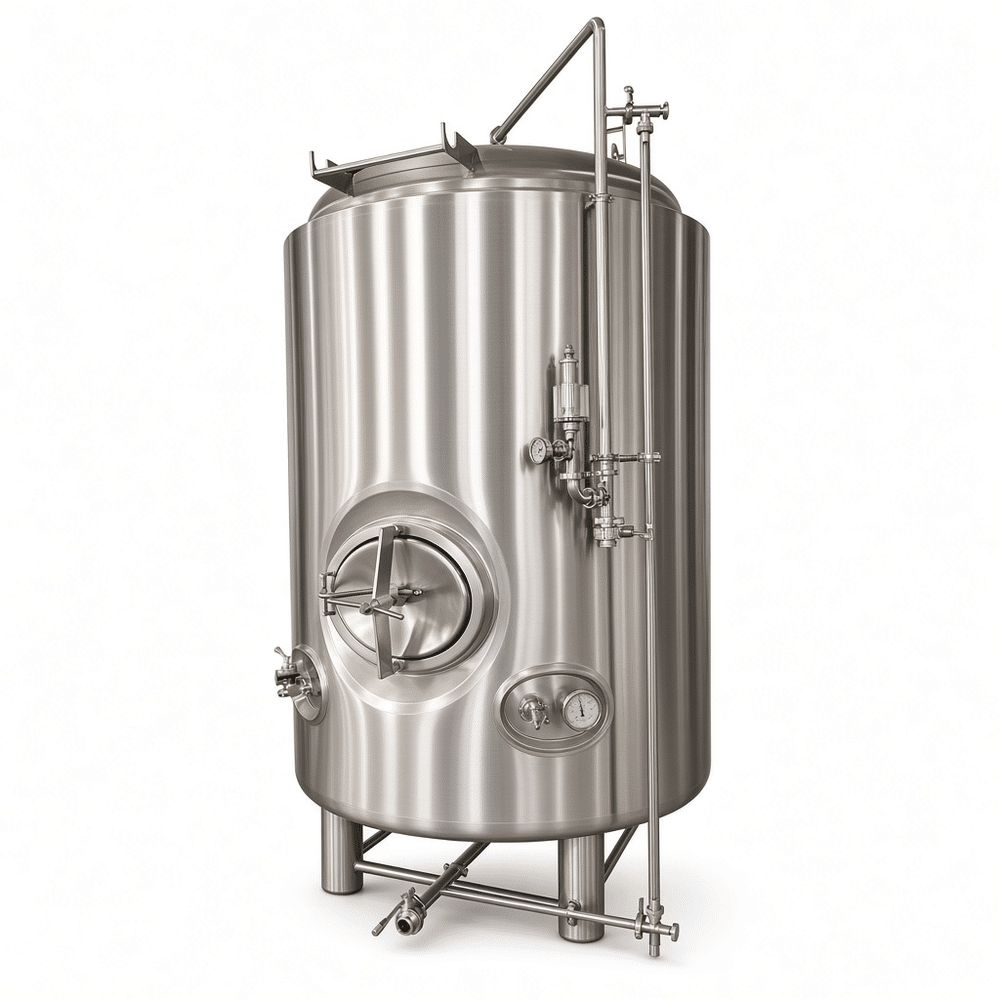

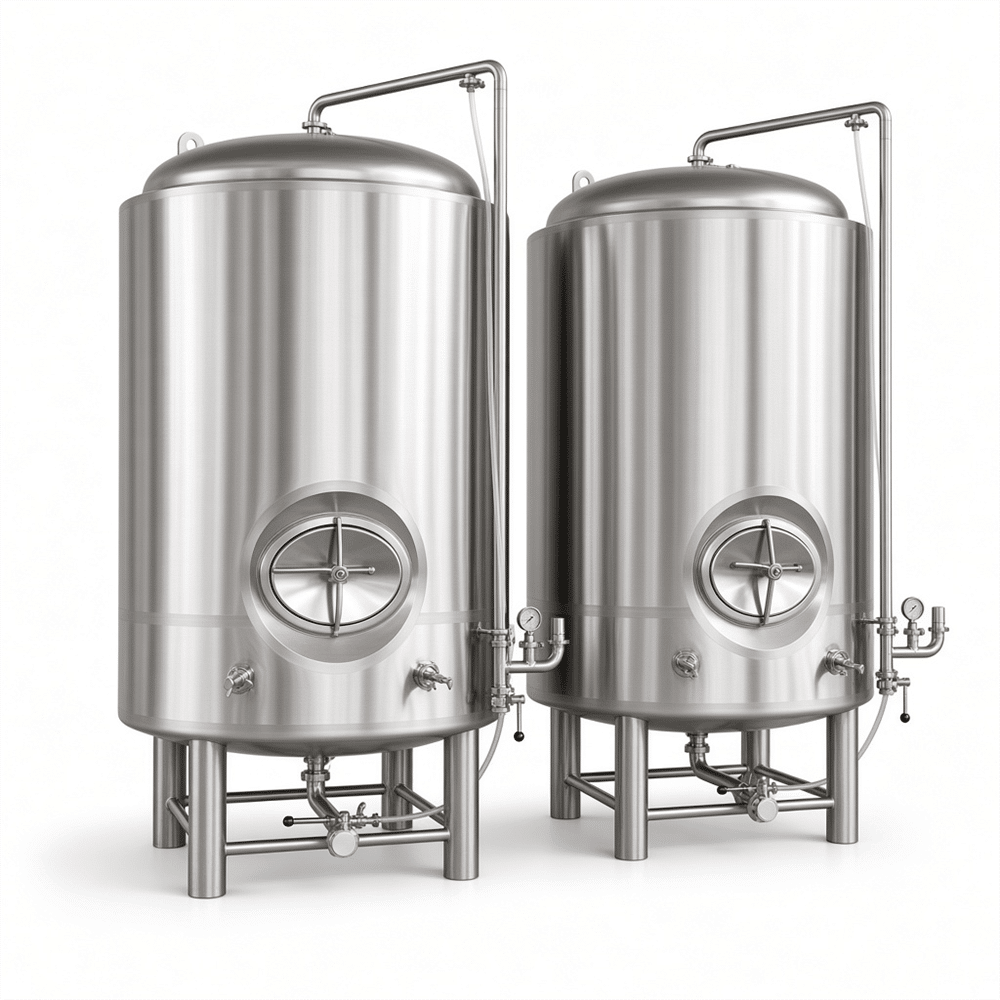

Brite Tanks Built for Conditioning, Carbonation, and Serving
We build 5, 8, and 10 BBL brite tanks for breweries that need stable carbonation, clear beer, and a clean serving vessel. The same shell works for sake storage and service when ports and finishes match the product. A brite tank is not a fermenter with a different label. It needs a pressure-rated vessel, a sanitary interior, and enough cooling surface to hold 34–38°F without cycling the glycol system hard.
Our standard tank uses SUS304 stainless steel. For sake, fruit beer, or plants using chlorinated cleaners, 316L is available. Interior surfaces are 2B mill finish or polished to 320 grit on request. Welds are ground, brushed, and passivated. Each tank receives a hydrostatic test and a pressure test before shipment.
Cooling and Pressure Control
A dimpled glycol jacket on the side wall and cone removes heat during carbonation and serving. We size the jacket area around the batch volume, not just the tank diameter. Insulation is 80–100 mm polyurethane with a stainless outer shell. Working pressure is typically 15–30 psi, with a pressure relief valve, pressure gauge, and carbonation stone. If the tank will be used for sake, we adjust the relief setting and port layout to reduce oxygen pickup.
CIP and Connections
CIP is handled by a rotating spray ball, usually 1.5 in. The tank includes a racking arm, sample valve, drain, glycol in/out, and a dedicated CIP port. We can match your existing DIN, Tri-Clamp, or BMC connections. For serving tanks, we often add a sight glass and a separate CO2 regulator port.
Typical Specifications
| Capacity | 5 BBL / 8 BBL / 10 BBL |
|---|---|
| Material | SUS304; 316L optional |
| Inner Finish | 2B or 320 grit polish |
| Cooling | Dimpled glycol jacket, side and cone |
| Insulation | 80–100 mm polyurethane |
| Working Pressure | 15–30 psi with relief valve |
| Ports | CIP, racking arm, sample, drain, glycol, CO2 |
FAQ
How do I choose between 5, 8, and 10 BBL? Match the tank to your packaged batch size and available floor space. A 10 BBL tank saves floor area per barrel, but it needs a glycol system that can pull down the full volume.
Do I need 316L? For beer, 304 is common. Choose 316L for sake, high-chloride environments, or if your CIP chemicals are aggressive.
Can one tank carbonate and serve? Yes. A brite tank with a carbonation stone and serving port can do both, but separate tanks reduce downtime during peak service.
Tell us your batch size, beer or sake type, number of tanks, and available space. We can recommend the tank volume, cooling area, and configuration for your brewery.
Related products
200L-1000L SUS304 Pressure Brite Beer Tank Glycol Jacket Side Manway
SUS304 brite beer tanks in 200 L, 500 L, and 1000 L sizes with glycol cooling jackets and side manways. Built for pressure conditioning, carbonation, and cold storage before packaging. Sanitary welds, polished interiors, CIP spray ball, and pressure relief valve. Custom jacket zones, fittings, and insulation available for pilot breweries, taprooms, and small commercial production.
1000L BBT Craft Beer Kettle – Commercial Brewery Storage Tank
A 1000L brite beer tank built as a pressure vessel for carbonation, conditioning and bright beer storage. Dimple glycol jacket, 304 or 316L stainless, sanitary welds polished below 0.6 µm Ra, and 15 psi working pressure. Configured with CIP spray ball, racking arm, carbonation stone and dual-zone cooling for pub and production breweries.
1000L Bright Beer Tank Pressure Vessel for Beer Soda Carbonated Drinks
A 1000L bright tank holds beer, cider, soda, or carbonated water under pressure while carbonation stabilizes and the liquid clarifies before packaging. Built in SUS304 or 316L with dimple cooling jackets, PU insulation, and Ra 0.6 µm internal finish, it suits brewpubs and beverage plants packaging roughly 20 to 30 kegs per batch.

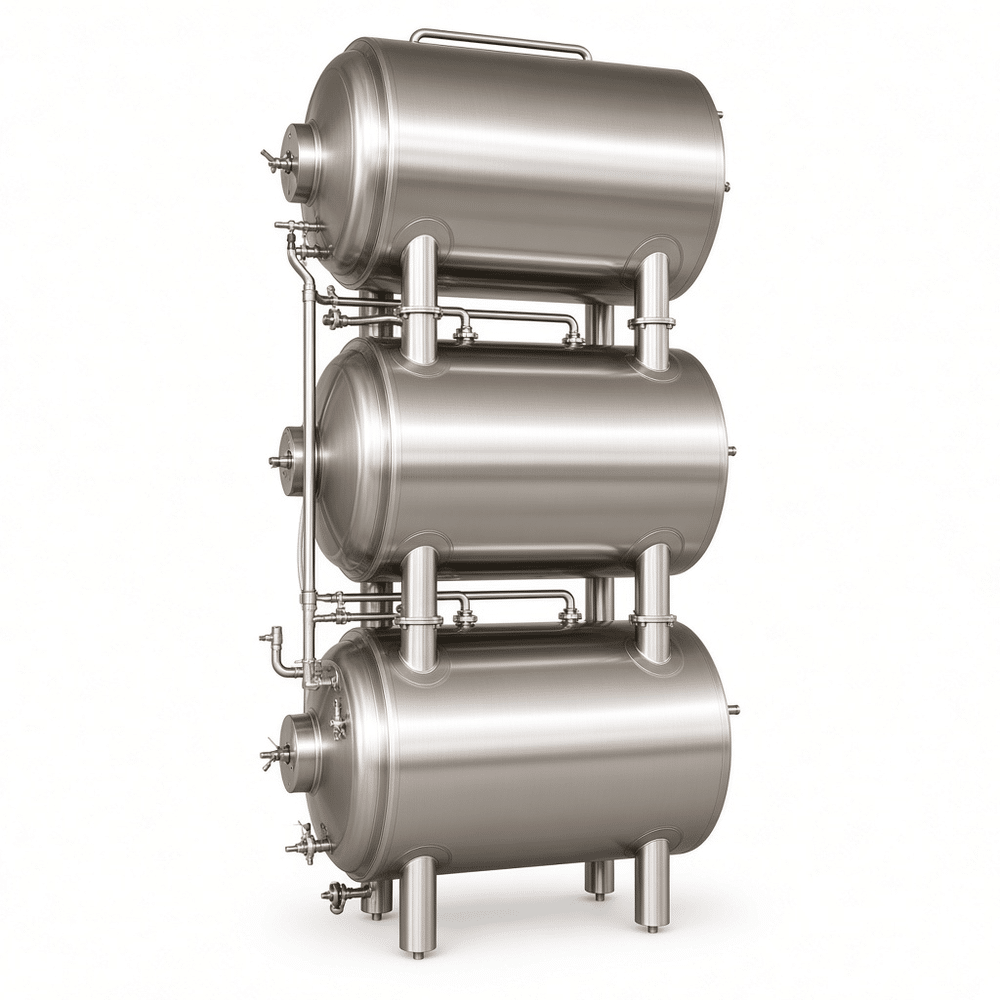

1000L & 2000L Horizontal Bright Beer Tanks (BBT) for Brewery Storage
