Description
A 2000 L red wine fermentor usually gets specified once a cellar has outgrown open-top bins but still manages caps by hand. The fork slots on the upper shell let a forklift or overhead crane lift the tank body or the liner during cleaning and repositioning — practical when tanks sit on pallets or the crush pad layout changes between vintages.

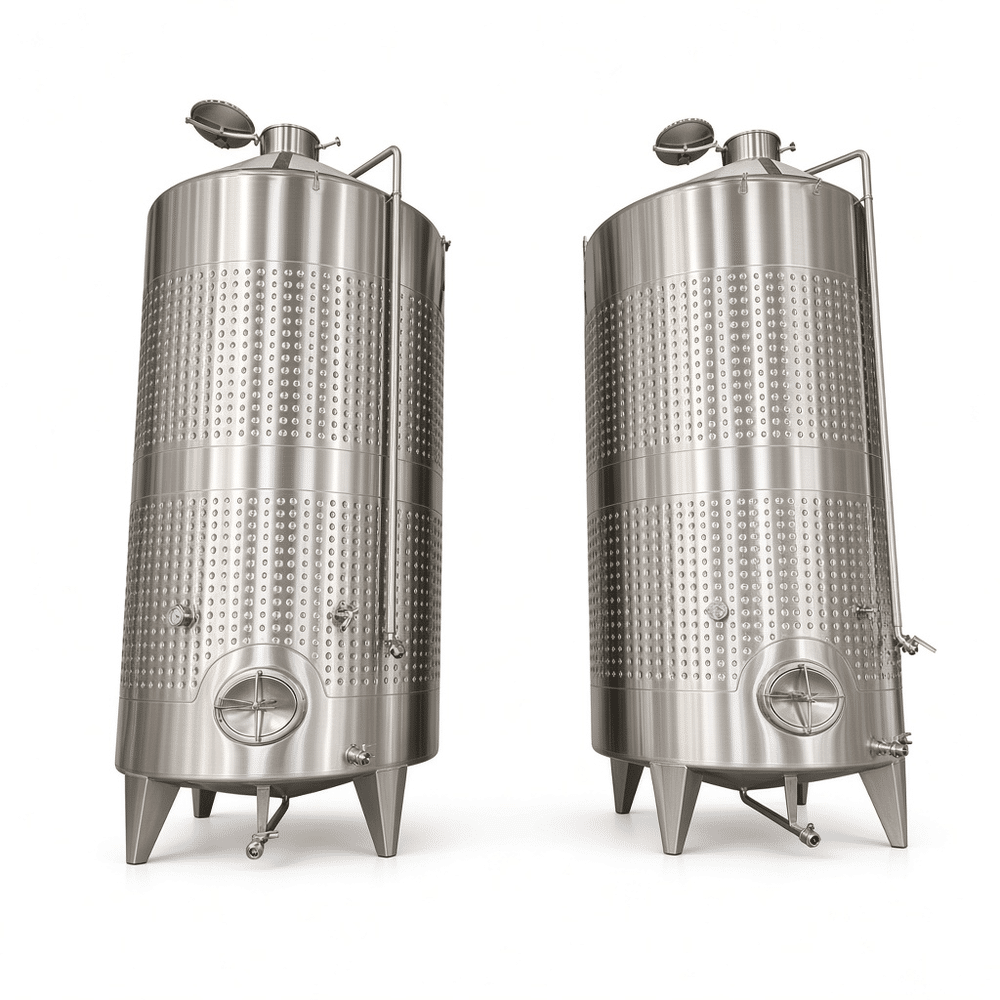

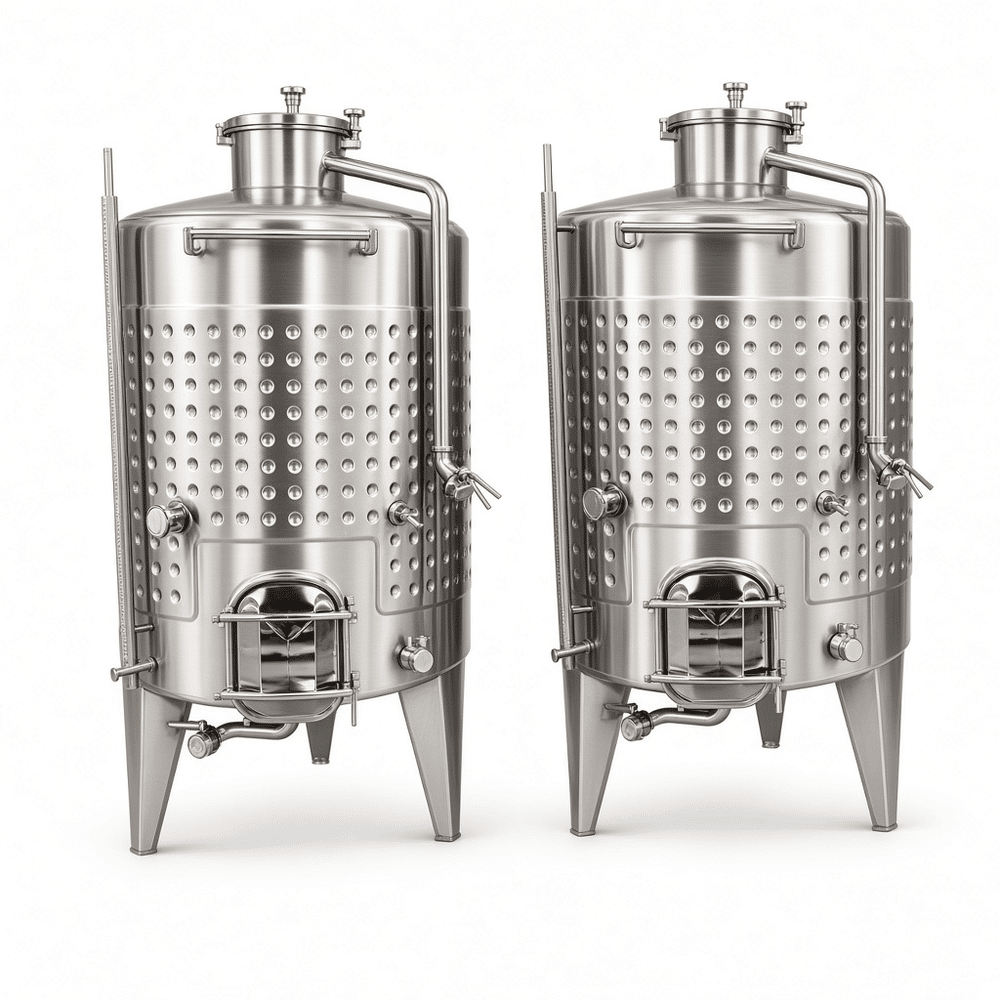

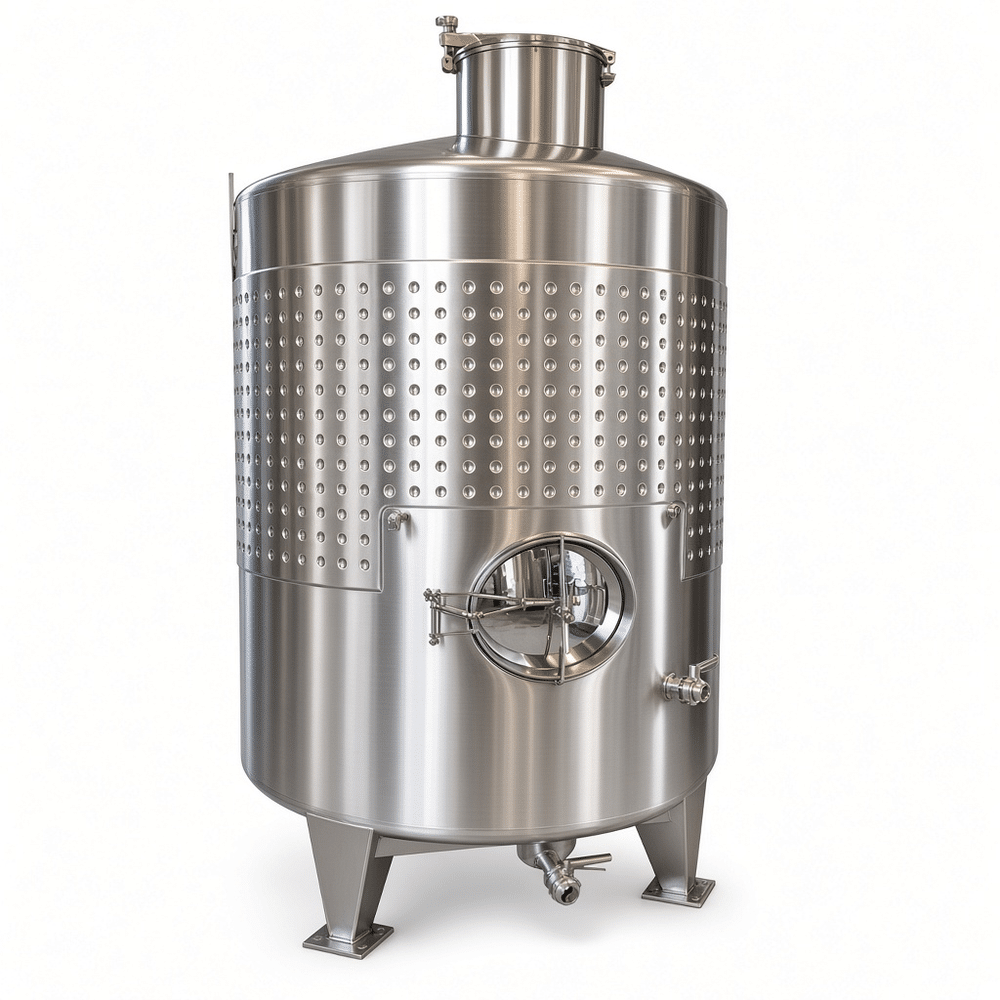

The body is fabricated from 304 stainless, with 316L available for high-acid musts or chloride-heavy washdown. Shell runs 3 mm, the cone 4 mm. Welds are argon-purged TIG, ground flush at wine contact points, and the interior is passivated after fabrication. Dimpled cooling jackets cover the cylindrical wall and, on most builds, the cone. Glycol at -5 to -10 °C holds must within roughly ±1 °C through the 24–30 °C peak of primary fermentation.
Specifications
| Nominal capacity | 2000 L (usable ~1900 L) |
| Shell / cone | 304 SS, 316L optional |
| Interior finish | 2B mill, Ra ≤ 0.8 µm on request |
| Cooling | Dimpled jacket, wall + cone |
| Working pressure | 0.2 MPa (test 0.4 MPa) |
| Cone | 60° or 90°, with racking arm |
| Ports | Manway, CIP spray ball, sample valve, thermowell, 1.5\” tri-clamp |
| Insulation | 50–80 mm PU, stainless cladding |
| Fork slots | 2 or 4, reinforced |
Questions we get before quoting
Is a jacketed cone necessary? For long macerations on Cabernet or Syrah, yes — the bottom of a 2000 L tank runs warmer than the wall, and that gradient shows up as uneven extraction.
How does working pressure relate to the safety valve? The relief valve is sized to the highest gas flow you can produce, including closed fermentation or pump-over. It is set below the shell test pressure; changing it without re-checking the shell is not something we recommend.
CIP and connections? Spray ball at the top, drain and racking arm at the cone, glycol in/out at 1.5\” or 2\” tri-clamp. Everything reaches the spray pattern.
Small producers often order one tank and grow later; commercial wineries buy in matched sets so cooling load and manifold sizing stay consistent. Tell us your batch size, wine type, number of fermentors and available floor space. We can recommend tank volume, cooling area and configuration for your cellar.
Related products
2000L Jacketed Red Wine Fermenter with Temperature Control for Winery
A 2000 L jacketed fermenter built for red wine production, with dimple cooling zones on the side wall and cone, 304 or 316L contact surfaces, and tri-clamp fittings for racking, CIP, and glycol supply. We size jackets, relief valves, and port layouts around your must chemistry, batch schedule, and available floor space.

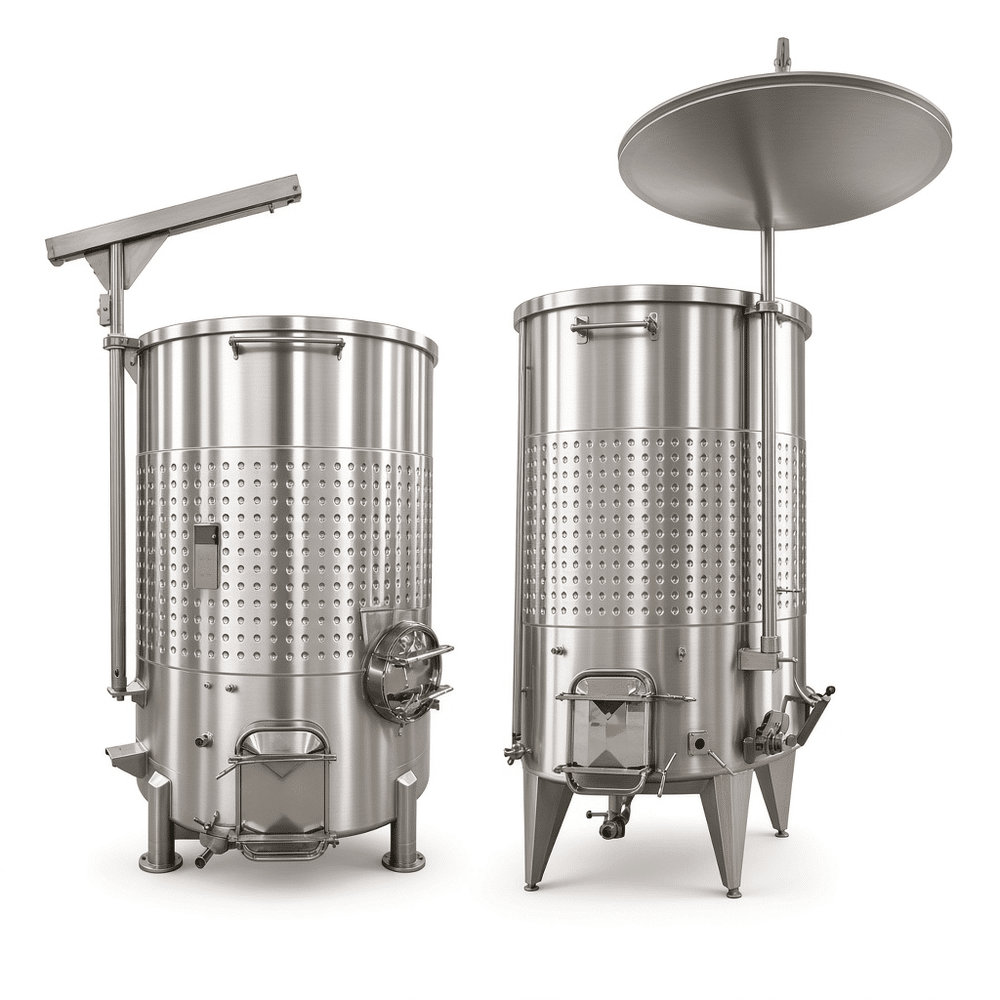

1000L-3000L Open Top Wine Fermentation Tank | Spiral Channel Cooling Jacket
