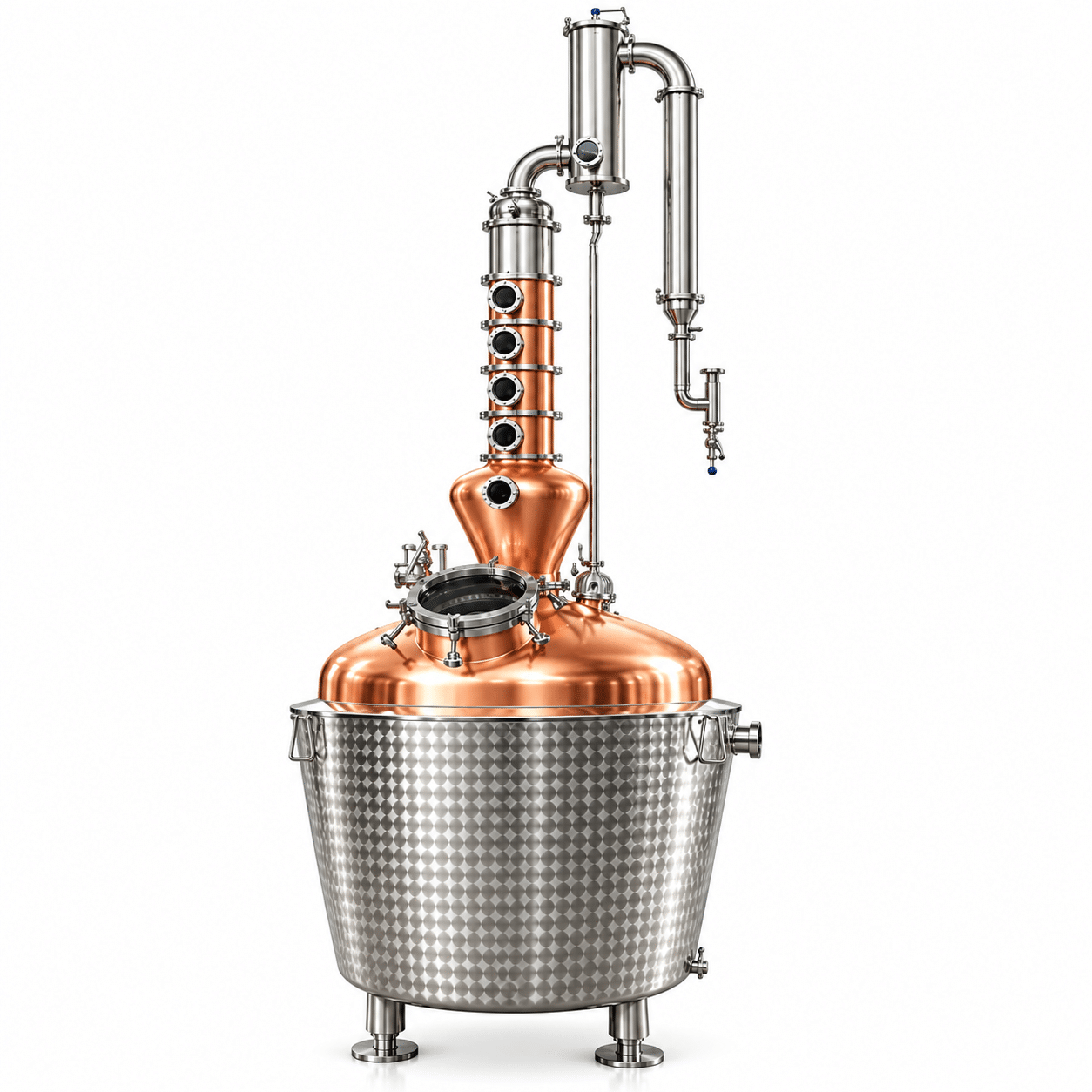

A Small Copper Column Still for People Who Test Before They Commit
We build these mini units for distillers who want to prove a recipe before dumping 500 L of wash into the big kettle. Lab techs, startup brands, and small farm distilleries run them the same way: 20–50 L batches, adjust cut points, repeat. Copper sits where it matters — boiler body, column, and the mesh in the vapor path. We\’ve shipped stainless condenser shells to cost-conscious buyers, but most builds still get a copper coil inside.
What we set up before it leaves the shop
Heating decides everything else. Electric elements at 2–6 kW, 220V single phase, work in a garage or pilot room with no boiler on site. Steam jackets are the better call if you already run a boiler — gentler on grain-in washes, no scorching, tighter control. Tell us which you have and we\’ll quote accordingly.
Column height and packing depth set your proof. A 500 mm packed column with copper mesh puts most fruit and grain runs in the 85–92% range on a slow takeoff. Planning vapor infusion? Add the gin basket above the column. Thick, grain-in washes benefit from an agitator; clear sugar washes don\’t need one. A parrot is worth the small upcharge if you\’re chasing cuts by proof.
| Kettle | Column | Typical use |
|---|---|---|
| 5–10 L | 300 mm | Recipe trials, classroom demos |
| 20 L | 400–500 mm | Pilot batches, spirit R&D |
| 50 L | 500–800 mm | Small tasting room production |
CE marking covers the electrical assembly and pressure relief. It doesn\’t cover your cooling water plumbing or where you vent the column — that\’s on the room.
For a quote, send batch size, heating source, available power (voltage and phase), cooling water temp and flow, column height, and whether you want the gin basket, agitator, or parrot. A rough floor plan helps if the ceiling is low; headroom above the column trips up more installs than floor space does.
Structure of a Distiller
