Description

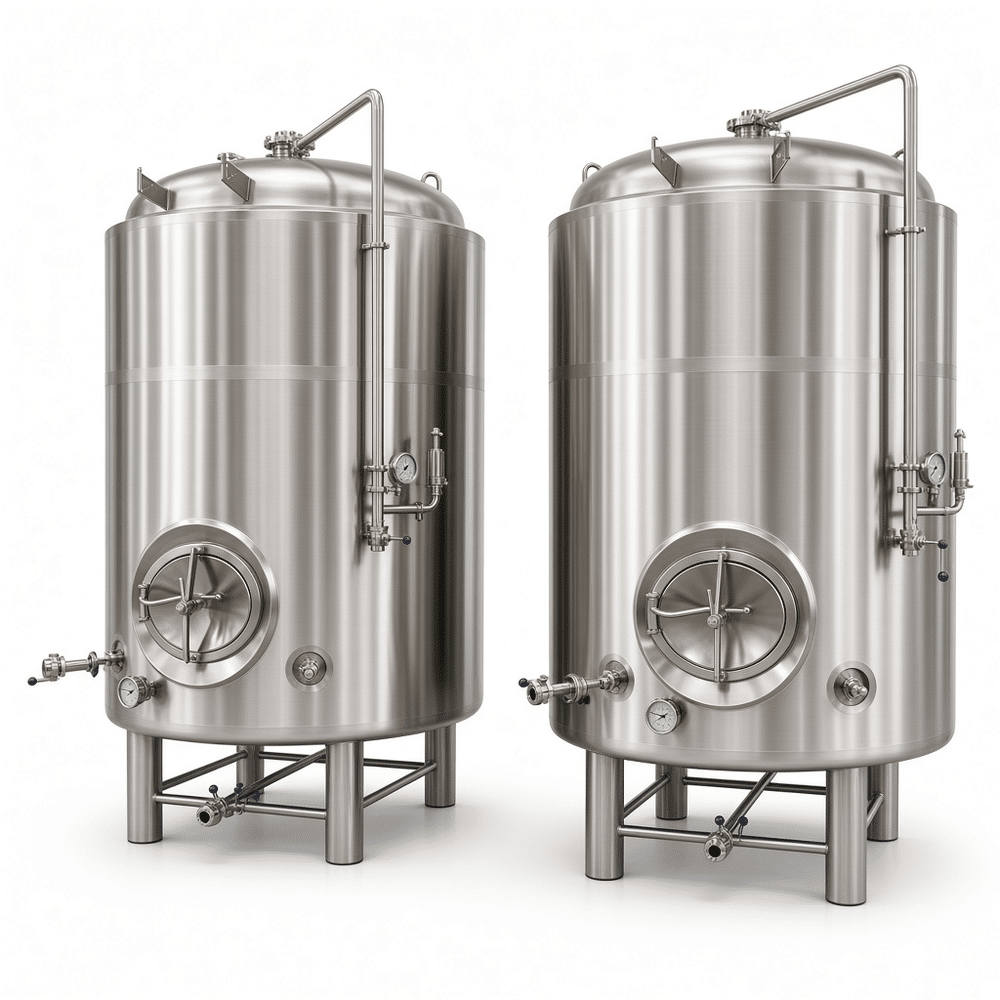

Most breweries don\’t order a brite tank because they want one. They order it because kegging day stretched into two days, or because carbonation drifts between batches. A 20BBL vertical serving tank fixes both, but only when the jacket, ports, and surface finish match what you actually brew.
We build these vessels with a 304 stainless shell and dished top as the base configuration. If you carbonate aggressively or package sour beer, cider, sake, or kombucha, the wetted parts move to 316L — the molybdenum content starts to matter once pH drops below 4. After welding, internal surfaces are pickled and passivated, then polished to 0.4 µm Ra or finer. Shell welds are full-penetration and ground flush. We don\’t leave crevices for biofilm to colonize.
Cooling comes from dimple jackets on the lower shell. On a 20BBL tank that is roughly 2.2 m² of surface — enough to crash 620 gallons from 68°F to 34°F overnight with a correctly matched glycol chiller. Insulation is 80 mm of foamed-in-place polyurethane under stainless cladding. Thin insulation is the first place low-cost tanks cut corners, and it shows up as condensation and a glycol unit running around the clock.
Specifications
| Gross capacity | 20 BBL / 620 US gal |
| Inner shell | 304 SS (316L optional) |
| Working pressure | 15 psi standard, 30 psi optional |
| Jacket pressure | 30 psi, tested at 1.5× |
| Cooling area | ~2.2 m² |
| Bottom | 60° cone or dished |
| Surface finish | ≤0.4 µm Ra, wetted parts |
| Fittings | 2 in. CIP spray ball, racking arm, carb stone, sample valve, PRV, pressure gauge |
Questions we get from buyers
Can it double as a fermenter? Physically yes, practically no. Brite tanks lack the cone geometry and jacket coverage for active fermentation heat loads.
How much floor space? Plan on about 1.7 m diameter and 3 m overall height, plus clearance for the PRV and CIP line.
Do I need a separate tank for sake? Not if the finish and seals suit it. Sake and high-acidity products are the main reason customers choose 316L and EPDM or silicone gaskets over standard nitrile.
Small brewpubs usually run one or two 20BBL brites as serving vessels, feeding taps directly. Production breweries use them as carbonation and buffer tanks ahead of a filler, and there the PRV setting and carb stone sizing matter more than cosmetics. Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the tank volume, cooling area and configuration for your brewery.
Related products

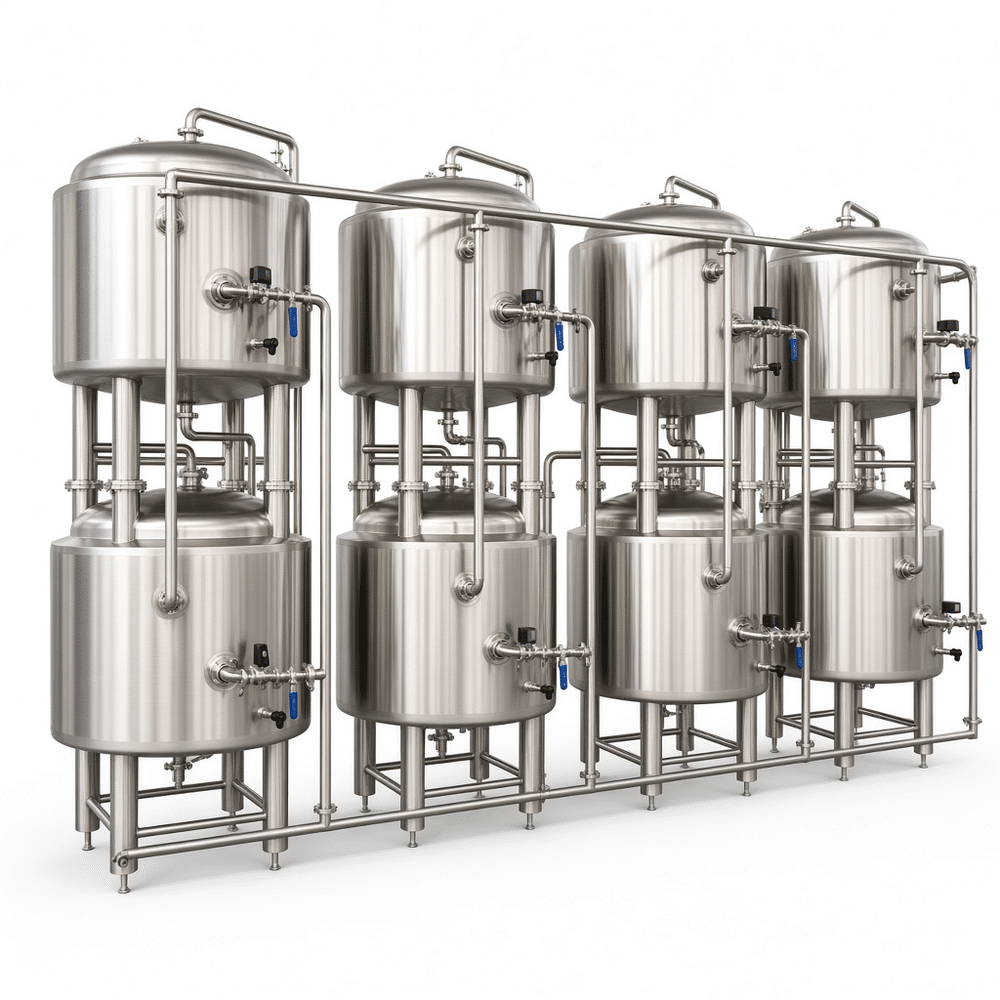

1200L/1000L/800L PLC Craft Beer Brewing System with Pump & Pressure Vessel
PLC-controlled 800L, 1000L and 1200L craft beer brewing skids with motor pump and pressure vessels. SUS304 or 316L construction, dimple-plate glycol jackets, hydro-tested shells and PID temperature control. Built for breweries moving from manual brewhouses to repeatable, documented batches with room to add capacity later.

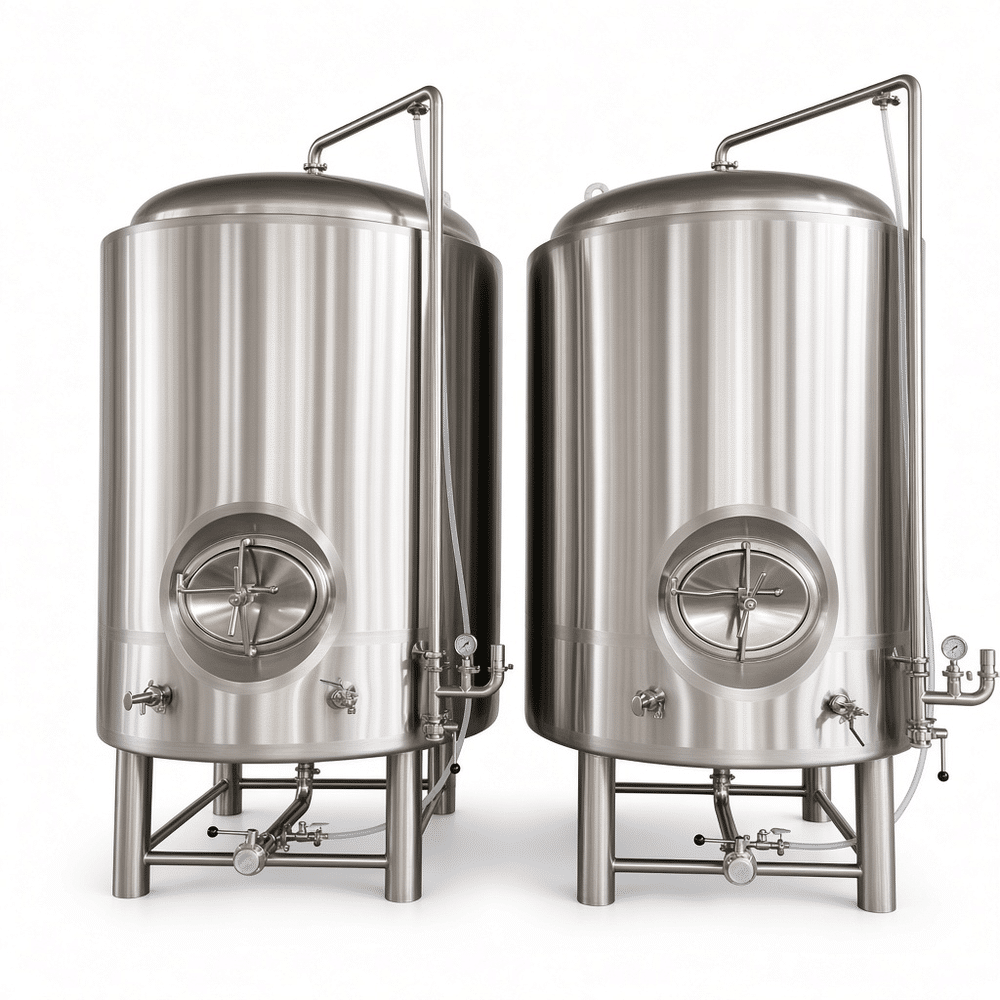

10BBL 15BBL 20BBL Insulated 304 Bright Beer Tank with Glycol Jacket
These vertical bright beer tanks come in 10, 15, and 20 BBL sizes with 304 stainless steel contact surfaces and dimpled glycol jackets. Insulated and pressure-rated, they support carbonation, clarification, and packaging. We build each tank with CIP spray ball, racking arm, sample valve, and optional carbonation stone. Share your batch size and chiller details for a configured quote.

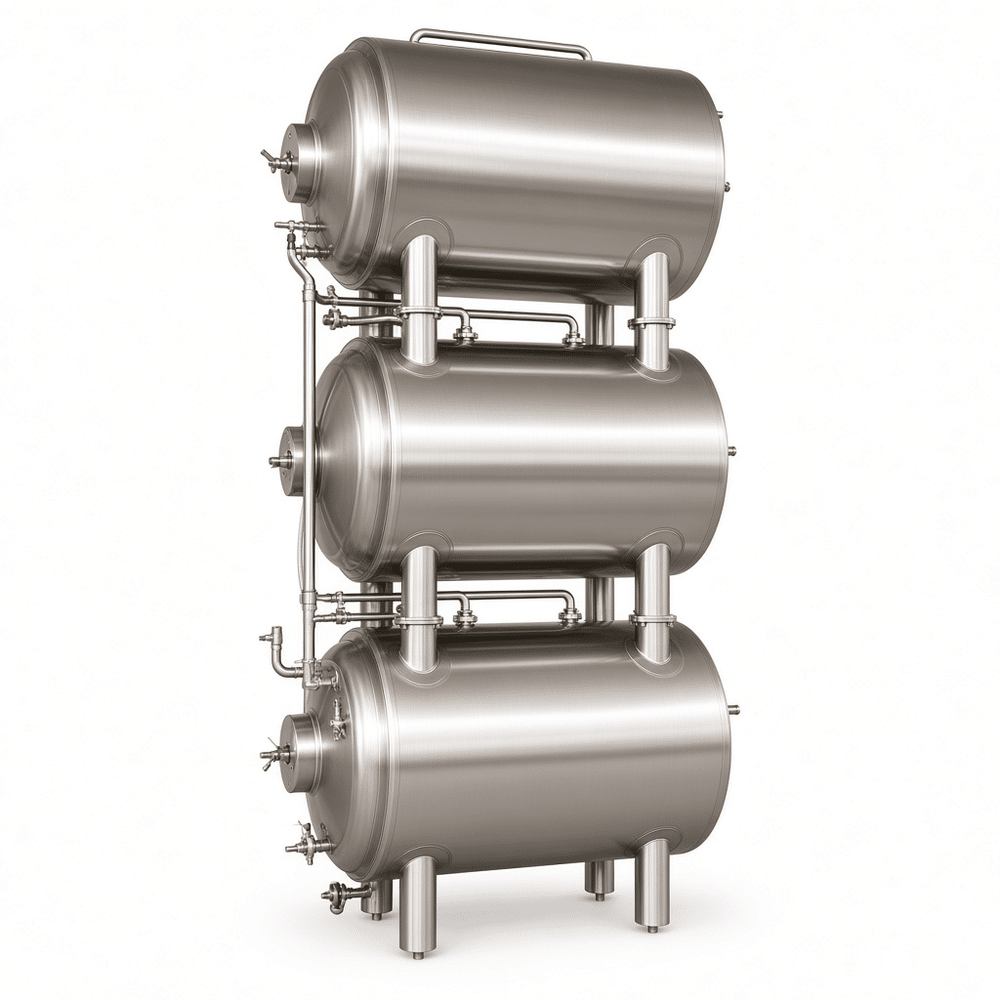

100L to 50000L Insulated Horizontal Beer Storage Tank Pressure Vessel
Insulated horizontal beer storage tanks from 100 L to 50,000 L, built in SUS304 or SUS316L with PU insulation, stainless cladding and Ra ≤ 0.8 µm internal finish. Suited to bright beer storage, cider, kombucha and soda lines where cellar height rules out vertical vessels. Pressure ratings, CIP fittings and dimple-jacketed options available on request.
1000L-5000L Beer Bright Tank for Beer Storage and Carbonation
Bright beer tanks in 1000L, 2000L, 3000L and 5000L for carbonation, cold conditioning and packaging. Built in SUS304 or 316L with dimple glycol jackets, 0.2 MPa working pressure, racking arm, CIP spray ball and adjustable relief valve. Single-wall and double-wall options for brewpubs, regional breweries, cider and kombucha producers.

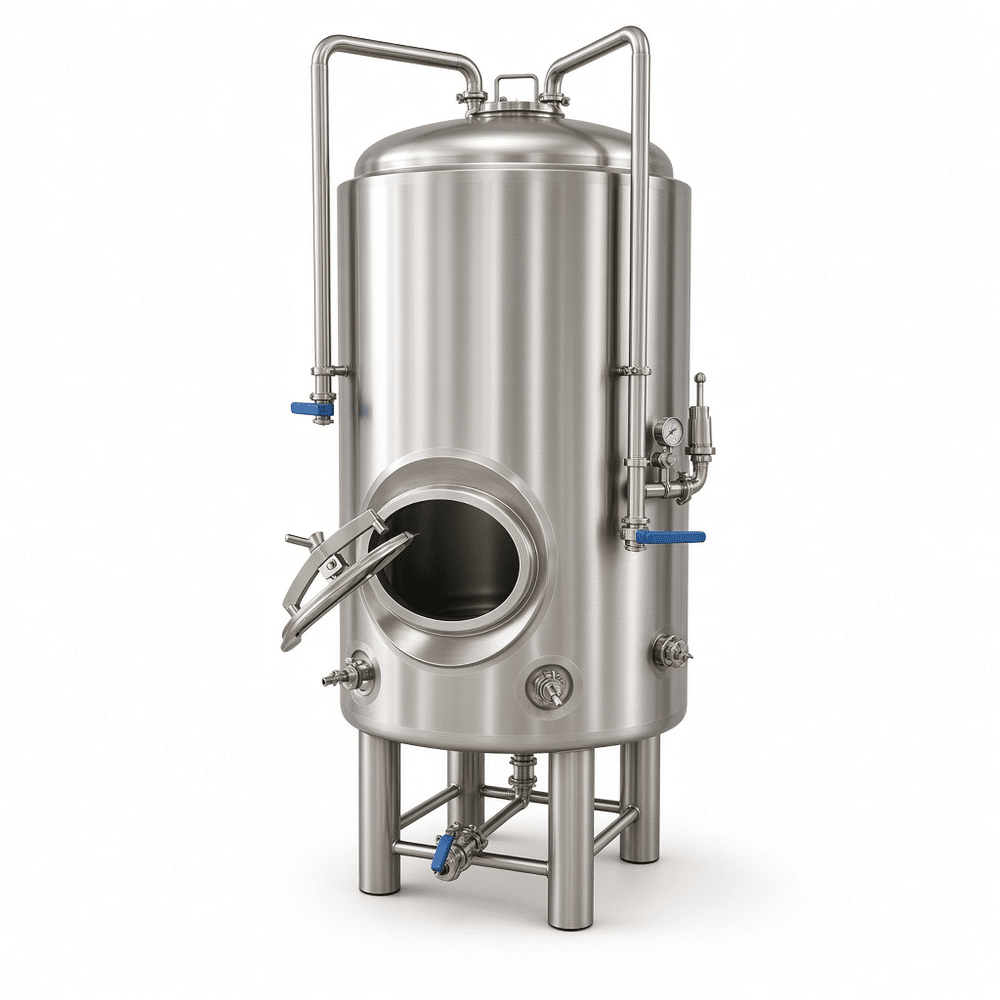

1000L Double Jacketed SS304 Bright Beer Carbonation Tank
A 1000L double-jacketed SS304 vessel for carbonating, clarifying, and storing bright beer, sake, kombucha, and cider under pressure. Built with dimple or pillow-plate cooling, TIG-welded sanitary fittings, and an interior finish suited to CIP. Configure the jacket, relief valve, and port layout around your carbonation method, glycol supply temperature, and packaging schedule before ordering.

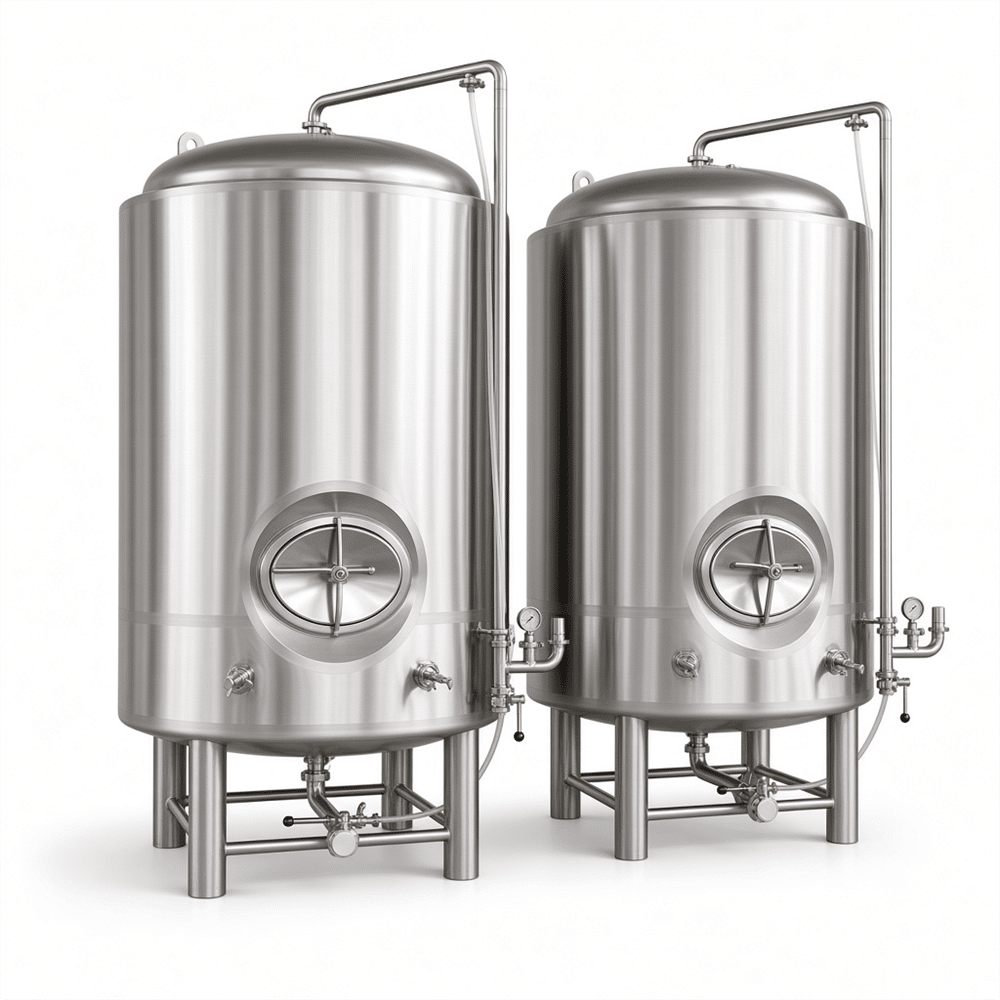

1000 L Vertical Bright Beer Tank BBT for Beer Brewing and Storage
