Description
Brewhouse Systems Built for Repeatable Production

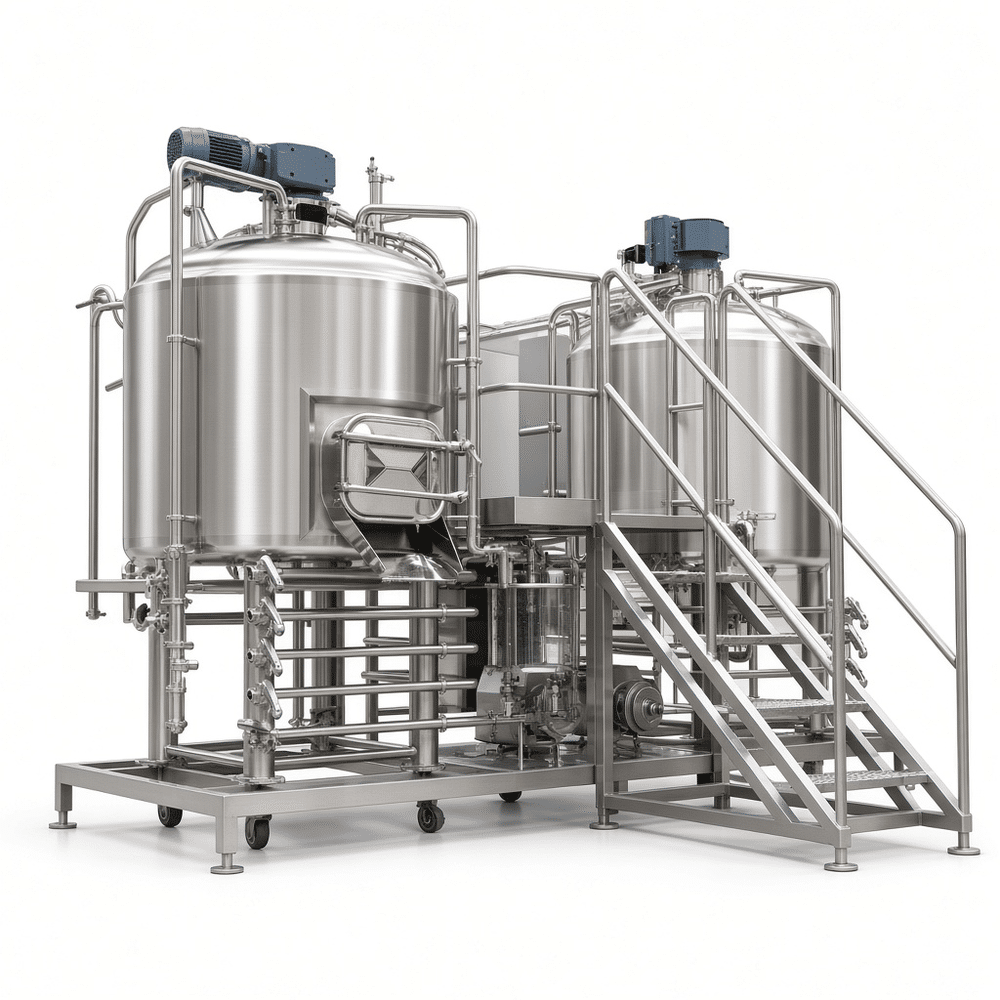

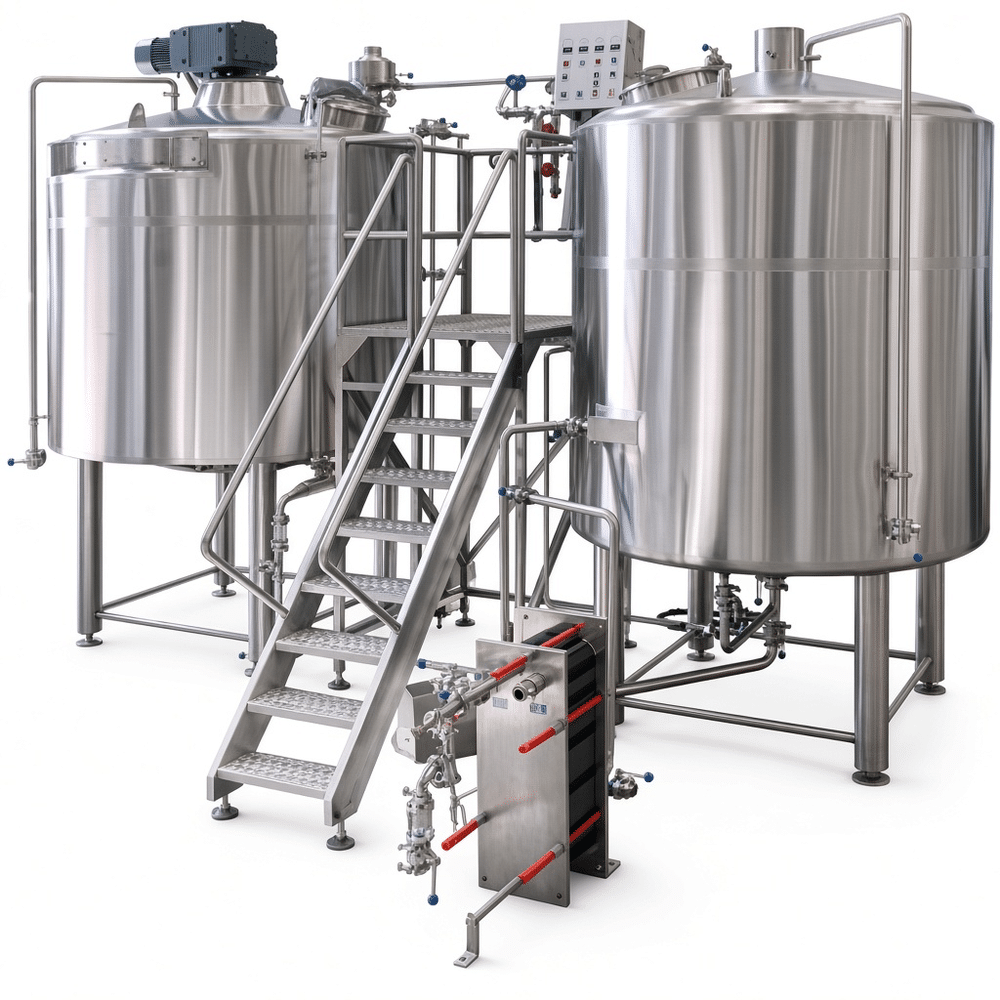

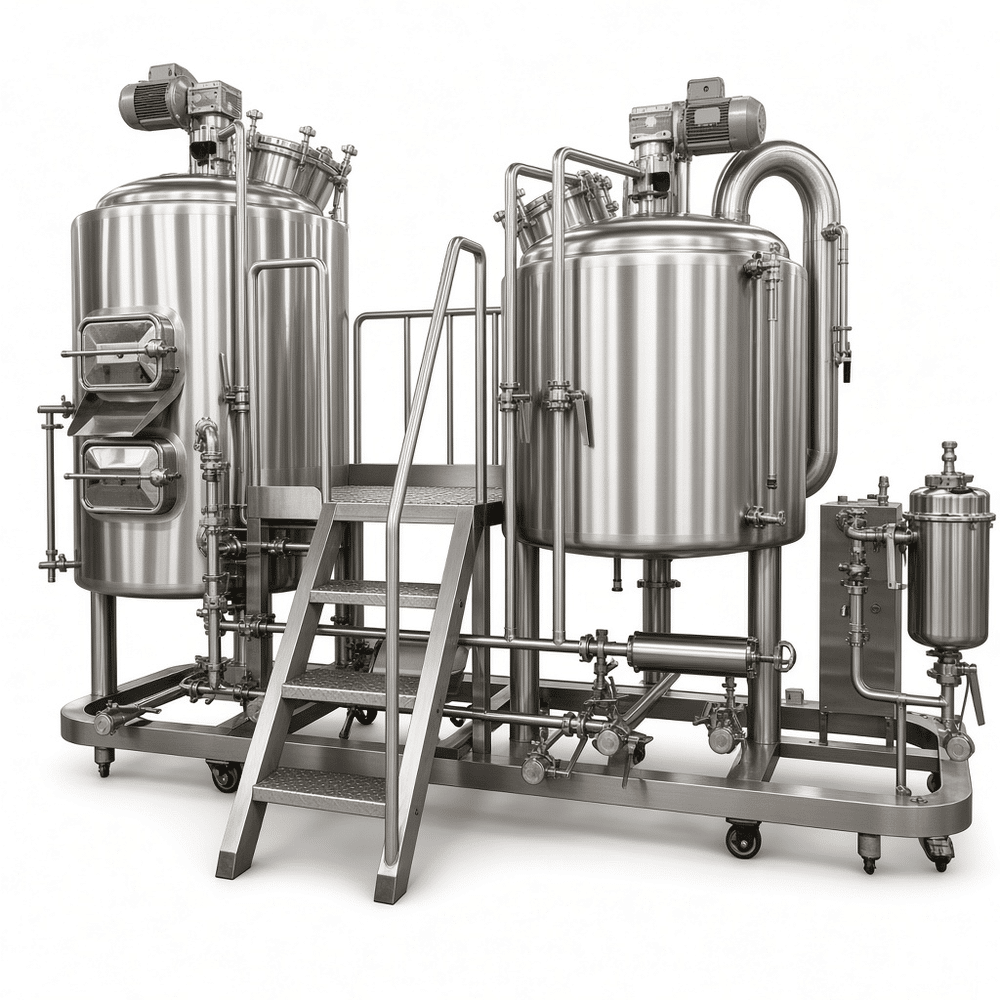

We manufacture 5–15 BBL brewhouses for craft breweries that need consistent extract recovery, predictable boil-off, and a layout that fits an existing building. The system can be configured as two vessels—mash/lauter tun and kettle/whirlpool—or three vessels when brew length and style changes justify the extra floor space. Capacity is nominal; actual batch size depends on gravity, grist load, and whether you run high-gravity brews.
Fabrication Details That Affect Service Life
Product-contact surfaces are normally SUS304; we use SUS316L for chloride exposure or aggressive cleaning cycles. Welds are purged and pickled, then ground and polished to a sanitary finish—typically Ra ≤0.8 µm on product contact. We pressure-test jackets and vessels before shipment. Gaskets, seals, and clamp fittings are selected for steam, hot water, and CIP chemicals. Skid-mounted piping, hard-piped CIP routes, and glycol or steam jacket connections are agreed at drawing stage; changing them after fabrication adds cost.
Applications
These brewhouses suit ale and lager production, taproom breweries, contract brewing, and pilot plants. A 5 BBL system works for trial batches and limited releases; 10–15 BBL systems support regional distribution when paired with adequate fermentation capacity.
Technical Specifications
| Capacity | 5 BBL / 10 BBL / 15 BBL |
| Material | SUS304 or SUS316L contact surfaces |
| Configuration | 2-vessel or 3-vessel brewhouse |
| Heating | Steam jacket, electric, or direct fire |
| Control | Manual, semi-auto, or PLC/HMI |
| Finish | Sanitary polished contact; exterior brushed or polished |
| Options | CIP, wort grant, heat exchanger, platform, piping |
Procurement FAQ
How do we size the brewhouse? Start with packaged beer volume and brew frequency, not kettle volume alone. A 10 BBL brewhouse brewing four times per day requires matching fermentation and cold-side capacity.
Why specify SUS316L? Not every brewery needs it. Use 316L when cleaning chemicals, water chemistry, or coastal air increase chloride risk. Otherwise 304 is sufficient for most brewhouse duties.
What affects lead time? Jacket design, control level, piping layout, and vessel orientation. Approval drawings before cutting stainless keeps changes from becoming rework.
Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the tank volume, cooling area and configuration for your brewery.
