Description
What the Pump-Over Circuit Changes

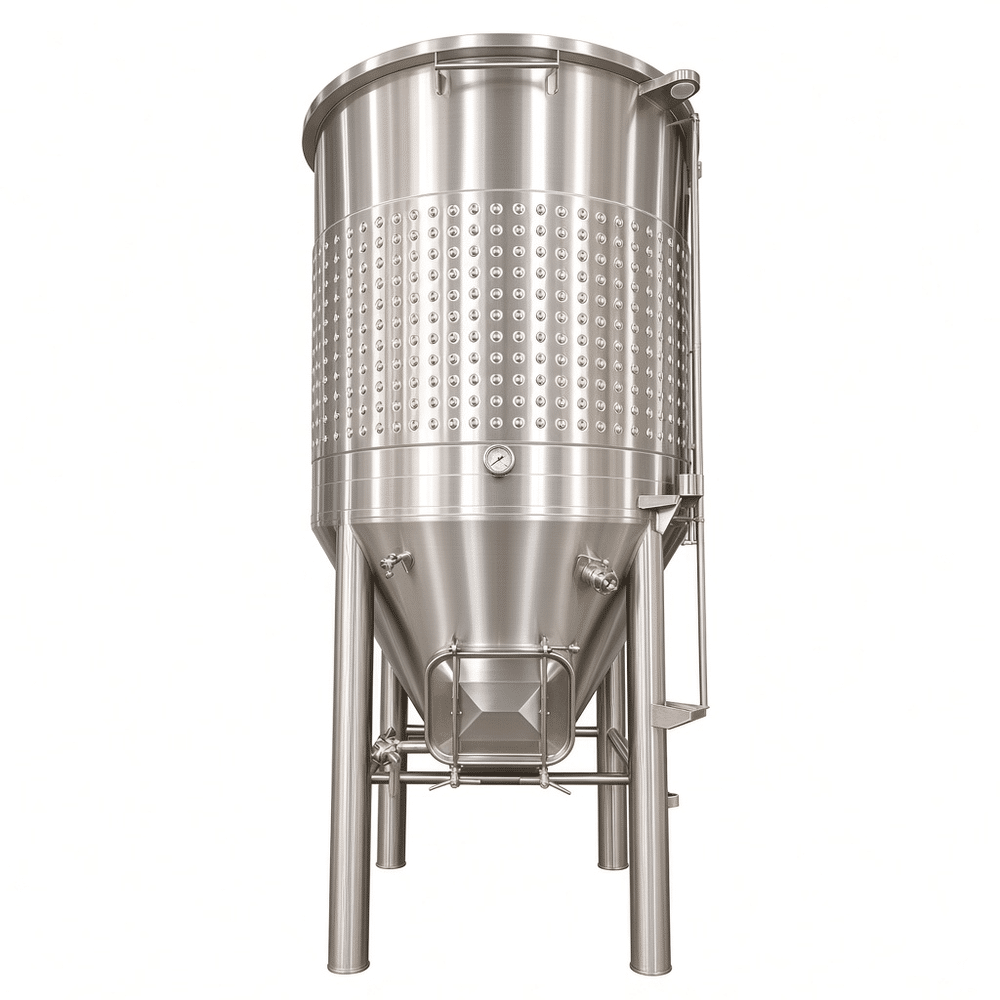

A red ferment needs oxygen and skin contact in the first three or four days. A white must usually needs the opposite. The same vessel has to handle both, which is why the jacket layout matters more than the tank volume on paper. We cover the cone and the lower cylinder with dimple plate, so the must responds while the pump is still running, not twenty minutes later.
Materials and Fabrication
Standard builds use 304 stainless for the shell and 316L for the jacket and any wetted part that sees juice for long periods. Plate thickness runs 3 mm on tanks up to 5,000 L and 4 mm above that. Internal welds are butt-welded, ground flush and passivated; we do not leave a rough fillet where lees will collect. Interior finish is 2B mill or 320 grit on request. Seals are food-grade EPDM as standard, silicone or Viton if your cleaning chemistry calls for it. Every jacket is hydro-tested before the insulation and cladding go on.
Connections, Cleaning and Pressure
Fittings are DIN 11851 or tri-clamp, depending on what your cellar already stocks. A typical arrangement: racking arm, sample valve, CIP spray ball in the top, glycol in and out on the jacket, and a 60-degree cone for lees compaction. Working pressure is normally 1.5 bar with the relief valve set to match; never run a tank sealed without checking that valve setting. CIP works best with a rotating spray ball and 60 to 70 C caustic, followed by an acid rinse.
Typical Specifications
| Parameter | Range |
|---|---|
| Volume | 500 L to 20,000 L |
| Shell material | SUS304 / SUS316L |
| Jacket | Dimple plate, cone and lower cylinder |
| Working pressure | 1.5 bar, relief valve set to suit |
| Cone | 60 degrees standard |
| Finish | 2B or 320 grit internal |
Questions We Get Before Ordering
Small winery or commercial scale? Below 3,000 L most clients run a single jacketed tank with a manual pump-over and a glycol chiller. Above that, zone control and automated pump timing start paying for themselves.
Do I need a variable pump? Yes for delicate varieties. A fixed high-flow pump strips color and over-aerates the must.
Can the tank be used for white juice settling? With a different lid configuration, yes. Tell us at quoting stage rather than after fabrication.
What about the floor? A 10,000 L tank with wine is roughly 12 tons on three or four legs. Confirm slab loading before you finalize the layout.
Tell us your batch size, wine type, number of tanks and available space. We can recommend the tank volume, cooling area and configuration for your winery.
Related products

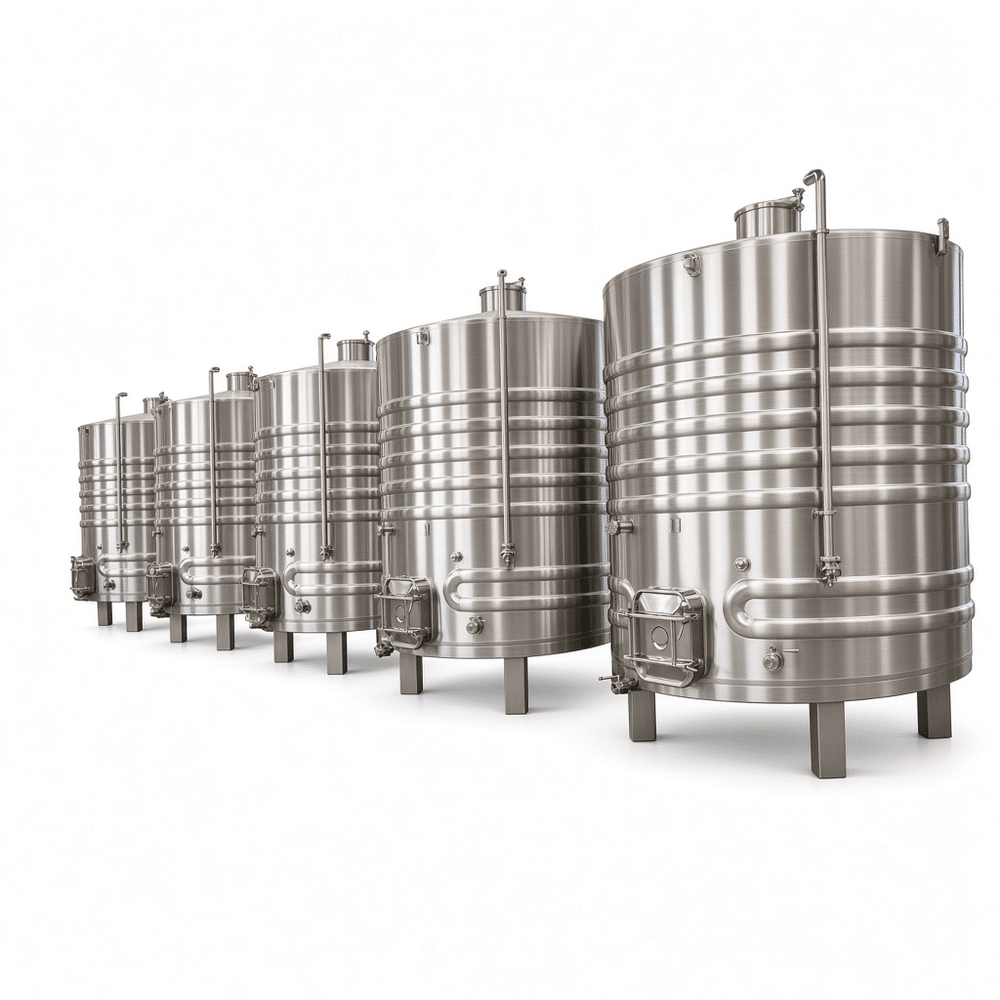

10HL-100HL Wine Fermentation Tank with Spiral Cooling Jacket
A 10–100 HL wine fermentation tank built with a spiral glycol jacket that covers the cone and lower cylinder, sized against your crash-cooling target rather than peak ferment heat alone. SUS304 or 316L construction, full-penetration TIG welds, optional 0.4–0.8 µm interior polish, CIP spray ball and racking arm as standard.

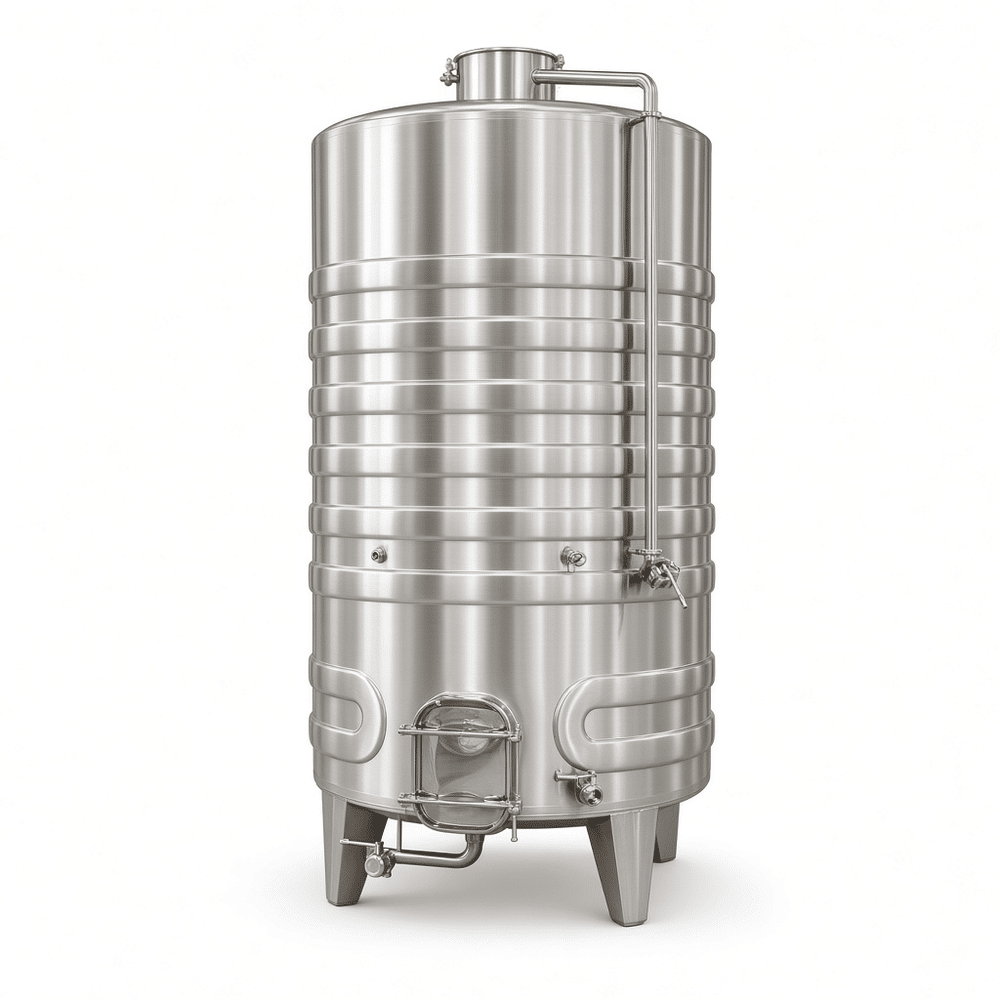

10HL-10KL Commercial Red Wine Fermentation Tank with Half-Pipe Cooling Jacket
Half-pipe coil jacketed red wine fermenters from 10 HL to 10 KL, built in AISI 304 or 316L with Ra 0.8 µm interior finish, 80–100 mm insulation and a 0.3 MPa jacket tested at 0.6 MPa. Configured for cold soak, maceration and pomace removal, with must hatch, racking port, sample valve, CIP spray ball and thermowell.

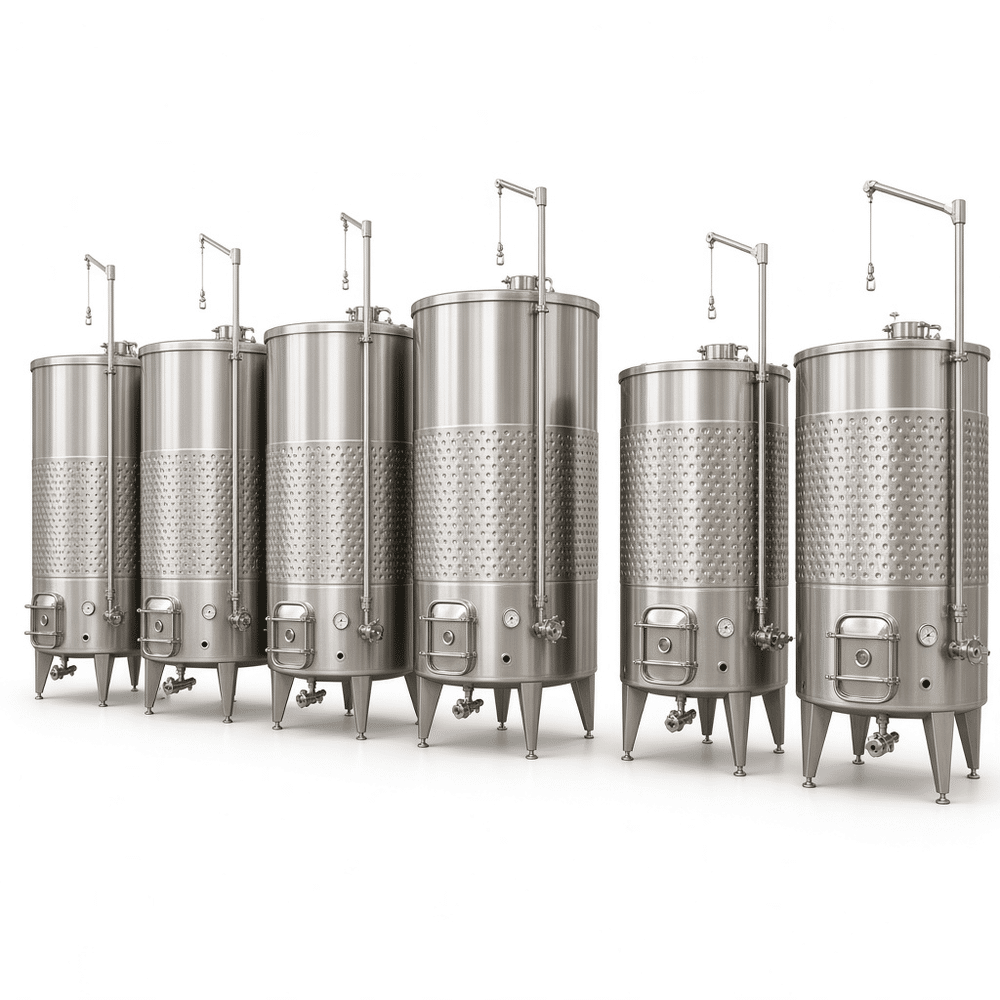

100HL Red White Wine Fermentation Tank Dimple Cooling Jacket Commercial Winery
This 100HL red and white wine tank is built for commercial wineries that need reliable fermentation and storage. The dimple cooling jacket controls temperature during active fermentation, while SUS304 or 316L contact surfaces, CIP connections, and insulated cladding support daily cellar work. We size jacket coverage, fittings, and cone details around your batch size, wine type, and glycol supply.

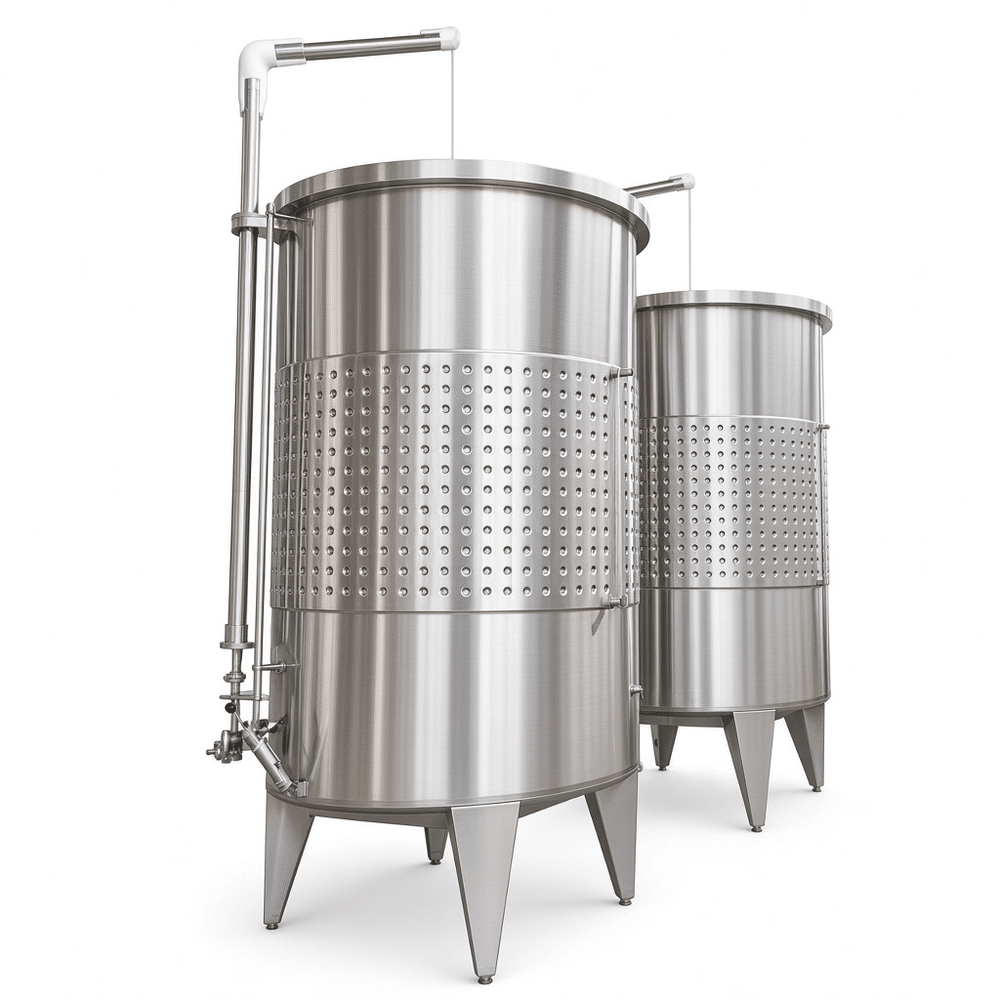

1000L-3000L Open Top Wine Fermentation Tank | Spiral Channel Cooling Jacket
Open top wine fermentation tanks in 1000 L, 2000 L and 3000 L working volumes, built from 304 or 316L stainless steel with a laser-welded spiral channel cooling jacket. Designed for punch-down access, sloped bottom drainage and glycol temperature control in small wineries, custom crush facilities and pilot plants.

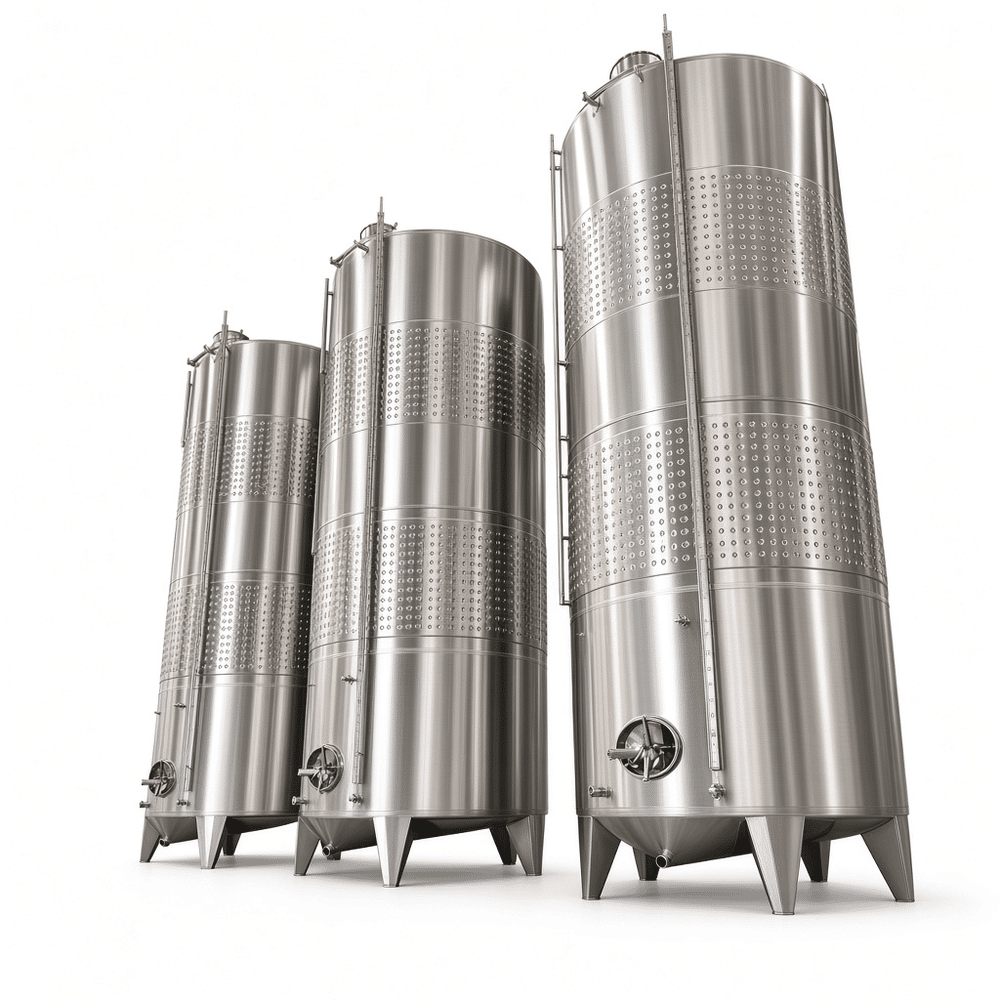

10000L 12000L 20000L Wine Storage & Fermentation Tank Stainless Steel
