5000 L Jacketed Mead Fermenter — Build Notes from the Shop Floor
Honey must behaves differently from wort. It carries almost no free amino nitrogen, ferments over two to four weeks, and holds a lot of residual sugar at the point most meaderies want to stop it. In a 5000 L tank, the cooling jacket — not the yeast pitch — usually decides whether a batch finishes dry or sweet on schedule.
We size the dimpled jacket on the cone and the lower third of the cylinder: about 6.5 m² of cooling surface on a standard 5000 L body. That pulls an active fermentation down 3–4 °C per day at 12 °C glycol supply. Oversizing wastes chiller capacity on a slow mead ferment; undersizing leaves you with a stuck batch in week three.
Materials and fabrication
304 stainless is the default for shell, cone, and jacket. Mead is far less acidic than beer, so 316L only earns its cost when fruit additions or high-acid musts are in the rotation. Standard build: 3 mm shell, 3 mm cone, 2.5 mm dish. Interior is 2B mill finish with welds ground flush and passivated. We can polish to 0.6 µm RA, though few meaderies gain anything from it. Exterior runs 80 mm polyurethane under 304 cladding, and the cone sits at 60° with a 3 inch tri-clamp outlet.
Fittings that matter in a meadery
- Rotating CIP spray ball, 1.5 inch, sized for 2–3 bar supply
- Racking arm above the cone outlet for clean transfers off lees
- Sample valve and thermometer port at mid-body height
- Top manway, 400 mm, with a 60 mm yeast port
- Pressure/vacuum relief set at 0.2 bar, plus a 0.3 bar jacket relief
Specifications
| Total volume | 5000 L |
| Working volume | 4000 L |
| Cooling area | 6.5 m² dimpled jacket |
| Insulation | 80 mm PU, 304 cladding |
| Design pressure | 0.2 bar internal / 0.3 bar jacket |
| Finish | 2B interior, passivated welds |
Questions we get before every order
Can it double as a beer fermenter? Yes, if the jacket area is increased to 8 m² and the cone stays at 60°. Tell us at the quotation stage; retrofitting a jacket later is not practical.
How is CIP handled? Spray ball plus a bottom outlet on the cone. A 5000 L tank needs roughly 400 L of caustic per cycle to wet the full headspace.
Do you build to local pressure codes? Yes — send us the applicable standard and we will supply the tank with matching documentation and relief settings.
Tell us your batch size, honey type, target sweetness, number of tanks, and available floor space. We will recommend the volume, jacket area, and configuration that fits your meadery.
Related products

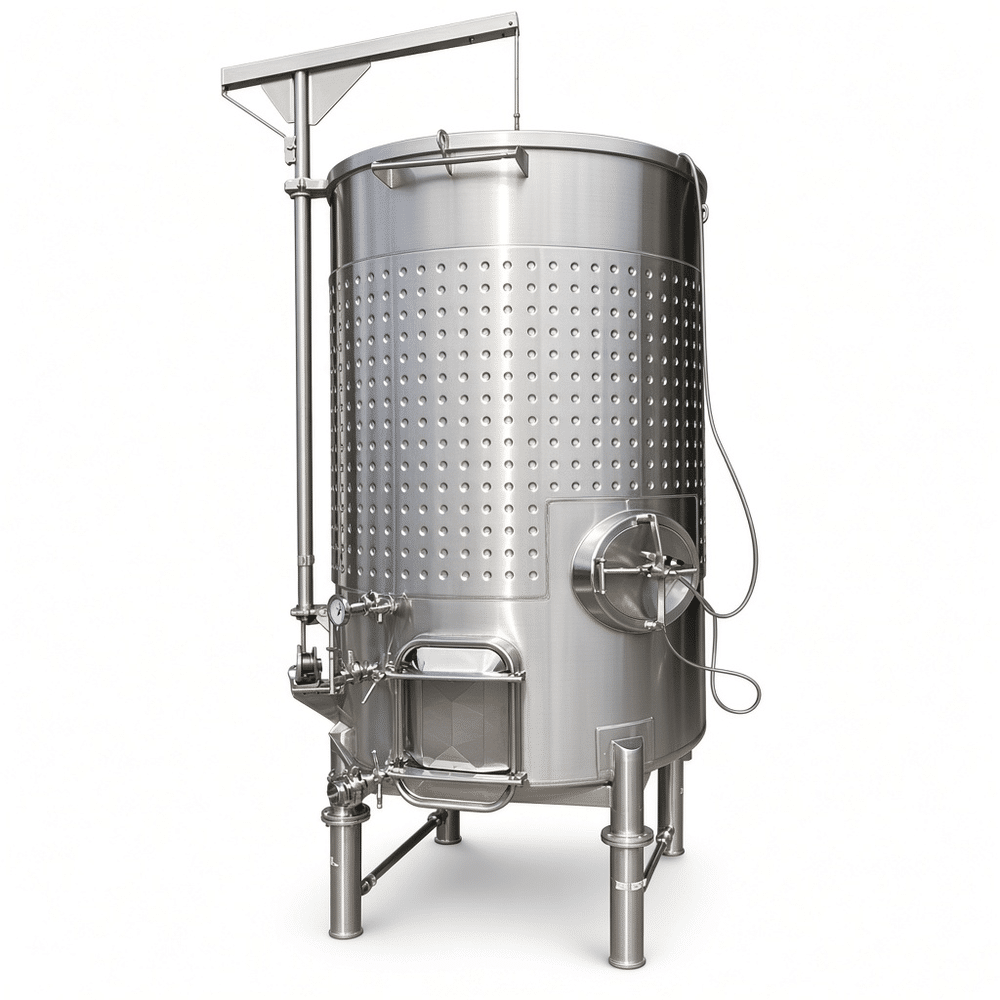

1500L Red Wine Fermentation Tank Dimple Jacket Temperature Control for Wineries
A 1500L stainless steel red wine fermentation tank with dimple jacket temperature control, built for small and mid-size wineries. The jacket holds fermentation temperature and supports cold soak, while the sloped bottom, side must door and tri-clamp fittings keep cap management and cleaning practical. Available in SUS304 or 316L.

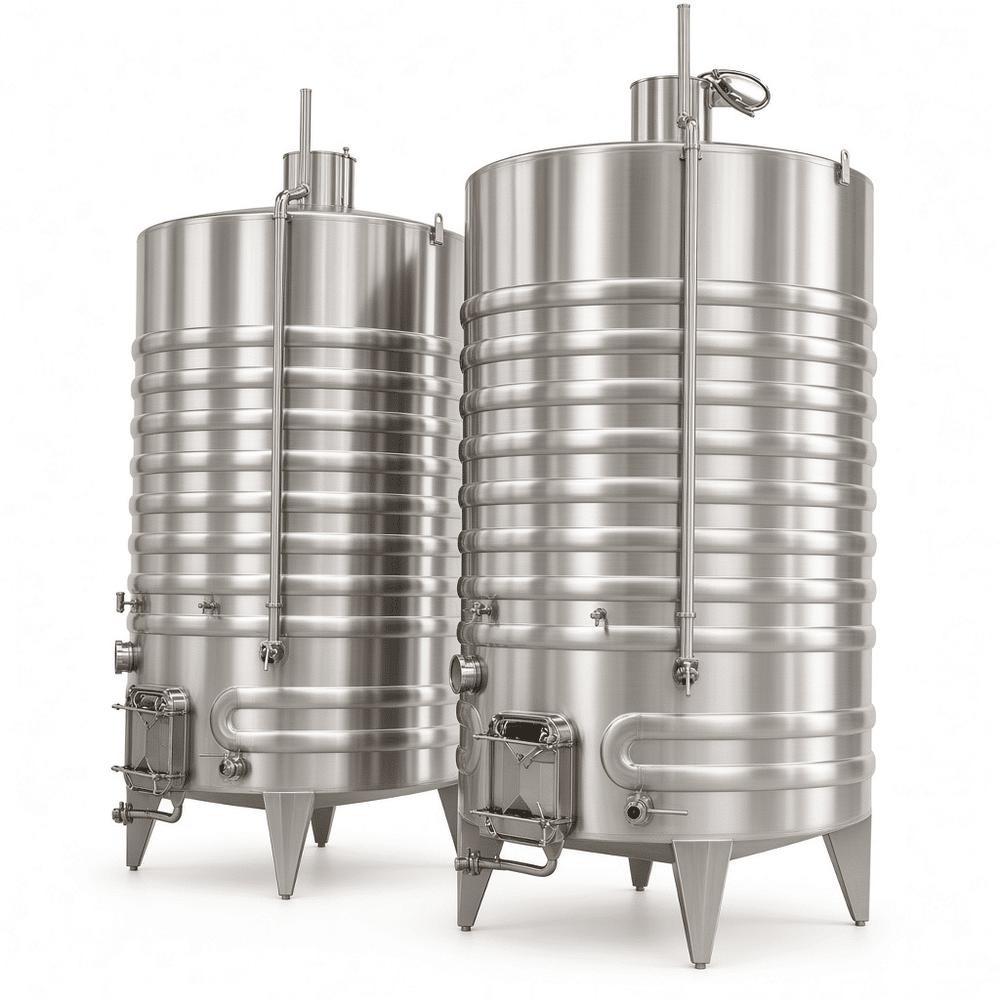

10HL-100HL Wine Fermentation Tank with Spiral Cooling Jacket
A 10–100 HL wine fermentation tank built with a spiral glycol jacket that covers the cone and lower cylinder, sized against your crash-cooling target rather than peak ferment heat alone. SUS304 or 316L construction, full-penetration TIG welds, optional 0.4–0.8 µm interior polish, CIP spray ball and racking arm as standard.

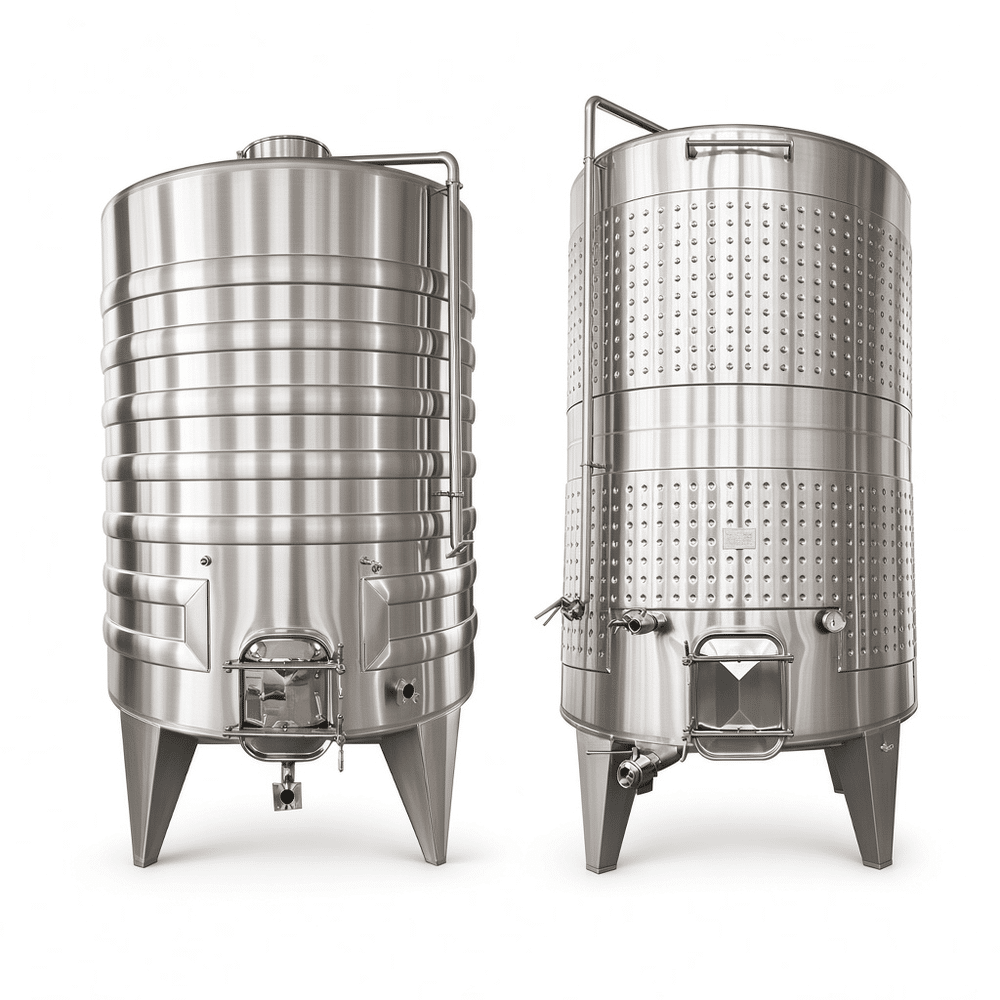

10HL-10KL Commercial Red Wine Fermentation Tank with Half-Pipe Cooling Jacket
Half-pipe coil jacketed red wine fermenters from 10 HL to 10 KL, built in AISI 304 or 316L with Ra 0.8 µm interior finish, 80–100 mm insulation and a 0.3 MPa jacket tested at 0.6 MPa. Configured for cold soak, maceration and pomace removal, with must hatch, racking port, sample valve, CIP spray ball and thermowell.

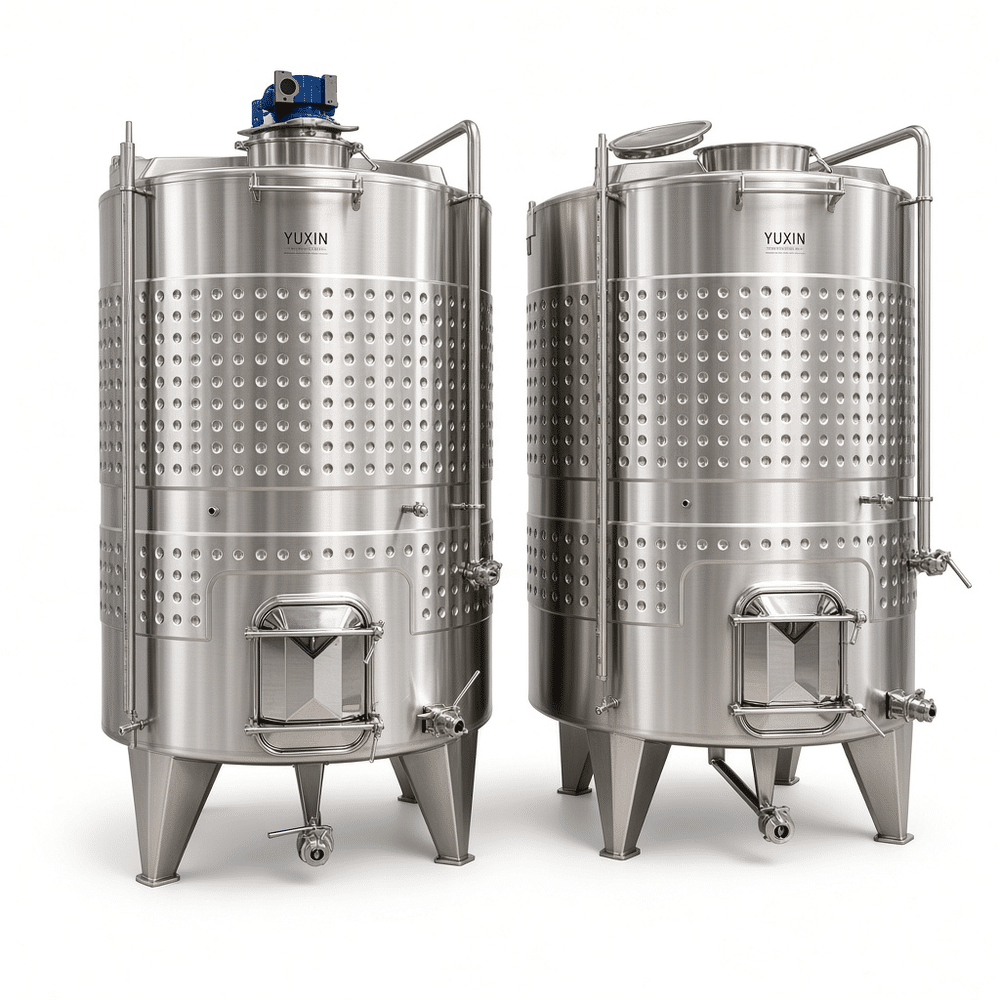

100HL Red White Wine Fermentation Tank Dimple Cooling Jacket Commercial Winery
This 100HL red and white wine tank is built for commercial wineries that need reliable fermentation and storage. The dimple cooling jacket controls temperature during active fermentation, while SUS304 or 316L contact surfaces, CIP connections, and insulated cladding support daily cellar work. We size jacket coverage, fittings, and cone details around your batch size, wine type, and glycol supply.

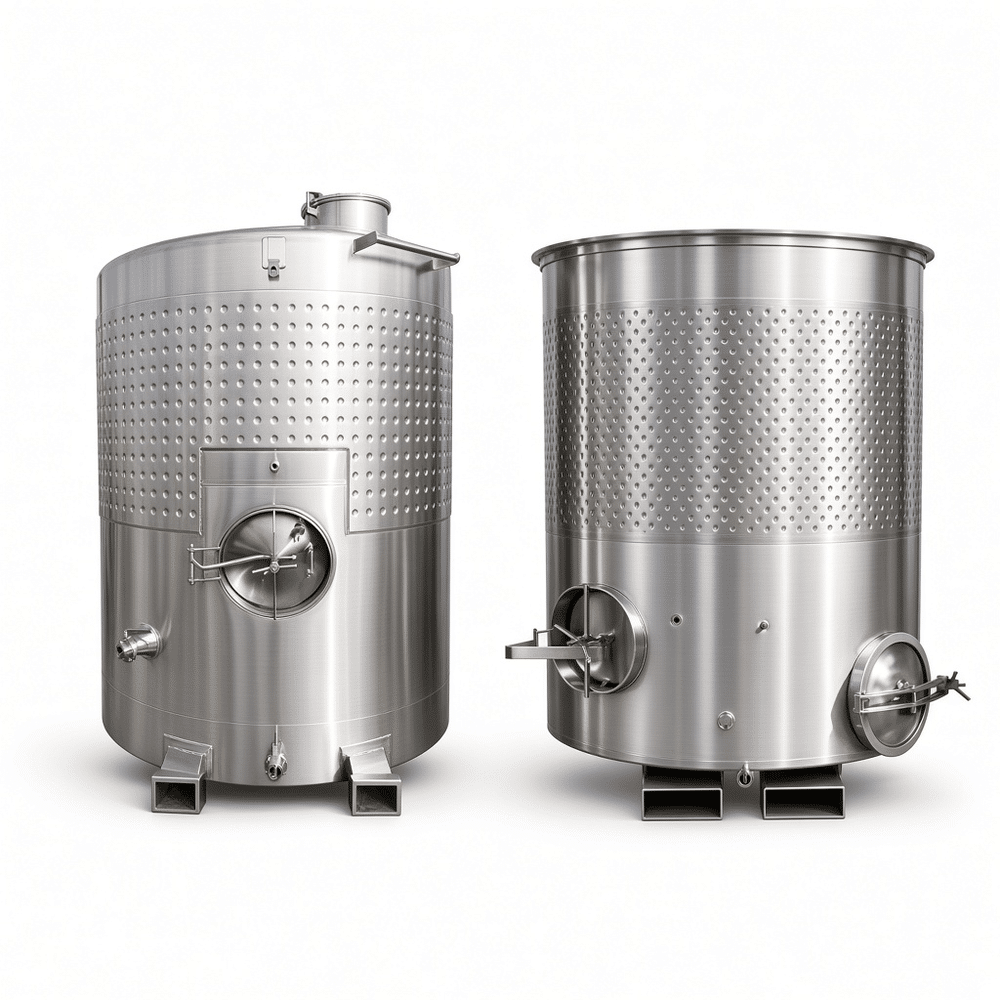

1000L-5000L Commercial Wine Fermentation Tank, Cooling Jacket, Forklift Pockets
Commercial wine fermentation tanks from 1000 L to 5000 L, built in SUS304 or 316L with zoned dimple cooling jackets, 60° or 75° cones, CIP spray ball and forklift pockets on smaller units. Configured for red must, white juice, cider and cold stabilization, with fittings sized to your chiller and batch plan.

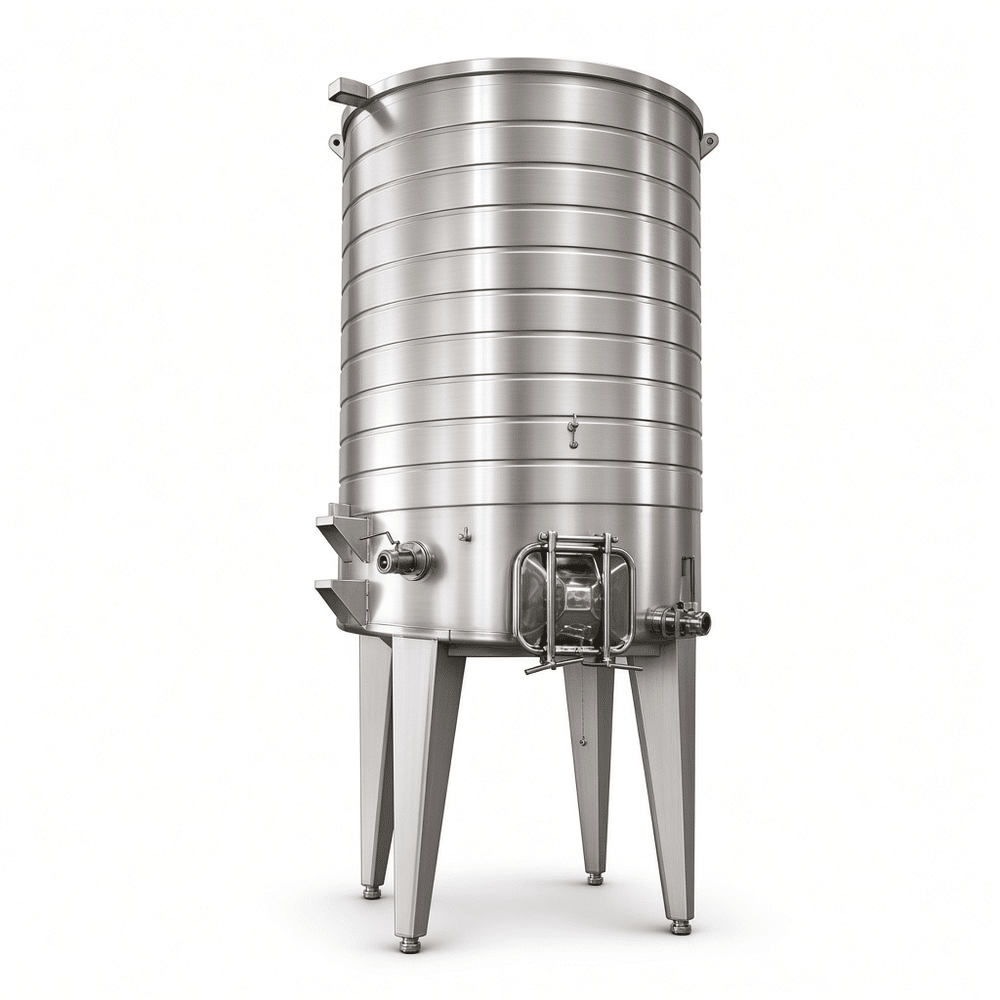

1000L Single Wall Wine Fermentation Tank with Cooling Jacket Coil Belt
