Description

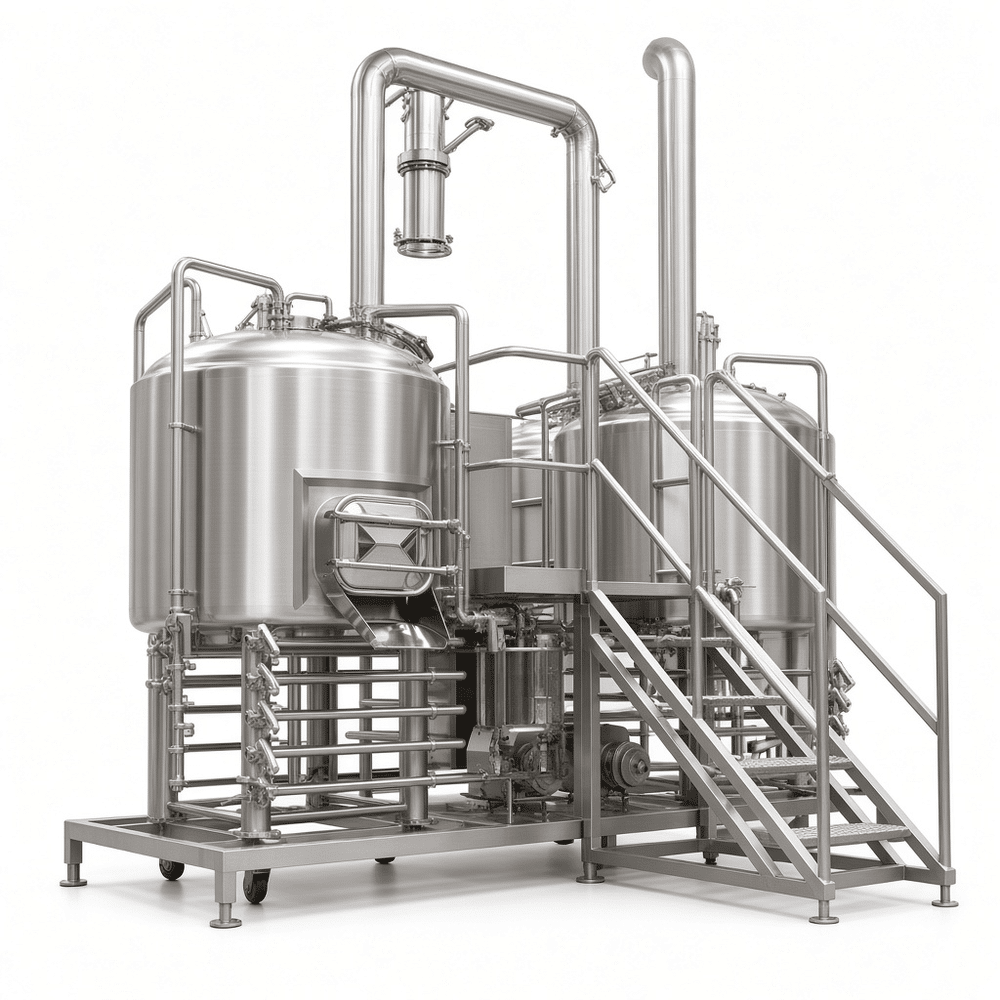

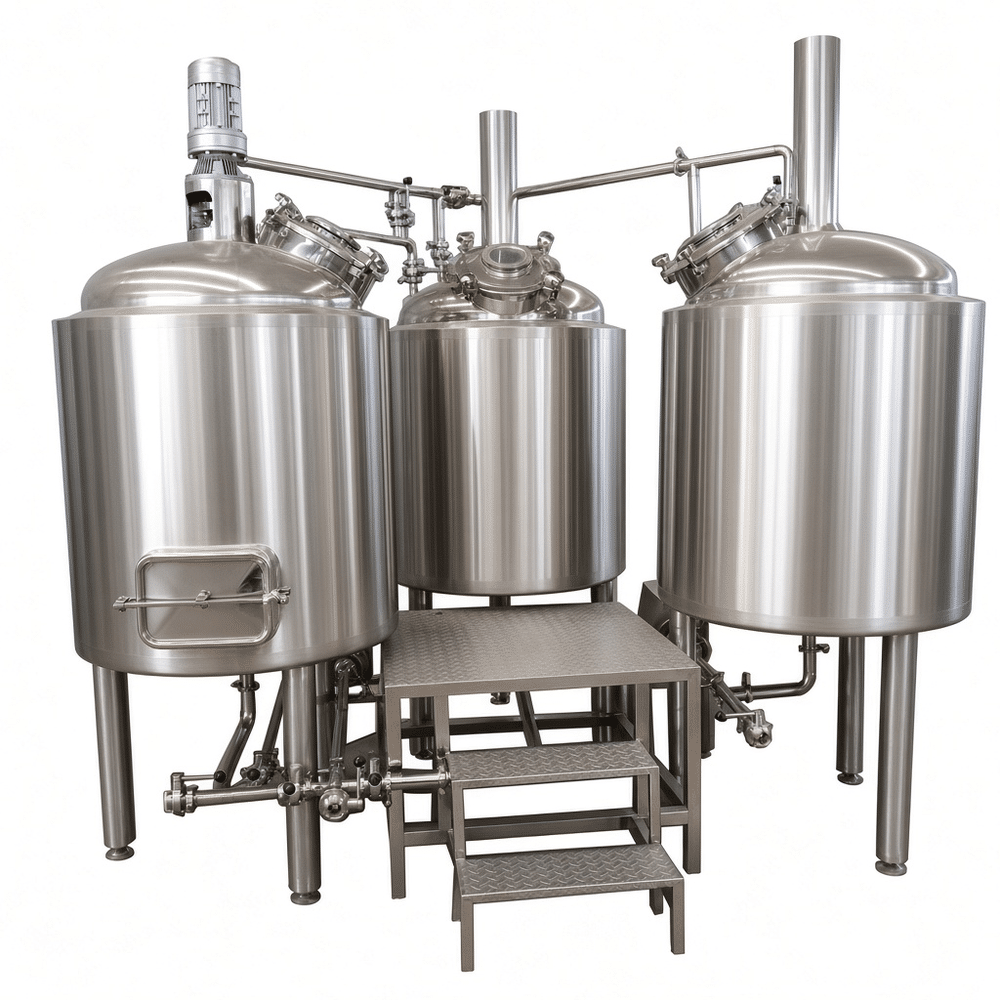

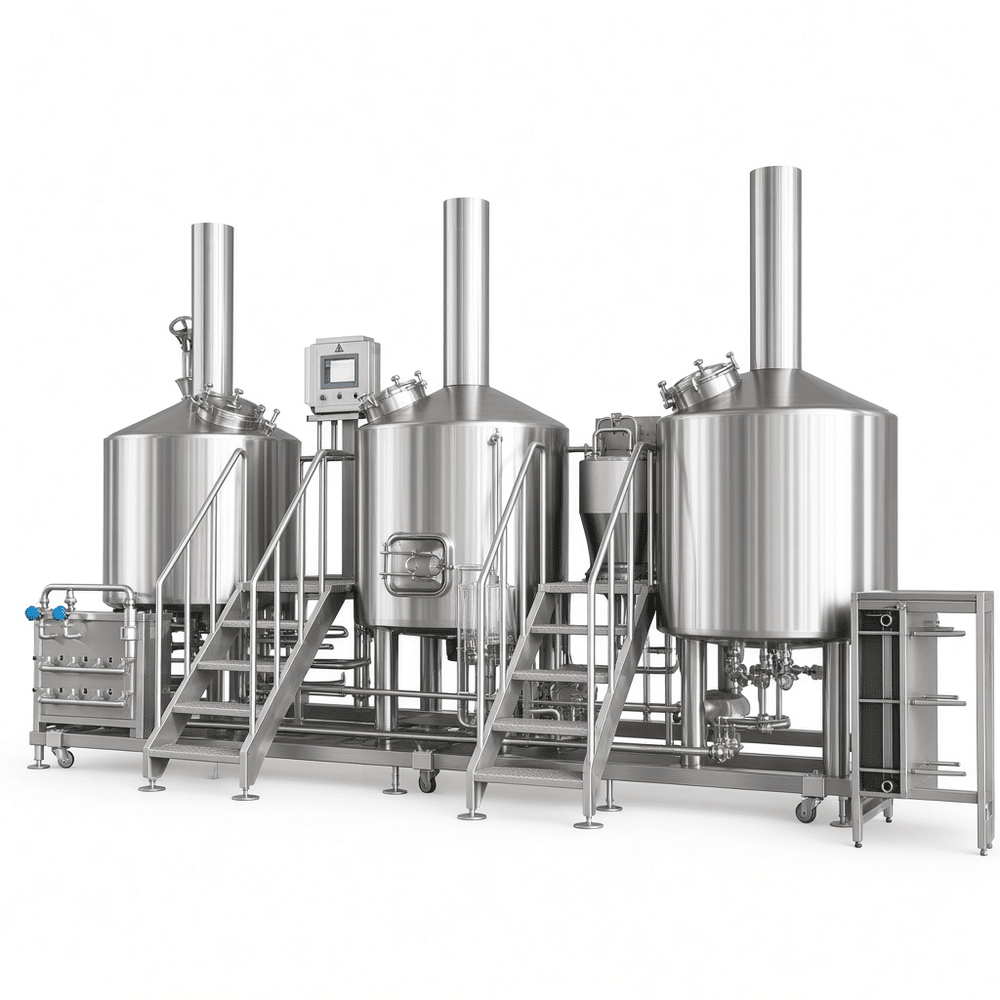

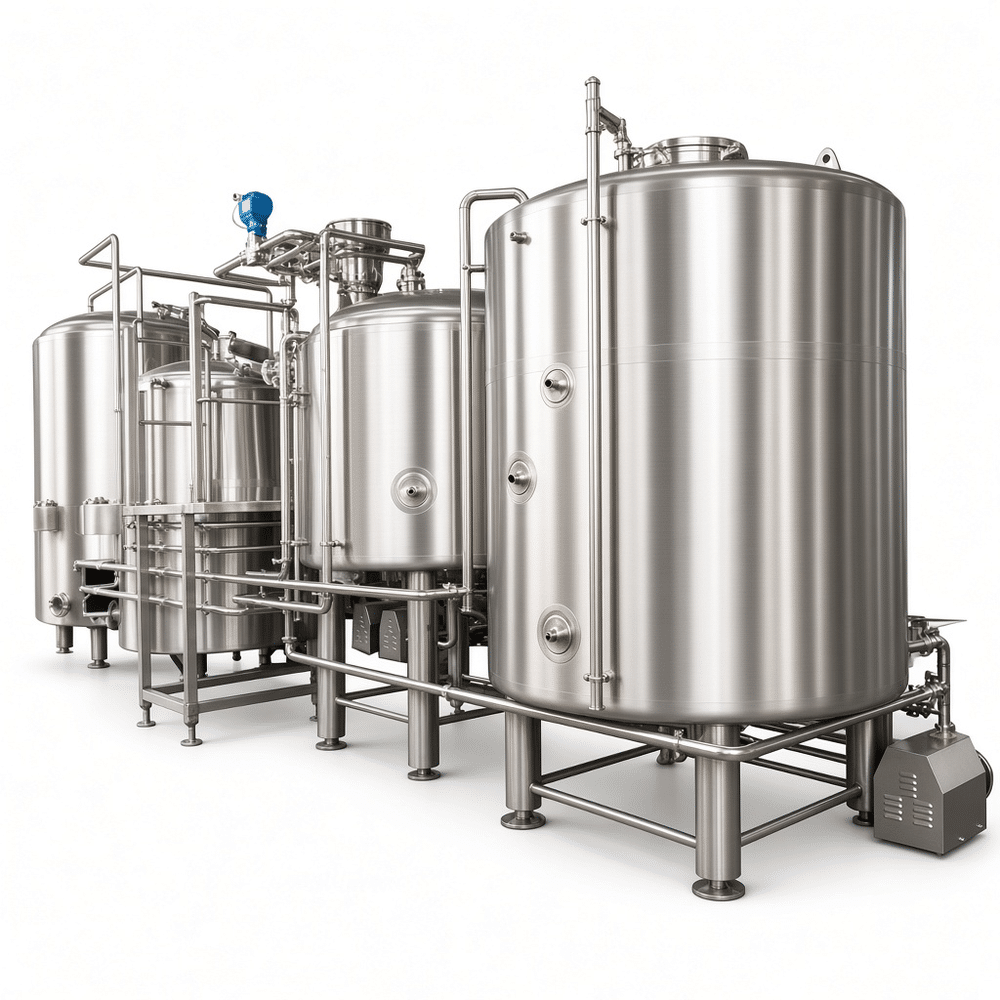

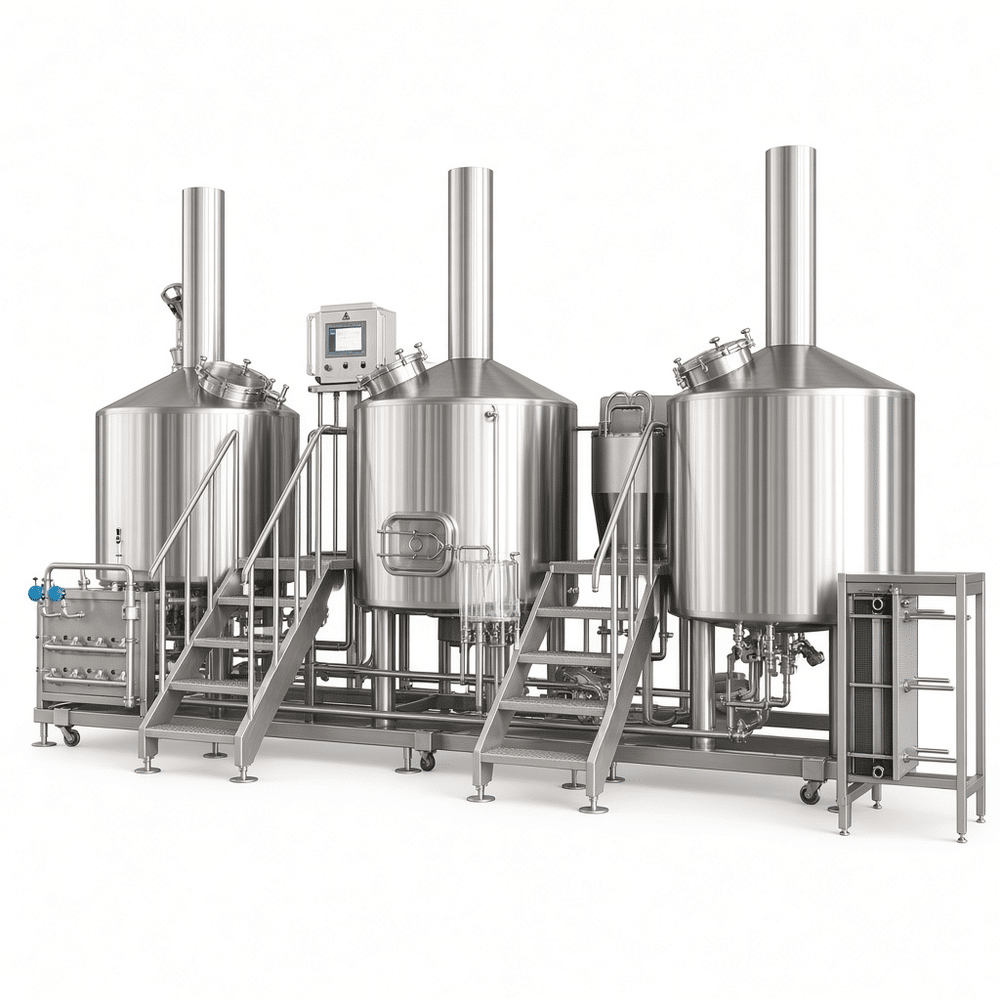

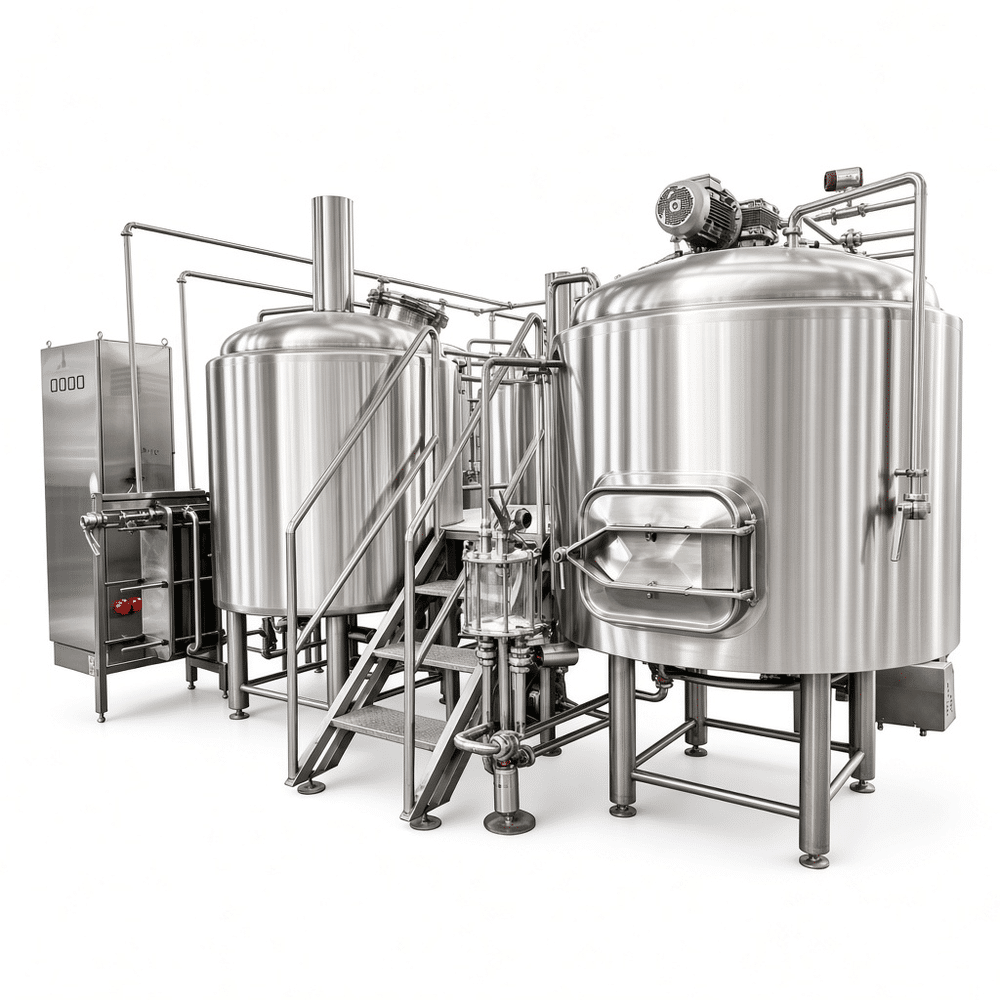

10bbl Brewery Line for Brewpub Production
This 10bbl production line is for brewpubs and small craft breweries that need a compact brewhouse, fermenters and supporting tanks in one coordinated package. We build around the actual batch size, beer styles and available floor space, not a catalog footprint. A 10bbl system suits weekly production where tank turns and temperature control matter more than raw volume.
Vessels are fabricated in stainless steel 304 as standard. We use 316L for wetted parts or high-chloride cleaning conditions when the process calls for it. Shell and dish heads are welded, then pickled and passivated where required. Interior welds are ground and polished to a sanitary finish; exterior surfaces can be brushed or polished depending on washdown expectations. Gaskets, clamp fittings and valves are selected for steam, CIP chemicals and repeated temperature cycling.
Fermenters include dimpled cooling jackets and a conical bottom for yeast collection. Jacket area is sized to the tank volume and expected crash-cooling load, not just nominal capacity. Working pressure and safety valve setting are matched to the vessel design; do not treat the relief valve as an adjustable operating control. CIP is through a spray ball and sanitary fittings, with piping arranged so you can route wort, beer, CIP and glycol without dead legs.
Typical Specifications
| Batch size | 10 bbl |
| Material | SUS304 standard; 316L optional |
| Fermenter bottom | Conical, yeast collection |
| Cooling | Dimpled jacket, glycol service |
| Interior finish | Sanitary polished welds |
| Connections | Tri-clamp sanitary fittings |
| CIP | Spray ball and sanitary routing |
| Use | Brewpub, small craft brewery |
Selection Notes
Small brewpubs often prioritize compact layout and manual valve operation. Commercial breweries with more turns need larger cooling area, better CIP routing and room for expansion.
FAQ
What beers can this line handle? Ales and lagers within the tank pressure and cooling design; confirm fermentation temperature and crash-cooling needs.
Why control fermentation temperature? Stable temperature keeps yeast behavior predictable and protects flavor consistency between batches.
When is a conical bottom useful? It gives yeast and trub a collection point for dumping and easier tank cleaning.
How do we size the cooling jacket? We calculate jacket area from batch volume, expected temperature pull-down and glycol supply temperature.
Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the tank volume, cooling area and configuration for your brewery.
