Description
1000L SUS304 Fermenter for Ale and Lager Production
A 1000 L vessel usually sits between pilot brewing and small commercial output. The batch size is large enough to supply regular accounts, yet small enough to change recipes without dumping excess beer. We build this tank around that working rhythm: repeatable temperature control, reliable yeast removal and cleaning access that does not slow down the cellar team.
The shell and cone are formed from SUS304 stainless steel. For breweries using aggressive chloride-based cleaning or coastal air, 316L is available. Welds are ground and passivated on product-contact surfaces. Inner surfaces are polished to a practical sanitary finish, typically Ra ≤ 0.8 µm, while the outer shell receives a brushed finish. Dimple cooling jackets cover the cone and lower cylinder; insulation and a stainless cladding keep glycol demand stable in warm cellars.
Cooling, pressure and cleaning
Ale fermentation generates heat quickly. Lager needs tighter control over a longer period. Jacket area, glycol flow and sensor placement matter more than a controller display. We position the temperature probe in the product zone and size the jacket for the batch, not just the tank volume. A pressure relief valve protects the vessel during fermentation and CIP. Working pressure and safety valve setting are matched to your process, not left as a generic factory figure.
The tank includes a CIP spray ball, racking arm, sample valve, CO2 blow-off and tri-clamp connections. Dry hopping and yeast dumping ports can be added. Layout depends on your room height, floor drainage and glycol pipe routing.
Technical specifications
| Item | Specification |
|---|---|
| Working volume | 1000 L |
| Material | SUS304 standard; 316L optional |
| Bottom | Conical, 60° or 75° |
| Cooling | Dimple jackets on cone and cylinder |
| Insulation | PU, stainless cladding |
| Connections | CIP, racking, sample, CO2, PRV, glycol in/out |
| Finish | Inner sanitary polish; outer brushed |
FAQ
Can one tank handle ale and lager? Yes, if jacket area and control are sized for lager’s slower, tighter profile. Do not assume a standard ale jacket will hold lager temperatures in a hot room.
Why use a conical bottom? It gives yeast a collection zone and supports clean racking. Shallow cones suit some top-cropping ale schedules; steeper cones help with lager yeast and dry hopping.
SUS304 or 316L? SUS304 covers most brewery duty. Choose 316L when cleaning chemicals, water chemistry or ambient conditions put chloride resistance first.
Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the tank volume, cooling area and configuration for your brewery.
Related products

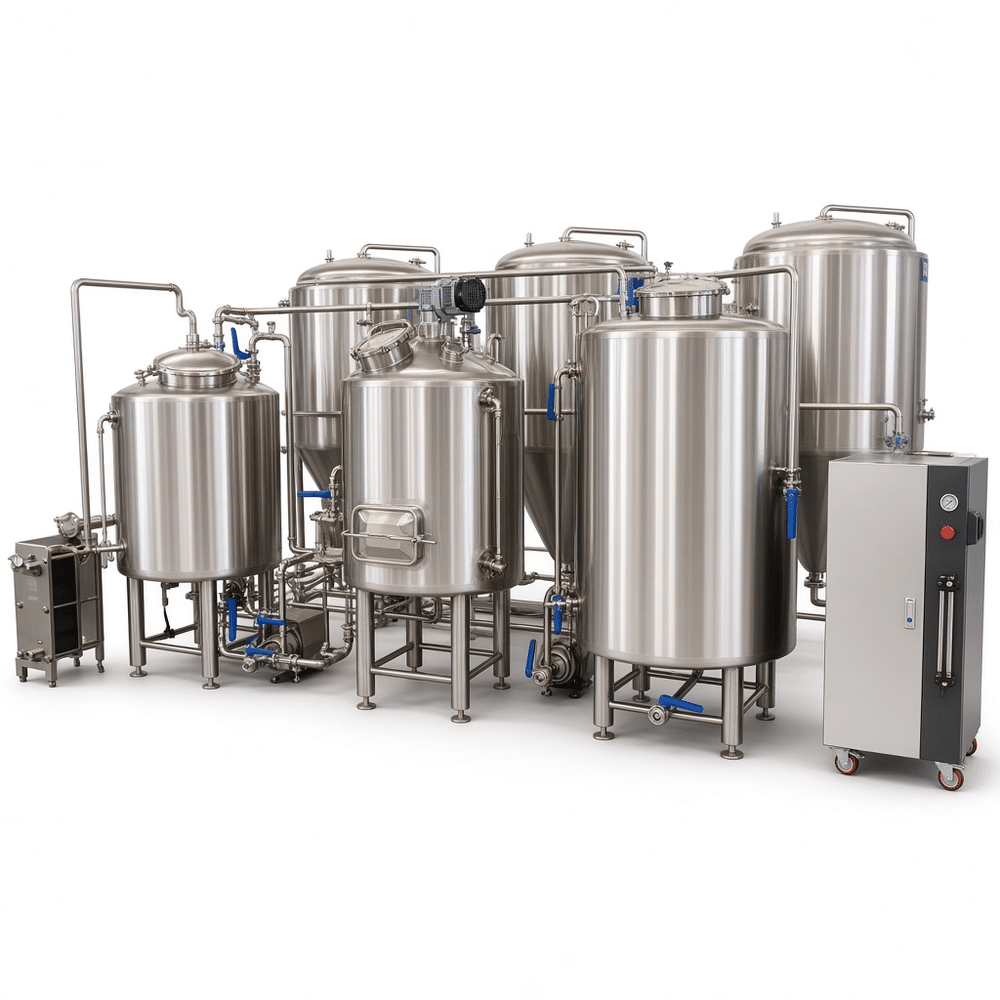

1000L–2000L Turnkey Commercial Brewery System with Fermentation Tanks
Turnkey 1000L, 1500L, and 2000L brewery packages with conical fermentation tanks, glycol jackets, CIP, and matched piping. We size tanks around batch volume, beer style, cooling load, floor space, and cleaning routine. SUS304 is standard; SUS316L is available for aggressive conditions. Includes practical specifications and procurement FAQs for commercial breweries.

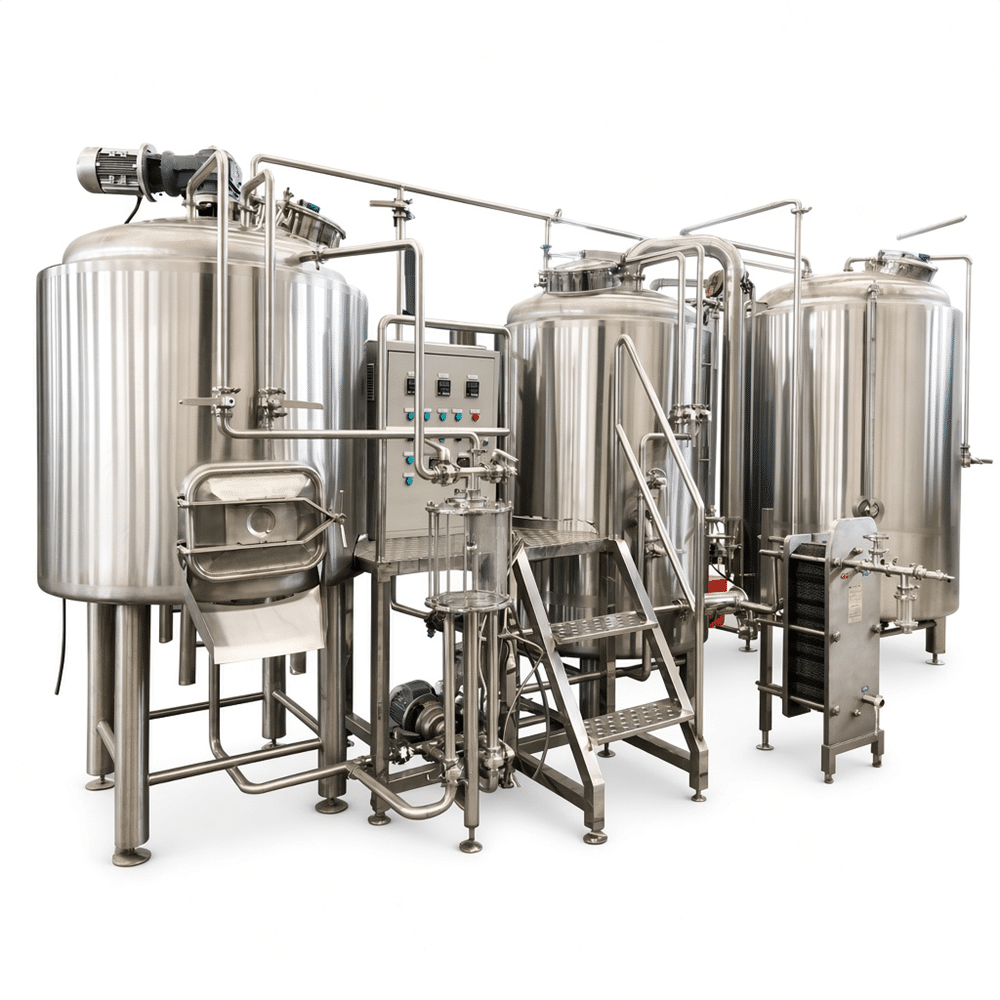

1000L-2000L Turnkey Brewery System | Stainless Steel Beer Brewing Equipment
A 1000L to 2000L turnkey brewery package covering brewhouse, hot and cold liquor tanks, and conical fermenters. Built in SUS304 or 316L with dimple cooling jackets, passivated welds, CIP spray balls, and PLC control. Sized against your batch volume, beer styles, and fermentation schedule rather than a fixed catalog configuration.

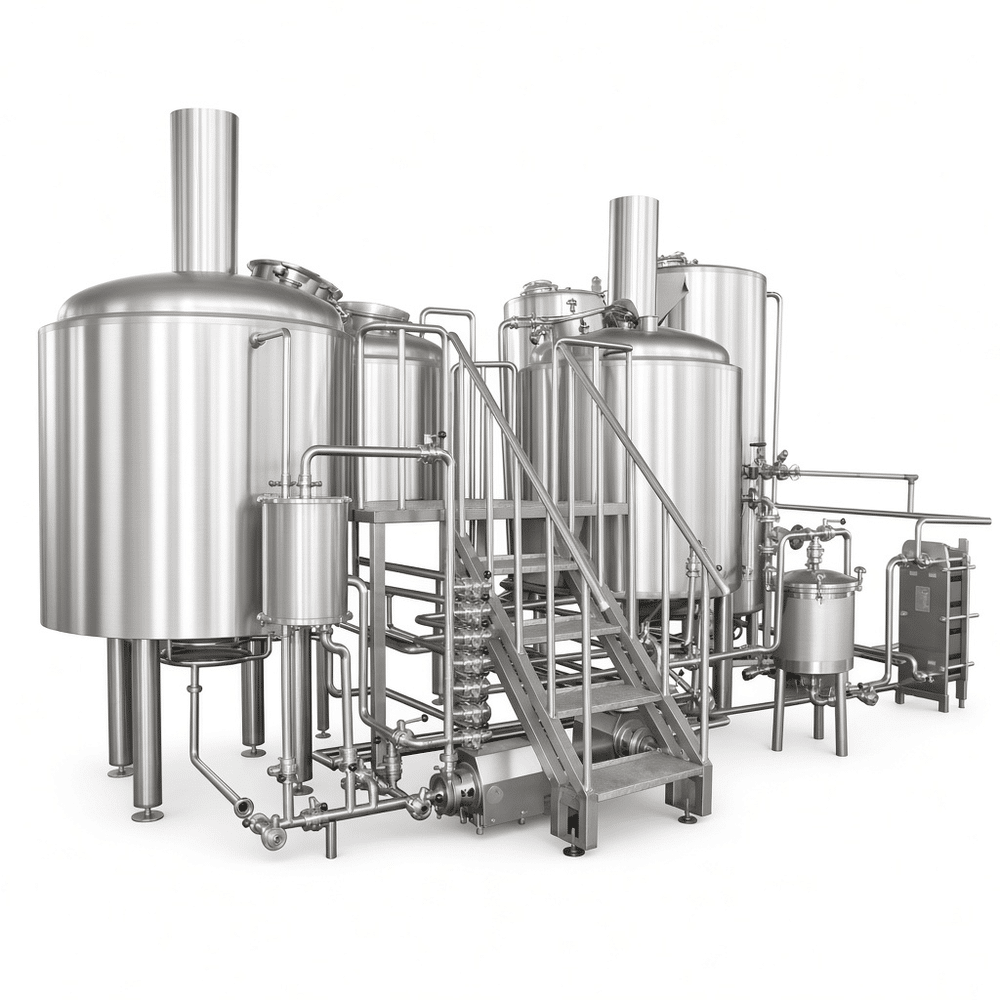

10000L Stainless Steel Craft Brewery Beer Brewing System
A 10,000L stainless steel brewhouse and fermentation system for production-scale craft breweries. Built in SUS304 or 316L with dimple glycol jackets, CIP spray balls, and Ra ≤0.8µm interior finish. Specifications, pressure ratings, material guidance, and the details our engineers ask for before quoting a complete brewery.
10000L SUS304 Commercial Brewery Beer Brewing Tank with Pressure Vessel
This 10,000 L SUS304 brewery tank is built for pressure-rated fermentation or bright-beer duty. We confirm jacket area, polish, relief setting and CIP layout against your batch size, beer type and glycol supply. Conical or dish bottom, 316L upgrades and valve packages are specified before fabrication. Tell us your production details for a practical tank configuration.

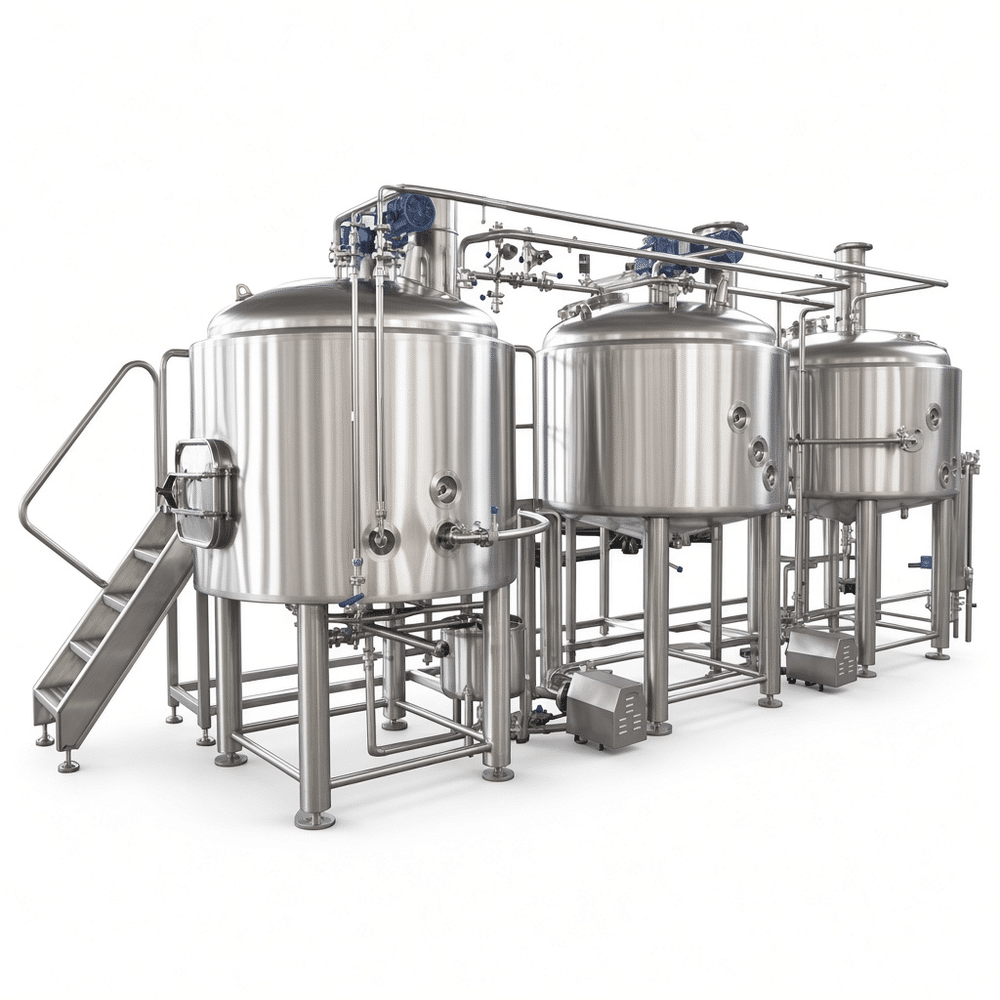

10000L 20000L Commercial Craft Brewery Beer Brewing Equipment
