Description

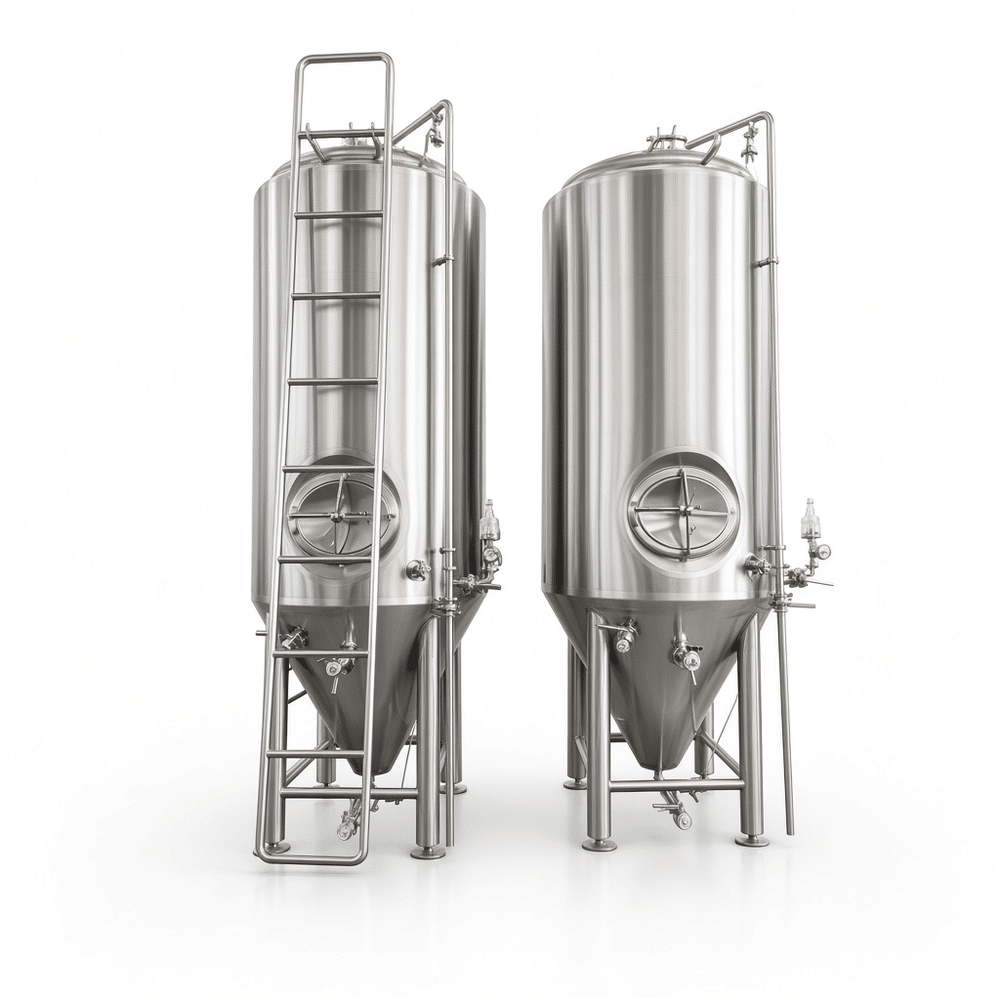

A 1000L conical fermenter sits in the middle of what we build. It carries the core production of a brewpub and still fits through a standard 2.2 m door once the legs come off. Most of these tanks leave our floor for 10 to 30 bbl brewpubs fermenting ales and lagers on a fixed weekly schedule.
We build the body as a 1000 L vessel with a 60 degree cone, which leaves about 800 L of usable wort and enough headspace for krausen on a vigorous top fermenter. The shell is 3 mm SUS304 as standard. When the wort runs high in chloride, or the tank will hold sour beer, fruit or heavily dry hopped batches, the wetted parts move to 316L. Interior welds are ground flush and passivated. A 0.4 micron mirror polish is available when cleaning verification matters to your QA team.
Cooling comes from a dimple jacket on the lower cylinder and cone, fed with glycol at -4 to -6 C. Splitting the jacket into two or three zones lets you crash cool faster and hold a steady 1 C during lagering without overshooting. Jackets are tested at 0.6 MPa and rated for 0.3 MPa working pressure. The tank itself works at 0.2 MPa with a pressure relief valve set to match. A 400 mm top manway, CIP spray ball, racking arm, sample valve and dry hopping port are standard, and a carb stone or a second port for a hop cannon can be added.
Specifications
| Nominal capacity | 1000 L |
| Usable volume | approx. 800 L |
| Material | SUS304 or 316L |
| Shell / cone thickness | 3 mm / 2 mm |
| Cone angle | 60 degrees |
| Inner finish | 2B, welds passivated, mirror polish optional |
| Jacket | Dimple, 2 to 3 glycol zones |
| Working pressure | 0.2 MPa (jacket 0.3 MPa) |
| Insulation | 80 mm polyurethane |
| Manway | 400 mm top |
| Fittings | CIP spray ball, racking arm, sample valve, dry hop port |
| Glycol connections | 1.5 in |
| Legs | Adjustable, 3 or 4 |
Common questions
1000 L or 1500 L? If your weekly brew length is under 900 L of wort, 1000 L keeps the cone full and the cooling cycle short. Sizing up leaves a thin wort layer on the cone and slower temperature response.
Can it hold pressure for carbonation? It will take 0.2 MPa, which covers normal top pressure and transfer. Brite tank carbonation at higher pressure needs a dedicated rated vessel.
How is CIP handled? Caustic at 60 to 80 C through the spray ball, then rinse and acid, with the racking arm rotated during the cycle so the elbow sees flow.
Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the tank volume, cooling area and configuration for your brewery.
Structure of a Beer Fermentation Tank
Related products
1000L SUS304 Pressure Fermenter Tank with CIP for Craft Beer Brewery
A 1000L SUS304 pressure fermenter for craft breweries that want closed transfers, in-tank carbonation and dependable CIP. 3mm shell, Ra ≤0.4 µm interior, dimple-plate glycol jackets and 2 bar working pressure, with 60° cone as standard. Cone angle, 316L construction and connection layout are configured around your batch size and packaging line.
1000L Craft Beer Fermenter with Top Manway & Dimple Cooling Jacket
A 1000L craft beer fermenter with a 60° cone, top manway and dimple cooling jacket. Built in SUS304 or 316L with a pickled, passivated interior, glycol jacket, CIP spray ball and tri-clamp fittings. Suited to brewpubs and small production breweries running repeatable fermentation schedules. Specifications, pressure ratings and selection guidance for your brewery.

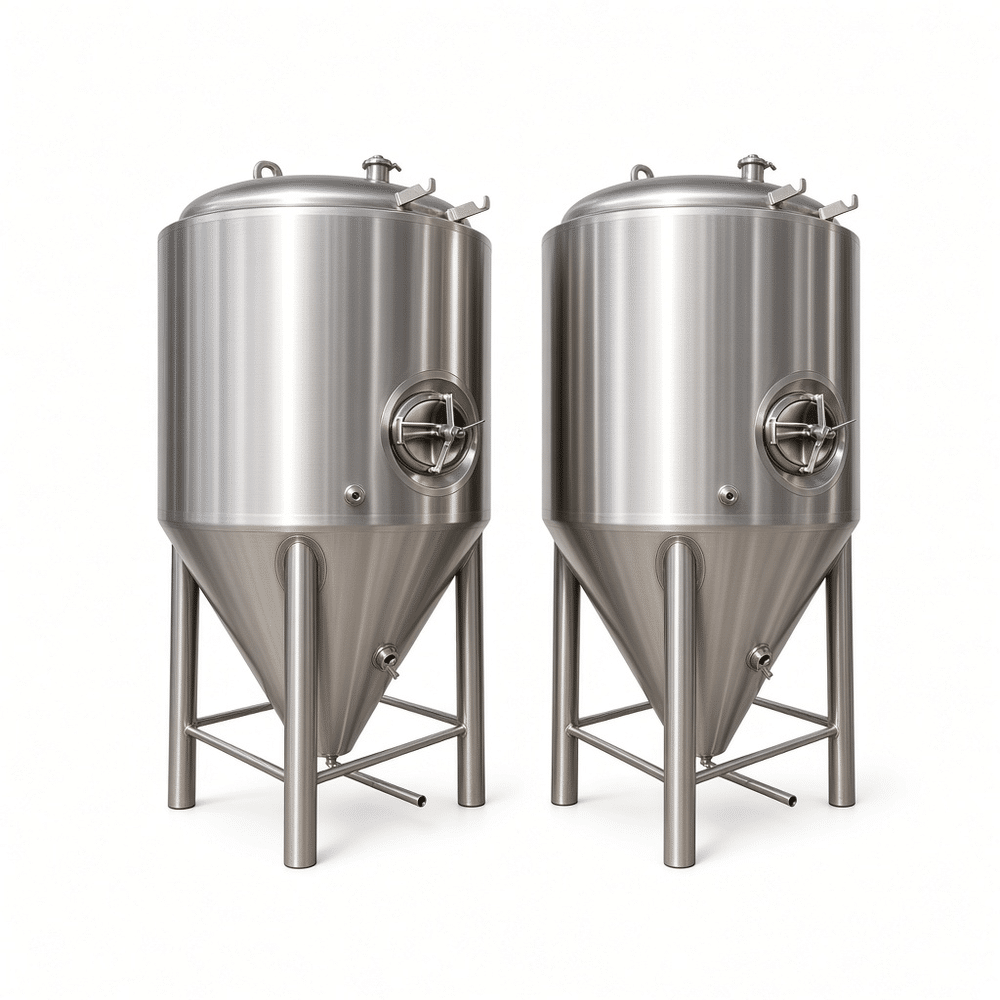

1000L Conical SUS304 Fermenter with Spunding Valve for Craft Brewery Beer
A 1000 L conical fermenter in SUS304 with a 60° cone, dimple cooling jackets, 0.2 MPa working pressure, and a spunding valve for natural carbonation. Built for brewpubs casting 10 hl brews, with DIN or Tri-Clamp ports, CIP spray ball, racking arm, and yeast harvest outlet. Custom glycol and thread configurations available.

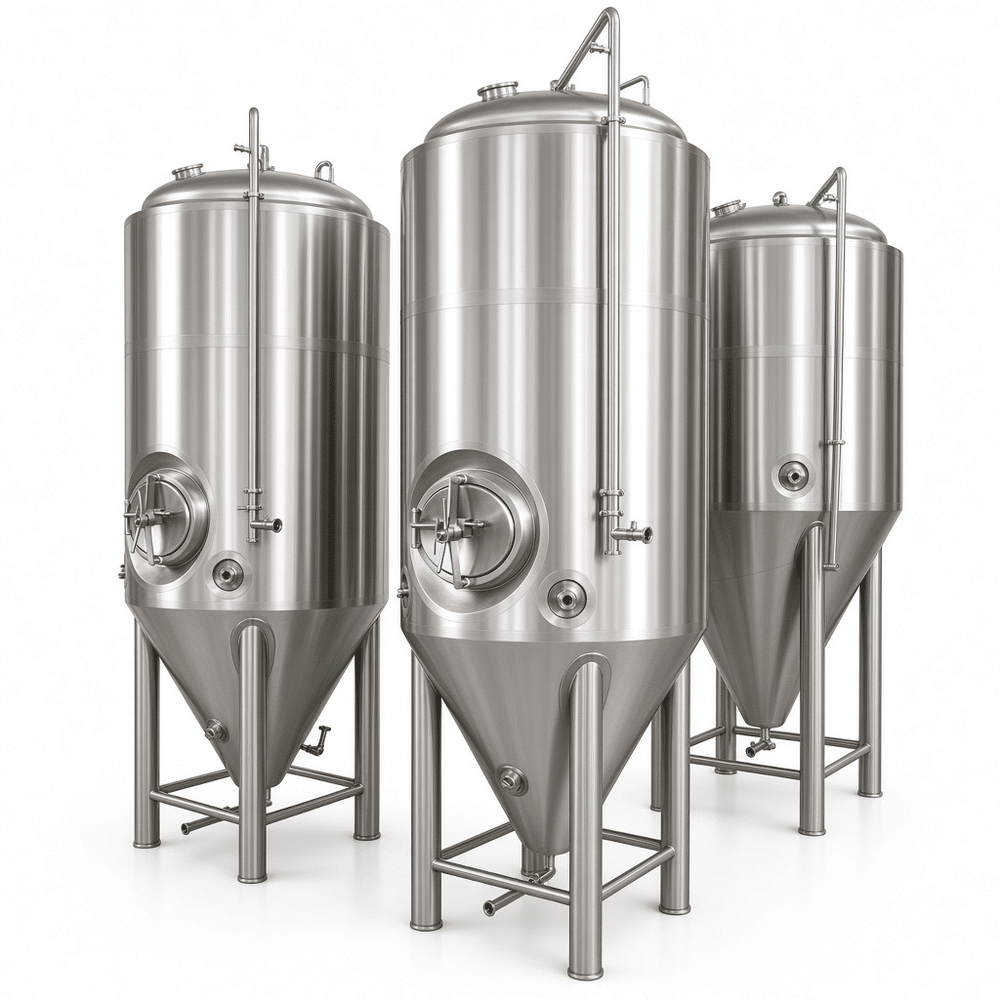

1000L Stainless Steel 304 Conical Fermenter With Glycol Jacket for Brewery
A 1000L SUS304 conical fermenter with a glycol jacket, built for brewpubs and small commercial breweries. Two cooling zones, 60° cone, 0.2 MPa working pressure, and CIP-ready tri-clamp fittings. Includes fabrication notes, a full specification table, and answers on tank sizing, stainless grade selection, and port configuration.

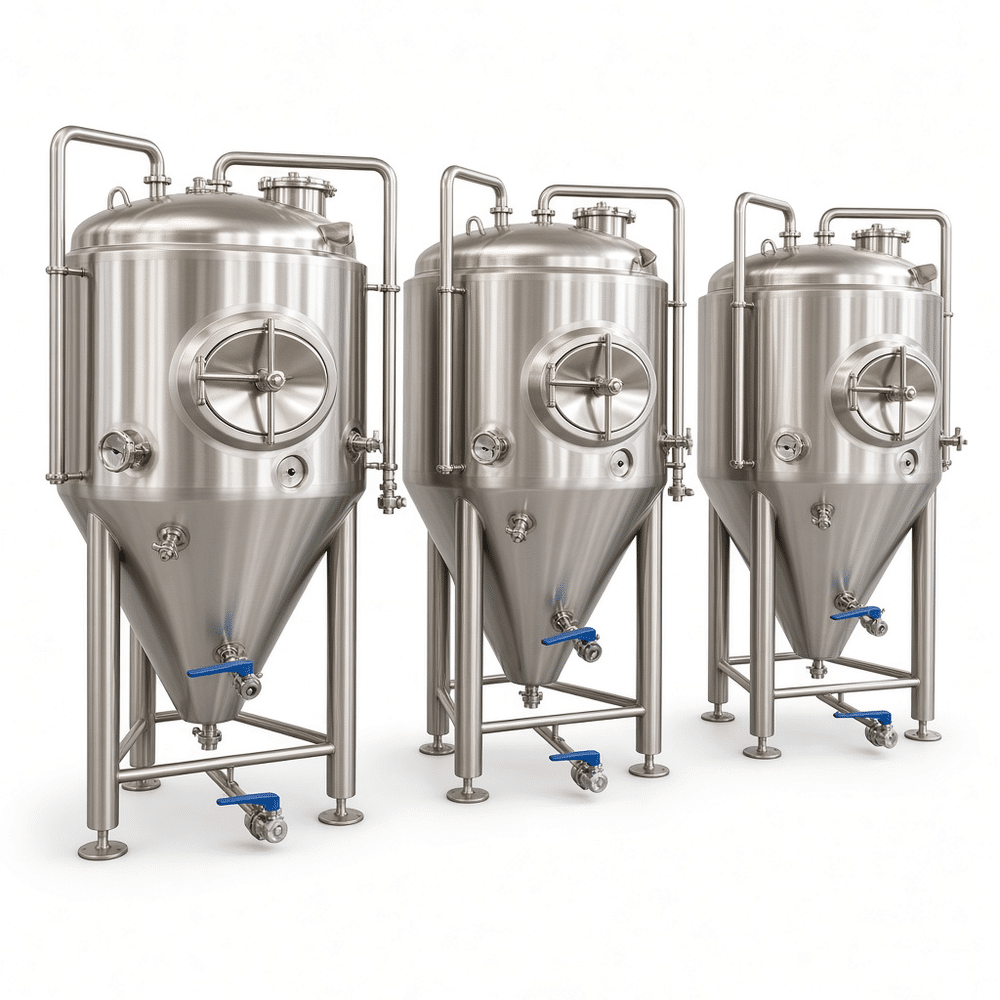

1000L SS304 Conical Beer Fermenter with Cooling Jacket, CIP & Sanitary Valves
A 1000L SS304 conical fermenter built for taprooms and small breweries, with glycol cooling jackets, sanitary tri-clamp fittings, and a CIP spray ball. We cover shell thickness, 304 versus 316L selection, working pressure and relief valve sizing, cone angle, and how to match tank count and cooling zones to your brewing schedule.

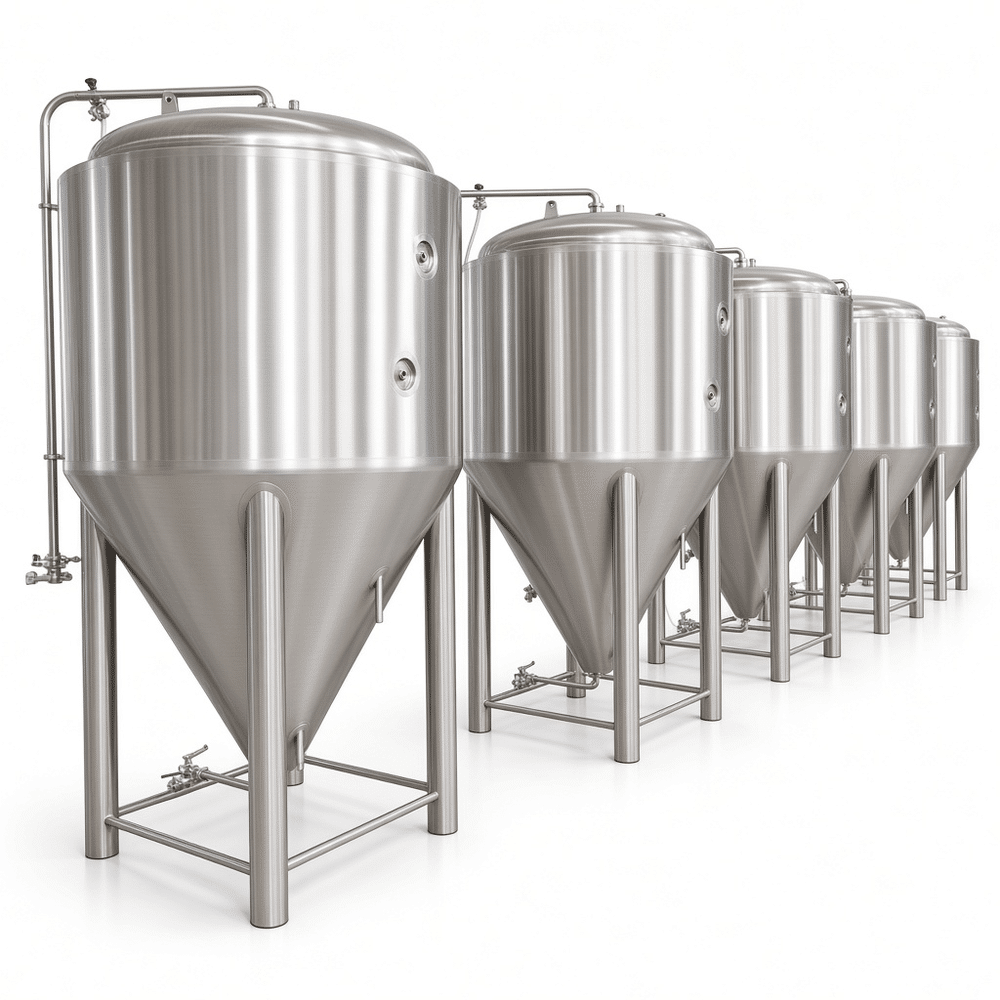

1000L-3000L Jacketed Conical Beer Fermentation Tank with CIP System
