Description

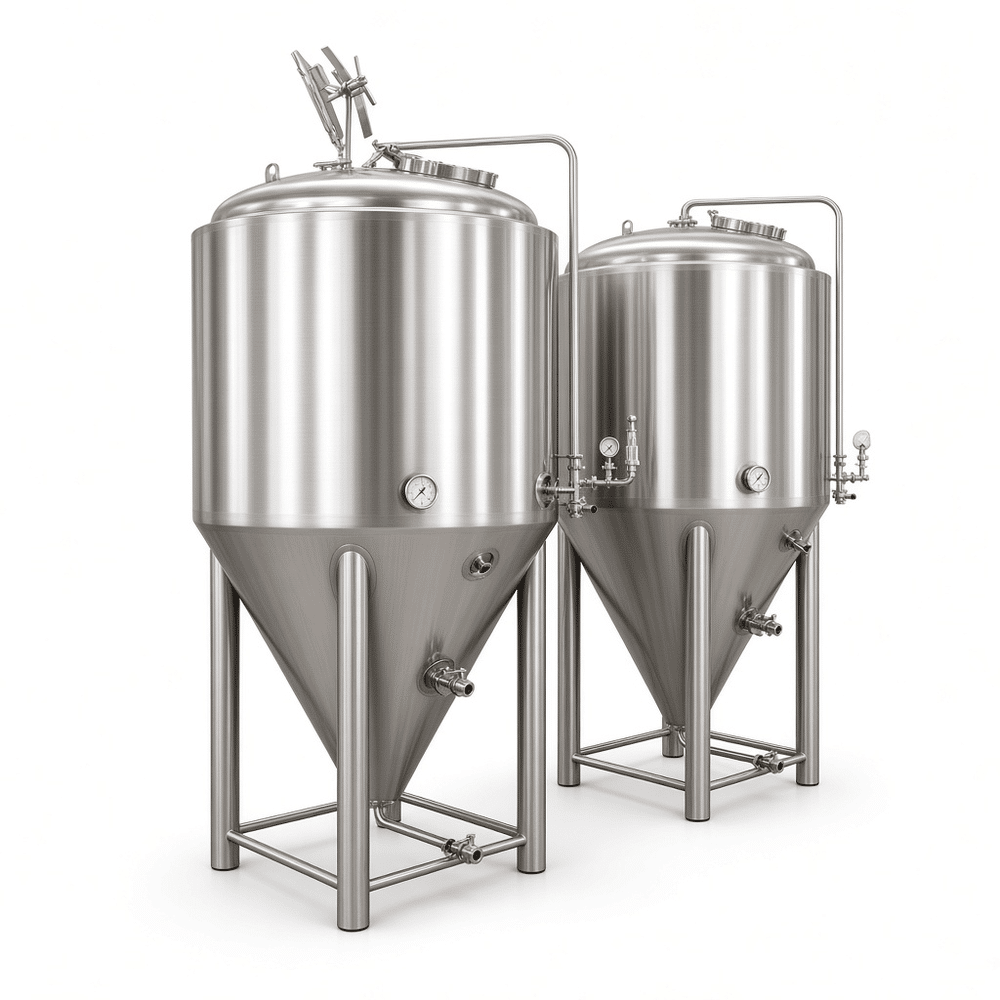

5 Bbl Isobaric Craft Beer Fermenter with Integrated Cooling
We build this 5 bbl fermenter for breweries that need reliable temperature control during active fermentation. The isobaric design allows you to maintain pressure while transferring or packaging, which matters when you\’re chasing consistent carbonation without a separate brite tank. The cooling system is not an afterthought—it\’s built into the jacket and sized to handle the heat load of a 5 bbl batch during peak fermentation.
Construction and Materials
The tank body and cone are formed from 304 stainless steel, with 316L available on request for aggressive cleaning regimes or high-chloride water. Interior welds are ground flush and passivated. Exterior welds are left as-is unless you specify a polished finish for washdown areas. The dimpled cooling jacket covers the cone and lower cylinder. We use a 2-inch polyurethane insulation layer to minimize condensation and glycol consumption.
Cooling and Pressure Management
Glycol flows through the jacket via 1-inch NPT or tri-clamp ports. A pressure relief valve is set at 15 psi by default; if you plan to spund or carbonate in the fermenter, we can supply a higher-rated valve to match your process. The manway is a 16-inch top-hinged door with a full gasket seal. CIP is handled through a rotating spray ball on the top dish, with the drain port at the cone tip.
Practical Considerations for Selection
Small brewpubs often run 5 bbl tanks as their primary fermenters, sometimes with a single tank dedicated to each flagship beer. Commercial breweries may use them as pilot or blending tanks. The decision usually comes down to batch size and how many turns you need per week. If you\’re brewing high-gravity beers or using lots of dry hops, allow extra headspace—about 20–25% above the batch volume.
Technical Specifications
| Parameter | Specification |
|---|---|
| Working volume | 5 bbl (approx. 155 gal / 587 L) |
| Material | 304 stainless steel (316L optional) |
| Cooling jacket | Dimpled, cone and lower cylinder |
| Pressure rating | 15 psi standard; up to 30 psi optional |
| Connections | Tri-clamp, 1\”–2\” depending on port |
| Manway | 16\” top-hinged |
Frequently Asked Questions
Can I carbonate in this fermenter? Yes, if you specify the higher-pressure relief valve and ensure all fittings are rated accordingly.
What glycol chiller size do I need? For a single 5 bbl tank, a 1/2 HP chiller is usually sufficient; for multiple tanks, size the chiller for the total heat load.
Is the tank suitable for CIP? Yes. The spray ball and cone drain allow for effective clean-in-place cycles.
How do I connect the cooling system? We provide 1-inch tri-clamp ports for glycol supply and return, with flow direction marked on the jacket.
Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the tank volume, cooling area and configuration for your brewery.
