Description

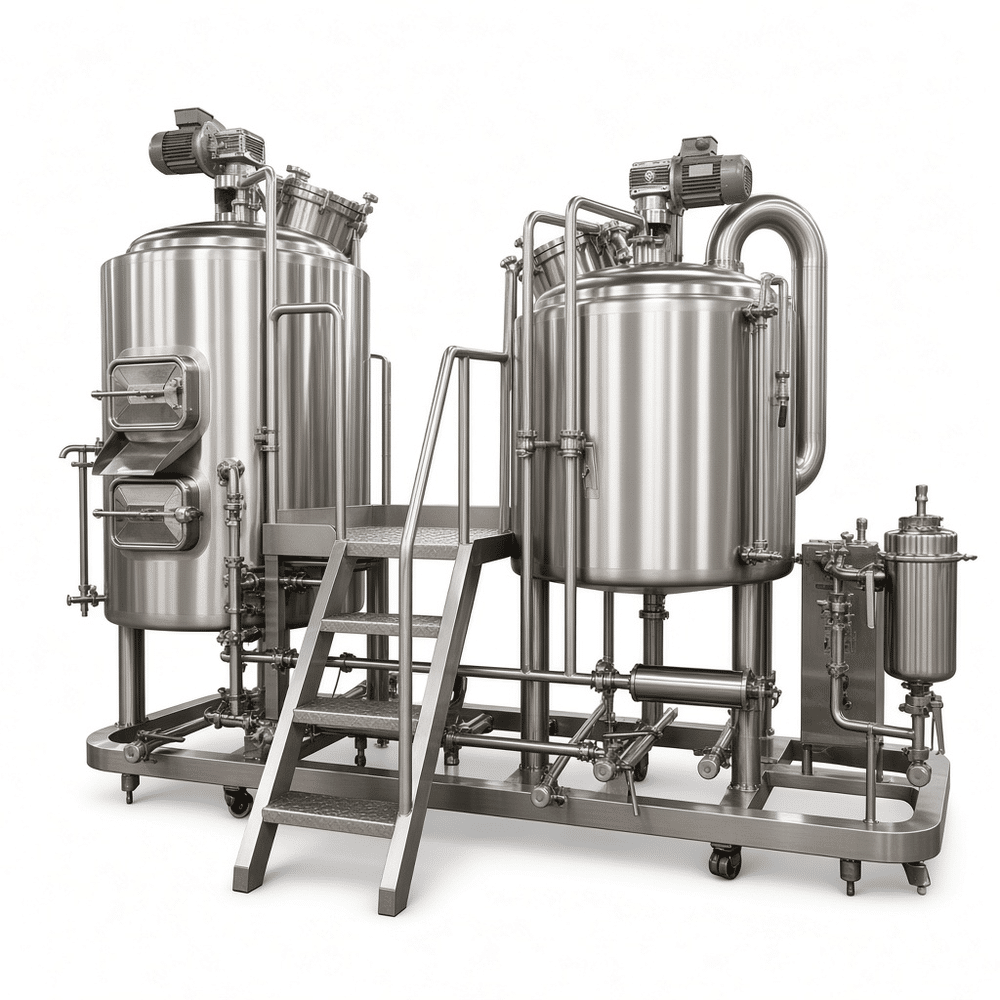

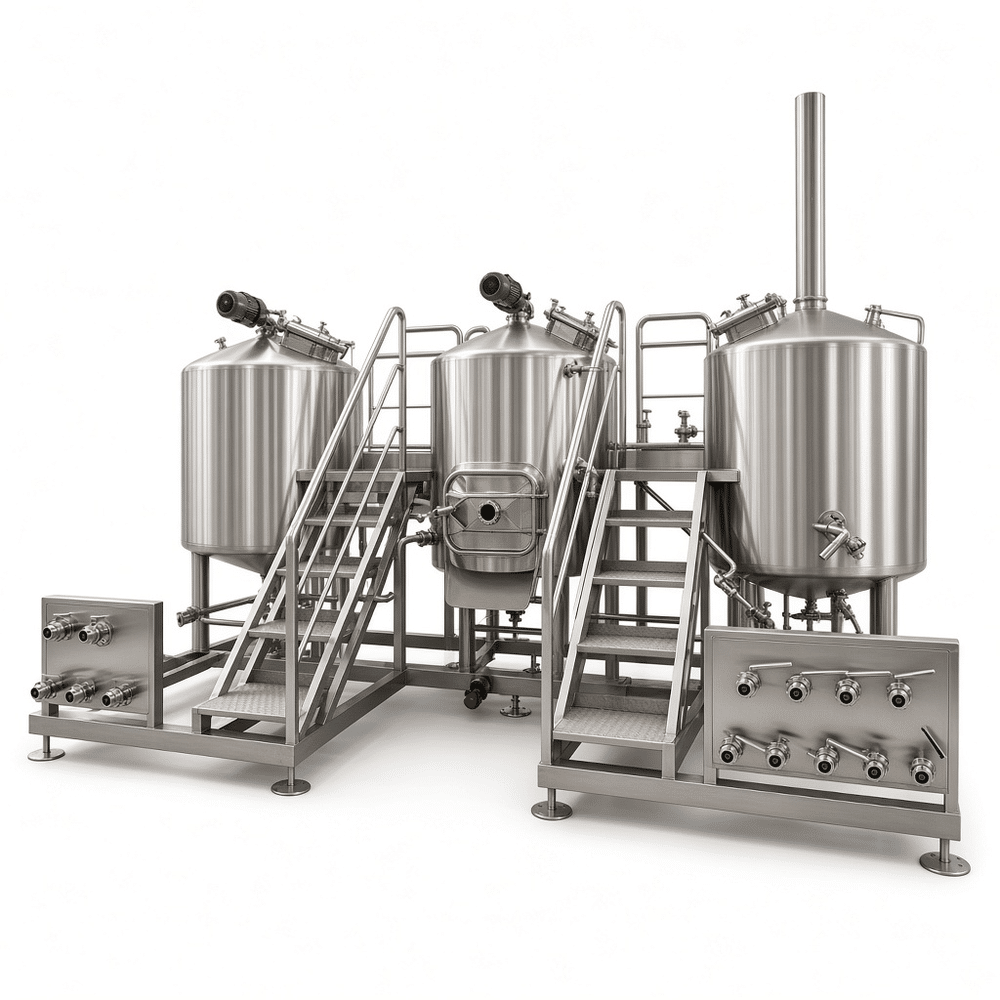

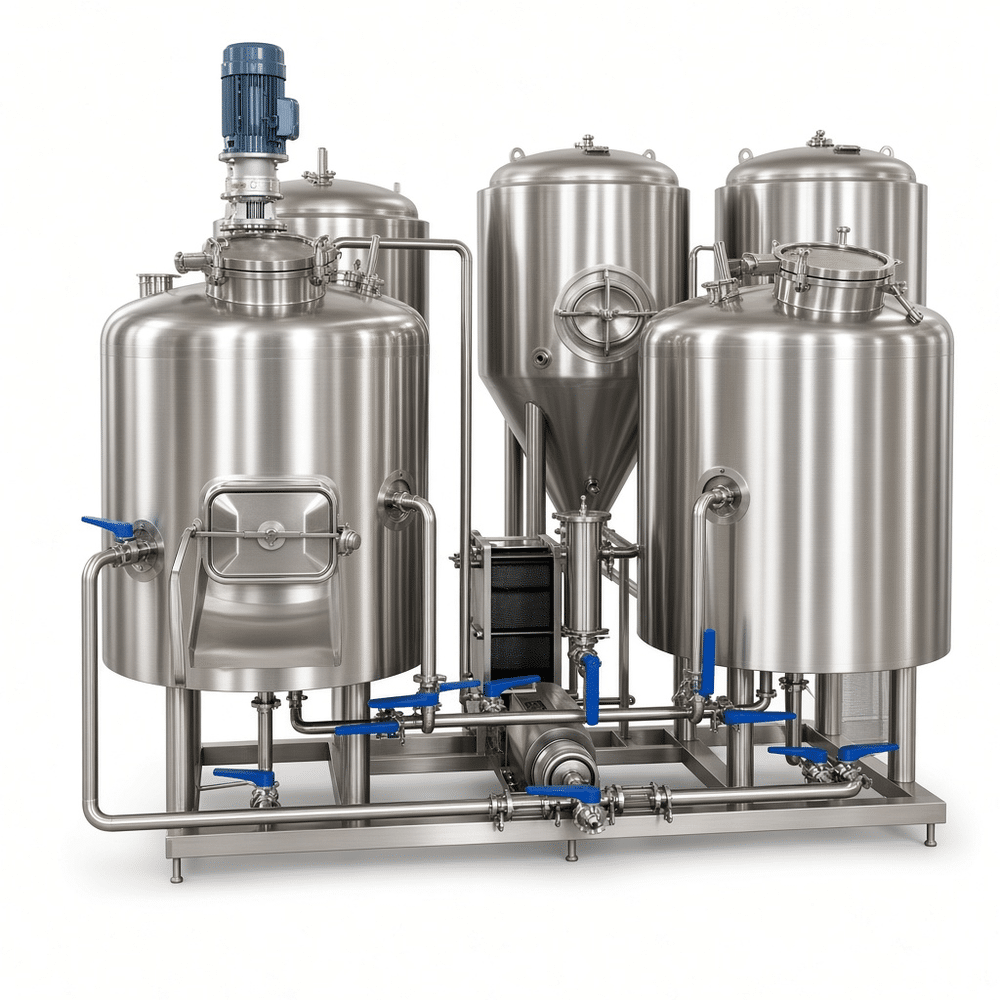

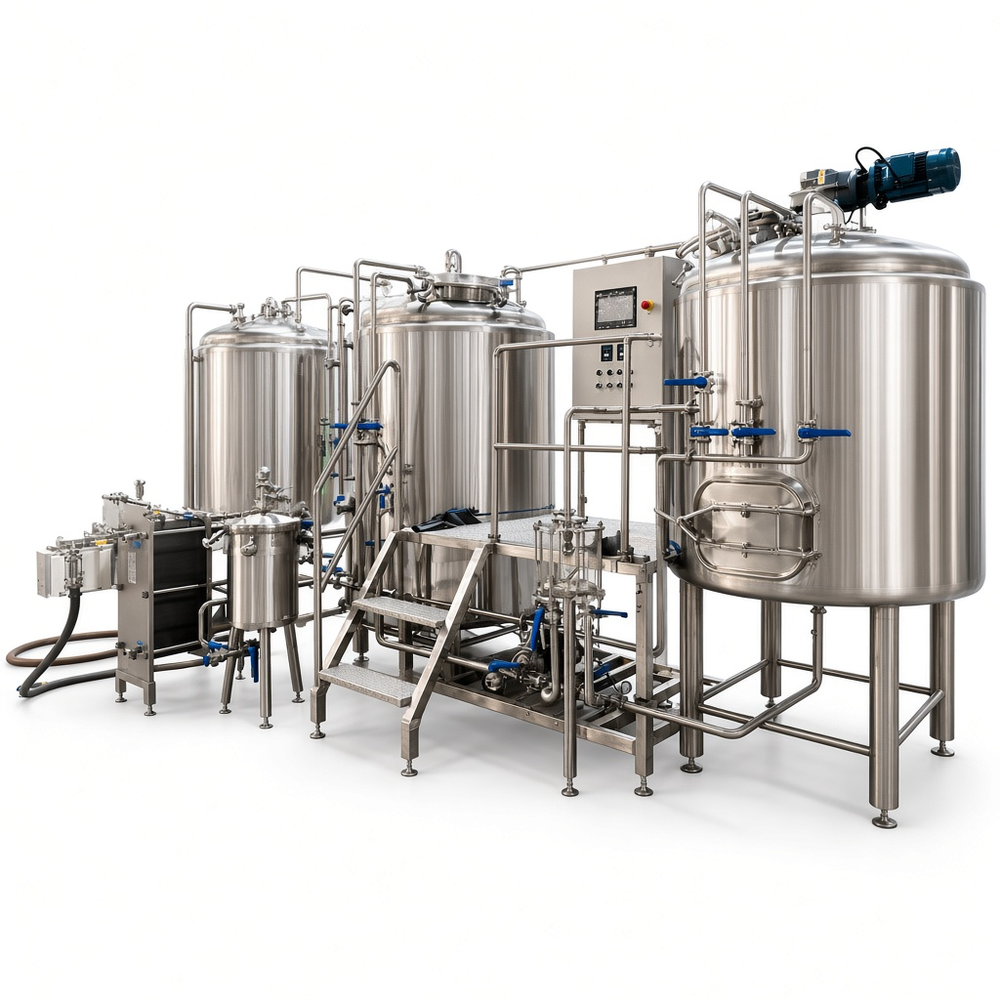

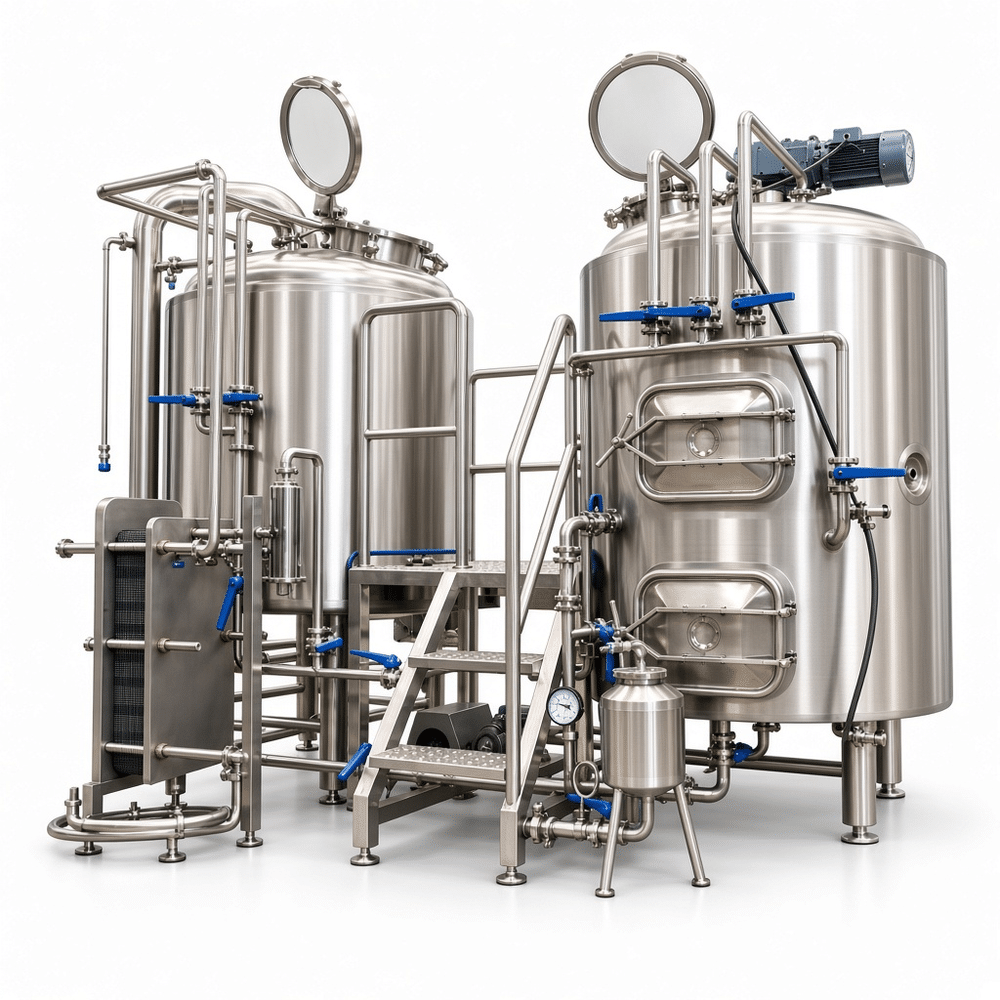

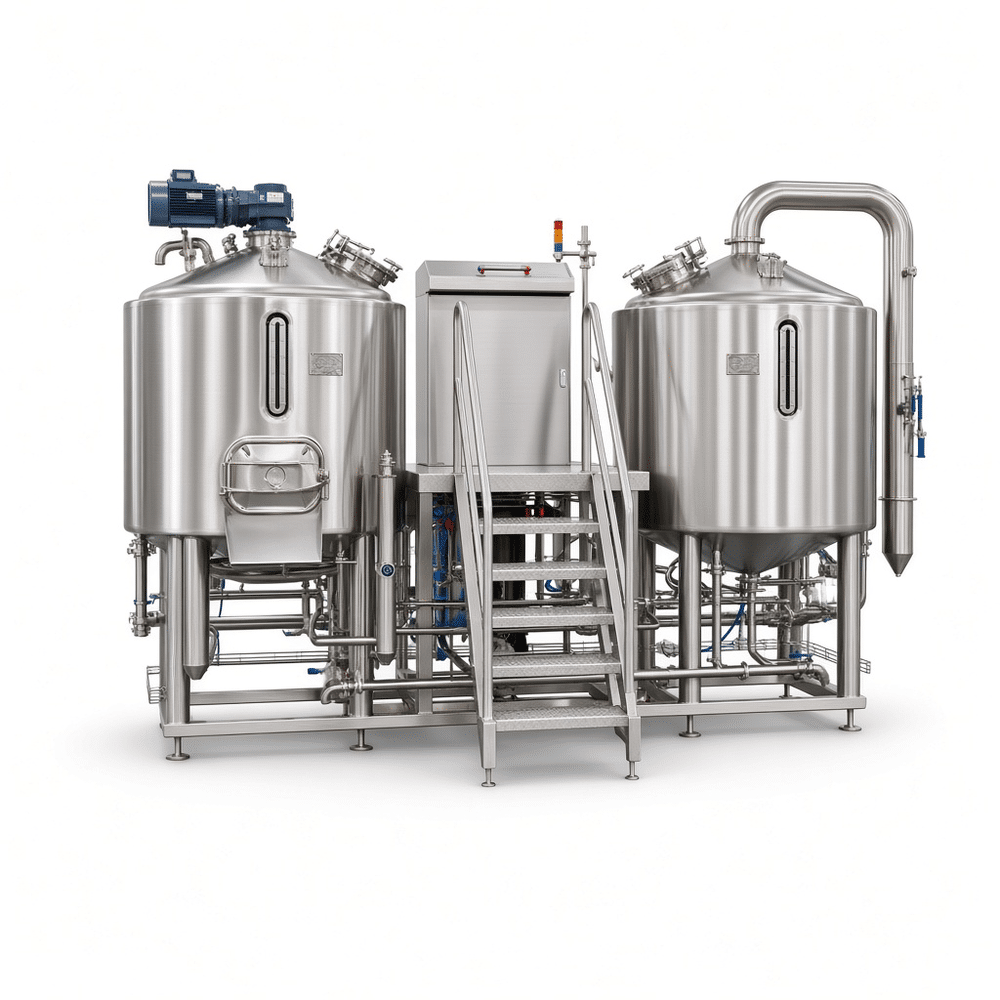

This automatic brewhouse is built around a 500–2000 L batch and is supplied as a two-vessel mash/lauter and kettle/whirlpool set with hot liquor tank, transfer pump, plate chiller and PLC/HMI control. It suits ale, lager, wheat and specialty releases where repeatability matters more than raw output.
Set capacity by net beer into the fermenter, not nominal tank volume. Account for trub, shrinkage and transfer losses. A 1000 L brewhouse rarely fills 1000 L fermenters on every brew; plan 5–10% headspace and match brews per day to HLT and chiller capacity.
Fabrication and process details
Wetted parts are SUS304 as standard; 316L is specified for higher chloride exposure, aggressive cleaning or long-term flavor stability. We TIG weld, pickle and passivate, then polish contact surfaces. Kettle and HLT jackets are pressure-tested. Working pressure and relief valve setting are matched to vessel design; never cap or isolate a relief valve. CIP uses a spray ball and dedicated return line, with tri-clamp connections for wort, CIP and glycol.
Fermenters are separate from the brewhouse. Conical bottoms help yeast cropping, dry hopping and trub removal. Single-wall tanks suit cold rooms; jacketed tanks need glycol and insulation. Small brewpubs often choose 500–1000 L with manual valves; commercial plants go 1500–2000 L with automated valve manifolds and PLC recipes.
Typical specifications
| Model | Batch volume | Brewhouse config | Heating | Control |
|---|---|---|---|---|
| 500 L | 500 L | Mash/lauter + kettle/whirlpool | Electric or steam | PLC/HMI |
| 1000 L | 1000 L | Two-vessel | Electric or steam | PLC/HMI |
| 1500 L | 1500 L | Two-vessel | Steam | PLC/HMI |
| 2000 L | 2000 L | Two-vessel | Steam | PLC/HMI |
Material options include SUS304 and 316L, with CIP spray balls and tri-clamp fittings. Confirm floor loading, ceiling height and utilities before layout.
FAQ
Can one system brew lager and ale? Yes. Brewhouse steps differ, while fermentation temperature and yeast handling remain separate. Provide recipe profiles at order.
Do I need conical fermenters? For yeast recovery and dry hopping, yes. Serving tanks and bright beer vessels use different configurations.
What is needed for a quote? Batch size, beer types, brews per day, fermenter count, available height, steam or electric heating, and glycol capacity.
Tell us your batch size, beer type, number of fermentation tanks and available space. We can recommend the tank volume, cooling area and configuration for your brewery.
