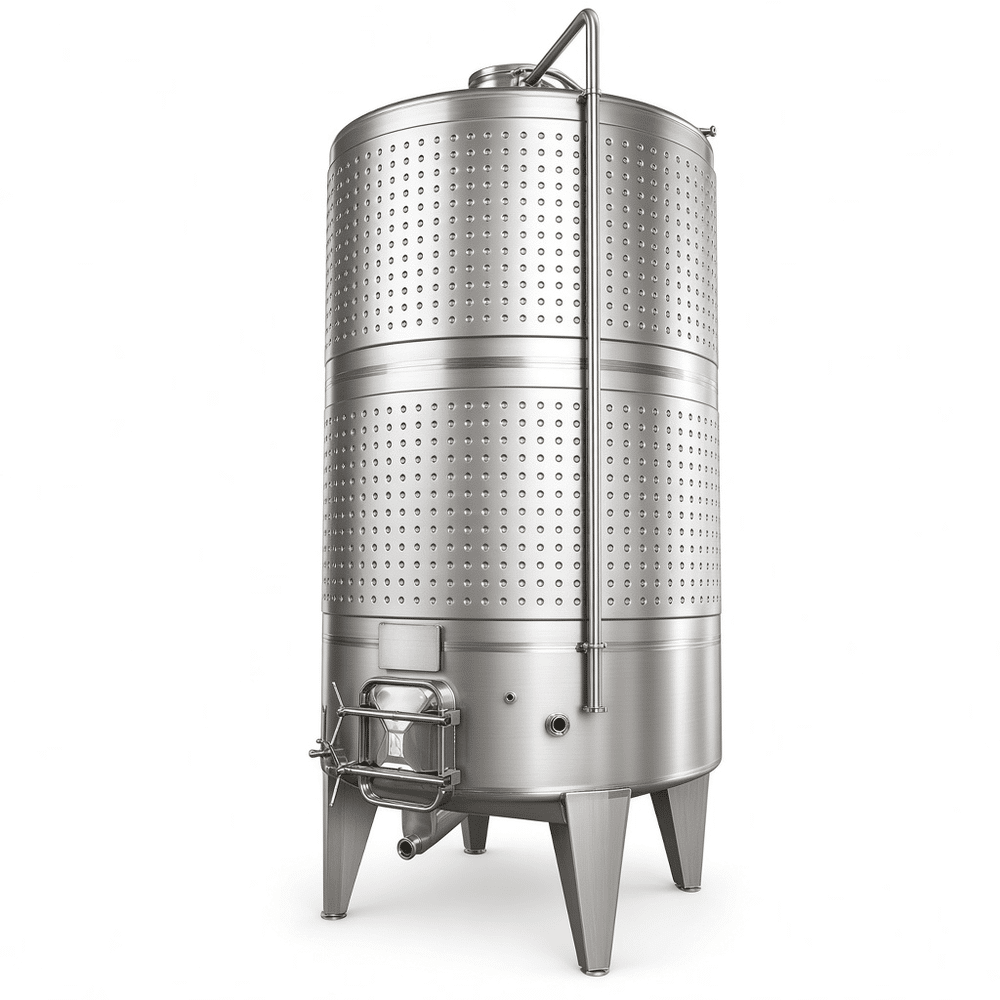

Description
A 5,000 L multi-chamber tank tends to come up when a winery has outgrown single-vessel batches but isn\’t ready to pour a new slab. One shell with internal dividers lets you run four lots — or four press fractions — on the same footprint, the same chiller loop, and the same CIP circuit.

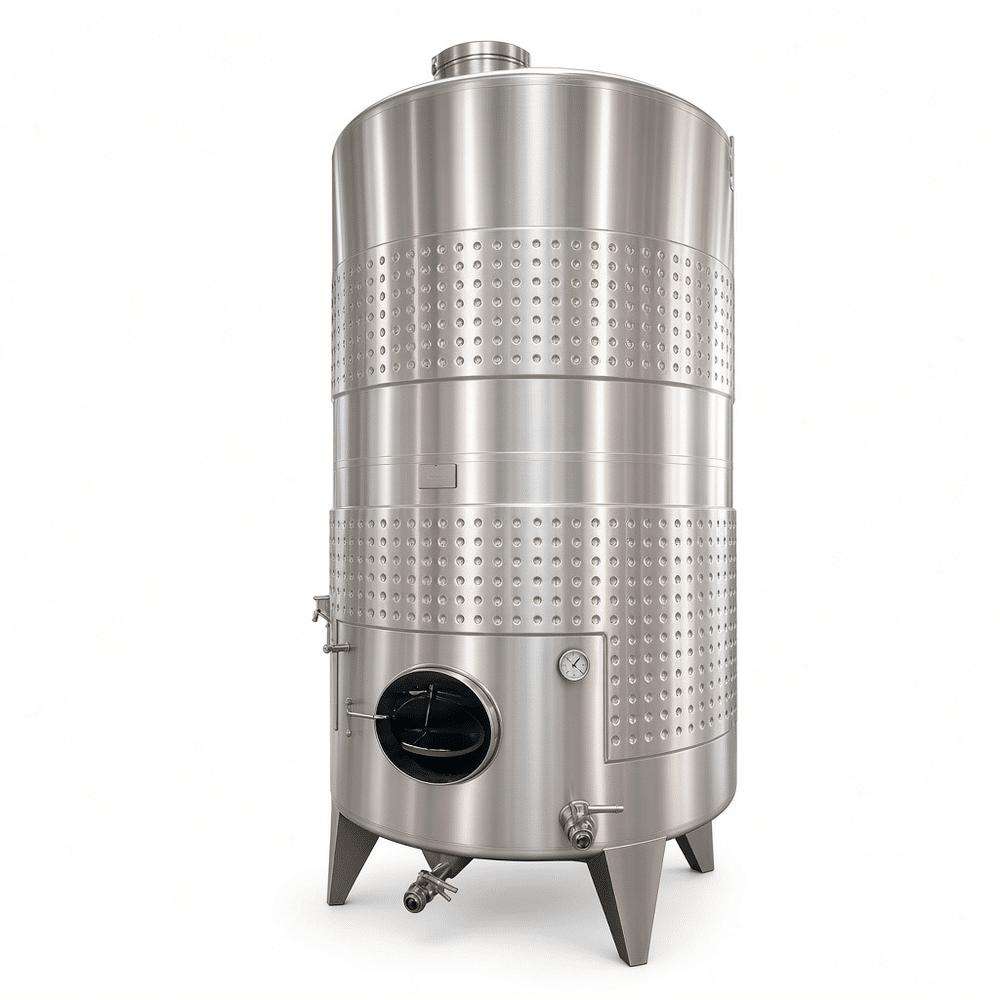

How the chambers behave in service

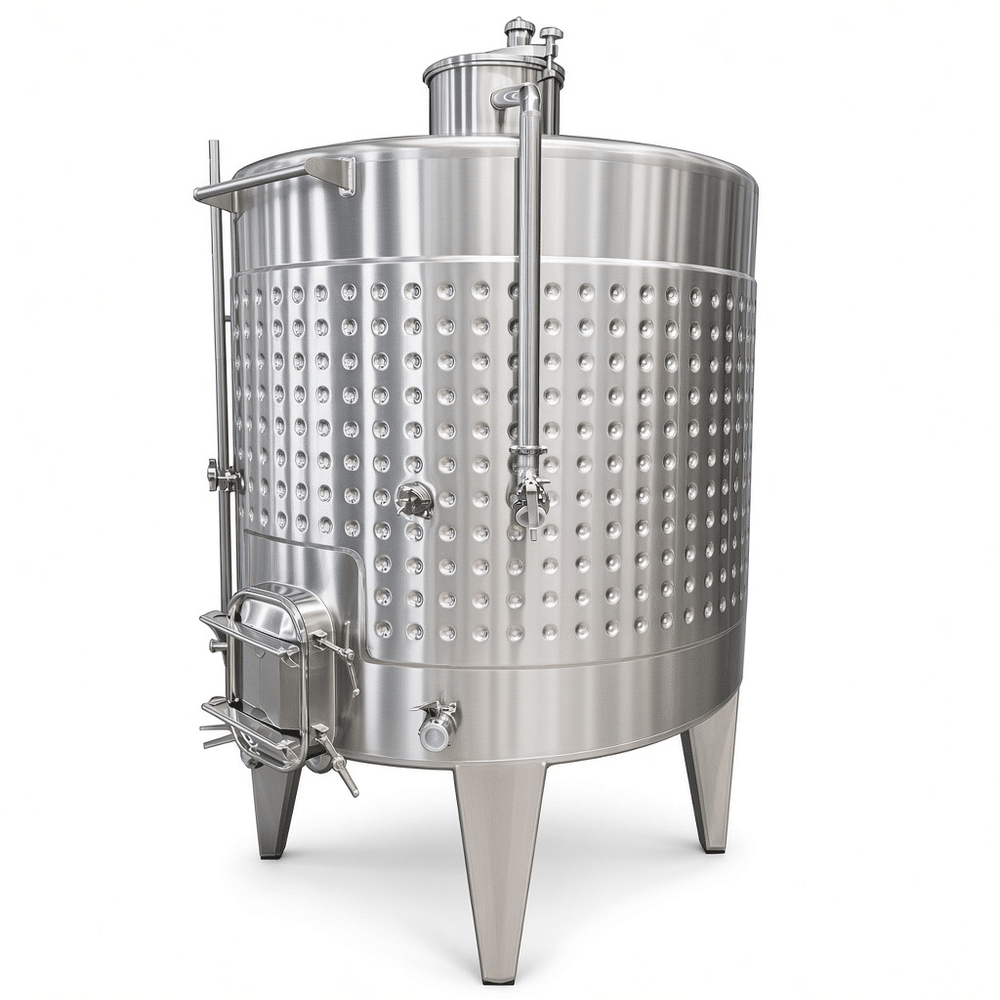

Every chamber carries its own jacket zone, coolant inlet and outlet, sample valve, and racking port. Divider plates are welded full-penetration from both sides and pressure-tested before the insulation goes on. That step is not optional: a divider that weeps between chambers spoils two lots at once, and you usually find out at blending, not at fermentation.
Jacket area is calculated per chamber rather than per tank. Chill one chamber and the chiller sees a smaller load — a 5 HP unit can hold 8–10 °C on a single zone where pulling the whole shell down would call for 15 HP.

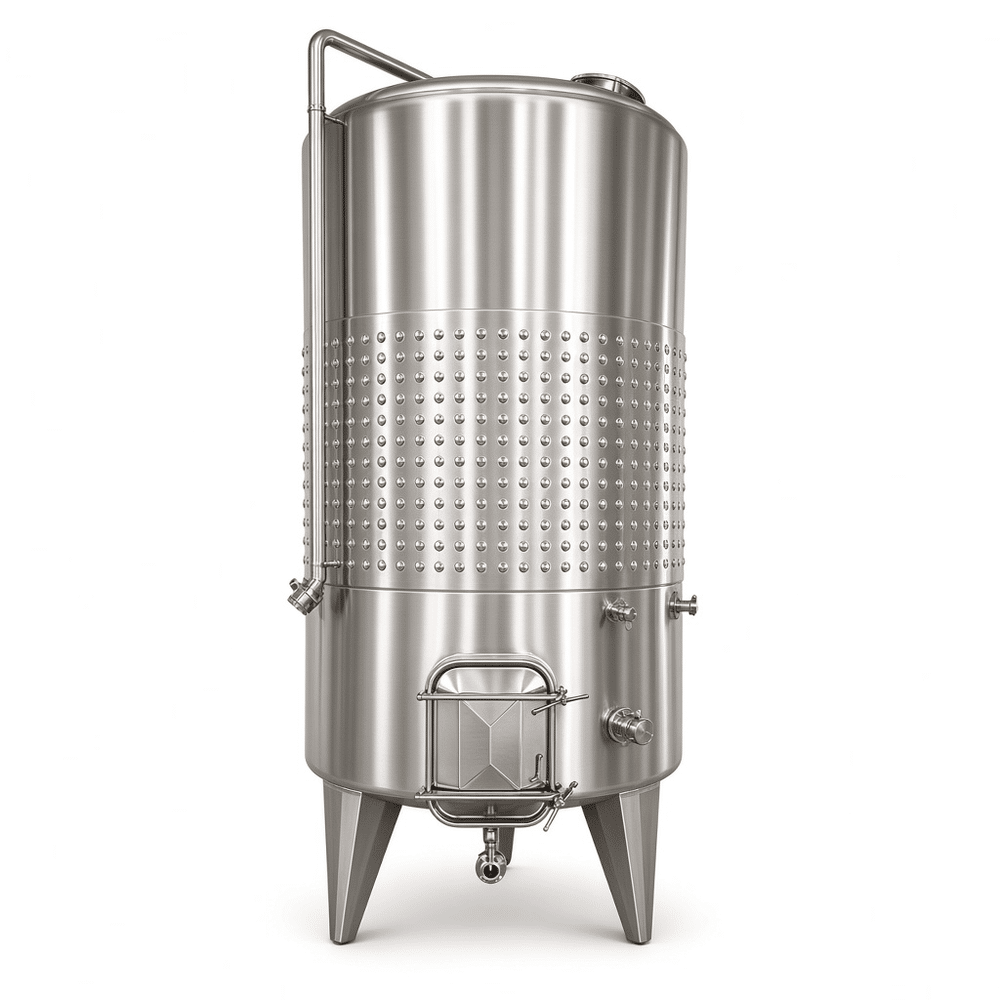

Materials and fabrication

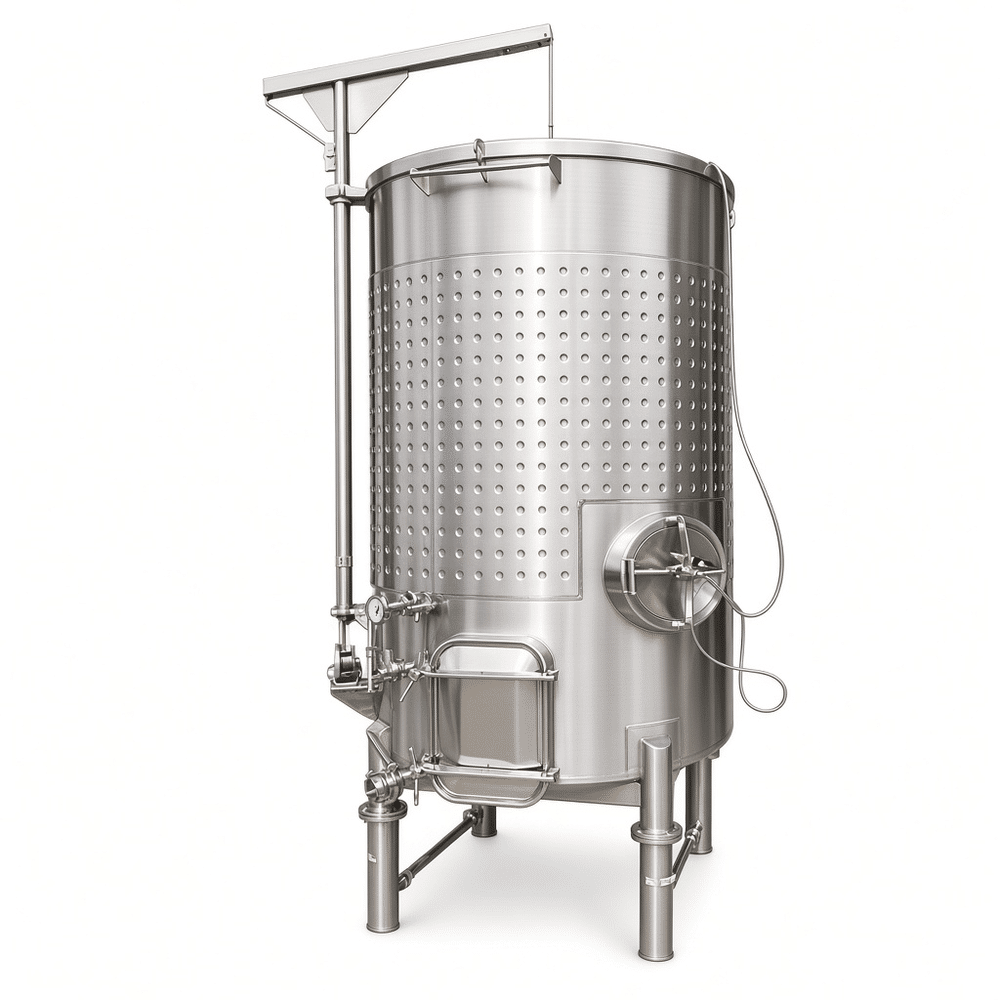

Inner shells run 304 or 316L at 3 mm minimum, with the jacket in 2 mm dimple plate or laser-welded channel plate. Go 316L for high-acid musts, long skin contact, or cleaning water with chlorides in it. Interior welds are ground flush, brushed, and passivated, targeting Ra ≤ 0.8 µm on wetted surfaces. Exterior is 1.5–2 mm cladding over 50–80 mm of injected polyurethane. Gaskets are food-grade EPDM or silicone and replaceable without cutting anything.

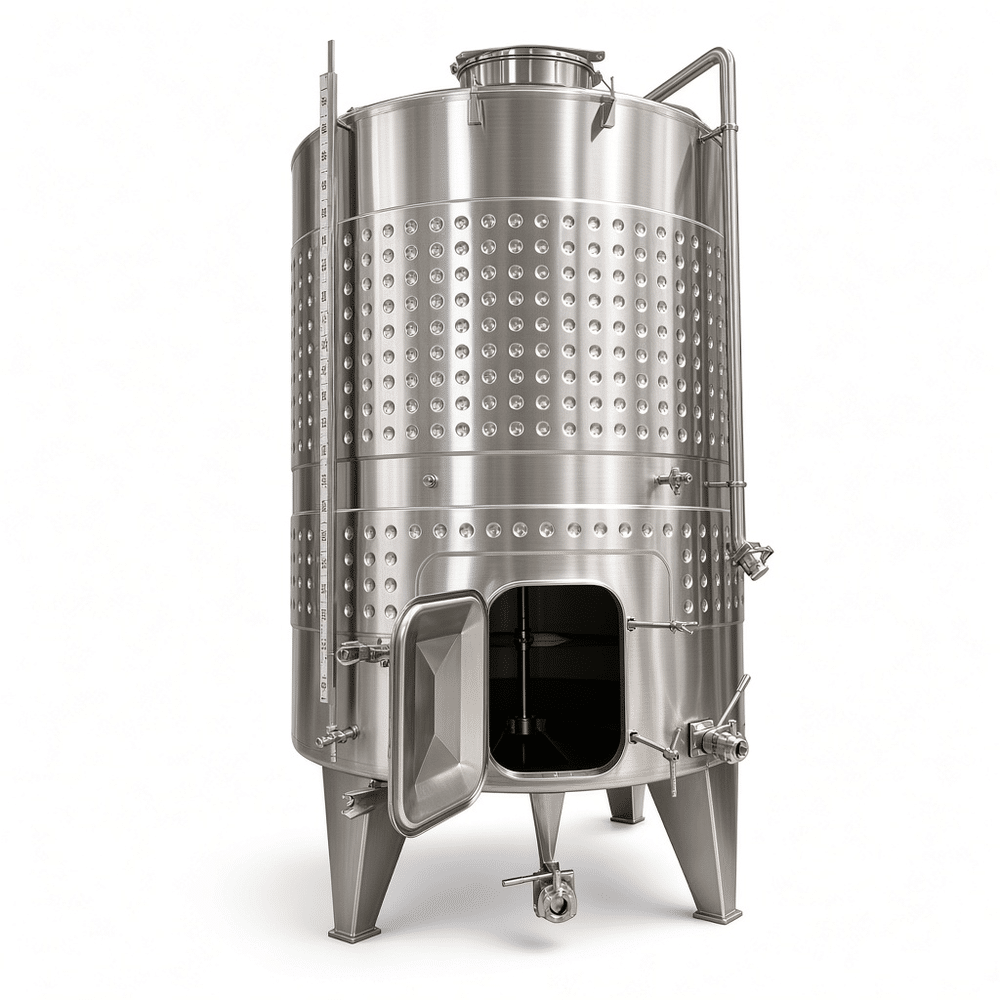

| Total capacity | 5,000 L |
| Working volume | 4,000–4,250 L |
| Chambers | 2–4, configurable |
| Inner shell | 3 mm SUS304 / 316L |
| Jacket | 2 mm dimple or channel plate |
| Insulation | 50–80 mm polyurethane |
| Interior finish | Ra ≤ 0.8 µm, passivated |
| Design pressure | 1.0–2.0 bar, safety valve set |
| Manways | 450 mm top, 400 mm side per chamber |
| Fittings | CIP spray ball, sample, racking, thermowell, vent |
| Support | Adjustable legs, seismic-rated frame |
Questions we get before quoting
Can the chambers run at different temperatures? Yes, if each zone has its own control valve. Sharing one solenoid across four chambers defeats the purpose.
What sets the safety valve? The lowest-rated component in the assembly, not the tank alone. Tell us your intended top pressure and we set the valve below it.
How is cleaning handled? One spray ball per chamber, drain at the low point, and enough slope that no liquid pools on the divider.
How many chambers do I need? Count your smallest repeatable lot. Four 1,000 L chambers beat two 2,000 L chambers if you never make 2,000 L of anything.
Send us your batch size, varietal or style, number of lots running in parallel, ceiling height, and available chiller capacity. We will come back with chamber count, jacket area per zone, and the connection layout that fits your cellar.
